Remove/install rear rubber bushings for differential mount in rear axle carrier - AR35.10-P-0050LW
Model 205
MODIFICATION NOTES
| 2.7.15 | Perform enable for high voltage on-board electrical system, added. | Operation step 1 |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Perform disable for the high-voltage on-board electrical system | Model 205.047/147/247 with code ME06 (Hybrid drive 50-KW variant (incl. plug-in)) |
|
| AR54.10-P-1150LW | |||
| 2 | Move transmission into position N or idle position | ||
| 3 | Secure vehicle on the lifting platform | AR00.60-P-0100CW | |
| 4 | Remove rear muffler | Model 205 | |
| Model 205 with engine 177 | AR49.10-P-4952MNA | ||
| Model 205 with engine 274, 276 | AR49.10-P-4952LW | ||
| Model 205 with engine 651 | AR49.10-P-7100LWB | ||

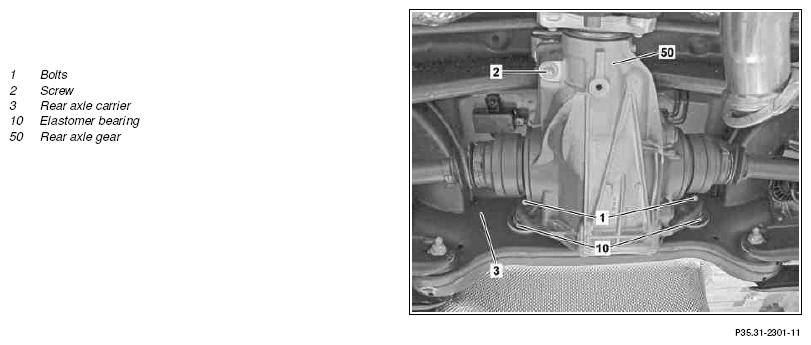

| 5 | Prop up rear axle differential (50) with telescopic lifter and support plate | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 6 | Remove bolts (1) | *BA35.10-P-1006-01H | |
| 7 | Unscrew bolt (2) | *BA35.10-P-1005-01H | |
| 8 | Lower rear axle differential (50) | ||
| 9 | Press elastomer bearings (10) of rear axle differential (50) out of rear axle carrier (3) | AR35.10-P-0050-02LW | |
| Fig 6 | |||
| Fig 5 | |||
| Figure | |||
| Figure | |||
| Fig 2 | |||
| 10 | Install in the reverse order |
REAR AXLE CARRIER
| Number | Designation | Model 205 | ||
|---|---|---|---|---|
| BA35.10-P-1005-01H | Rear axle differential to front adapter | Rear axle differential (steel) | Nm | 65 |
| Rear axle differential (aluminum) | Nm | 40 | ||
REAR AXLE CARRIER
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA35.10-P-1006-01H | Screw/bolt, rear axle differential to rear transverse bridge | Nm | 170 |
