Remove/install camber strut - AR35.20-P-0110LW

MODEL 205

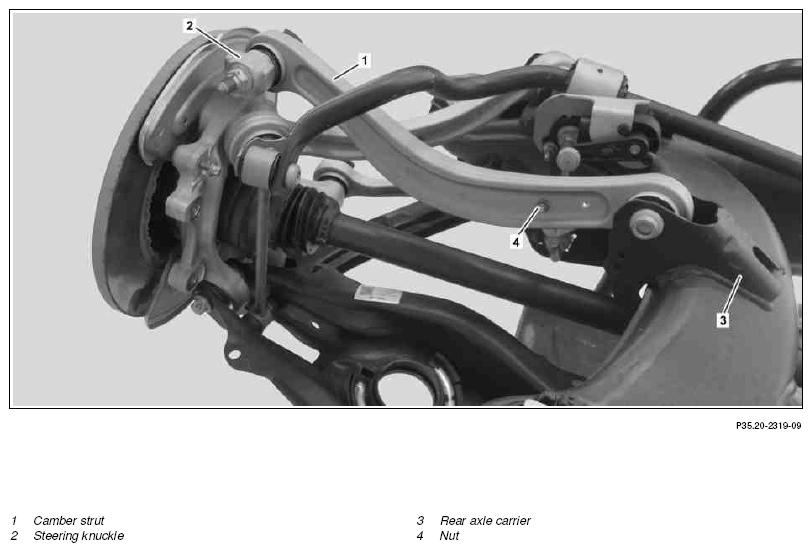

Fig 1: Identifying Camber Strut Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Lower front rear axle		AR35.10-P-0015LW
2	Unscrew nut (4), remove bracket from level sensor linkage and place to one side	If installed. Do not twist level sensor. Pay attention to installation position.
3	Detach camber strut (1) from steering knuckle (2)	Bolt, camber strut to wheel carrier	*BA35.20-P-1002-02L
4	Detach camber strut (1) from rear axle carrier (3) and remove camber strut (1)	Bolt, camber strut to rear axle carrier	*BA35.20-P-1001-02L
	Check
5	Check camber strut (1) for condition and damage	If damage is present: ↓ Replace camber strut (1).
6	Install in the reverse order

CAMBER STRUT

Number	Designation				MODEL 205
BA35.20-P-1001-02L	Bolt, camber strut to rear axle carrier	Rear axle carrier (aluminum)	Stage 1	Nm	80
			Stage 2	∠°	90
		Rear axle carrier (steel)	Stage 1	Nm	50
			Stage 2	∠°	90

CAMBER STRUT

Number	Designation			MODEL 205
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90
