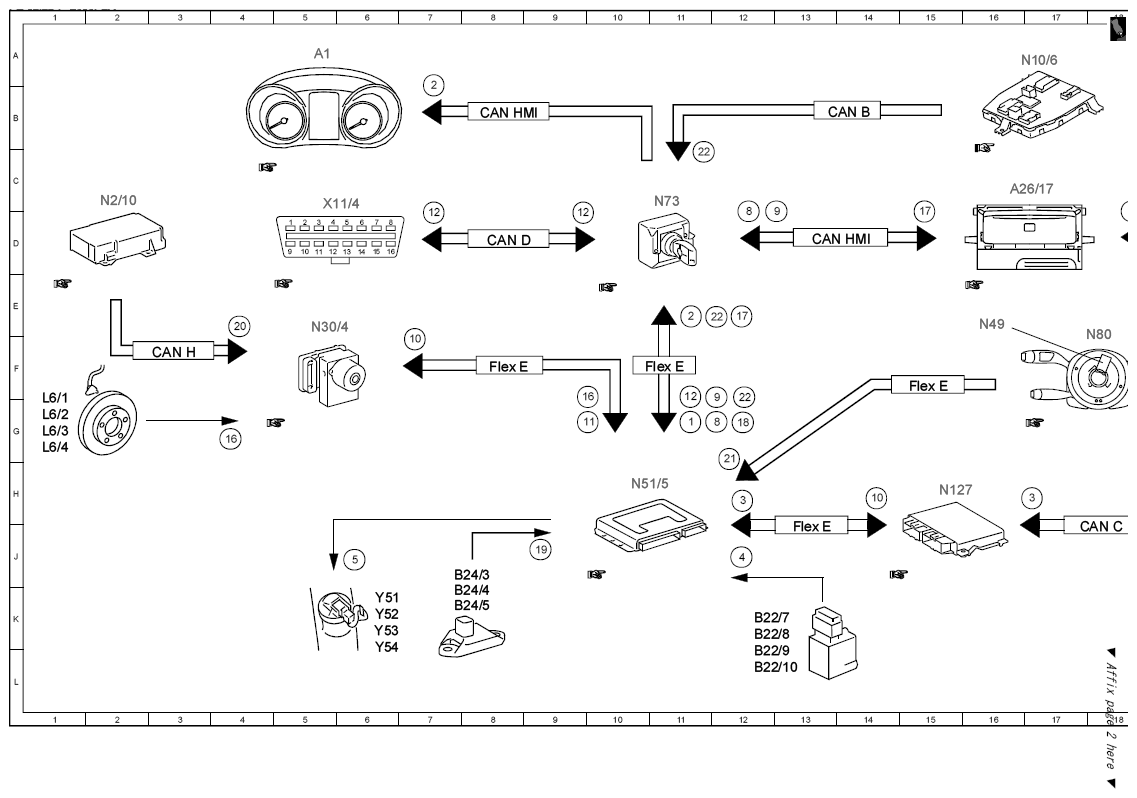

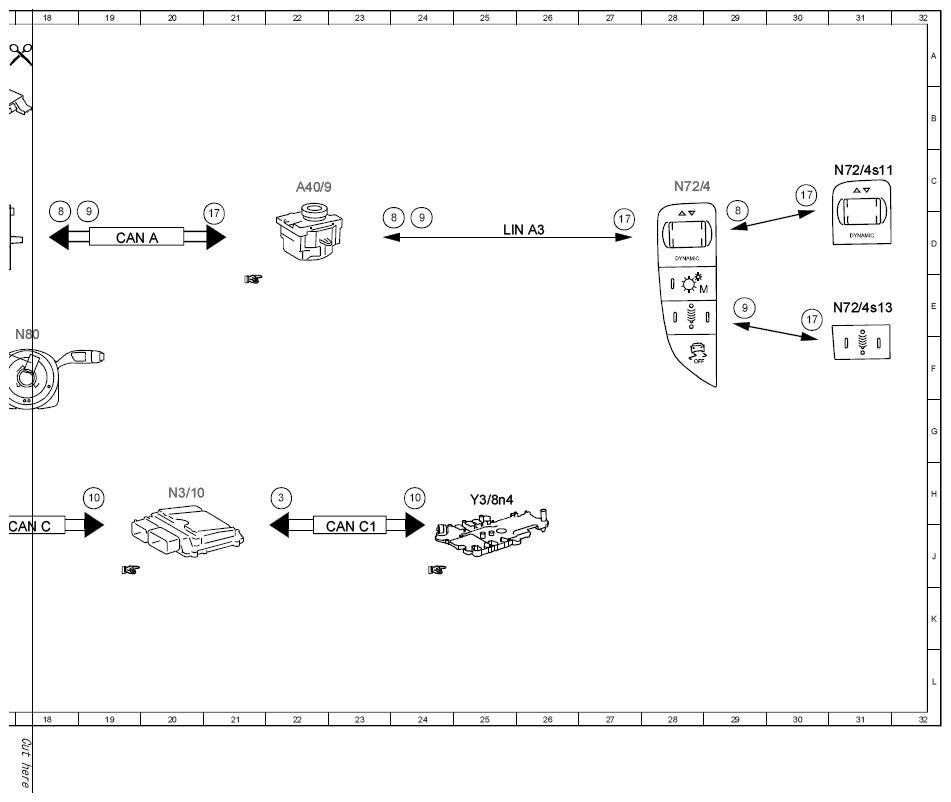

| 1 |
Circuit 15, status |
11G |
| 10 |
Vehicle level, status |
14H |
| 10 |
Vehicle level, status |
7F |
| 10 |
Vehicle level, status |
19H |
| 10 |
Vehicle level, status |
24H |
| 11 |
ESP®, status |
9G |
| 12 |
Diagnosis, communication |
11G |
| 12 |
Diagnosis, communication |
7D |
| 12 |
Diagnosis, communication |
9D |
| 16 |
Wheel speed, signal |
4G |
| 16 |
Wheel speed, signal |
9G |
| 17 |
Light-emitting diode actuation |
15D |
| 17 |
Light-emitting diode actuation |
12E |
| 17 |
Light-emitting diode actuation |
21D |
| 17 |
Light-emitting diode actuation |
27D |
| 17 |
Light-emitting diode actuation |
30E |
| 17 |
Light-emitting diode actuation |
30C |
| 18 |
Battery voltage, signal |
12G |
| 19 |
Body acceleration sensor, signal |
9J |
| 2 |
AIRMATIC fault, message |
11E |
| 2 |
AIRMATIC fault, message |
7B |
| 20 |
Speed, turn rate and lateral acceleration, signal |
4E |
| 21 |
Steering wheel angle, signal |
12H |
| 22 |
Variant coding, signal |
11C |
| 22 |
Variant coding, signal |
12E |
| 22 |
Variant coding, signal |
12G |
| 3 |
Transmission control, status |
12H |
| 3 |
Transmission control, status |
17H |
| 3 |
Transmission control, status |
22H |
| 4 |
Level sensor, status |
12J |
| 5 |
Damping valve units, actuation |
6J |
| 8 |
DYNAMIC SELECT switch, status |
12C |
| 8 |
DYNAMIC SELECT switch, status |
11G |
| 8 |
DYNAMIC SELECT switch, status |
18C |
| 8 |
DYNAMIC SELECT switch, status |
23C |
| 8 |
DYNAMIC SELECT switch, status |
29C |
| 9 |
Comfort/Sport button, status |
24D |
| 9 |
Comfort/Sport button, status |
19D |
| 9 |
Comfort/Sport button, status |
12G |
| 9 |
Comfort/Sport button, status |
29E |
| 9 |
Comfort/Sport button, status |
13D |
| A1 |
Instrument cluster |
5A |
| A26/17 |
Head unit |
16C |
| A40/9 |
Audio/COMAND control panel |
22C |
| B22/10 |
Right rear level sensor |
12L |
| B22/7 |
Left rear level sensor |
12K |
| B22/8 |
Left front level sensor |
12K |
| B22/9 |
Right front level sensor |
12L |
| B24/3 |
Left front body lateral acceleration sensor |
8J |
| B24/4 |
Right front body lateral acceleration sensor |
8K |
| B24/5 |
Left rear body lateral acceleration sensor |
8K |
| CAN A |
Telematics CAN |
19D |
| CAN B |
Interior CAN |
14B |
| CAN C |
Engine CAN |
18J |
| CAN C1 |
Drive train CAN |
23J |
| CAN D |
Diagnostic CAN |
8D |
| CAN H |
Vehicle dynamics CAN |
3F |
| CAN HMI |
User interface CAN |
13D |
| CAN HMI |
User interface CAN |
8B |
| Flex E |
Chassis FlexRay |
8F |
| Flex E |
Chassis FlexRay |
13J |
| Flex E |
Chassis FlexRay |
11F |
| Flex E |
Chassis FlexRay |
15F |
| L6/1 |
Left front axle rpm sensor |
1G |
| L6/2 |
Right front axle rpm sensor |
1G |
| L6/3 |
Left rear axle rpm sensor |
1G |
| L6/4 |
Right rear axle rpm sensor |
1G |
| LIN A3 |
LCP LIN |
25D |
| N10/6 |
Front SAM control unit |
17A |
| N127 |
Drivetrain control unit |
15H |
| N2/10 |
Supplemental restraint system control unit |
2C |
| N3/10 |
ME-SFI [ME] control unit |
20H |
| N30/4 |
Electronic Stability Program control unit |
5E |
| N49 |
Steering wheel angle sensor |
16E |
| N51/5 |
Adaptive damping system control unit |
10H |
| N72/4 |
Left lower control panel |
28C |
| N72/4s11 |
DYNAMIC SELECT switch |
31C |
| N72/4s13 |
Comfort/Sport button |
31E |
| N73 |
Electronic ignition switch control unit |
11C |
| N80 |
Steering column module control unit |
18F |
| X11/4 |
Diagnostic connector |
5C |
| Y3/8n4 |
Fully integrated transmission control unit |
25H |
| Y51 |
Left front axle damping valve unit |
6K |
| Y52 |
Right front axle damping valve unit |
6K |
| Y53 |
Left rear axle damping valve unit |
6K |
| Y54 |
Right rear axle damping valve unit |
6L |
