| 1 |
Circuit 15, status |
11G |
| 10 |
Vehicle level, status |
14H |
| 10 |
Vehicle level, status |
7F |
| 10 |
Vehicle level, status |
19H |
| 10 |
Vehicle level, status |
25H |
| 11 |
ESP®, status |
9G |
| 12 |
Diagnosis, communication |
11G |
| 12 |
Diagnosis, communication |
7D |
| 12 |
Diagnosis, communication |
9D |
| 12 |
Diagnosis, communication |
12F |
| 13 |
Vehicle level button, status |
12G |
| 13 |
Vehicle level button, status |
12D |
| 13 |
Vehicle level button, status |
18E |
| 13 |
Vehicle level button, status |
24D |
| 13 |
Vehicle level button, status |
29E |
| 13 |
Vehicle level button, status |
29J |
| 14 |
AGILITY SELECT switch, status |
12G |
| 14 |
AGILITY SELECT switch, status |
13C |
| 16 |
Wheel speed, signal |
4F |
| 16 |
Wheel speed, signal |
9G |
| 17 |
Light-emitting diode actuation |
15D |
| 17 |
Light-emitting diode actuation |
12F |
| 17 |
Light-emitting diode actuation |
21E |
| 17 |
Light-emitting diode actuation |
27D |
| 17 |
Light-emitting diode actuation |
30F |
| 17 |
Light-emitting diode actuation |
30K |
| 17 |
Light-emitting diode actuation |
30H |
| 17 |
Light-emitting diode actuation |
30D |
| 17 |
Light-emitting diode actuation |
27G |
| 18 |
Battery voltage, signal |
12G |
| 19 |
Body acceleration sensor, signal |
9J |
| 2 |
AIRMATIC fault, message |
11F |
| 2 |
AIRMATIC fault, message |
7B |
| 20 |
Audio/COMAND display, message |
17C |
| 3 |
Transmission control, status |
12H |
| 3 |
Transmission control, status |
17H |
| 3 |
Transmission control, status |
23H |
| 4 |
Level sensor, status |
12J |
| 5 |
Damping valve units, actuation |
6J |
| 7 |
Level control valve, actuation |
4J |
| 8 |
AIRMATIC pressure reduction valve, actuation |
16G |
| 9 |
AIRMATIC compressor, actuation |
14F |
| 9 |
AIRMATIC compressor, actuation |
16F |

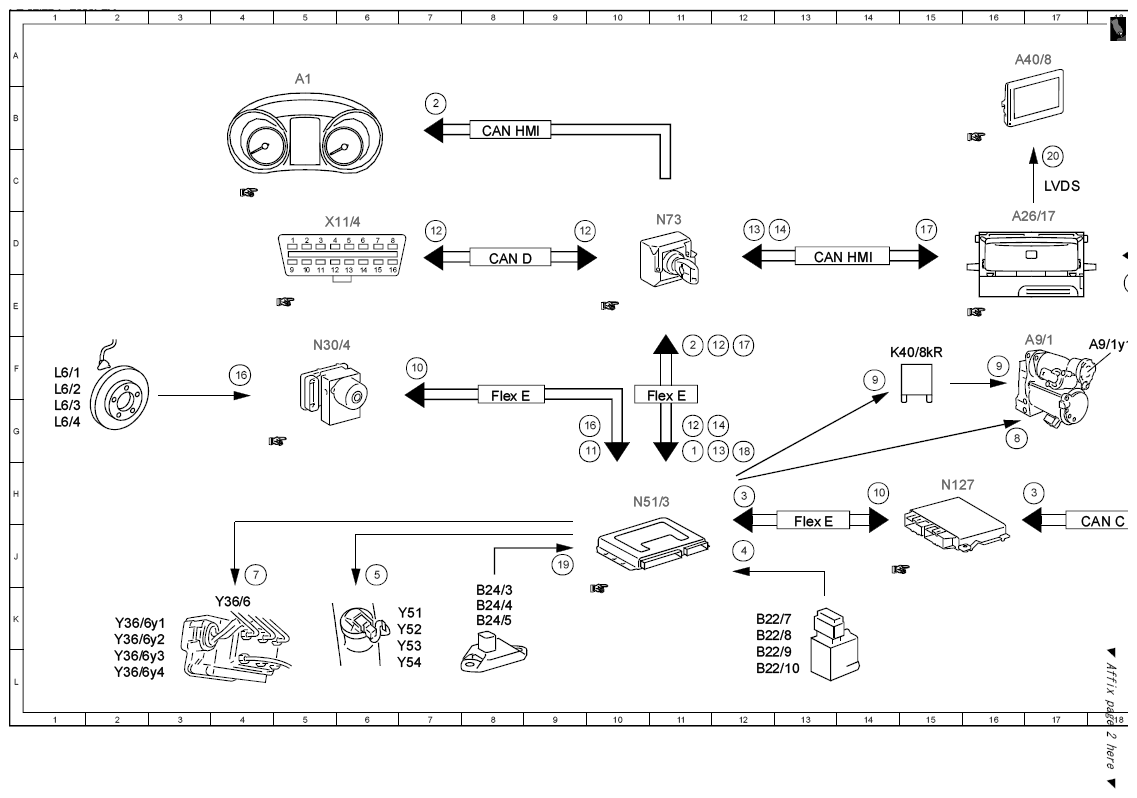

| A1 |
Instrument cluster |
5A |
| A26/17 |
Head unit |
16D |
| A40/8 |
Audio/COMAND display |
17A |
| A40/9 |
Audio/COMAND control panel |
22C |
| A9/1 |
AIR BODY CONTROL compressor |
17F |
| A9/1y1 |
AIR BODY CONTROL pressure relief valve |
18F |
| B22/10 |
Right rear level sensor |
12L |
| B22/7 |
Left rear level sensor |
12K |
| B22/8 |
Left front level sensor |
12K |
| B22/9 |
Right front level sensor |
12L |
| B24/3 |
Left front body lateral acceleration sensor |
8K |
| B24/4 |
Right front body lateral acceleration sensor |
8K |
| B24/5 |
Left rear body lateral acceleration sensor |
8K |
| CAN A |
Telematics CAN |
19D |
| CAN C |
Engine CAN |
18J |
| CAN C1 |
Drive train CAN |
24J |
| CAN D |
Diagnostic CAN |
8D |
| CAN HMI |
User interface CAN |
13D |
| CAN HMI |
User interface CAN |
8B |
| Code 425 |
6-speed manual transmission |
28G |
| Code 427 |
7G-TRONIC PLUS automatic transmission |
28C |
| Flex E |
Chassis FlexRay |
8G |
| Flex E |
Chassis FlexRay |
13J |
| Flex E |
Chassis FlexRay |
11G |
| K40/8kR |
AIR BODY CONTROL relay |
15F |
| L6/1 |
Left front axle rpm sensor |
1F |
| L6/2 |
Right front axle rpm sensor |
1F |
| L6/3 |
Left rear axle rpm sensor |
1G |
| L6/4 |
Right rear axle rpm sensor |
1G |

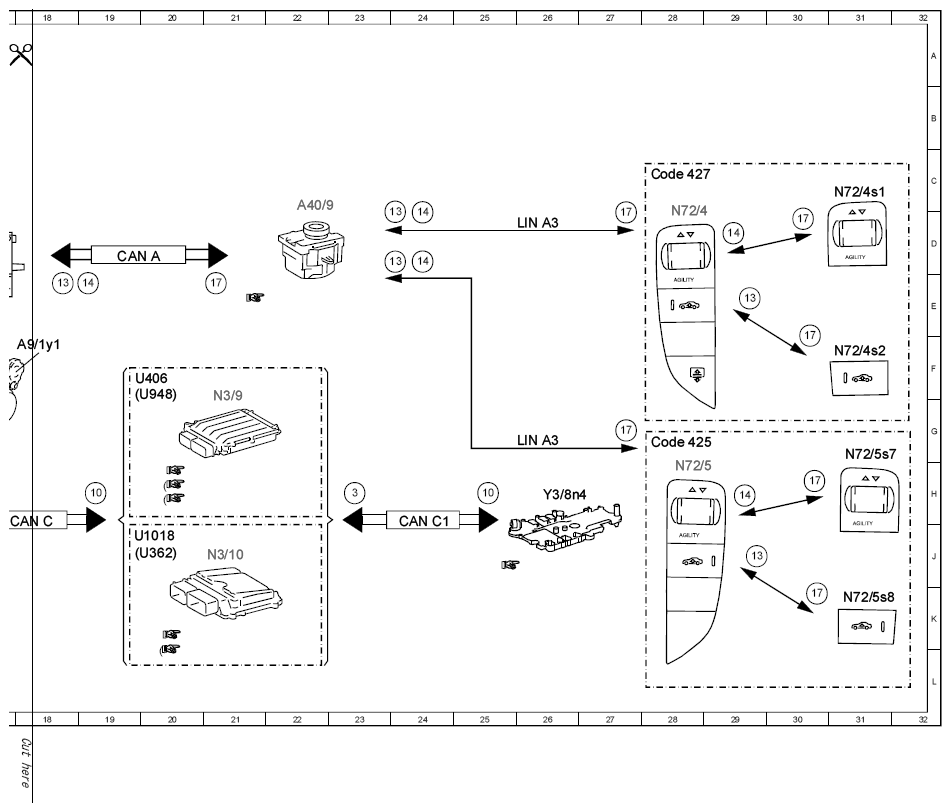

| LIN A3 |
LCP LIN |
26D |
| LIN A3 |
LCP LIN |
26G |
| LVDS |
Low voltage differential signal |
17C |
| N127 |
Drivetrain control unit |
15H |
| N3/10 |
ME-SFI [ME] control unit |
21J |
| N3/9 |
CDI control unit |
21G |
| N30/4 |
Electronic Stability Program control unit |
5F |
| N51/3 |
AIR BODY CONTROL unit |
10H |
| N72/4 |
Left lower control panel |
28D |
| N72/4s1 |
AGILITY SELECT switch |
31C |
| N72/4s2 |
Vehicle level button |
31F |
| N72/5 |
Right lower control panel |
28H |
| N72/5s7 |
AGILITY SELECT switch |
31G |
| N72/5s8 |
Vehicle level button |
31K |
| N73 |
Electronic ignition switch control unit |
11D |
| U1018 |
Valid for gasoline engine 276 |
19J |
| U362 |
Valid for gasoline engine 274 |
19J |
| U406 |
Valid for diesel engine 626 |
19F |
| U948 |
Valid for diesel engine 651 |
19F |
| X11/4 |
Diagnostic connector |
5D |
| Y3/8n4 |
Fully integrated transmission control unit |
26H |
| Y36/6 |
AIRMATIC valve unit |
4K |
| Y36/6y1 |
Left front level control valve |
2K |
| Y36/6y2 |
Right front level control valve |
2K |
| Y36/6y3 |
Left rear level control valve |
2L |
| Y36/6y4 |
Right rear level valve |
2L |
| Y51 |
Left front axle damping valve unit |
7K |
| Y52 |
Right front axle damping valve unit |
7K |
| Y53 |
Left rear axle damping valve unit |
7L |
| Y54 |
Right rear axle damping valve unit |
7L |
