Wiring diagram for steering column module control unit - PE46.10-P-2101-97FBA

Code: Designation: Position:
A0 Use of wiring diagrams 72L
A45 Fanfare horns and airbag clock spring contact 29D
A45 Fanfare horns and airbag clock spring contact 39D
A45 Fanfare horns and airbag clock spring contact 47D
Code 235 Active Park Assist 12A
Code 238 Active Lane Keeping Assist 1A
Code 238 Active Lane Keeping Assist 44H
Code 443 Steering wheel heater 56A
Code 476 Lane Keeping Assist 1A
F1/3 Right A-pillar fuse box 9L
F1/3f329 Electrical fuse 329 7K
Flex E Chassis FlexRay 13K
Flex E Chassis FlexRay 22K
Flex E Chassis FlexRay 18J
K40/6 Left fuse and relay module 4L
K40/6f210 Fuse 210 3L
LIN E1 Steering LIN 33C
M99 Steering wheel vibration motor 46L
N127 Drivetrain control unit 13L
N135 Steering wheel electronics 29E
N135 Steering wheel electronics 39E
N135 Steering wheel electronics 47E
N135s1 Left upper horn button 42G
N135s2 Right upper horn button 43G
N135s3 Left lower horn button 43G
N135s4 Right lower horn button 44G
N2/10 Supplemental restraint system control unit 25L
N30/4 Electronic Stability Program control unit 18L
N30/4 Electronic Stability Program control unit 17L
N30/4 Electronic Stability Program control unit 18L
N49 Steering wheel angle sensor 60B
N73 Electronic ignition switch control unit 22L
N80 Steering column module control unit 4A
N80 Steering column module control unit 11A
N80 Steering column module control unit 20A
N80 Steering column module control unit 27A
N80 Steering column module control unit 39A
N80 Steering column module control unit 47A
N80 Steering column module control unit 55A
N80 Steering column module control unit 63A
N80 Steering column module control unit 68A
R12/13 Driver airbag squib 1 50L
R12/14 Driver airbag squib 2 51L
S110 Left multifunction steering wheel button group 33L
S110/1 Steering wheel downshift button 49L
S110s1 Scroll forward/back button 32L
S110s2 Voice control system OFF button 32L
S110s3 System selection button 33L
S110s4 "Back" button 34L
S110s6 OK button 35L
S111 Right multifunction steering wheel button group 39L
S111/1 Steering wheel upshift button 47L
S111s1 Buttons + and - for setting specific functions and volume control 38L
S111s3 Accept/terminate phone call button 39L
S111s6 Mute function button 40L
S16/13 DIRECT SELECT lever 68D
S4 Combination switch 54D
S40/4 Cruise control lever 63D
S40/4r1 DISTRONIC control 67D
S40/4s1 Resume from memory switch 61D
S40/4s2 Decelerate and set switch 62D
S40/4s3 Accelerate and set switch 63D
S40/4s4 OFF switch 64D
S40/4s6 SPEEDTRONIC switch 66D
S40/4v1 SPEEDTRONIC light emitting diode 66D
S4s1 Turn signal lamps switch 53D
S4s2 Headlamp flasher/high beam switch 54D
S4s4 Windshield washer system switch 55D
S4s5 Wipe switch 55D
S59/1 Steering column adjustment and steering wheel heater switch 57D
U12 Valid for left-hand drive vehicles 5D
U12 Valid for left-hand drive vehicles 10D
U1253 Valid for model 253 3D
U1253 Valid for model 253 16B
U13 Valid for right-hand drive vehicles 10D
U13 Valid for right-hand drive vehicles 5D
U165 Valid for AMG 16A
U2 Not valid for USA 65A
U2050 Valid for model 205.0 1D
U2051 Valid for model 205.1 1D
U2052 Valid for model 205.2 1D
U2053 Valid for model 205.3 1E
U2054 Valid for model 205.4 1E
U986 Not valid for AMG 16A
W34 Left footwell ground point 6G
W34 Left footwell ground point 10E
W34/3 Right footwell ground point 6G
W34/3 Right footwell ground point 10F
X18 Cockpit wiring harness and frame floor assembly electrical connector 7G
X18/35 Cockpit wiring harness and frame floor assembly electrical connector 17G
Z193z1 Steering wheel electronics ground line connector sleeve 37L
Z193z2 Steering wheel electronics terminal 58 connector sleeve 36L

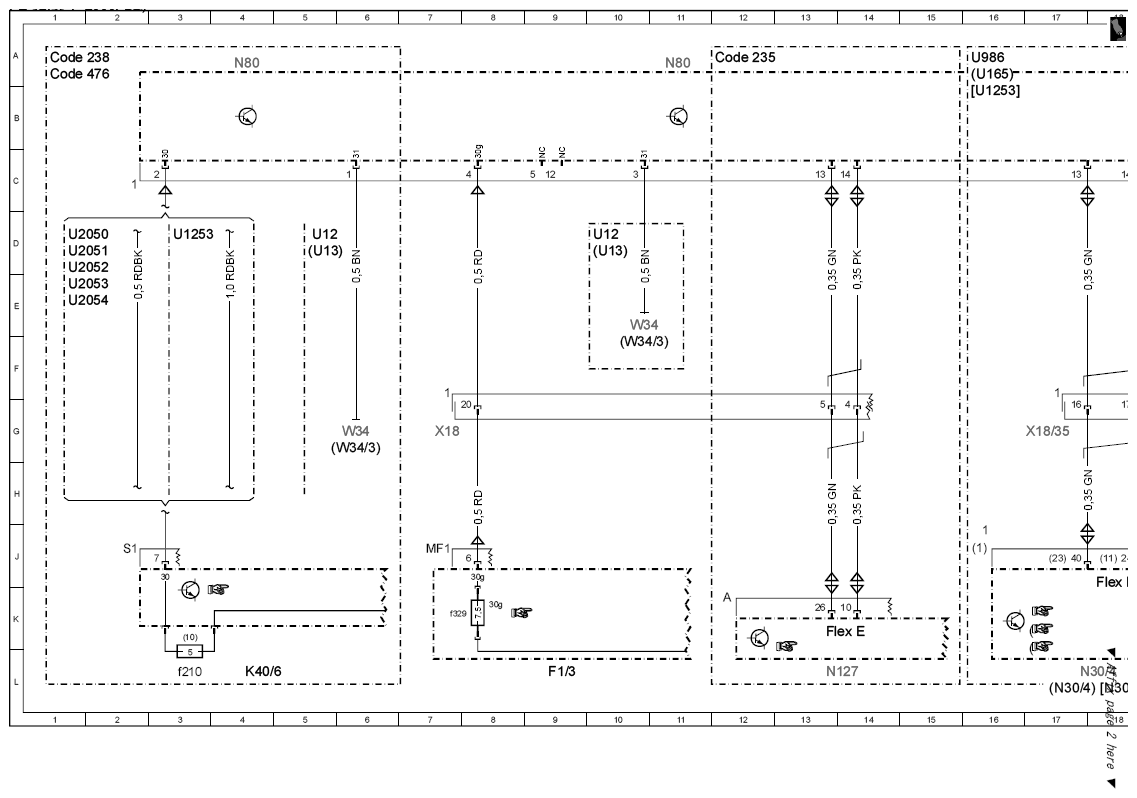

Fig 1: Steering Column Module Control Unit Wiring Diagram (1 Of 5)
G10133566Courtesy of MERCEDES-BENZ USA

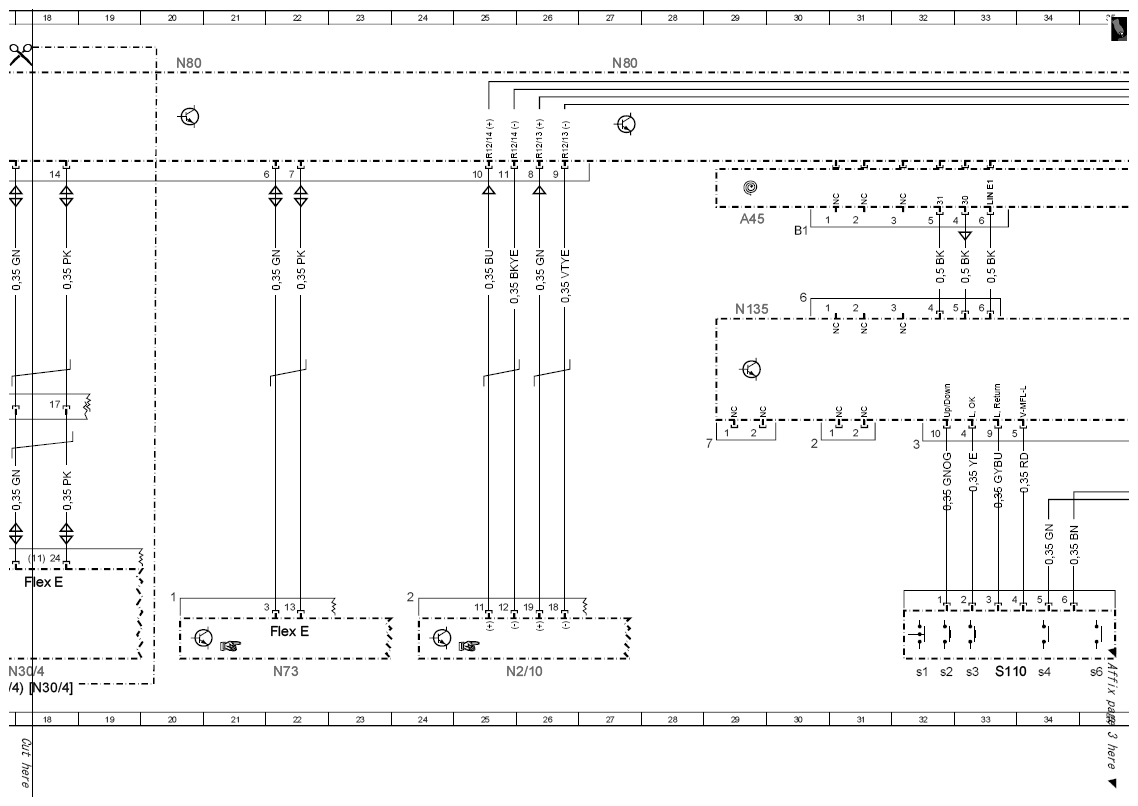

Fig 2: Steering Column Module Control Unit Wiring Diagram (2 Of 5)
G10133567Courtesy of MERCEDES-BENZ USA

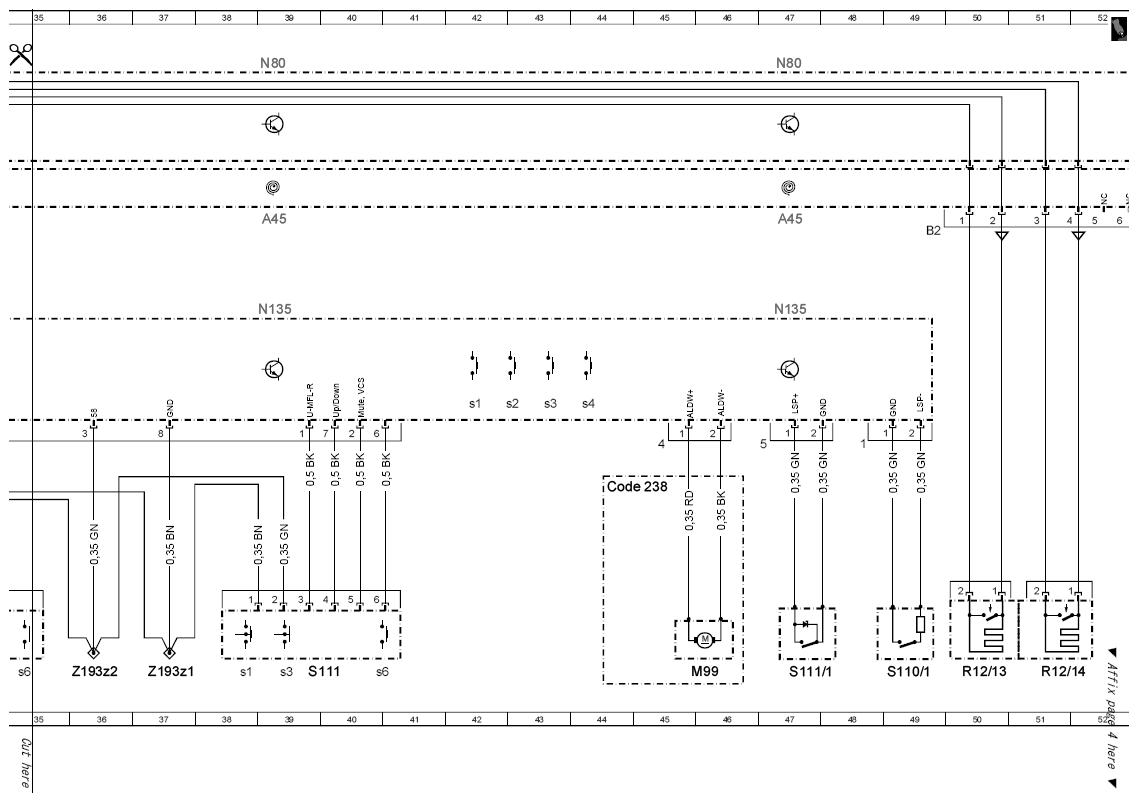

Fig 3: Steering Column Module Control Unit Wiring Diagram (3 Of 5)
G10133568Courtesy of MERCEDES-BENZ USA

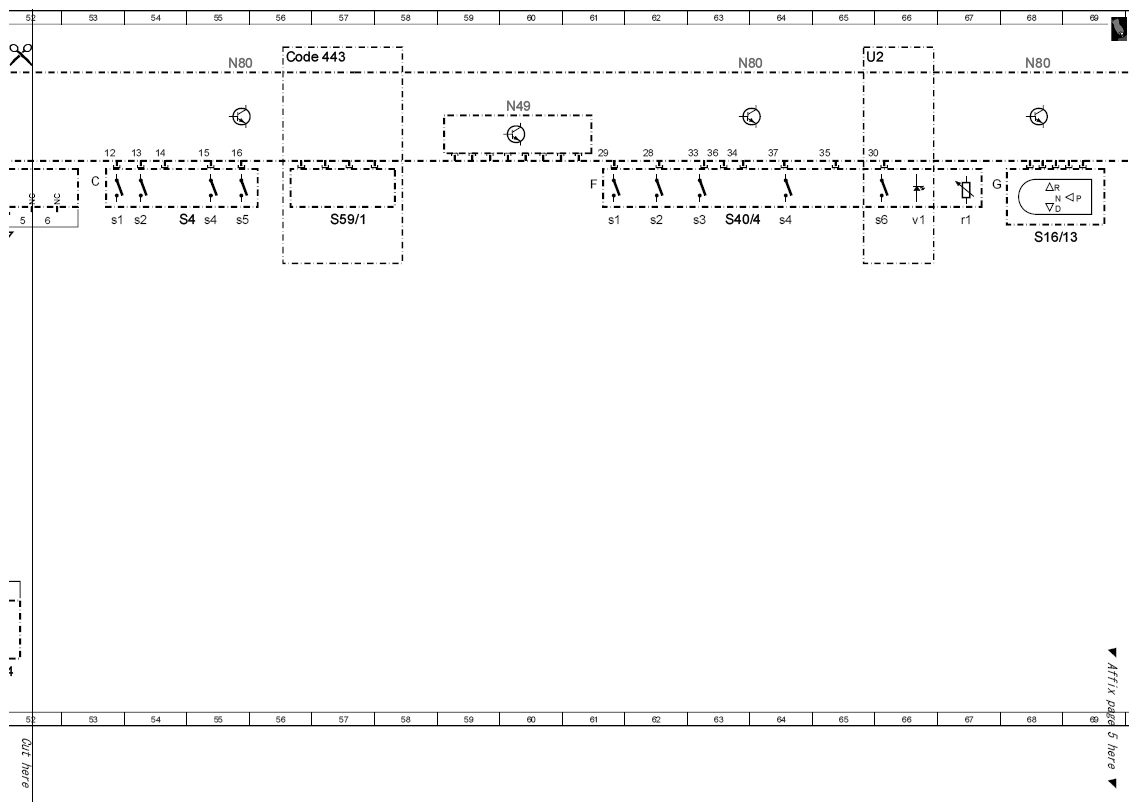

Fig 4: Steering Column Module Control Unit Wiring Diagram (4 Of 5)
G10133569Courtesy of MERCEDES-BENZ USA
Fig 5: Steering Column Module Control Unit Wiring Diagram (5 Of 5)
G10133570Courtesy of MERCEDES-BENZ USA
