| A0 |
Use of wiring diagrams |
32L |
| F1/3 |
Right A-pillar fuse box |
3L |
| F1/3f319 |
Fuse 319 |
2L |
| N129/1 |
Power electronics control unit |
12L |
| N129/1 |
Power electronics control unit |
24L |
| N22/1 |
Climate control unit |
17L |

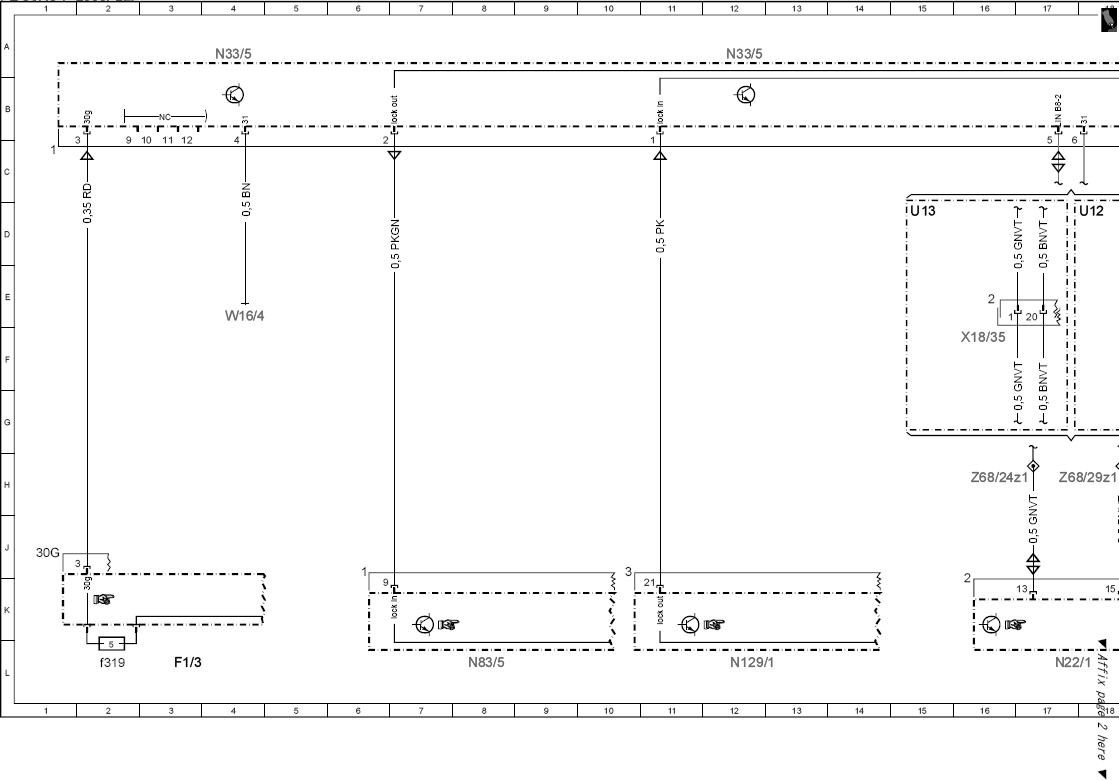

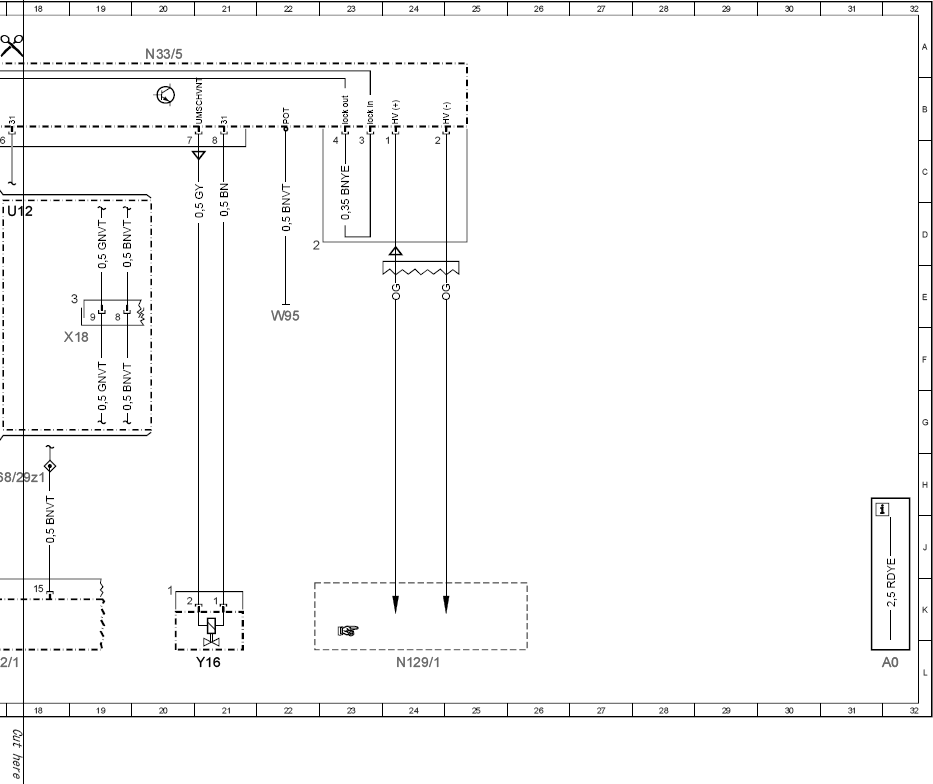

| N33/5 |
High-voltage PTC heater |
4A |
| N33/5 |
High-voltage PTC heater |
12A |
| N33/5 |
High-voltage PTC heater |
20A |
| N83/5 |
Charger |
8L |
| U12 |
Valid for left-hand drive vehicles |
18D |
| U13 |
Valid for right-hand drive vehicles |
15D |
| W16/4 |
Right major assembly compartment ground point |
4E |
| W95 |
Right front footwell ground point |
22E |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
19F |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
16F |
| Y16 |
Stationary heater switchover valve |
21L |
| Z68/24z1 |
Connector sleeve, data line for climate control LIN 2 |
16H |
| Z68/29z1 |
Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 |
18H |
