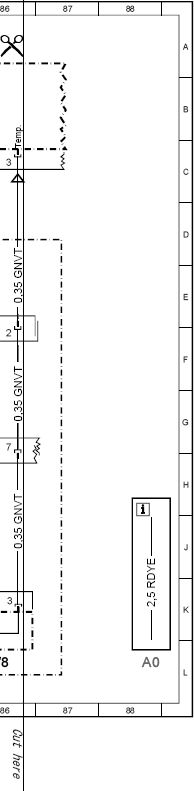

| A0 |
Use of wiring diagrams |
88L |
| A32 |
AC housing |
33L |
| A32m1 |
Blower motor |
31L |
| A32n1 |
Blower regulator |
33L |
| A6 |
Stationary heater unit |
6L |
| A9/5 |
Electric refrigerant compressor |
10L |
| B10/35 |
Left footwell air outlet temperature sensor |
83L |
| B10/36 |
Right footwell air outlet temperature sensor |
79L |
| B10/6 |
Evaporator temperature sensor |
81L |
| B10/8 |
Rear center air vent air outlet temperature sensor |
86L |
| B31 |
Air quality sensor |
15L |
| Code 228 |
Stationary heater |
5F |
| Code 580 |
Air conditioning |
57D |

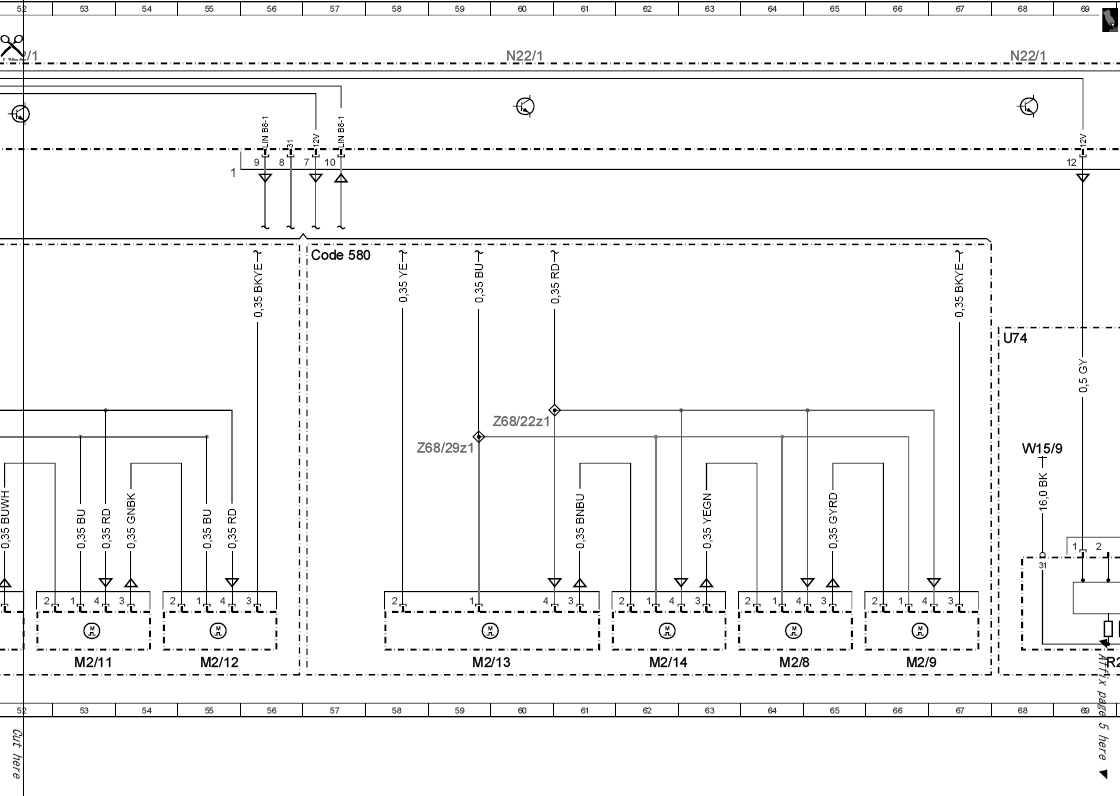

| Code 581 |
THERMOTRONIC automatic air conditioning |
13H |
| Code 581 |
THERMOTRONIC automatic air conditioning |
3F |
| Code 581 |
THERMOTRONIC automatic air conditioning |
39D |
| Code 581 |
THERMOTRONIC automatic air conditioning |
84D |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
8F |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
8F |
| Code P21 |
AIR-BALANCE package |
26H |
| Code P21 |
AIR-BALANCE package |
1F |
| F32/4 |
Vehicle interior prefuse box |
37L |
| F32/4 |
Vehicle interior prefuse box |
73L |
| F32/4f3 |
Fuse 3 |
35K |
| F32/4f5 |
Fuse 5 |
72K |

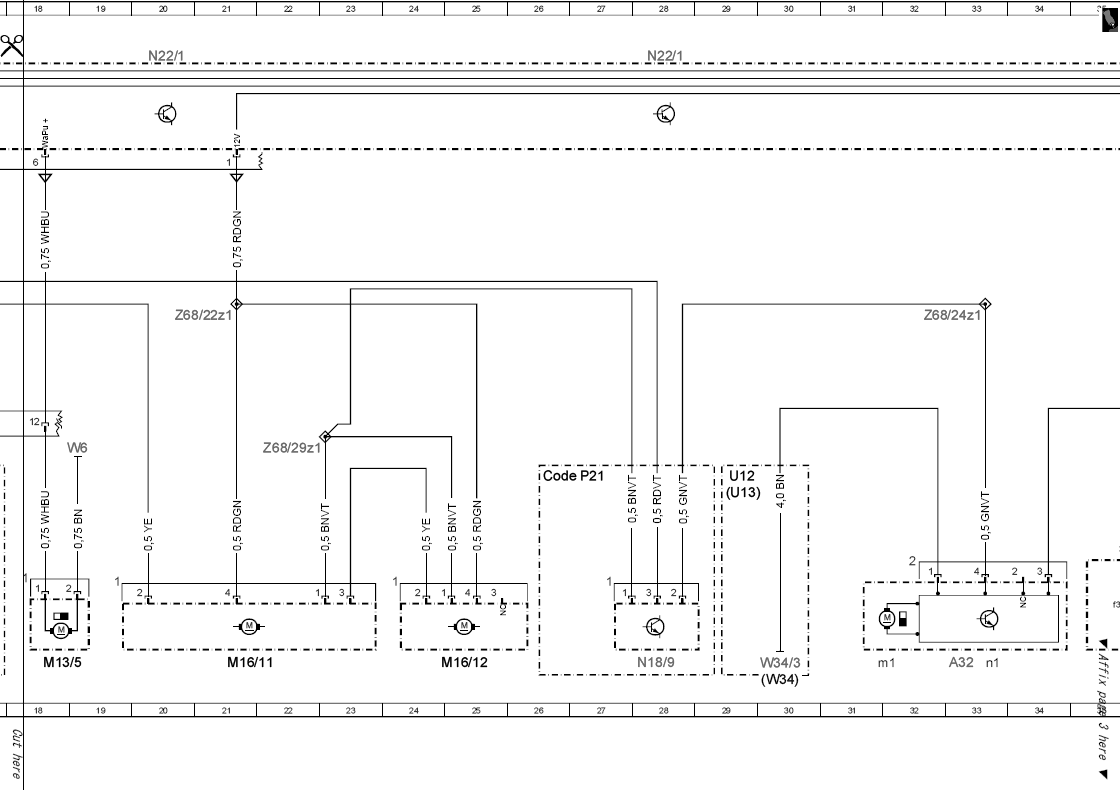

| M13/5 |
Coolant circulation pump |
18L |
| M16/11 |
Left A-pillar air distribution actuator motor |
21L |
| M16/12 |
Right A-pillar air distribution actuator motor |
25L |
| M2/1 |
Rear blower motor |
4L |
| M2/10 |
Rear blend air flap actuator motor |
51L |
| M2/11 |
Left footwell vent/center air vent/side air vent and rear vent flap actuator motor |
53L |
| M2/12 |
Right footwell vent/center air vent and side air vent flap actuator motor |
55L |

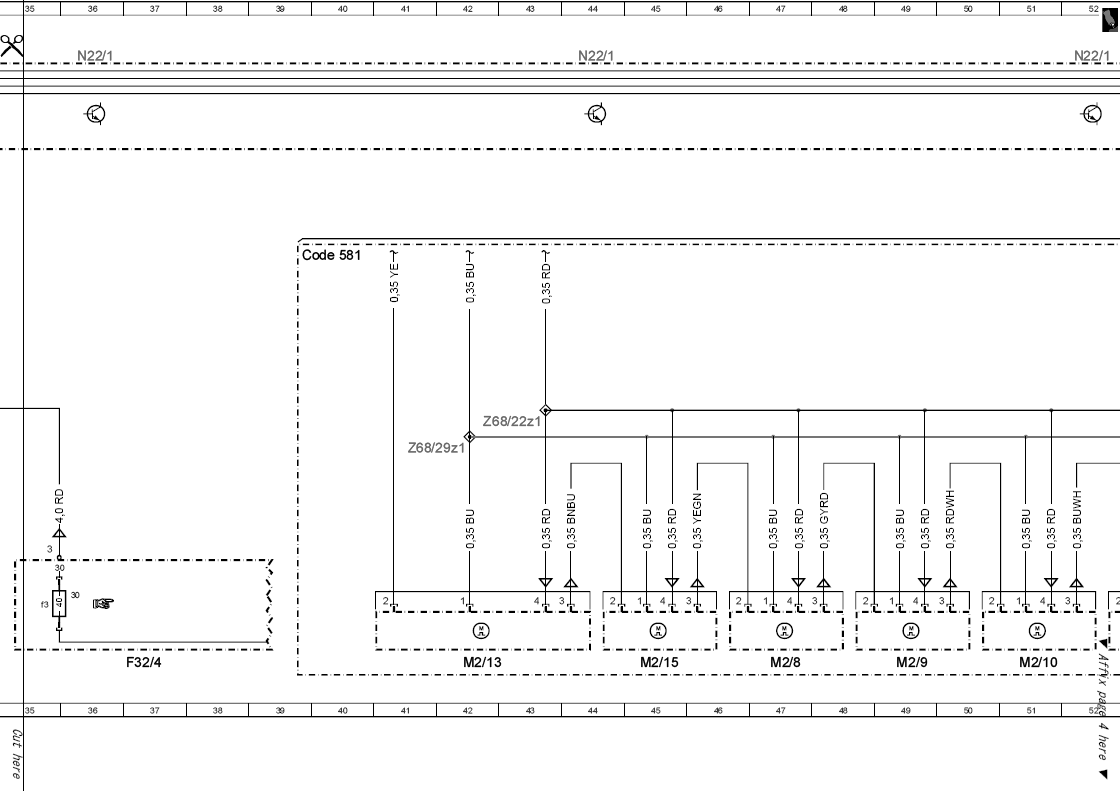

| M2/13 |
Fresh air/ram air/air recirculation flap actuator motor |
42L |
| M2/13 |
Fresh air/ram air/air recirculation flap actuator motor |
59L |
| M2/14 |
Defroster/footwell/center air vent flap actuator motor |
62L |
| M2/15 |
Defroster vent flap actuator motor |
45L |
| M2/8 |
Left blending air flap actuator |
47L |
| M2/8 |
Left blending air flap actuator |
64L |
| M2/9 |
Right blending air flap actuator |
49L |
| M2/9 |
Right blending air flap actuator |
66L |
| N18/9 |
Driver side air vent ionizer |
28L |
| N22/1 |
Climate control unit |
12A |
| N22/1 |
Climate control unit |
20A |
| N22/1 |
Climate control unit |
28A |
| N22/1 |
Climate control unit |
36A |
| N22/1 |
Climate control unit |
44A |
| N22/1 |
Climate control unit |
52A |
| N22/1 |
Climate control unit |
60A |
| N22/1 |
Climate control unit |
68A |
| N22/1 |
Climate control unit |
76A |
| N22/1 |
Climate control unit |
84A |

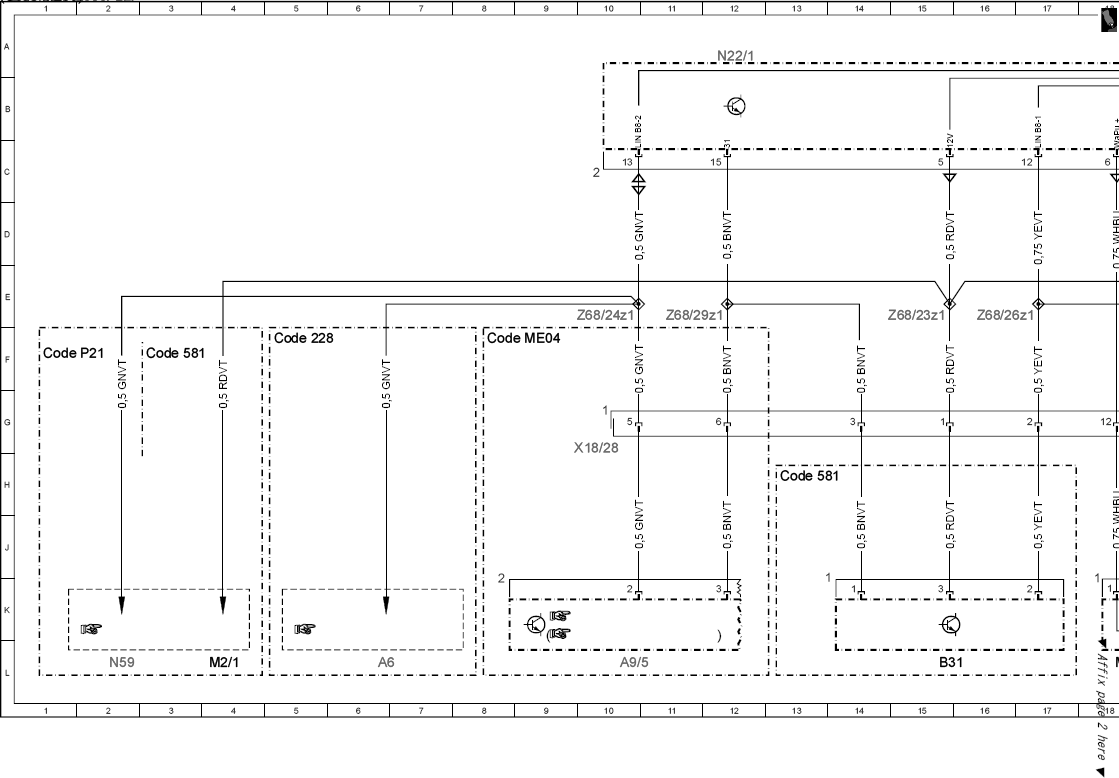

| N59 |
Perfume atomizer generator |
2L |

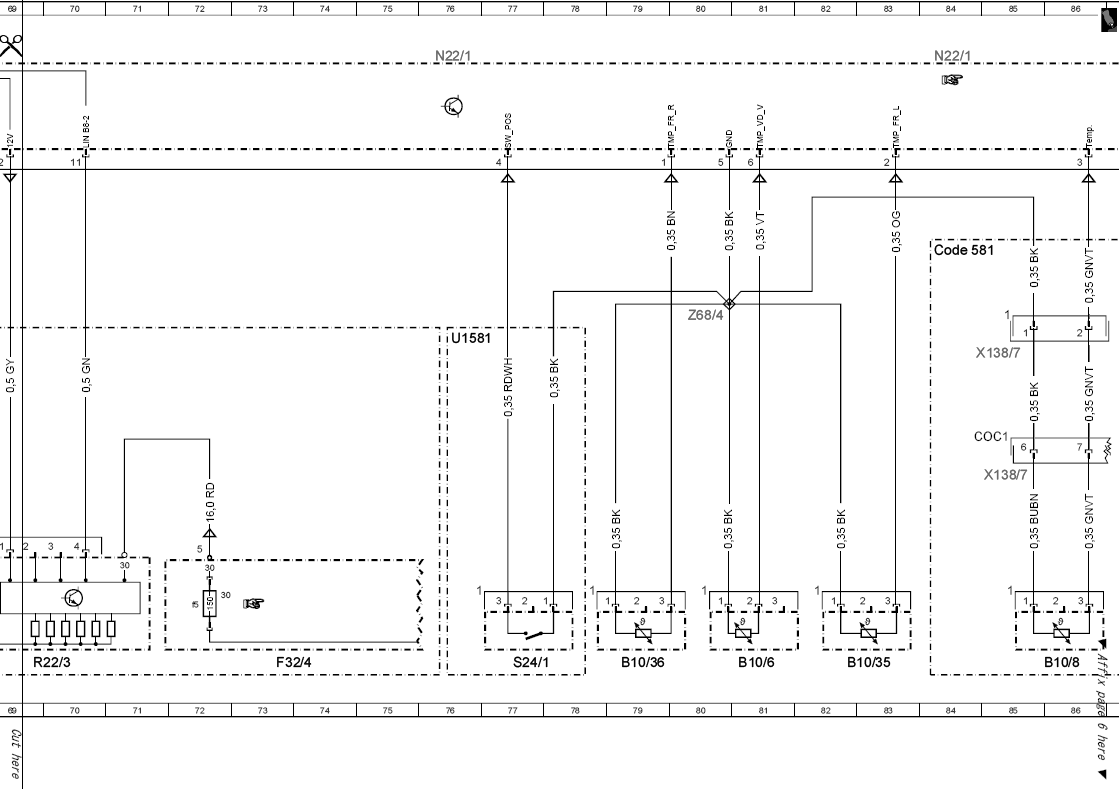

| R22/3 |
PTC heater booster |
69L |
| S24/1 |
Central air distribution position detection microswitch |
77L |
| U12 |
Valid for left-hand drive vehicles |
29H |
| U13 |
Valid for right-hand drive vehicles |
29H |
| U1581 |
Valid without code (581) THERMOTRONIC automatic air conditioning |
76F |
| U74 |
Valid for diesel engines |
68F |
| W15/9 |
Ground point/PTC heater booster |
68H |
| W34 |
Left footwell ground point |
30L |
| W34/3 |
Right footwell ground point |
30L |
| W6 |
Left wheel arch trunk ground point |
19G |
| X138/7 |
Rear center air vent air outlet temperature sensor electrical connector |
85H |
| X138/7 |
Rear center air vent air outlet temperature sensor electrical connector |
85F |
| X18/28 |
Left cockpit/engine compartment electrical connector |
10G |
| Z68/22z1 |
Connector sleeve, 12V climate control LIN 1 |
43G |
| Z68/22z1 |
Connector sleeve, 12V climate control LIN 1 |
21E |
| Z68/22z1 |
Connector sleeve, 12V climate control LIN 1 |
60G |
| Z68/23z1 |
Connector sleeve, 12V climate control LIN 2 |
15E |
| Z68/24z1 |
Connector sleeve, data line for climate control LIN 2 |
10E |
| Z68/24z1 |
Connector sleeve, data line for climate control LIN 2 |
33E |
| Z68/26z1 |
Climate control LIN 1 connector sleeve |
16E |
| Z68/29z1 |
Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 |
22G |
| Z68/29z1 |
Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 |
41G |
| Z68/29z1 |
Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 |
11E |
| Z68/29z1 |
Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 |
59G |
| Z68/4 |
Climate control ground connection connector sleeve |
80E |
