Check evaporator for leaks - AR83.30-P-5550LW

Model 205

Model 253

MODIFICATION NOTES

26.6.15

Pressure drop in refrigerant circuit filled with nitrogen

*BE83.30-P-1001-04A

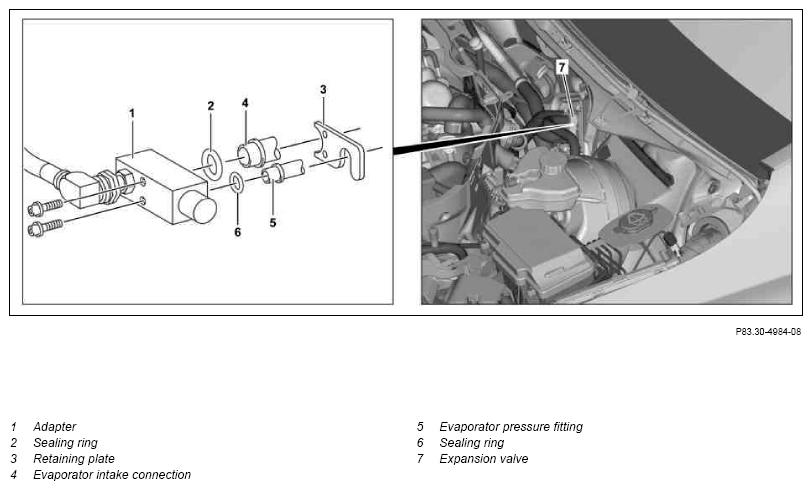

Fig 1: Identifying Adapter, Evaporator Pressure Fitting And Sealing Ring

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained.	AS83.00-Z-0001-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Notes on handling refrigerant R134a		AH83.30-N-0003-01A
	Remove
1	Remove expansion valve (7)		AR83.30-P-5520LW
	Check
2	Install adapter (1) and adapter hose	Install the adapter (1) in place of expansion valve (7) with new sealing rings (2, 6).
		Bolt, expansion valve to retaining plate	*BA83.30-P-1005-01Q
		Adapter	Fig 3
		Adapter hose	Fig 2
3	Connect leak tester to adapter hose
	Leak tester		WS83.00-P-0008B
4	Fill evaporator with nitrogen and check for leaktightness
	Leak tester		WS83.00-P-0008B
		Temperature changes during the pressure test (e.g. through change in weather or cooling down of the engine compartment) can cause pressure surges. Consistent ambient conditions must therefore be strictly ensured.
		Pressure drop in refrigerant circuit filled with nitrogen In the event of leakage: ↓ Replace evaporator.	*BE83.30-P-1001-04A
			AR83.30-P-5540LW
5	Disconnect leak tester unit from adapter hose
6	Remove adapter hose and adapter (1)
	Install
7	Install expansion valve (7) with new sealing rings (2, 6)		AR83.30-P-5520LW

AIR CONDITIONING

Number	Designation			Model 164, 166, 169, 171, 190, 197, 199, 204, 205, 207, 209, 211, 212, 216, 218, 219, 221, 230, 240, 245, 251, 253, 292
BE83.30-P-1001-04A	Pressure drop in refrigerant circuit filled with nitrogen	Test pressure	bar	15
		Test period	h	4
		Permissible ambient temperature fluctuation	°C	±2
		Pressure drop	bar	0

AIR CONDITIONING

Number	Designation		Model 205	Model 253
BA83.30-P-1005-01Q	Bolt, expansion valve to retaining plate	Nm	7	7

Fig 2: Identifying Adapter Hose (140 589 51 63 01)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapter (463 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
