| Code: |
Designation: |
Position: |
| A0 |
Use of wiring diagrams |
48L |
| CAN L |
Hybrid CAN |
7K |
| CAN L |
Hybrid CAN |
12K |
| CAN L |
Hybrid CAN |
16K |
| CAN L |
Hybrid CAN |
20K |
| CAN L |
Hybrid CAN |
28K |
| CAN L |
Hybrid CAN |
35K |
| CAN L |
Hybrid CAN |
39K |
| CAN L |
Hybrid CAN |
24K |
| CAN L |
Hybrid CAN |
3K |
| CAN L |
Hybrid CAN |
31K |
| Code 348 |
Emergency call/assistance system |
22E |
| Code B53 |
Acoustic Vehicle Indication |
14E |
| Code B54 |
Live Traffic Information |
26E |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
10E |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
38E |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
1E |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
18E |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
5E |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
1E |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
18E |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
30E |
| H4/16 |
Sound generator |
16L |
| N112/1 |
Telematics services communication module |
28L |

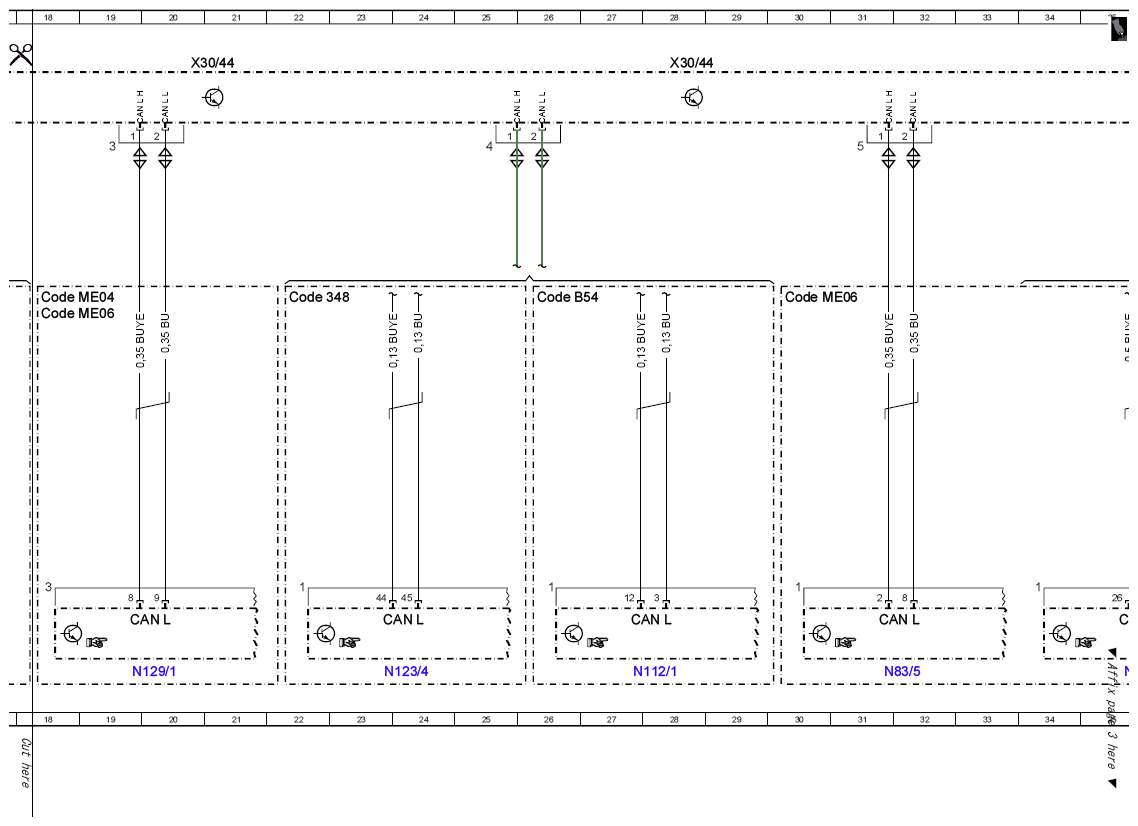

| N123/4 |
Emergency call system control unit |
24L |
| N127 |
Drivetrain control unit |
7L |
| N127 |
Drivetrain control unit |
3L |
| N129/1 |
Power electronics control unit |
20L |
| N3/9 |
CDI control unit |
12L |
| N82/2 |
Battery management system control unit |
35L |
| N82/2 |
Battery management system control unit |
39L |
| N83/5 |
Charger |
32L |
| U562 |
Valid for Bosch system |
10E |
| U948 |
Valid for diesel engine 651 |
10E |

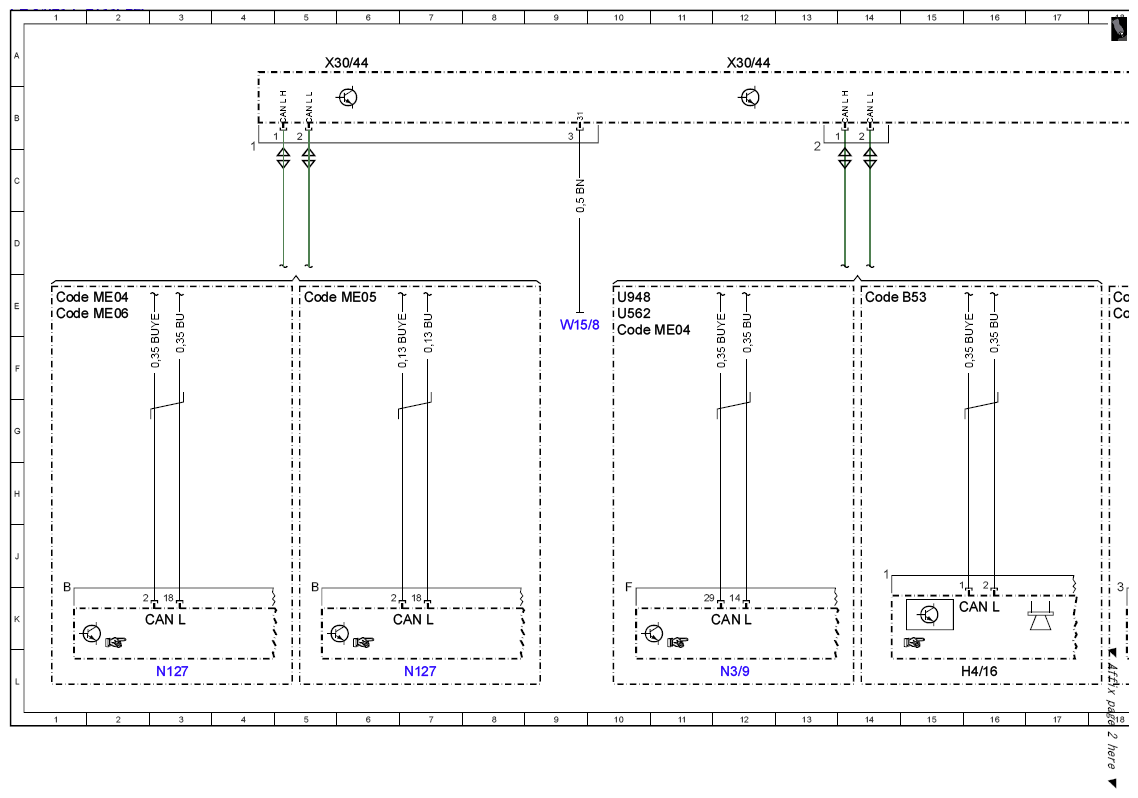

| W15/8 |
Right front footwell ground point (CAN) |
9E |

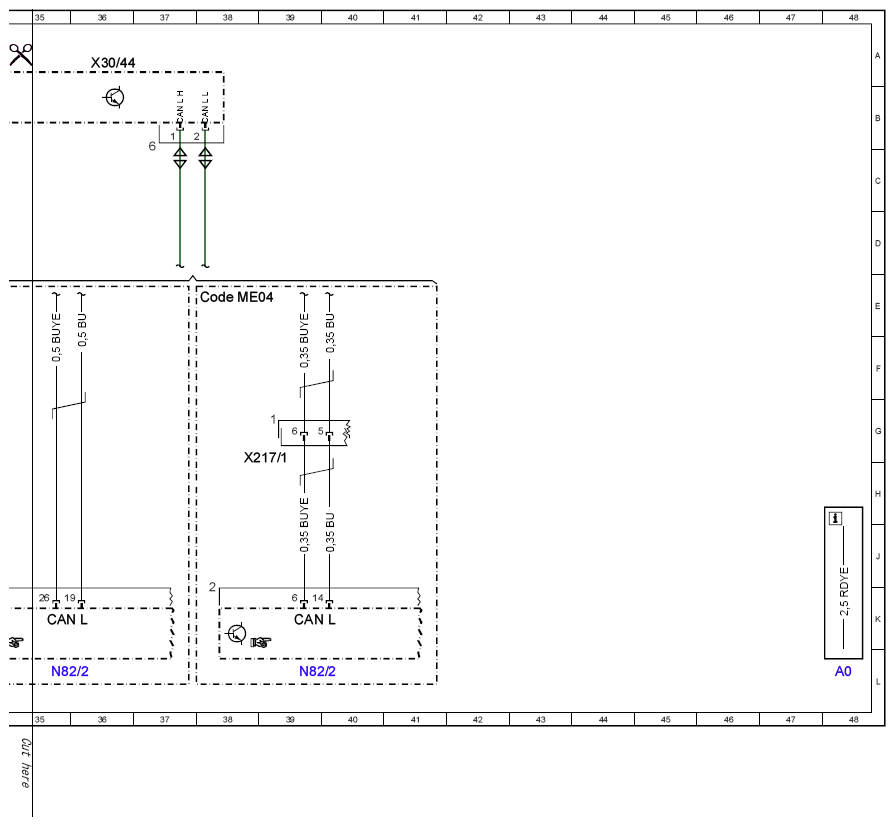

| X217/1 |
Battery management system electrical connector |
39H |
| X30/44 |
Hybrid CAN (CAN L) potential distributor electrical connector |
5A |
| X30/44 |
Hybrid CAN (CAN L) potential distributor electrical connector |
12A |
| X30/44 |
Hybrid CAN (CAN L) potential distributor electrical connector |
36A |
| X30/44 |
Hybrid CAN (CAN L) potential distributor electrical connector |
20A |
| X30/44 |
Hybrid CAN (CAN L) potential distributor electrical connector |
28A |
