Wiring diagram of telematics CAN - PE00.19-P-2180-97FBA

Code:	Designation:	Position:
A0	Use of wiring diagrams	23L
A105	Touchpad	7L
A26/17	Head unit	11L
A40/8	Audio/COMAND display	14L
A40/9	Audio/COMAND control panel	3L
CAN A	Telematics CAN	3K
CAN A	Telematics CAN	7K
CAN A	Telematics CAN	11K
CAN A	Telematics CAN	14K
W15/6	Left front footwell ground point (CAN)	4E
X138/1	Front center console electrical connector	2H
X30/35	Telematics CAN (CAN A) potential distributor electrical connector	4A
X30/35	Telematics CAN (CAN A) potential distributor electrical connector	12A
X30/35	Telematics CAN (CAN A) potential distributor electrical connector	20A

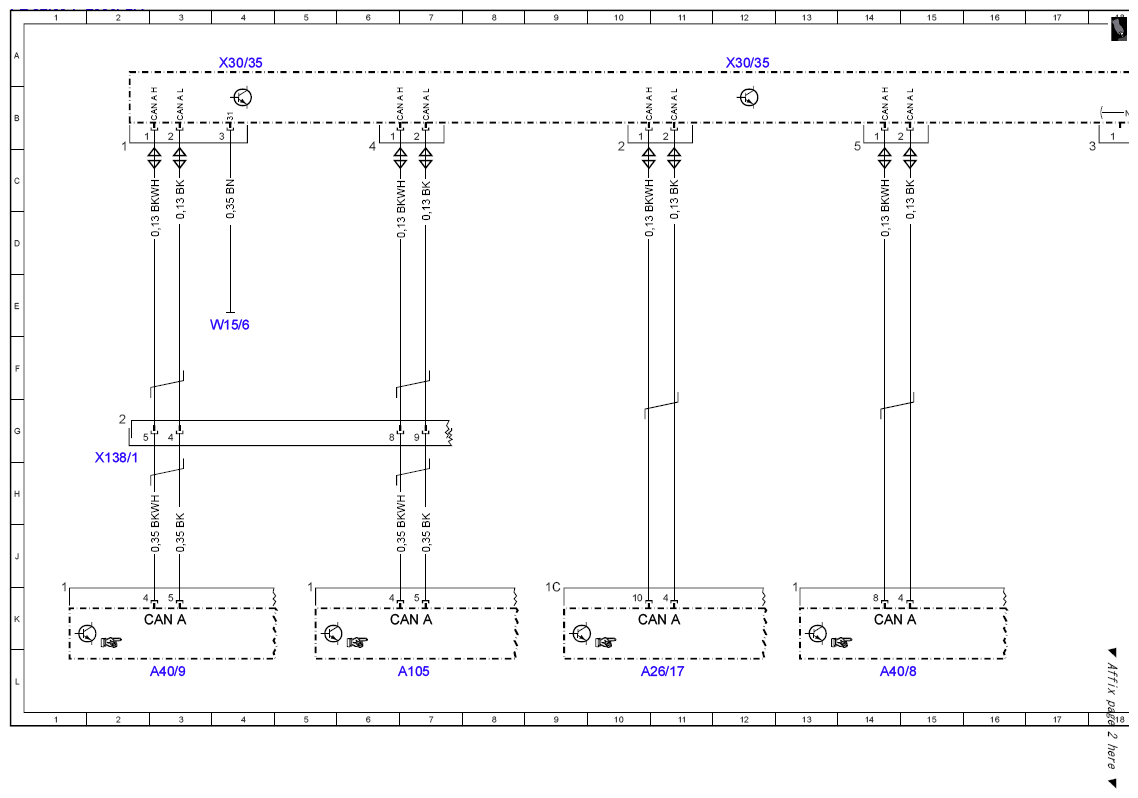

Fig 1: Telematics CAN Wiring Diagram (1 Of 2)

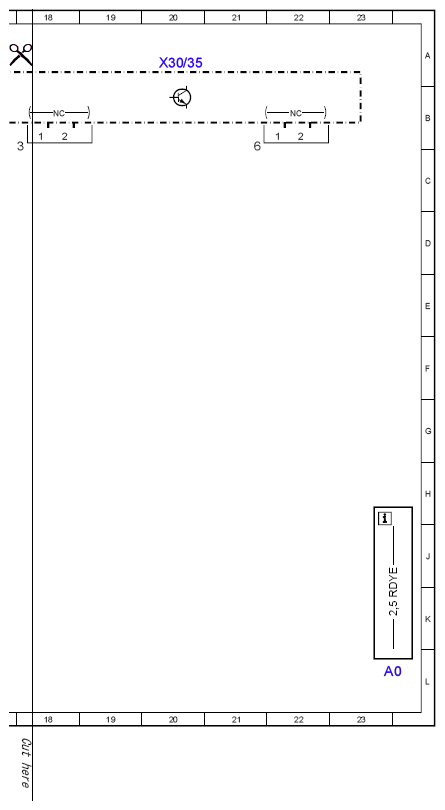

Fig 2: Telematics CAN Wiring Diagram (2 Of 2)
