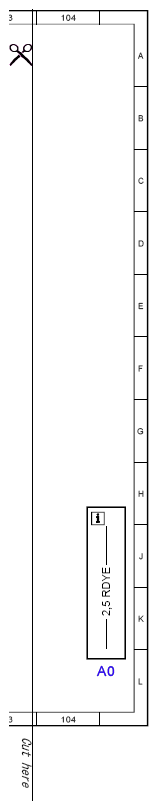

| A0 |
Use of wiring diagrams |
105L |
| A28/15 |
Cellular telephone system antenna amplifier/compensator |
21A |
| A40/12 |
Head-up display |
41A |
| A40/8 |
Audio/COMAND display |
50A |
| A6/1 |
Stationary heater radio remote control receiver |
12A |
| A90/4 |
Tuner unit |
84A |
| B11/15 |
Radiator sensor for engine diagnosis |
33L |
| B11/15 |
Radiator sensor for engine diagnosis |
38L |
| B38/2 |
Rain/light sensor with additional functions |
26L |
| B4/31 |
Fuel quality sensor |
32A |
| Code 221 |
Fully electric driver seat adjustment without memory without electric head restraint adjustment |
46A |
| Code 221 |
Fully electric driver seat adjustment without memory without electric head restraint adjustment |
85F |
| Code 222 |
Fully electric front passenger seat adjustment without memory without electric head restraint adjustment |
46A |
| Code 222 |
Fully electric front passenger seat adjustment without memory without electric head restraint adjustment |
85F |
| Code 242 |
All-electric front passenger seat with memory (right) |
46B |
| Code 242 |
All-electric front passenger seat with memory (right) |
85F |
| Code 275 |
Memory package |
46B |
| Code 275 |
Memory package |
85F |
| Code 287 |
Through-loading feature |
24A |
| Code 287 |
Through-loading feature |
58A |
| Code 386 |
Comfort telephony |
42J |
| Code 386 |
Comfort telephony |
14A |
| Code 460 |
Canada version |
53A |
| Code 494 |
USA version |
31J |
| Code 494 |
USA version |
36J |
| Code 494 |
USA version |
53A |
| Code 536 |
SIRIUS satellite radio |
81A |
| Code 537 |
Digital radio |
81A |
| Code 865 |
TV tuner |
81B |
| Code 876 |
Interior lights package |
42J |
| Code 876 |
Interior lights package |
10F |
| Code 877 |
Ambiance illumination |
42J |
| Code 877 |
Ambiance illumination |
65F |
| Code 917 |
PZEV emission USA |
36J |
| Code 933 |
Flexible Fuel Vehicle |
29A |
| Code P21 |
AIR-BALANCE package |
1A |
| Code P65 |
Seating comfort package |
46B |
| Code P65 |
Seating comfort package |
85G |
| Code U25 |
Illuminated door sills |
42H |
| Code U25 |
Illuminated door sills |
45H |
| E17/17 |
Left rear footwell lamp |
12L |
| E17/17 |
Left rear footwell lamp |
67L |
| E17/18 |
Right rear footwell lamp |
17L |
| E17/18 |
Right rear footwell lamp |
71L |
| E17/47 |
Left front illuminated door sill molding |
48L |
| E17/48 |
Right front illuminated door sill molding |
52L |
| E18/5 |
Left luggage compartment lamp |
62L |
| H4/16 |
Sound generator |
29L |
| M53/15 |
Left rear backrest release actuator |
74A |
| N32/23 |
Driver seat lumbar support adjustment control unit |
86L |
| N32/24 |
Front passenger seat lumbar support adjustment control unit |
92L |
| N38 |
Rear switching module |
4L |
| N58/1 |
Front climate control operating unit |
8A |
| N59 |
Perfume atomizer generator |
4A |
| R12/10 |
Front passenger sidebag squib |
76L |
| R12/9 |
Driver sidebag squib |
81L |
| S10/2 |
Right front brake wear sensor |
22L |
| S10/4 |
Right rear brake wear sensor |
8L |
| S54/11 |
Left rear backrest release button |
72A |
| S54/5 |
Left rear backrest inclination switch |
62A |
| S54/6 |
Right rear backrest inclination switch |
64A |
| S54/7 |
Left rear backrest lock switch |
66A |
| S54/8 |
Right rear backrest lock switch |
68A |
| S54/9 |
Left luggage compartment rear backrest release button |
27A |
| S54/9 |
Left luggage compartment rear backrest release button |
70A |
| S62/24 |
Trailer hitch release switch |
57L |
| S88/10 |
Trunk lid emergency opening switch |
56A |
| S93/2 |
Two-way radio switch |
79A |
| U1018 |
Valid for gasoline engine 276 |
31H |
| U12 |
Valid for left-hand drive vehicles |
43A |
| U1253 |
Valid for model 253 |
69A |
| U13 |
Valid for right-hand drive vehicles |
43A |
| U2050 |
Valid for model 205.0 |
55H |
| U2050 |
Valid for model 205.0 |
60H |
| U2052 |
Valid for model 205.2 |
69A |
| U2053 |
Valid for model 205.3 |
55J |
| U2053 |
Valid for model 205.3 |
60J |
| U2054 |
Valid for model 205.4 |
55J |
| U362 |
Valid for gasoline engine 274 |
36H |
| W12 |
Ground point (center console) |
46A |
| W12 |
Ground point (center console) |
48A |
| W12/1 |
Right center console ground point |
44L |
| W15/7 |
Right front footwell ground point |
36L |
| W15/7 |
Right front footwell ground point |
42L |
| W15/7 |
Right front footwell ground point |
41L |
| W3/8 |
Right rear wheel well ground point |
45A |
| W34 |
Left footwell ground point |
44A |
| W34/3 |
Right footwell ground point |
44A |
| W6 |
Left wheel arch trunk ground point |
38A |
| X101/3 |
Left rear frame floor assembly/underfloor electrical connector |
31C |
| X237/1 |
Mobile phone contact plate |
17A |
| X237/1x1 |
Mobile phone contact plate electrical connector 1 |
16C |
| X26/40 |
Rear frame floor assembly/bumper electrical connector |
3H |
| X28/29 |
Driver airbag electrical connector |
79H |
| X28/29 |
Driver airbag electrical connector |
89H |
| X28/30 |
Front passenger airbag electrical connector |
74H |
| X28/30 |
Front passenger airbag electrical connector |
95H |
| X6/4 |
Driver footwell lamp electrical connector |
14H |
| X6/4 |
Driver footwell lamp electrical connector |
68H |
| X6/5 |
Front passenger footwell lamp electrical connector |
18H |
| X6/5 |
Front passenger footwell lamp electrical connector |
72H |
| X62/33 |
Rear axle electrical connector, right distributor |
8H |
| X62/6 |
Front axle electrical connector, right distributor |
21H |
| X77/1 |
Left rear backrest release actuator electrical connector |
75C |
| Z6/104z1 |
Driver seat lumbar support ground line connector sleeve |
90L |
| Z6/105z1 |
Front passenger seat lumbar support ground line connector sleeve |
96L |
| Z6/30 |
Circuit 31 connector sleeve |
40H |
