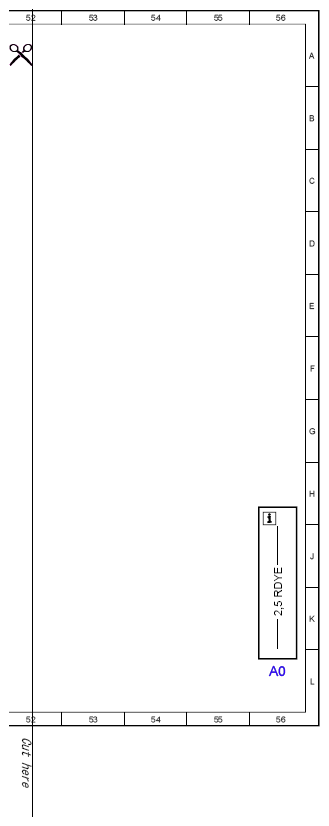

| A0 |
Use of wiring diagrams |
56L |
| A1 |
Instrument cluster |
13L |
| A26/17 |
Head unit |
10L |
| A40/12 |
Head-up display |
47L |
| A76 |
Left front reversible emergency tensioning retractor |
39L |
| A76/1 |
Right front reversible emergency tensioning retractor |
43L |
| B84/3 |
Backup camera |
18L |
| B84/3 |
Backup camera |
23L |
| B84/3x1 |
Reversing camera electrical connector 1 |
17H |
| B84/3x1 |
Reversing camera electrical connector 1 |
22H |

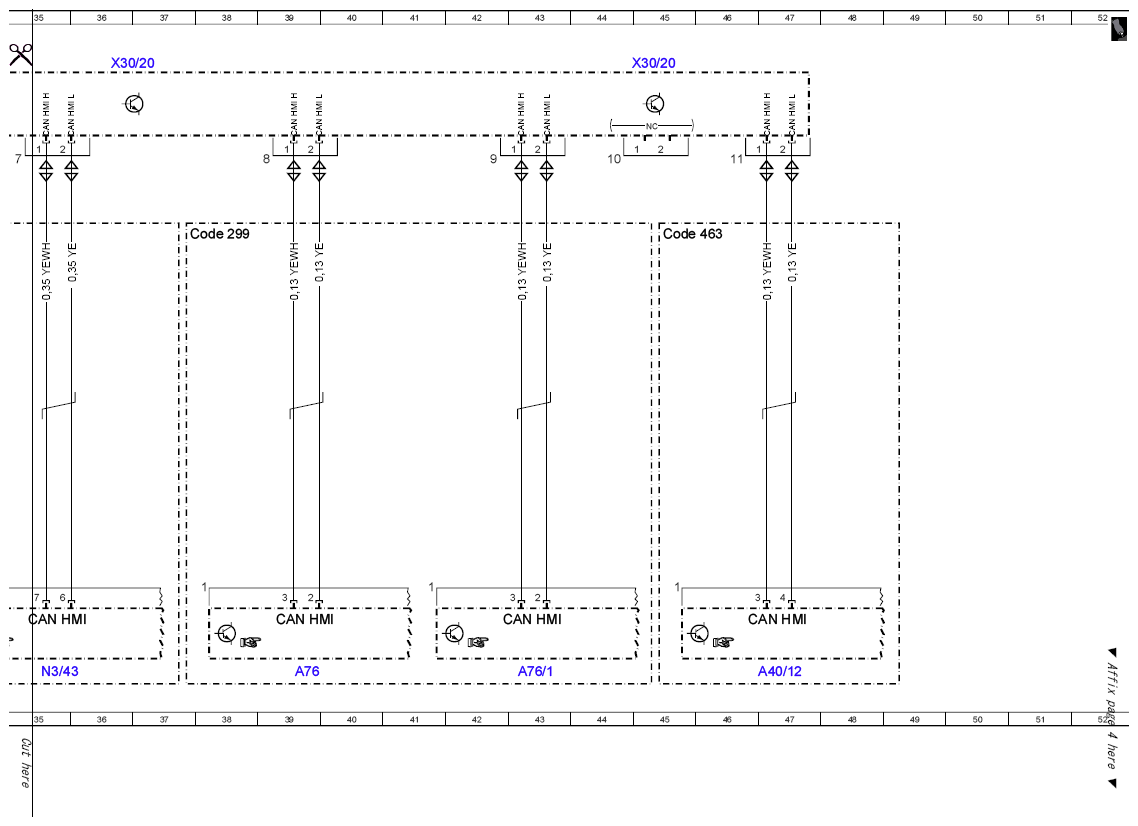

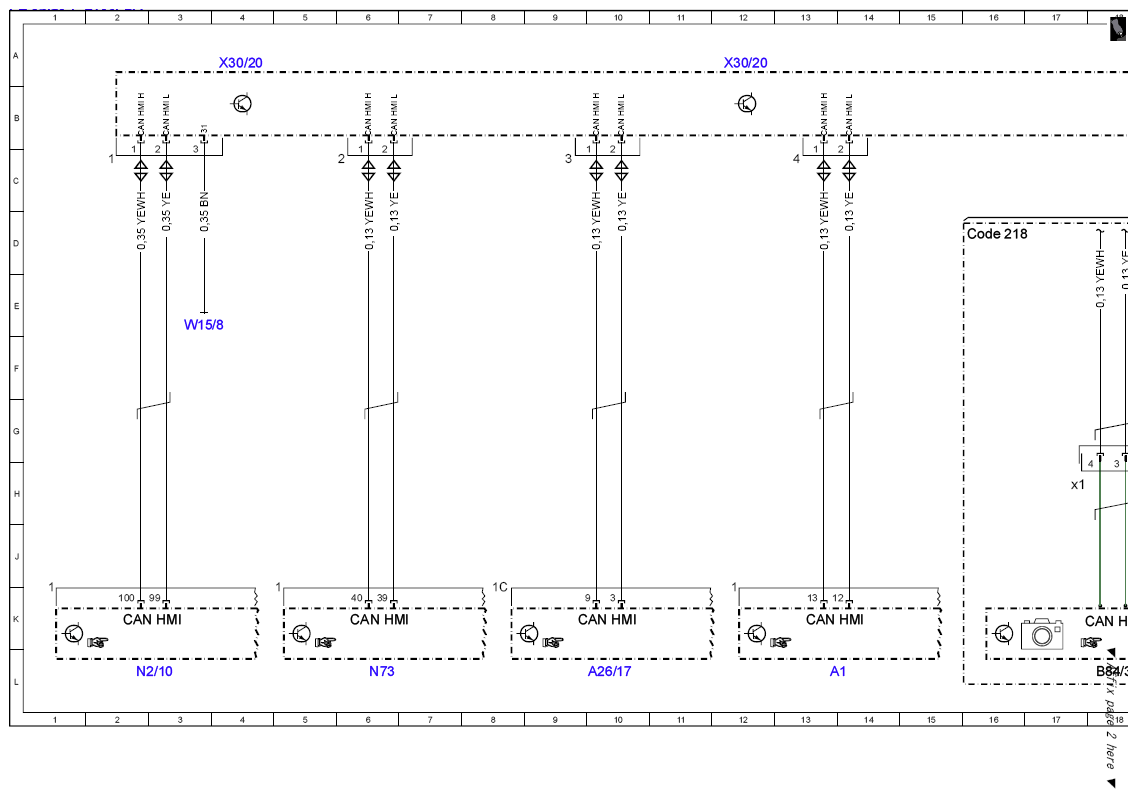

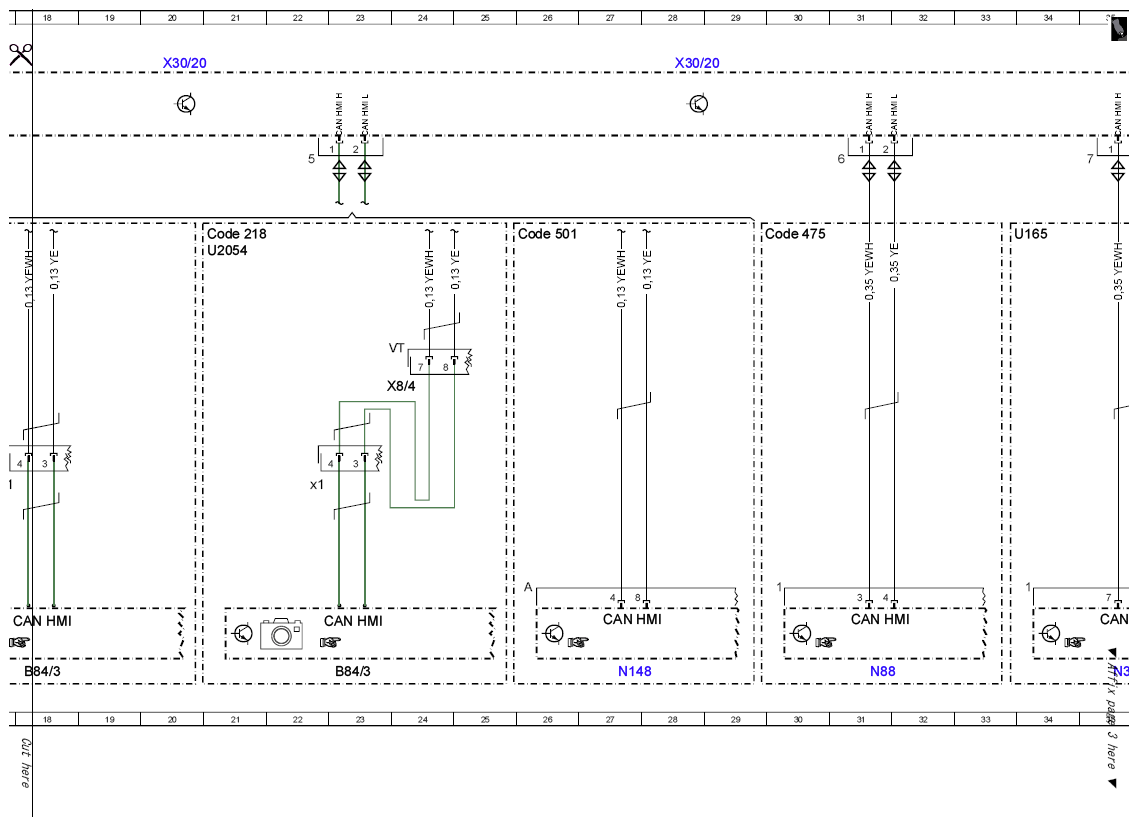

| CAN HMI |
User interface CAN |
6K |
| CAN HMI |
User interface CAN |
2K |
| CAN HMI |
User interface CAN |
10K |
| CAN HMI |
User interface CAN |
13K |
| CAN HMI |
User interface CAN |
18K |
| CAN HMI |
User interface CAN |
23K |
| CAN HMI |
User interface CAN |
27K |
| CAN HMI |
User interface CAN |
31K |
| CAN HMI |
User interface CAN |
35K |
| CAN HMI |
User interface CAN |
39K |
| CAN HMI |
User interface CAN |
43K |
| CAN HMI |
User interface CAN |
47K |
| Code 218 |
Backup camera |
16D |
| Code 218 |
Backup camera |
21D |
| Code 299 |
PRE-SAFE® |
37D |
| Code 463 |
Head-up display |
45D |
| Code 475 |
Tire pressure monitor |
29D |
| Code 501 |
360 degree camera |
26D |
| N148 |
360° camera control unit |
27L |
| N2/10 |
Supplemental restraint system control unit |
2L |
| N3/43 |
AMG suspension control unit |
35L |
| N73 |
Electronic ignition switch control unit |
6L |
| N88 |
Tire pressure monitor control unit |
31L |
| U165 |
Valid for AMG |
33D |
| U2054 |
Valid for model 205.4 |
21D |
| W15/8 |
Right front footwell ground point (CAN) |
3E |
| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
28A |
| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
4A |
| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
12A |
| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
20A |
| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
36A |
| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
45A |
| X8/4 |
Trunk lid/liftgate electrical connector |
24F |
