Location of ground points - underfloor - GF00.19-P-2001-10FBA

MODEL 205, 253

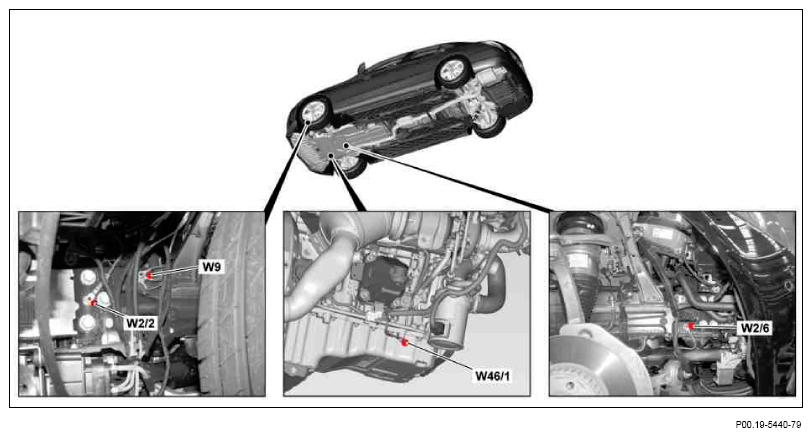

Fig 1: Ground Points Location - Underfloor

G10132151

Courtesy of MERCEDES-BENZ USA
