Location of Z-connector sleeves (line connections in wiring harness) - engine compartment, right - GF00.19-P-3001-02FBA

MODEL 205, 253

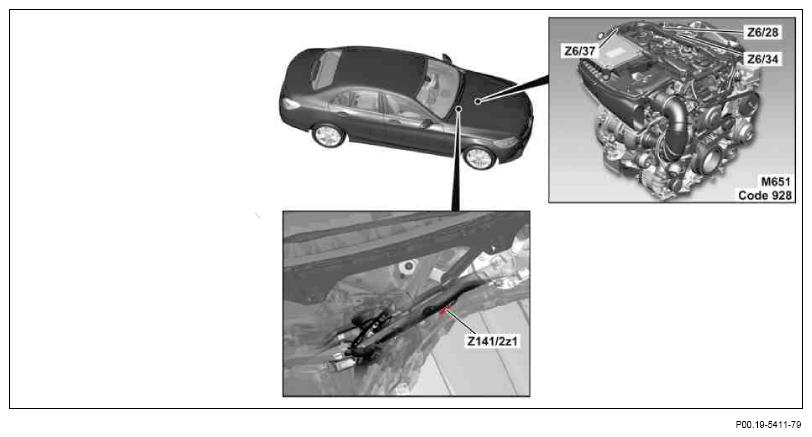

Fig 1: Z-Connector Sleeves Location - Right Engine Compartment (1 Of 2)
G10132160Courtesy of MERCEDES-BENZ USA

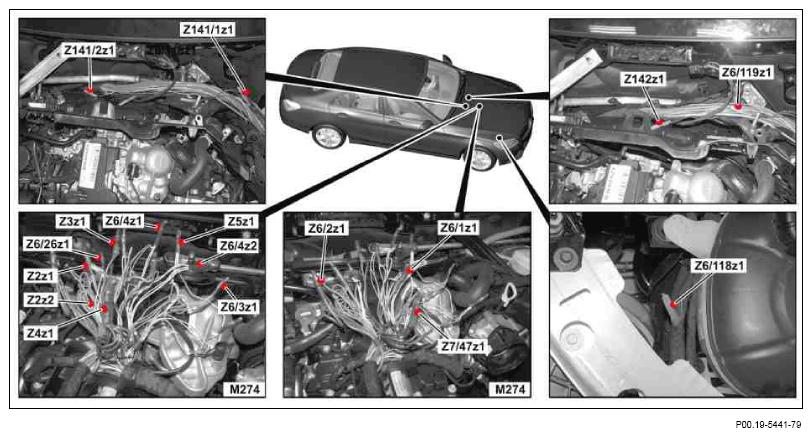

Fig 2: Z-Connector Sleeves Location - Right Engine Compartment (2 Of 2)
G10132161Courtesy of MERCEDES-BENZ USA
