Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97FBG

Code: Designation: Position:
A0 Use of wiring diagrams 72L
A101 Fuel tank diagnostic module 63L
A101m1 Fuel tank diagnostic module pump 61L
A101r1 Fuel tank diagnostic module heating element 62L
A101y1 Fuel tank diagnostic module solenoid valve 62L
B37 Accelerator pedal sensor 25L
B37 Accelerator pedal sensor 29L
B4/3 Fuel tank pressure sensor 11L
B4/4 Purging pressure sensor 48L
CAN C Engine CAN 41K
CAN C1 Drive train CAN 45K
Code 460 Canada version 8F
Code 494 USA version 47H
Code 494 USA version 8F
Code 494 USA version 54D
F1/3 Right A-pillar fuse box 3L
F1/3f315 Fuse 315 1K
K40/8 Engine fuse and relay module 21L
K40/8f101 Fuse 101 13L
K40/8f103 Fuse 103 15L
K40/8f126 Fuse 126 20L
N10/6 Front SAM control unit 52L
N118 Fuel pump control unit 33L
N127 Drivetrain control unit 41L
N2/10 Supplemental restraint system control unit 37L
N3/10 ME-SFI [ME] control unit 4A
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 36A
N3/10 ME-SFI [ME] control unit 60A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 44A
N3/10 ME-SFI [ME] control unit 53A
U936 Valid for increased engine power 27D
W16/5 Left major assembly compartment electronics ground point 3E
X25/4 Fuel tank electrical connector 10G
X25/7 Engine compartment/frame floor assembly electrical connector 13E
X25/7 Engine compartment/frame floor assembly electrical connector 19E
X26 Interior and engine wiring harness electrical connector 48H
X26 Interior and engine wiring harness electrical connector 58H
X30/21 Drive train CAN (CAN C1) potential distributor electrical connector 45L
Y58/1 Purge control valve 6L
Y58/4 Activated charcoal filter shutoff valve 9L
Z4/3z1 Tml. 30 connector sleeve 1G
Z50/5z1 Tml. 15 connector sleeve 17E
Z7/36z1 Circuit 87 M2e connector sleeve 58L
Z7/48z1 Circuit 87/2 connector sleeve 7E
Z7/48z1 Circuit 87/2 connector sleeve 59L
Z7/73z1 Circuit 87/4 connector sleeve 16E
Z80z1 Cross section reduction connector sleeve 60G

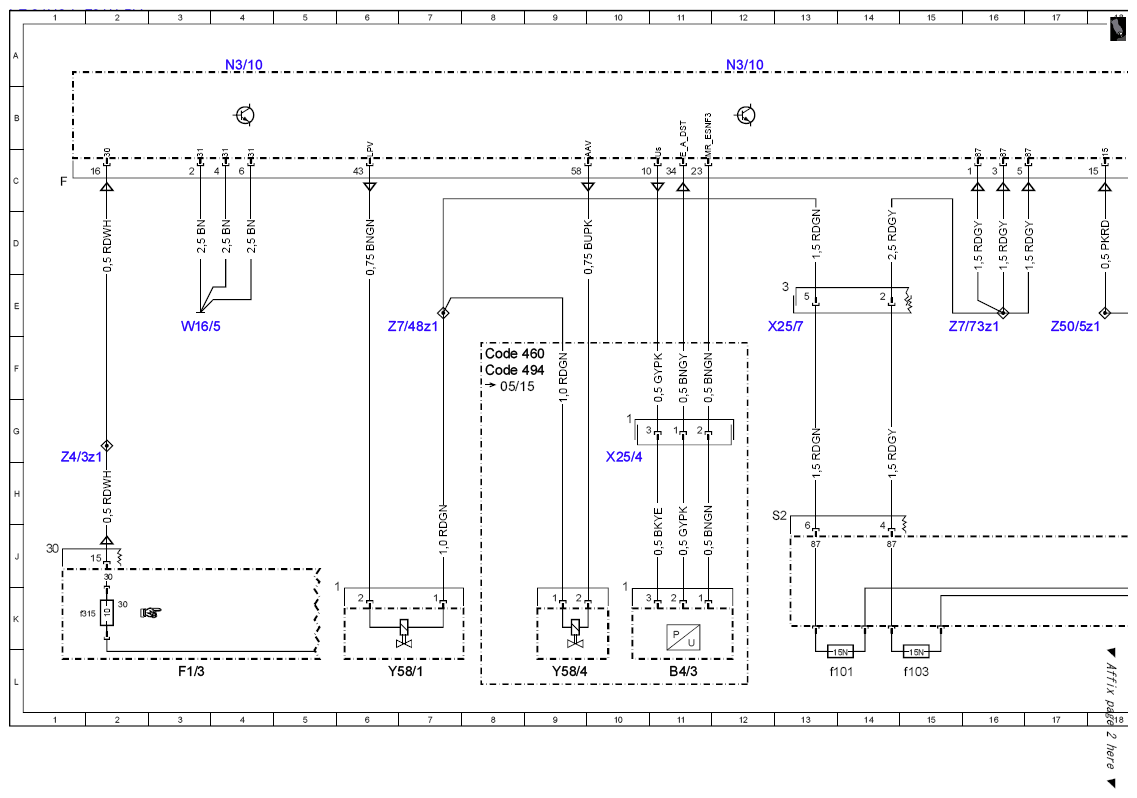

Fig 1: Gasoline Direct Injection System Control Unit Wiring Diagram (1 Of 5)
G10132567Courtesy of MERCEDES-BENZ USA

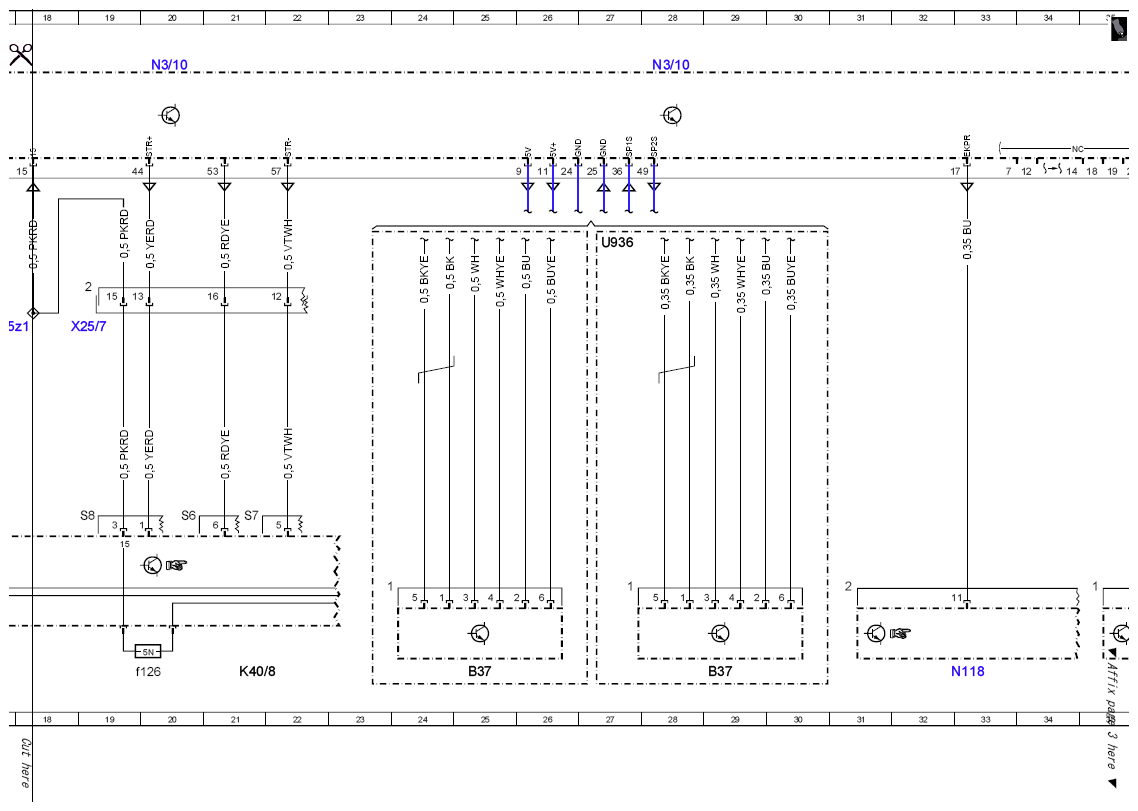

Fig 2: Gasoline Direct Injection System Control Unit Wiring Diagram (2 Of 5)
G10132568Courtesy of MERCEDES-BENZ USA

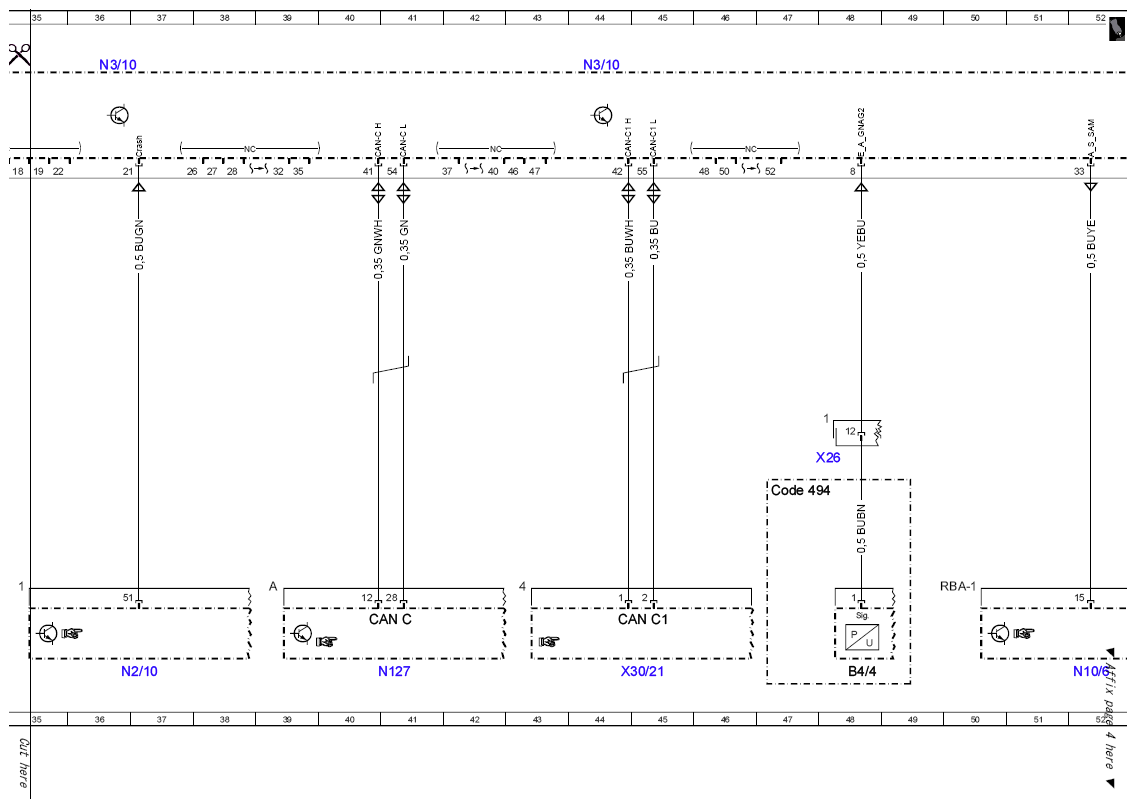

Fig 3: Gasoline Direct Injection System Control Unit Wiring Diagram (3 Of 5)
G10132569Courtesy of MERCEDES-BENZ USA

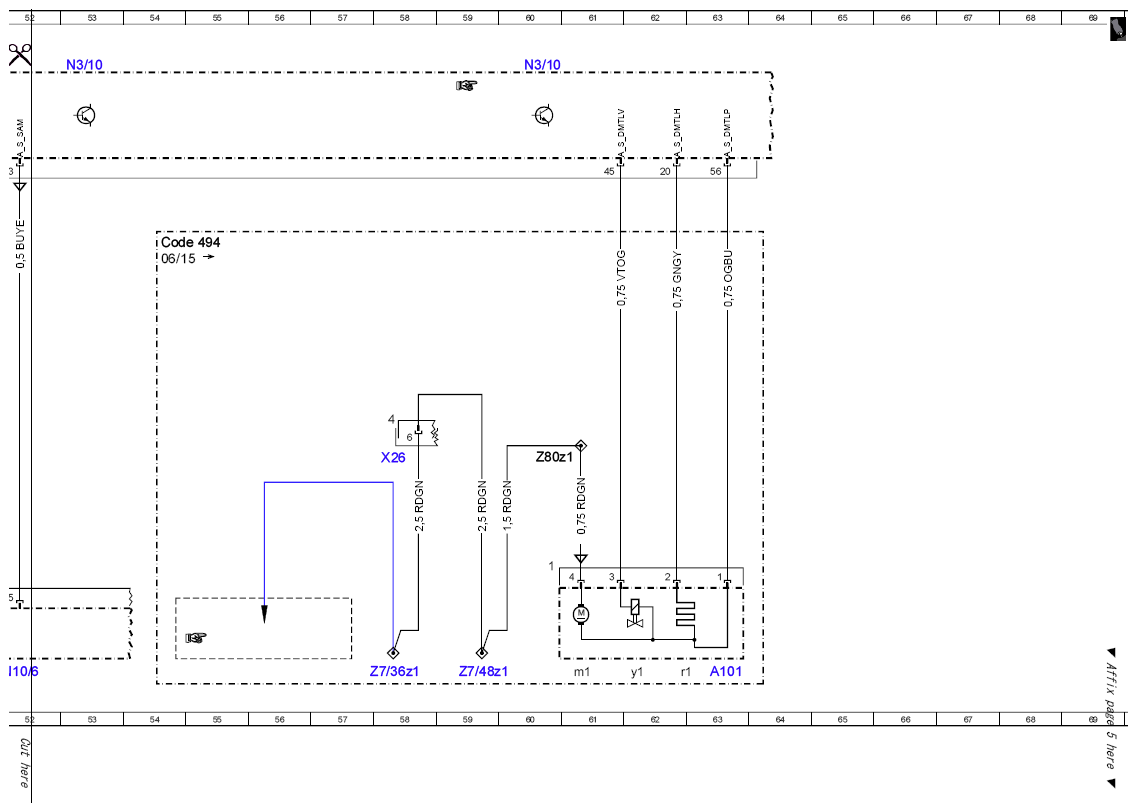

Fig 4: Gasoline Direct Injection System Control Unit Wiring Diagram (4 Of 5)
G10132570Courtesy of MERCEDES-BENZ USA

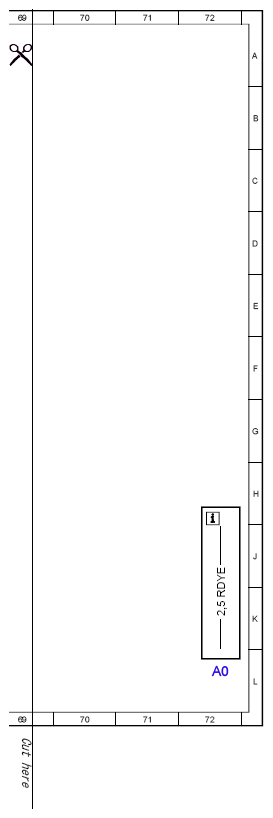

Fig 5: Gasoline Direct Injection System Control Unit Wiring Diagram (5 Of 5)
G10132571Courtesy of MERCEDES-BENZ USA
