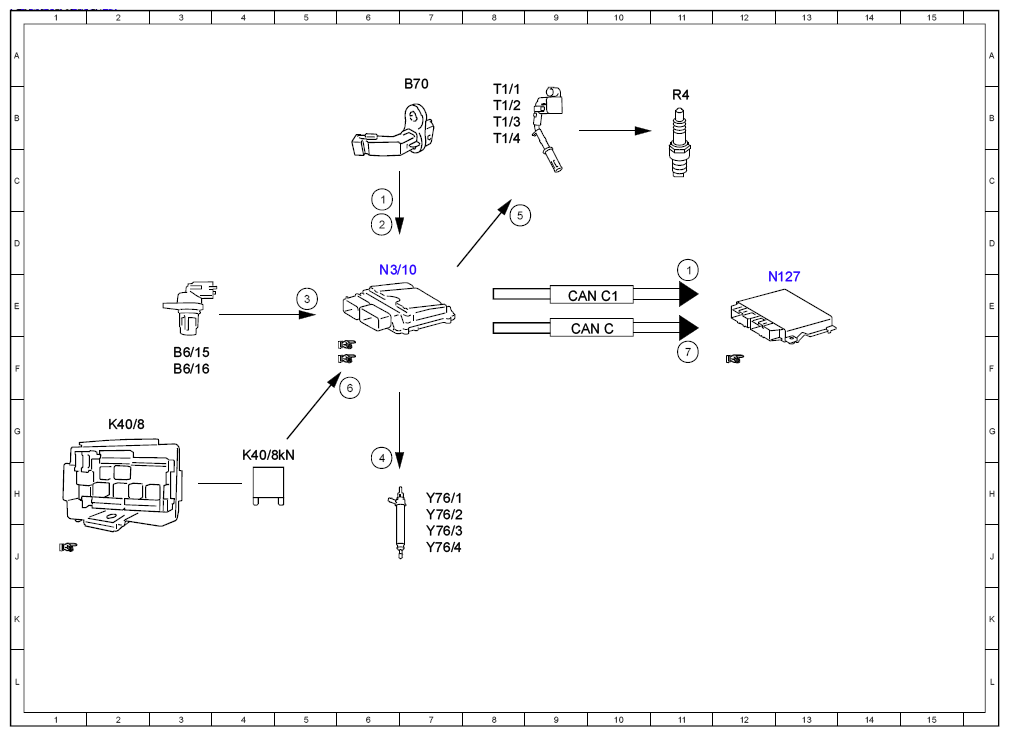

| 1 |
Engine speed, signal |
11D |
| 1 |
Engine speed, signal |
6C |
| 2 |
Crankshaft Hall sensor, signal |
6D |
| 3 |
Camshaft Hall sensor, signal |
5E |
| 4 |
Fuel injectors, actuation |
6G |
| 5 |
Ignition coils, actuation |
8D |
| 6 |
Circuit 87, status |
6F |
| 7 |
Engine running, signal |
11F |
| B6/15 |
Intake camshaft Hall sensor |
3F |
| B6/16 |
Exhaust camshaft Hall sensor |
3F |
| B70 |
Crankshaft Hall sensor |
7B |
| CAN C |
Engine CAN |
9E |
| CAN C1 |
Drive train CAN |
9E |
| K40/8 |
Engine fuse and relay module |
2G |
| K40/8kN |
Circuit 87M relay |
4G |
| N127 |
Drivetrain control unit |
13E |
| N3/10 |
ME-SFI [ME] control unit |
6E |
| R4 |
Spark plugs |
11B |
| T1/1 |
Cylinder 1 ignition coil |
8B |
| T1/2 |
Cylinder 2 ignition coil |
8B |
| T1/3 |
Cylinder 3 ignition coil |
8B |
| T1/4 |
Cylinder 4 ignition coil |
8B |
| Y76/1 |
Cylinder 1 fuel injector |
7H |
| Y76/2 |
Cylinder 2 fuel injector |
7H |
| Y76/3 |
Cylinder 3 fuel injector |
7J |
| Y76/4 |
Cylinder 4 fuel injector |
7J |
