| 1 |
Vehicle speed, signal |
18B |
| 1 |
Vehicle speed, signal |
16E |
| 1 |
Vehicle speed, signal |
10E |
| 10 |
Coolant temperature sensor, signal |
6G |
| 11 |
Charge air temperature sensor, signal |
7E |
| 12 |
Coolant thermostat heating element, actuation |
3F |
| 14 |
Fan motor, specified rpm request |
19F |
| 15 |
Circuit 87, status |
6H |
| 16 |
Accelerator pedal sensor, signal |
9E |
| 17 |
Transmission control, signal |
10G |
| 18 |
Engine running, signal |
14J |
| 18 |
Engine running, signal |
14G |
| 19 |
Fan motor, status |
17F |
| 2 |
Instrument cluster, message |
16C |
| 2 |
Instrument cluster, message |
15G |
| 2 |
Instrument cluster, message |
20B |
| 20 |
Fan motor, request |
14B |
| 20 |
Fan motor, request |
17D |
| 21 |
Radiator shutters actuator motor, actuation |
30G |
| 22 |
Radiator shutters actuator motor, status |
17F |
| 23 |
Low-temperature circuit temperature sensor, signal |
15E |
| 24 |
Radiator trim flap actuator motor, actuation |
19K |
| 25 |
Coolant pump switchover valve, actuation |
3D |
| 26 |
Electric coolant pump shutoff valve, actuation |
7C |
| 27 |
Radiator trim flap actuator motor, status |
16G |
| 28 |
Electric coolant pump, request |
19J |
| 3 |
Air conditioning, status |
14B |
| 3 |
Air conditioning, status |
17E |
| 3 |
Air conditioning, status |
10E |
| 4 |
Outside temperature, signal |
16D |
| 4 |
Outside temperature, signal |
10E |
| 4 |
Outside temperature, signal |
18C |
| 5 |
Wheel speed, signal |
15G |
| 5 |
Wheel speed, signal |
11E |
| 6 |
Engine load, signal |
9H |
| 7 |
Engine speed, signal |
6E |
| 8 |
Fuel injectors, actuation |
8K |
| 9 |
Throttle valve actuator motor, actuation |
6J |

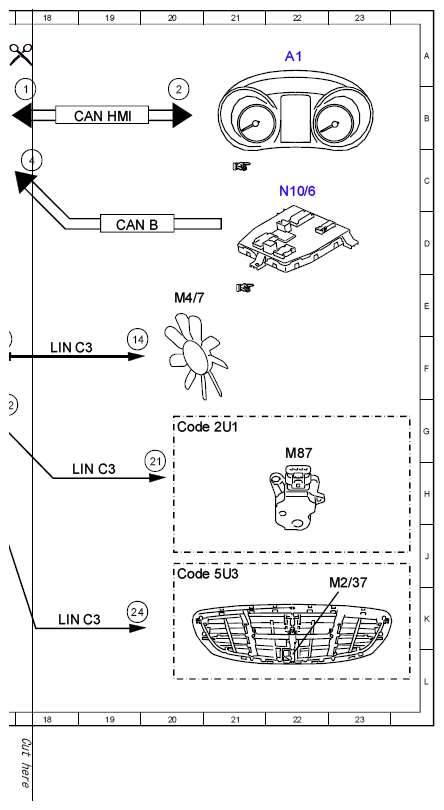

| A1 |
Instrument cluster |
22A |
| A8/1 |
Transmitter key |
17B |
| B10/13 |
Low-temperature circuit temperature sensor |
13D |
| B11/4 |
Coolant temperature sensor |
2G |
| B17/7 |
Charge air temperature sensor upstream of throttle valve |
8A |
| B17/9 |
Charge air temperature sensor downstream of throttle valve |
8B |
| B28/7 |
Pressure sensor downstream of throttle valve |
11H |
| B37 |
Accelerator pedal sensor |
10C |
| B70 |
Crankshaft Hall sensor |
5C |
| CAN B |
Interior CAN |
13B |
| CAN B |
Interior CAN |
19D |
| CAN C |
Engine CAN |
13F |
| CAN C1 |
Drive train CAN |
13F |
| CAN C1 |
Drive train CAN |
13H |
| CAN HMI |
User interface CAN |
19B |
| Code 2U1 |
Radiator shutters |
20G |
| Code 5U3 |
AIRPANEL |
20J |
| Flex E |
Chassis FlexRay |
16D |
| Flex E |
Chassis FlexRay |
16H |
| K40/8 |
Engine fuse and relay module |
2J |
| K40/8kN |
Circuit 87M relay |
4K |
| LIN C3 |
Drivetrain LIN |
19H |
| LIN C3 |
Drivetrain LIN |
18F |
| LIN C3 |
Drivetrain LIN |
18K |
| M16/6m1 |
Throttle valve actuator motor |
6K |
| M2/37 |
Radiator trim flap actuator motor |
23J |
| M4/7 |
Fan motor |
20E |
| M75/11 |
Electric coolant pump |
10K |
| M87 |
Radiator shutters actuator motor |
22G |

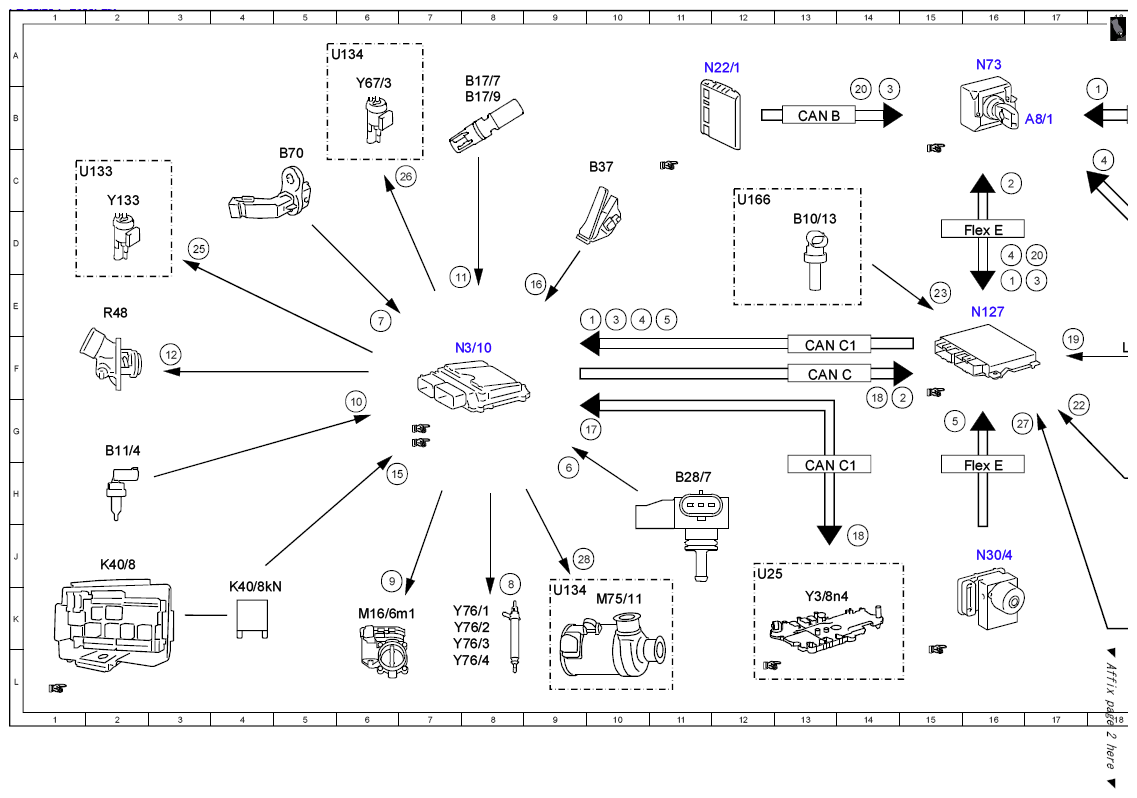

| N10/6 |
Front SAM control unit |
22C |
| N127 |
Drivetrain control unit |
16E |
| N22/1 |
Climate control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
8F |
| N30/4 |
Electronic Stability Program control unit |
16J |
| N73 |
Electronic ignition switch control unit |
16A |
| R48 |
Coolant thermostat heating element |
2E |
| U133 |
Valid for M274 (175 kW) |
1C |
| U134 |
Not valid for M274 (175 kW) |
5A |
| U134 |
Not valid for M274 (175 kW) |
9K |
| U166 |
Valid for M274.9 with 155 kW or 175 kW |
12C |
| U25 |
Valid for automatic transmission |
12J |
| Y133 |
Coolant pump switchover valve |
2C |
| Y3/8n4 |
Fully integrated transmission control unit |
13K |
| Y67/3 |
Electric coolant pump shutoff valve |
6B |
| Y76/1 |
Cylinder 1 fuel injector |
7K |
| Y76/2 |
Cylinder 2 fuel injector |
7K |
| Y76/3 |
Cylinder 3 fuel injector |
7K |
| Y76/4 |
Cylinder 4 fuel injector |
7L |
