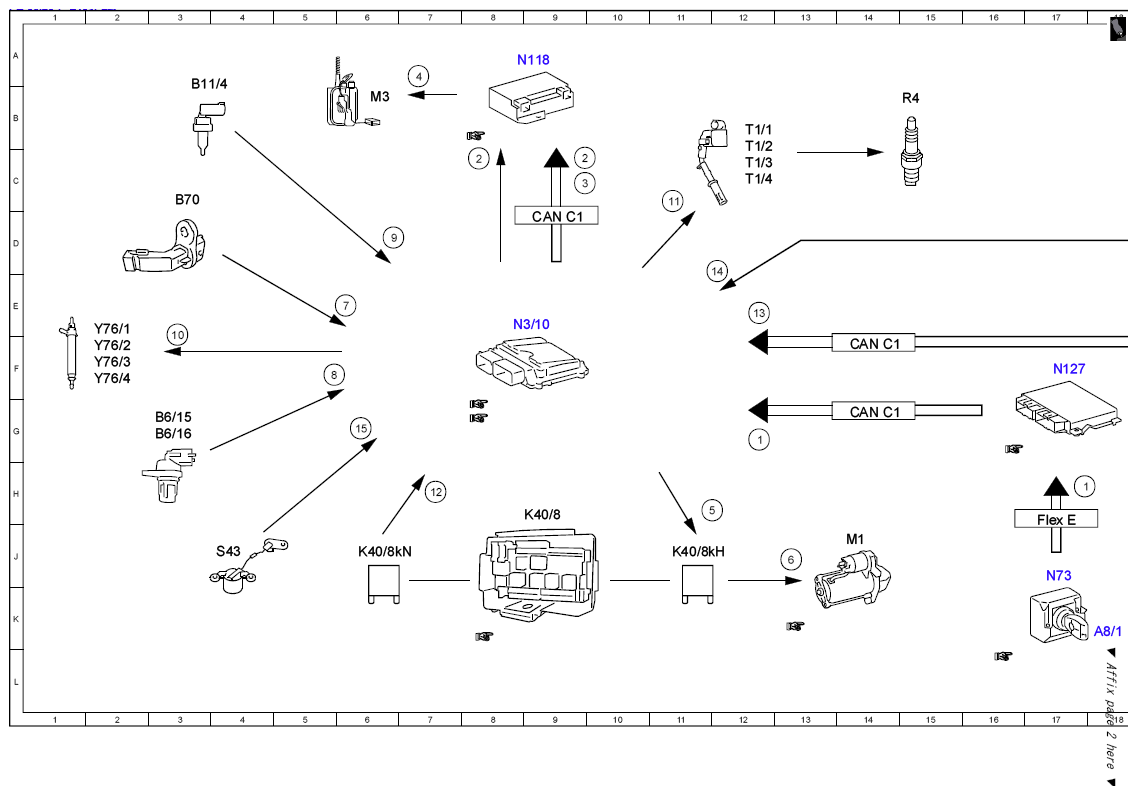

| 1 |
Circuit 50, status |
17H |
| 1 |
Circuit 50, status |
12G |
| 10 |
Fuel injectors, actuation |
3F |
| 11 |
Ignition coils, actuation |
11C |
| 12 |
Circuit 87, status |
7H |
| 13 |
Gear range, status |
12E |
| 14 |
Clutch pedal sensor, signal |
11D |
| 15 |
Oil sensor (oil level, temperature and quality), signal |
6G |
| 2 |
Fuel pump, request ON |
8C |
| 2 |
Fuel pump, request ON |
9C |
| 3 |
Fuel pump, specified pressure request |
9C |
| 4 |
Fuel pump, actuation |
7A |
| 5 |
Starter circuit 50 relay, actuation |
11H |
| 6 |
Starter, actuation |
13J |
| 7 |
Engine speed, signal |
6E |
| 8 |
Camshaft Hall sensor, signal |
5F |
| 9 |
Coolant temperature sensor, signal |
6D |
| A8/1 |
Transmitter key |
18K |
| B11/4 |
Coolant temperature sensor |
3B |
| B53/1 |
Clutch pedal sensor |
21C |
| B6/15 |
Intake camshaft Hall sensor |
3G |
| B6/16 |
Exhaust camshaft Hall sensor |
3G |
| B70 |
Crankshaft Hall sensor |
3C |
| CAN C1 |
Drive train CAN |
9D |
| CAN C1 |
Drive train CAN |
14F |
| CAN C1 |
Drive train CAN |
14G |
| Flex E |
Chassis FlexRay |
17H |
| K40/8 |
Engine fuse and relay module |
9H |
| K40/8kH |
Starter circuit 50 relay |
11J |
| K40/8kN |
Circuit 87M relay |
6J |
| M1 |
Starter |
14J |
| M3 |
Fuel pump (FP) |
6B |
| N118 |
Fuel pump control unit |
9A |
| N127 |
Drivetrain control unit |
17F |
| N3/10 |
ME-SFI [ME] control unit |
8E |
| N73 |
Electronic ignition switch control unit |
17J |
| R4 |
Spark plugs |
15B |
| S43 |
Oil level check switch |
4J |
| T1/1 |
Cylinder 1 ignition coil |
12B |
| T1/2 |
Cylinder 2 ignition coil |
12C |
| T1/3 |
Cylinder 3 ignition coil |
12C |
| T1/4 |
Cylinder 4 ignition coil |
12C |

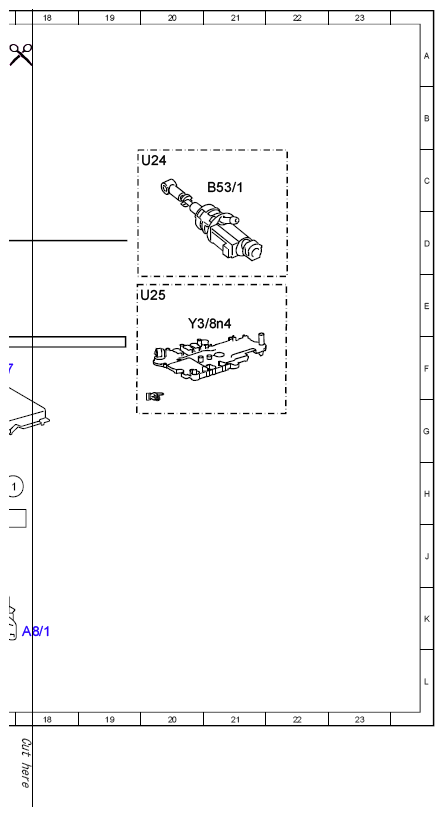

| U24 |
Valid for manual transmission |
20C |
| U25 |
Valid for automatic transmission |
19E |
| Y3/8n4 |
Fully integrated transmission control unit |
20E |
| Y76/1 |
Cylinder 1 fuel injector |
2E |
| Y76/2 |
Cylinder 2 fuel injector |
2F |
| Y76/3 |
Cylinder 3 fuel injector |
2F |
| Y76/4 |
Cylinder 4 fuel injector |
2F |
