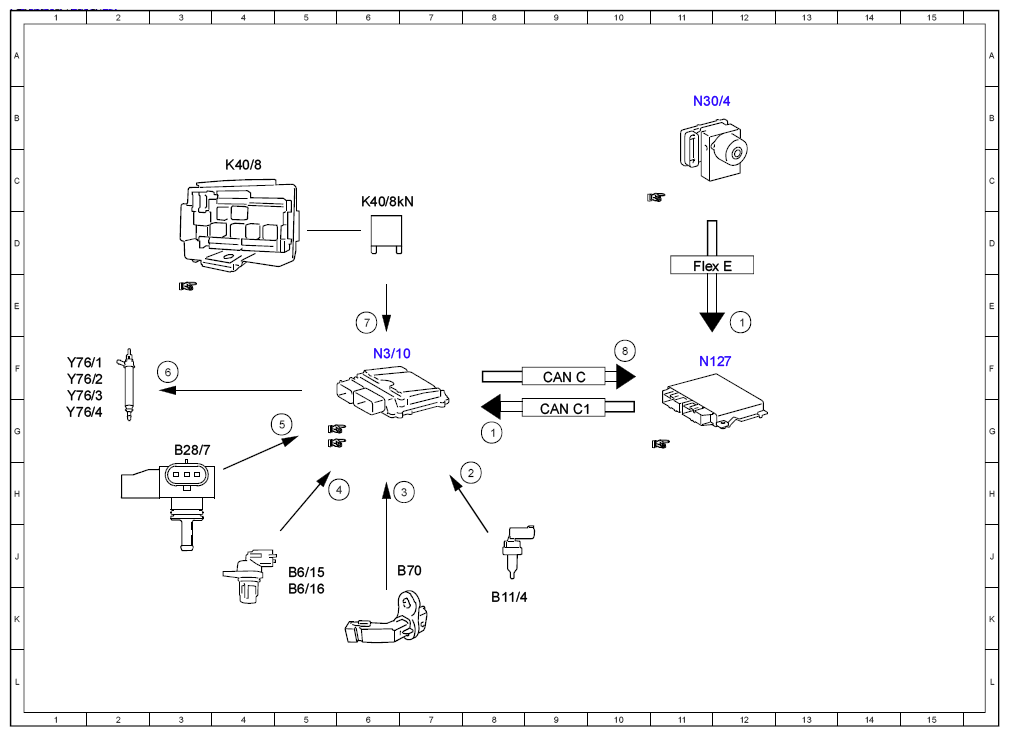

| 1 |
Wheel speed, signal |
8G |
| 1 |
Wheel speed, signal |
12E |
| 2 |
Coolant temperature sensor, signal |
8H |
| 3 |
Engine speed, signal |
7H |
| 4 |
Camshaft Hall sensor, signal |
6H |
| 5 |
Engine load, signal |
5G |
| 6 |
Fuel injectors, actuation |
3F |
| 7 |
Circuit 87, status |
6E |
| 8 |
Engine running, signal |
10F |
| B11/4 |
Coolant temperature sensor |
8K |
| B28/7 |
Pressure sensor downstream of throttle valve |
3G |
| B6/15 |
Intake camshaft Hall sensor |
5J |
| B6/16 |
Exhaust camshaft Hall sensor |
5K |
| B70 |
Crankshaft Hall sensor |
6J |
| CAN C |
Engine CAN |
9F |
| CAN C1 |
Drive train CAN |
9G |
| Flex E |
Chassis FlexRay |
11D |
| K40/8 |
Engine fuse and relay module |
4C |
| K40/8kN |
Circuit 87M relay |
6C |
| N127 |
Drivetrain control unit |
11F |
| N3/10 |
ME-SFI [ME] control unit |
6F |
| N30/4 |
Electronic Stability Program control unit |
11B |
| Y76/1 |
Cylinder 1 fuel injector |
1F |
| Y76/2 |
Cylinder 2 fuel injector |
1F |
| Y76/3 |
Cylinder 3 fuel injector |
1G |
| Y76/4 |
Cylinder 4 fuel injector |
1G |
