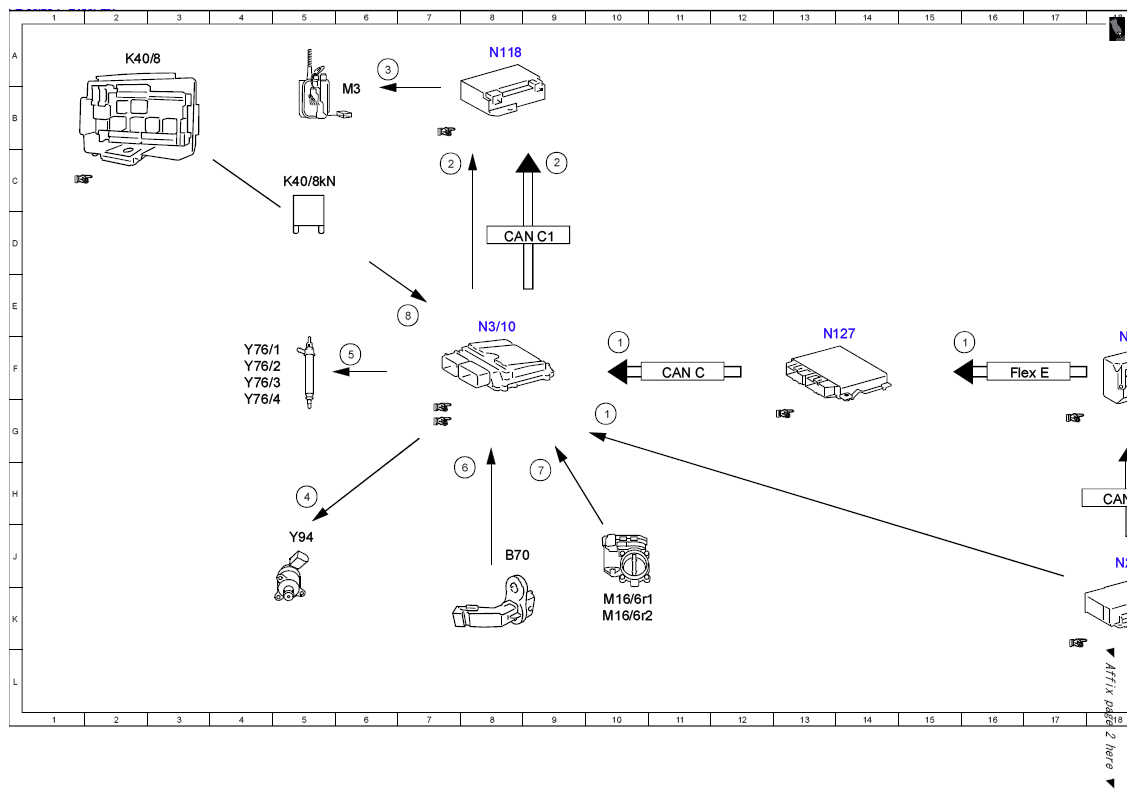

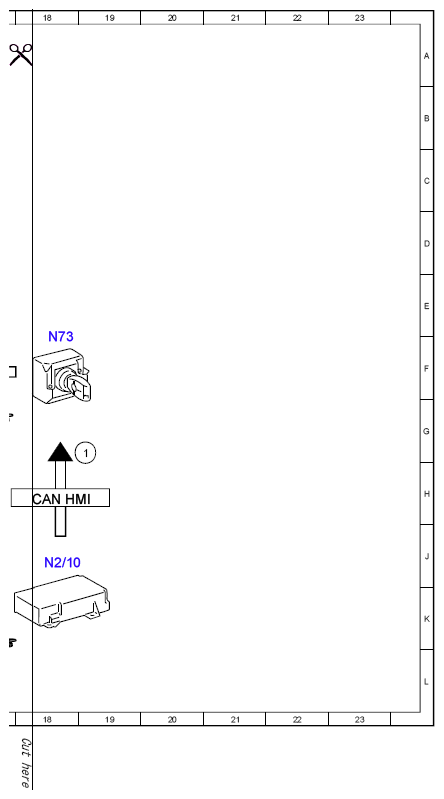

| 1 |
Crash, signal |
10F |
| 1 |
Crash, signal |
16F |
| 1 |
Crash, signal |
19G |
| 1 |
Crash, signal |
10G |
| 2 |
Fuel pump, request OFF |
9C |
| 2 |
Fuel pump, request OFF |
7C |
| 3 |
Fuel pump, actuation OFF |
6A |
| 4 |
Quantity control valve, actuation |
5H |
| 5 |
Fuel injectors, actuation |
6F |
| 6 |
Engine speed, signal |
8H |
| 7 |
Throttle valve position, signal |
9H |
| 8 |
Circuit 87, status |
7E |
| B70 |
Crankshaft Hall sensor |
8J |
| CAN C |
Engine CAN |
11F |
| CAN C1 |
Drive train CAN |
8D |
| CAN HMI |
User interface CAN |
18H |
| Flex E |
Chassis FlexRay |
16F |
| K40/8 |
Engine fuse and relay module |
2A |
| K40/8kN |
Circuit 87M relay |
5C |
| M16/6r1 |
Actual value potentiometer 1 |
10K |
| M16/6r2 |
Actual value potentiometer 2 |
10K |
| M3 |
Fuel pump (FP) |
6B |
| N118 |
Fuel pump control unit |
8A |
| N127 |
Drivetrain control unit |
13F |
| N2/10 |
Supplemental restraint system control unit |
18J |
| N3/10 |
ME-SFI [ME] control unit |
8E |
| N73 |
Electronic ignition switch control unit |
18F |
| Y76/1 |
Cylinder 1 fuel injector |
4F |
| Y76/2 |
Cylinder 2 fuel injector |
4F |
| Y76/3 |
Cylinder 3 fuel injector |
4F |
| Y76/4 |
Cylinder 4 fuel injector |
4G |
| Y94 |
Quantity control valve |
5J |
