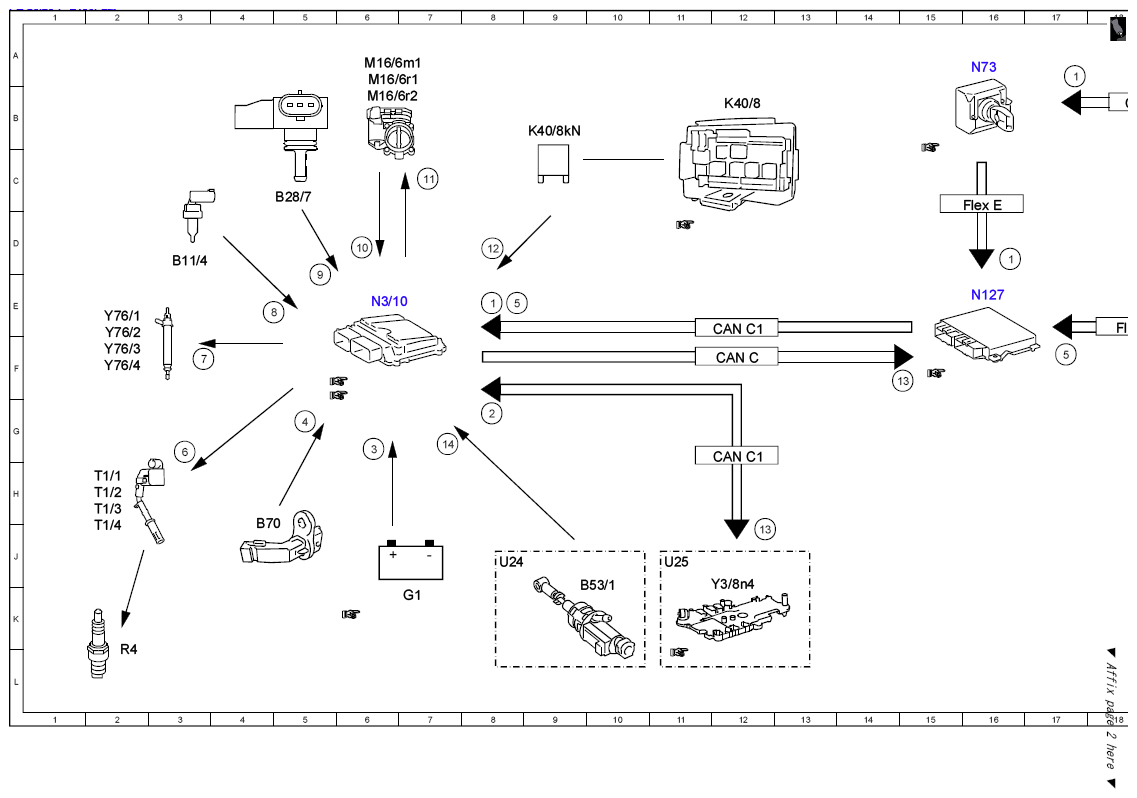

| 1 |
Air conditioning, status |
8E |
| 1 |
Air conditioning, status |
16D |
| 1 |
Air conditioning, status |
17A |
| 10 |
Throttle valve position, signal |
6D |
| 11 |
Throttle valve actuator motor, actuation |
7C |
| 12 |
Circuit 87, status |
8D |
| 13 |
Engine running, signal |
12J |
| 13 |
Engine running, signal |
14F |
| 14 |
Clutch pedal sensor, signal |
7G |
| 2 |
Gear range, status |
8G |
| 3 |
Circuit 30, status |
6G |
| 4 |
Engine speed, signal |
5G |
| 5 |
Wheel speed, signal |
8E |
| 5 |
Wheel speed, signal |
17F |
| 6 |
Ignition coils, actuation |
3G |
| 7 |
Fuel injectors, actuation |
3F |
| 8 |
Coolant temperature sensor, signal |
4E |
| 9 |
Engine load, signal |
5E |
| B11/4 |
Coolant temperature sensor |
3D |
| B28/7 |
Pressure sensor downstream of throttle valve |
5C |
| B53/1 |
Clutch pedal sensor |
10K |
| B70 |
Crankshaft Hall sensor |
4J |

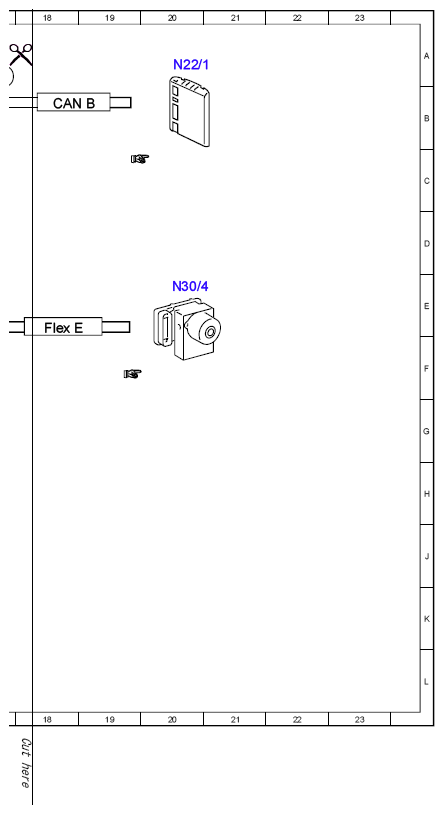

| CAN B |
Interior CAN |
18B |
| CAN C |
Engine CAN |
12F |
| CAN C1 |
Drive train CAN |
12E |
| CAN C1 |
Drive train CAN |
12G |
| Flex E |
Chassis FlexRay |
16C |
| Flex E |
Chassis FlexRay |
18E |
| G1 |
On-board electrical system battery |
7K |
| K40/8 |
Engine fuse and relay module |
12B |
| K40/8kN |
Circuit 87M relay |
9B |
| M16/6m1 |
Throttle valve actuator motor |
6A |
| M16/6r1 |
Actual value potentiometer 1 |
6A |
| M16/6r2 |
Actual value potentiometer 2 |
6B |
| N127 |
Drivetrain control unit |
16E |
| N22/1 |
Climate control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
6E |
| N30/4 |
Electronic Stability Program control unit |
20E |
| N73 |
Electronic ignition switch control unit |
16A |
| R4 |
Spark plugs |
2L |
| T1/1 |
Cylinder 1 ignition coil |
2H |
| T1/2 |
Cylinder 2 ignition coil |
2H |
| T1/3 |
Cylinder 3 ignition coil |
2H |
| T1/4 |
Cylinder 4 ignition coil |
2J |
| U24 |
Valid for manual transmission |
8J |
| U25 |
Valid for automatic transmission |
11J |
| Y3/8n4 |
Fully integrated transmission control unit |
12K |
| Y76/1 |
Cylinder 1 fuel injector |
2E |
| Y76/2 |
Cylinder 2 fuel injector |
2F |
| Y76/3 |
Cylinder 3 fuel injector |
2F |
| Y76/4 |
Cylinder 4 fuel injector |
2F |
