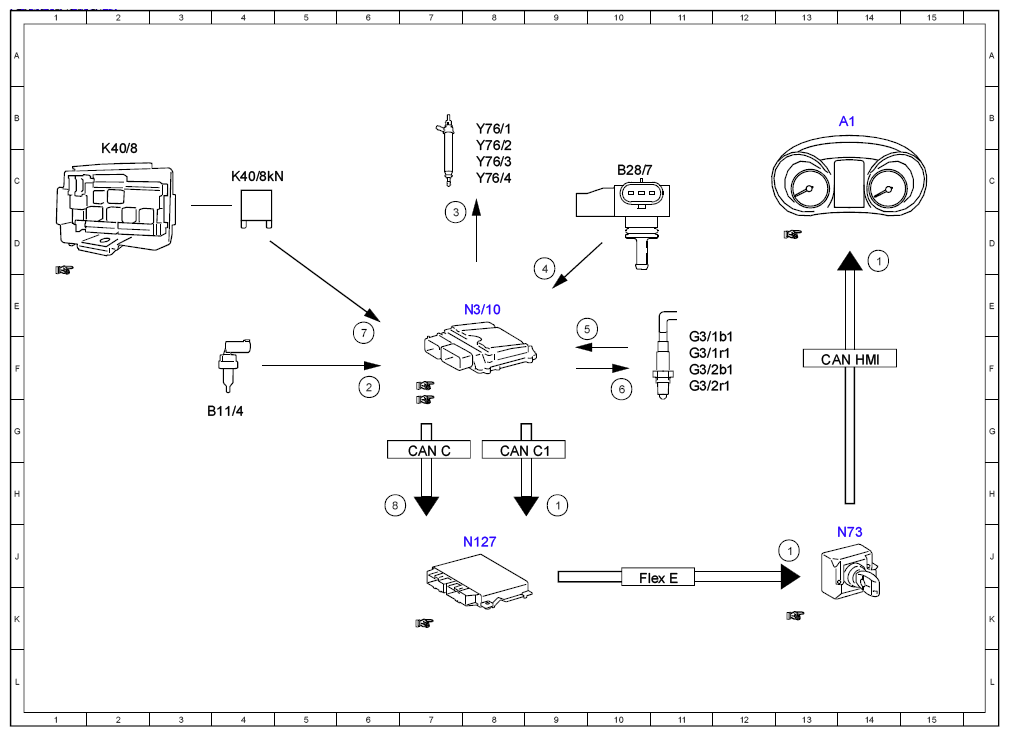

| 1 |
Instrument cluster, request |
9H |
| 1 |
Instrument cluster, request |
13J |
| 1 |
Instrument cluster, request |
14D |
| 2 |
Coolant temperature sensor, signal |
6F |
| 3 |
Fuel injectors, actuation |
7D |
| 4 |
Engine load, signal |
9D |
| 5 |
Oxygen sensor, signal |
9E |
| 6 |
Oxygen sensor heater, actuation |
10F |
| 7 |
Circuit 87, status |
6F |
| 8 |
Engine running, signal |
6H |
| A1 |
Instrument cluster |
14B |
| B11/4 |
Coolant temperature sensor |
4G |
| B28/7 |
Pressure sensor downstream of throttle valve |
10C |
| CAN C |
Engine CAN |
7G |
| CAN C1 |
Drive train CAN |
8G |
| CAN HMI |
User interface CAN |
14F |
| Flex E |
Chassis FlexRay |
10J |
| G3/1b1 |
Sensor element of oxygen sensor downstream of catalytic converter |
11F |
| G3/1r1 |
Heater of oxygen sensor heater downstream of catalytic converter |
11F |
| G3/2b1 |
Sensor element of oxygen sensor upstream of catalytic converter |
11F |
| G3/2r1 |
Heater of oxygen sensor upstream of catalytic converter |
11F |
| K40/8 |
Engine fuse and relay module |
2C |
| K40/8kN |
Circuit 87M relay |
4C |
| N127 |
Drivetrain control unit |
8J |
| N3/10 |
ME-SFI [ME] control unit |
8E |
| N73 |
Electronic ignition switch control unit |
14J |
| Y76/1 |
Cylinder 1 fuel injector |
8B |
| Y76/2 |
Cylinder 2 fuel injector |
8C |
| Y76/3 |
Cylinder 3 fuel injector |
8C |
| Y76/4 |
Cylinder 4 fuel injector |
8C |
