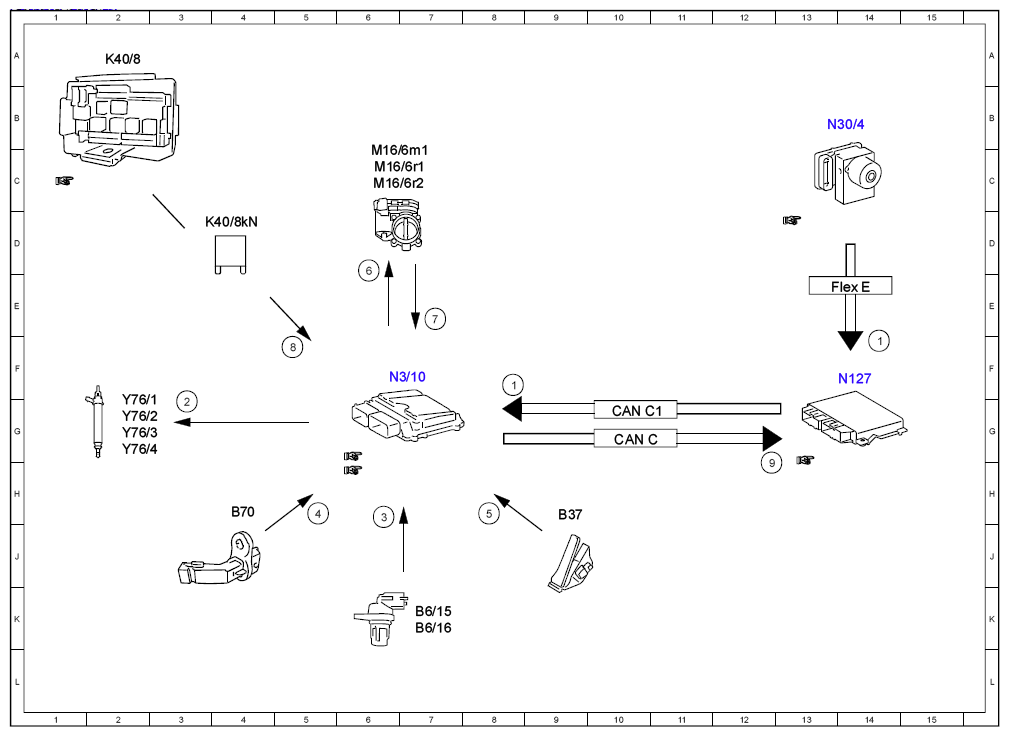

| 1 |
Service brake, status |
8F |
| 1 |
Service brake, status |
14F |
| 2 |
Fuel injectors, actuation |
3G |
| 3 |
Camshaft Hall sensor, signal |
6H |
| 4 |
Engine speed, signal |
5H |
| 5 |
Accelerator pedal sensor, signal |
8H |
| 6 |
Throttle valve actuator motor, actuation |
6D |
| 7 |
Throttle valve position, signal |
7E |
| 8 |
Circuit 87, status |
5F |
| 9 |
Engine running, signal |
12H |
| B37 |
Accelerator pedal sensor |
9H |
| B6/15 |
Intake camshaft Hall sensor |
7K |
| B6/16 |
Exhaust camshaft Hall sensor |
7K |
| B70 |
Crankshaft Hall sensor |
4H |
| CAN C |
Engine CAN |
10G |
| CAN C1 |
Drive train CAN |
10G |
| Flex E |
Chassis FlexRay |
14E |
| K40/8 |
Engine fuse and relay module |
2A |
| K40/8kN |
Circuit 87M relay |
4D |
| M16/6m1 |
Throttle valve actuator motor |
6C |
| M16/6r1 |
Actual value potentiometer 1 |
6C |
| M16/6r2 |
Actual value potentiometer 2 |
6C |
| N127 |
Drivetrain control unit |
14F |
| N3/10 |
ME-SFI [ME] control unit |
6F |
| N30/4 |
Electronic Stability Program control unit |
13B |
| Y76/1 |
Cylinder 1 fuel injector |
2G |
| Y76/2 |
Cylinder 2 fuel injector |
2G |
| Y76/3 |
Cylinder 3 fuel injector |
2G |
| Y76/4 |
Cylinder 4 fuel injector |
2G |
