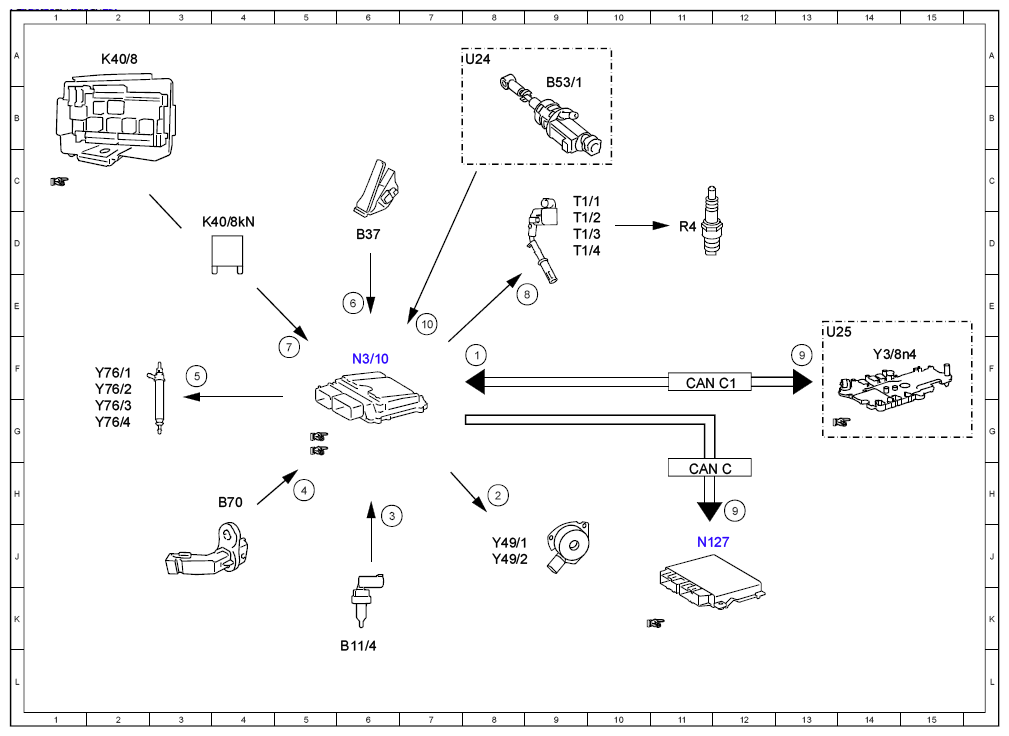

| 1 |
Gear range, status |
8F |
| 10 |
Clutch pedal sensor, signal |
7E |
| 2 |
Camshaft solenoids, actuation |
8H |
| 3 |
Coolant temperature sensor, signal |
6H |
| 4 |
Engine speed, signal |
5H |
| 5 |
Fuel injectors, actuation |
3F |
| 6 |
Accelerator pedal sensor, signal |
6E |
| 7 |
Circuit 87, status |
5F |
| 8 |
Ignition coils, actuation |
9E |
| 9 |
Engine running, signal |
12H |
| 9 |
Engine running, signal |
13F |
| B11/4 |
Coolant temperature sensor |
6L |
| B37 |
Accelerator pedal sensor |
6D |
| B53/1 |
Clutch pedal sensor |
9B |
| B70 |
Crankshaft Hall sensor |
4H |
| CAN C |
Engine CAN |
11H |
| CAN C1 |
Drive train CAN |
11F |
| K40/8 |
Engine fuse and relay module |
2A |
| K40/8kN |
Circuit 87M relay |
4D |
| N127 |
Drivetrain control unit |
11J |
| N3/10 |
ME-SFI [ME] control unit |
6F |
| R4 |
Spark plugs |
11D |
| T1/1 |
Cylinder 1 ignition coil |
9C |
| T1/2 |
Cylinder 2 ignition coil |
9D |
| T1/3 |
Cylinder 3 ignition coil |
9D |
| T1/4 |
Cylinder 4 ignition coil |
9D |
| U24 |
Valid for manual transmission |
8A |
| U25 |
Valid for automatic transmission |
13E |
| Y3/8n4 |
Fully integrated transmission control unit |
14F |
| Y49/1 |
Intake camshaft solenoid |
8J |
| Y49/2 |
Exhaust camshaft solenoid |
8J |
| Y76/1 |
Cylinder 1 fuel injector |
2F |
| Y76/2 |
Cylinder 2 fuel injector |
2F |
| Y76/3 |
Cylinder 3 fuel injector |
2G |
| Y76/4 |
Cylinder 4 fuel injector |
2G |
