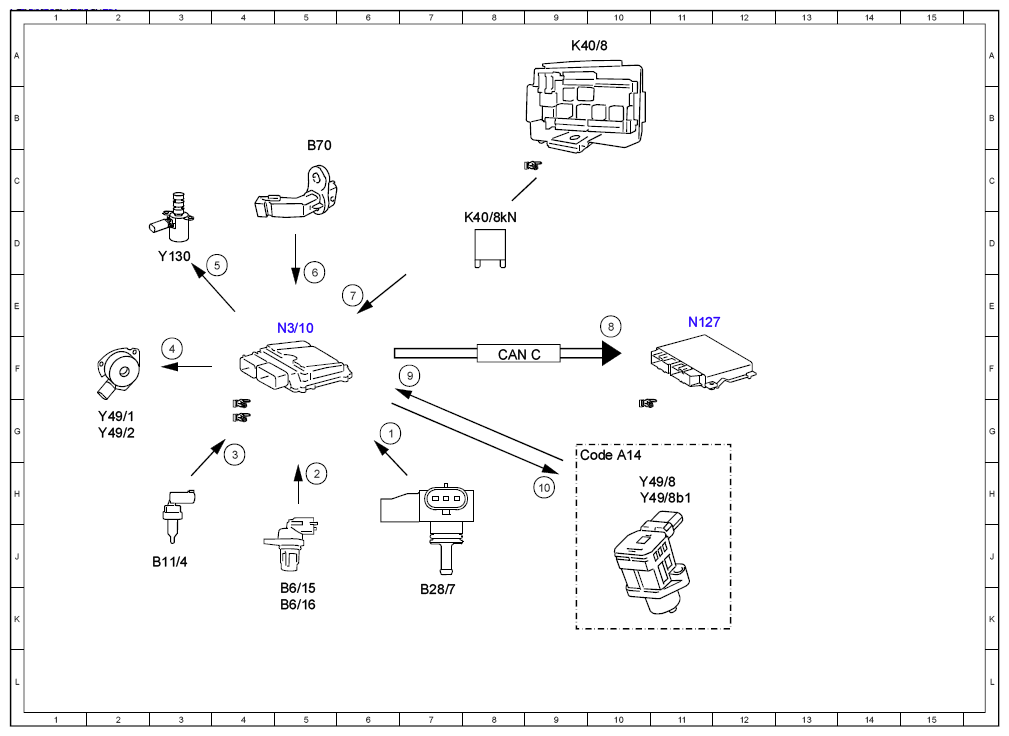

| 1 |
Engine load, signal |
6G |
| 10 |
Intake camshaft valve lift switching actuator, actuation |
9H |
| 2 |
Camshaft Hall sensor, signal |
5H |
| 3 |
Coolant temperature sensor, signal |
4G |
| 4 |
Camshaft solenoids, actuation |
3F |
| 5 |
Engine oil pump valve, actuation |
4D |
| 6 |
Engine speed, signal |
5E |
| 7 |
Circuit 87, status |
6E |
| 8 |
Engine running, signal |
10E |
| 9 |
Intake camshaft valve lift switching Hall sensor, signal |
6F |
| B11/4 |
Coolant temperature sensor |
3J |
| B28/7 |
Pressure sensor downstream of throttle valve |
7K |
| B6/15 |
Intake camshaft Hall sensor |
5K |
| B6/16 |
Exhaust camshaft Hall sensor |
5K |
| B70 |
Crankshaft Hall sensor |
5C |
| CAN C |
Engine CAN |
8F |
| Code A14 |
Camtronic |
9G |
| K40/8 |
Engine fuse and relay module |
9A |
| K40/8kN |
Circuit 87M relay |
8D |
| N127 |
Drivetrain control unit |
11E |
| N3/10 |
ME-SFI [ME] control unit |
5E |
| Y130 |
Engine oil pump valve |
3D |
| Y49/1 |
Intake camshaft solenoid |
2G |
| Y49/2 |
Exhaust camshaft solenoid |
2G |
| Y49/8 |
Intake camshaft valve lift switching actuator |
10H |
| Y49/8b1 |
Intake camshaft valve lift switching Hall sensor |
11H |
