Remove/install pressure transducer for boost pressure control - AR07.17-P-7002MMV
ENGINE 276.8 in MODEL 205
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove right engine air intake duct upstream of left air filter | ||

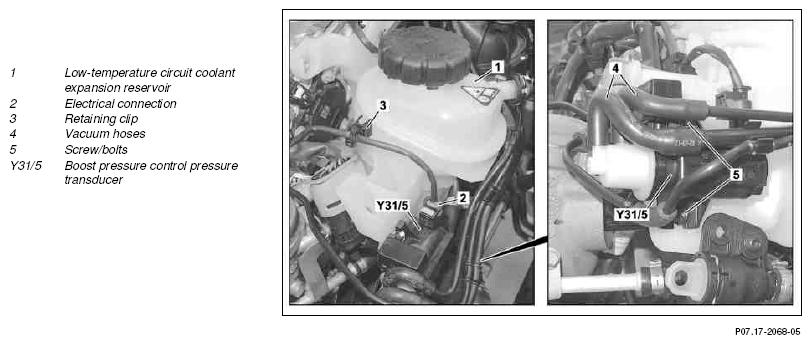

| 3 | Disconnect electrical connection (2) at boost pressure control pressure transducer (Y31/5) | ||
| 4 | Unclip retaining clip (3) from low-temperature circuit coolant expansion reservoir (1) | ||
| 5 | Detach vacuum hose (4) from boost pressure control pressure transducer (Y31/5) | ||
| 6 | Remove screw/bolts (5) and take out boost pressure control pressure transducer (Y31/5) upwards | ||
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04B |
