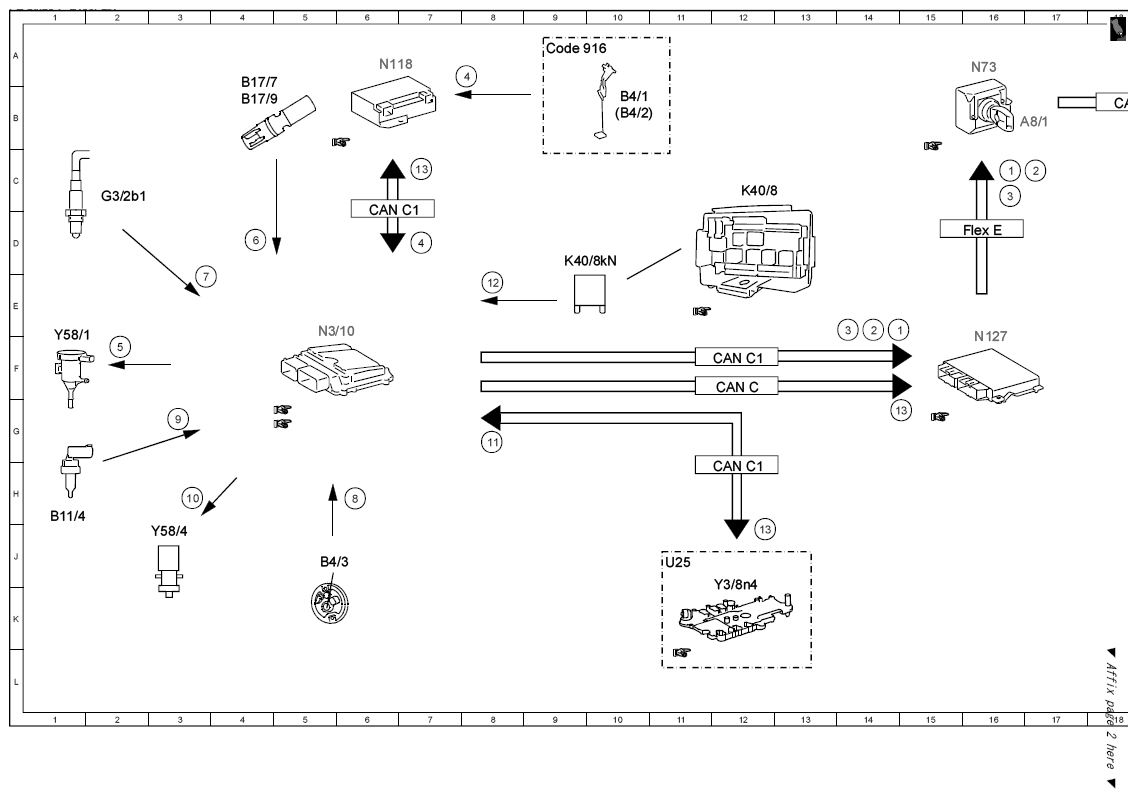

| 1 |
Engine diagnosis indicator lamp, actuation |
20A |
| 1 |
Engine diagnosis indicator lamp, actuation |
16C |
| 1 |
Engine diagnosis indicator lamp, actuation |
14E |
| 10 |
Activated charcoal canister shutoff valve, actuation |
3H |
| 11 |
Gear range, status |
8G |
| 12 |
Circuit 87, status |
8E |
| 13 |
Engine running, signal |
12J |
| 13 |
Engine running, signal |
14G |
| 13 |
Engine running, signal |
7C |
| 2 |
Instrument cluster, message |
19A |
| 2 |
Instrument cluster, message |
17C |
| 2 |
Instrument cluster, message |
14E |
| 3 |
Fuel reserve warning lamp, actuation |
19A |
| 3 |
Fuel reserve warning lamp, actuation |
16C |
| 3 |
Fuel reserve warning lamp, actuation |
14E |
| 4 |
Fuel level, signal |
8A |
| 4 |
Fuel level, signal |
7D |
| 5 |
Purging switchover valve, actuation |
2F |
| 6 |
Intake air temperature sensor, signal |
4D |
| 7 |
Oxygen sensor element, signal |
3E |
| 8 |
Fuel tank pressure sensor, signal |
6H |
| 9 |
Coolant temperature sensor, signal |
3G |
| A1 |

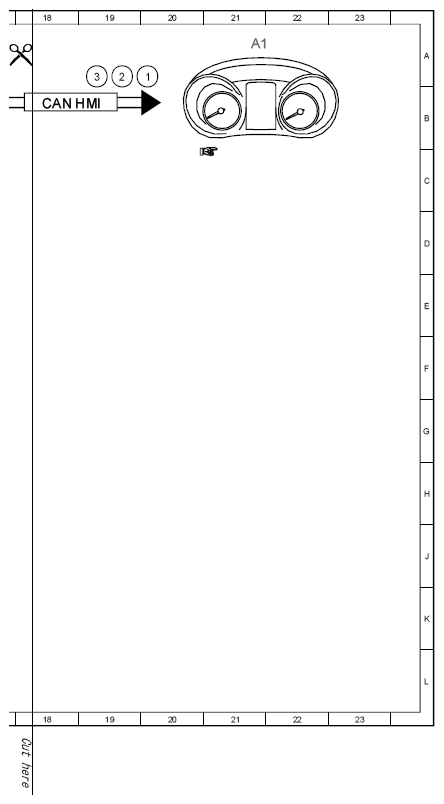

Instrument cluster |
21A |
| A8/1 |
Transmitter key |
17B |
| B11/4 |
Coolant temperature sensor |
1H |
| B17/7 |
Charge air temperature sensor upstream of throttle valve |
4B |
| B17/9 |
Charge air temperature sensor downstream of throttle valve |
4B |
| B4/1 |
Fuel tank fuel level indicator fill level sensor, left |
10B |
| B4/2 |
Fuel tank fuel level indicator fill level sensor, right |
10B |
| B4/3 |
Fuel tank pressure sensor |
5J |
| CAN C |
Engine CAN |
12F |
| CAN C1 |
Drive train CAN |
12F |
| CAN C1 |
Drive train CAN |
12H |
| CAN C1 |
Drive train CAN |
6D |
| CAN HMI |
User interface CAN |
18B |
| Code 916 |
Fuel tank with 66l |
9A |
| Flex E |
Chassis FlexRay |
16D |
| G3/2b1 |
Sensor element of oxygen sensor upstream of catalytic converter |
2C |
| K40/8 |
Engine fuse and relay module |
12C |
| K40/8kN |
Circuit 87M relay |
9D |
| N118 |
Fuel pump control unit |
6A |
| N127 |
Drivetrain control unit |
16F |
| N3/10 |
ME-SFI [ME] control unit |
5E |
| N73 |
Electronic ignition switch control unit |
16A |
| U25 |
Valid for automatic transmission |
11J |
| Y3/8n4 |
Fully integrated transmission control unit |
12K |
| Y58/1 |
Purge control valve |
1F |
| Y58/4 |
Activated charcoal filter shutoff valve |
3J |
