Remove/install engine mount or engine crossmember at the rear - AR22.10-P-1180LWB

Engine 274.9, 276.8, 651 in model 205

Engine 274.9, 651 in model 253

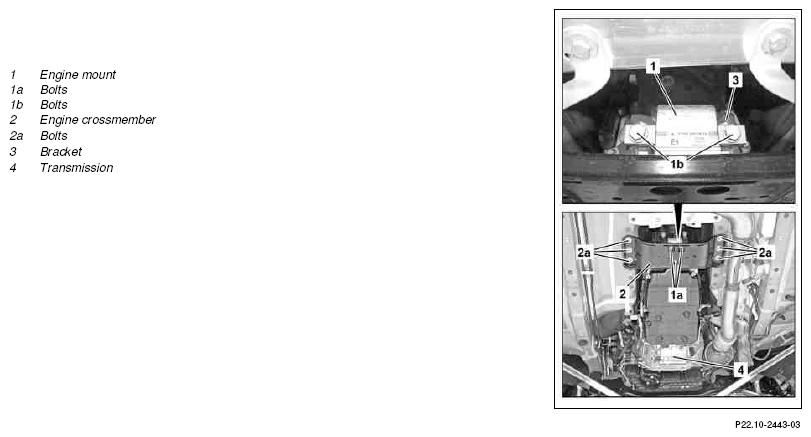

Shown: model 205 with engine 651 without code M005 (4MATIC)

Fig 1: Identifying Rear Engine Mount Remove/Install Components - Shown On Model 205 With Engine 651

Courtesy of MERCEDES-BENZ USA

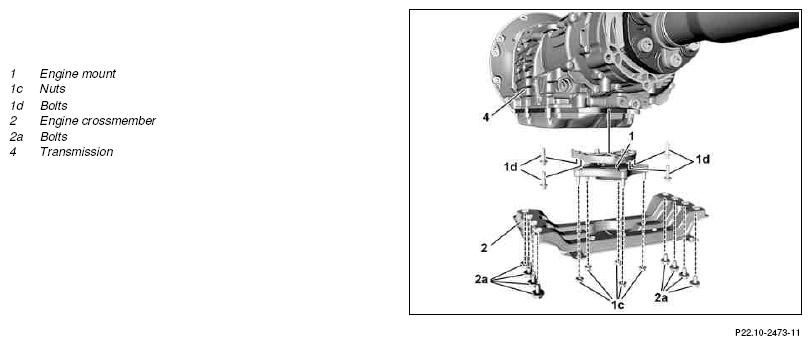

Shown on model 205 with engine 651 with code M005 (4MATIC)

Fig 2: Identifying Rear Engine Mount Remove/Install Components - Shown On Model 205 With Engine 651

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Remove center and rear section of lower engine compartment paneling		AR61.20-P-1105LW
2	Support transmission (4)
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
3.1	Remove screw/bolts (1a) from engine mount (1)	Engine 274.9, 276.8, 651 in model 205 except code M005 (4MATIC) Engine 274.9, 651 in model 253 except code M005 (4MATIC)
		Model 205 with engine 274.9, 276.8, 651 except code M005 (4MATIC) Rear engine mount on engine support	*BA22.10-P-1004-03E
		Model 253 with engine 274.9, 651 except code M005 (4MATIC) Rear engine mount on engine support	*BA22.10-P-1004-03M
3.2	Unscrew nuts (1c) from engine mount (1)	Engine 274.9, 276.8, 651 in model 205 with code M005 (4MATIC) Engine 274.9, 651 in model 253 with code M005 (4MATIC)
		Model 205 with engine 274.9, 276.8, 651 with code M005 (4MATIC) Rear engine mount on engine support	*BA22.10-P-1004-03E
		Model 253 with engine 274.9, 651 with code M005 (4MATIC) Rear engine mount on engine support	*BA22.10-P-1004-03M
4	Lift transmission (4) by about 10 mm
5	Remove screw/bolts (1b) from holder (3) and remove engine mount (1)	Engine 274.9, 276.8, 651 in model 205 except code M005 (4MATIC) Bolt connecting rear engine mount to bracket or transmission	*BA22.10-P-1003-03E
		Engine 274.9, 651 in model 253 except code M005 (4MATIC) Bolt, rear engine mount to bracket or transmission	*BA22.10-P-1003-03M
6	Remove screw/bolts (2a) and take off engine crossmember (2)	Never use an impact wrench/driver or compressed air tools for screwing in or unscrewing the screw/bolts (2a)! Otherwise the threads can get damaged.
		Engine 274.9, 276.8, 651 in model 205Bolt, rear engine support to frame floor assembly	*BA22.10-P-1005-03E
		Engine 274.9, 651 in model 253Bolt, rear engine support to frame floor assembly	*BA22.10-P-1005-03M
7	Remove screw/bolts (1) and remove engine mount (1)	Engine 274.9, 276.8, 651 in model 205 with code M005 (4MATIC) Bolt connecting rear engine mount to bracket or transmission	*BA22.10-P-1003-03E
		Engine 274.9, 651 in model 253 with code M005 (4MATIC) Bolt, rear engine mount to bracket or transmission	*BA22.10-P-1003-03M
8	Install in the reverse order
