| 1 |
Engine diagnosis indicator lamp, actuation |
20K |
| 1 |
Engine diagnosis indicator lamp, actuation |
14F |
| 1 |
Engine diagnosis indicator lamp, actuation |
16J |
| 10 |
Nitrogen oxide proportion, status |
7E |
| 11 |
Oxygen proportion, status |
7D |
| 12 |
Exhaust temperature, signal |
6H |
| 2 |
Shift point, increase request |
15D |
| 3 |
Wheel speed, signal |
17G |
| 3 |
Wheel speed, signal |
10F |
| 4 |
Coolant temperature sensor, signal |
5F |
| 5 |
Oxygen sensor sensor element, signal |
8H |
| 5 |
Oxygen sensor sensor element, signal |
8E |
| 6 |
Engine speed, signal |
9H |
| 7 |
Circuit 87, status |
9E |
| 8 |
Engine running, signal |
15E |
| 8 |
Engine running, signal |
14H |
| 9 |
Camshaft solenoids, actuation |
5E |
| A1 |

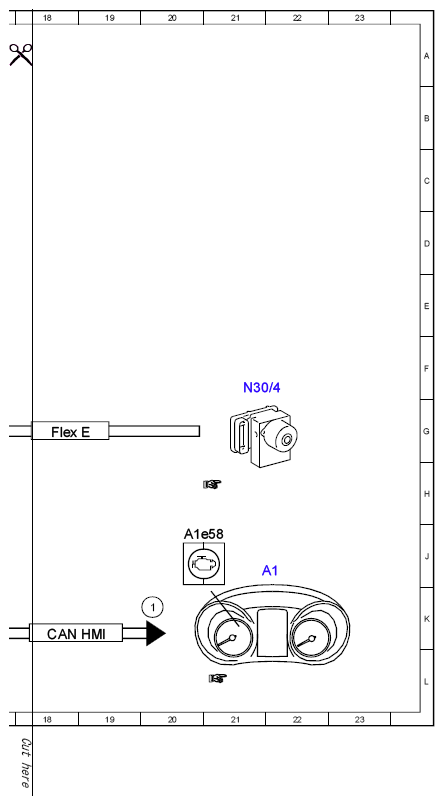

Instrument cluster |
22J |
| A1e58 |
Engine diagnosis indicator lamp |
20J |
| B11/4 |
Coolant temperature sensor |
3F |
| B16 |
Temperature sensor upstream of NOx storage catalytic converter |
4H |
| B70 |
Crankshaft Hall sensor |
11J |
| CAN C |
Engine CAN |
12H |
| CAN C1 |
Drive train CAN |
12F |
| CAN C1 |
Drive train CAN |
12G |
| CAN HMI |
User interface CAN |
18K |
| CAN I |
Drive train sensor CAN |
5C |
| Code 920 |
Gasoline direct injection with stratified charge |
1A |
| Flex E |
Chassis FlexRay |
16J |
| Flex E |
Chassis FlexRay |
18G |
| G3/1b1 |
Sensor element of oxygen sensor downstream of catalytic converter |
8B |
| G3/2b1 |
Sensor element of oxygen sensor upstream of catalytic converter |
8J |
| K40/8 |
Engine fuse and relay module |
13A |
| K40/8kN |
Circuit 87M relay |
11C |
| N127 |
Drivetrain control unit |
16F |
| N3/10 |

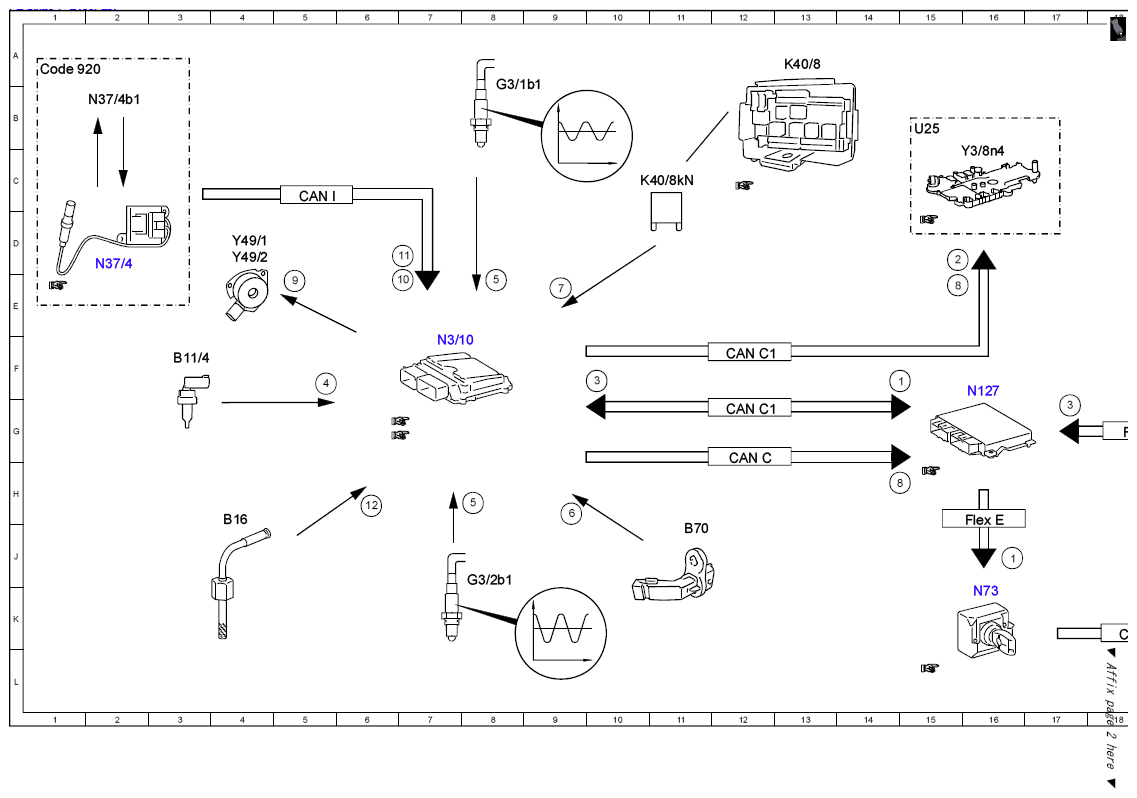

ME-SFI [ME] control unit |
7F |
| N30/4 |
Electronic Stability Program control unit |
21F |
| N37/4 |
NOx sensor control unit |
2D |
| N37/4b1 |
NOx sensor |
2B |
| N73 |
Electronic ignition switch control unit |
16K |
| U25 |
Valid for automatic transmission |
15B |
| Y3/8n4 |
Fully integrated transmission control control unit |
16C |
| Y49/1 |
Intake camshaft solenoid |
4D |
| Y49/2 |
Exhaust camshaft solenoid |
4D |
