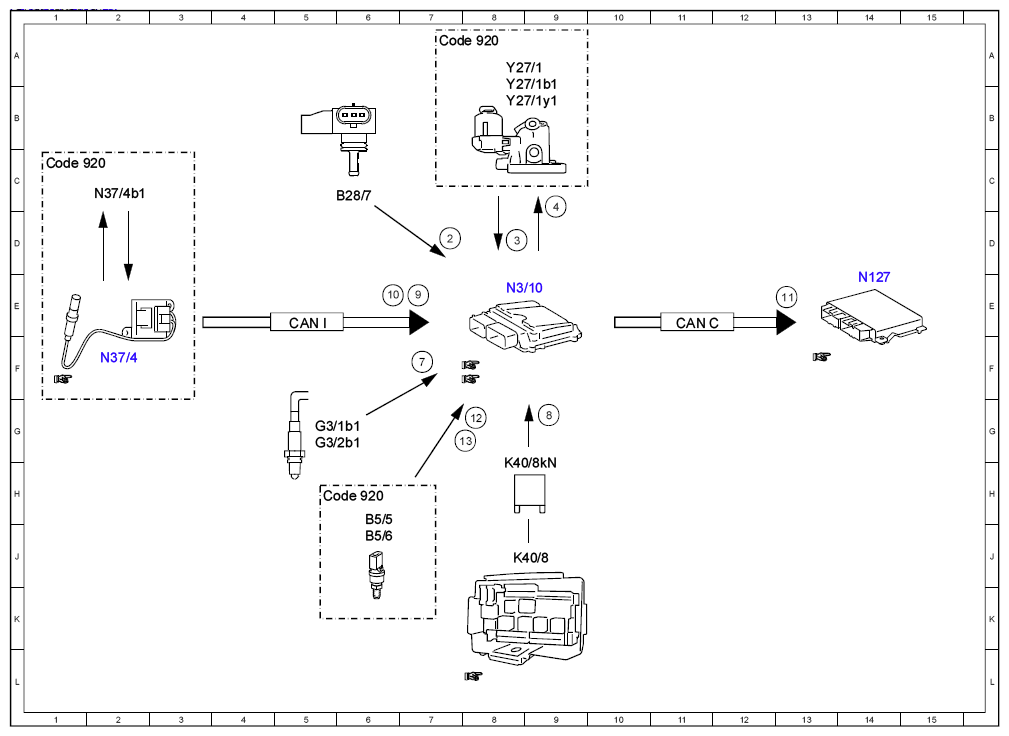

| 10 |
Oxygen proportion, status |
6E |
| 11 |
Engine running, signal |
13E |
| 12 |
Exhaust gas recirculation pressure sensor 1, signal |
|
| 13 |
Exhaust gas recirculation pressure sensor 2, signal |
|
| 2 |
Engine load, signal |
7D |
| 3 |
Exhaust gas recirculation valve Hall sensor, signal |
|
| 4 |
Exhaust gas recirculation valve rotating magnet, actuation |
|
| 7 |
Oxygen sensor sensor element, signal |
7F |
| 8 |
Circuit 87, status |
9G |
| 9 |
Nitrogen oxide proportion, status |
7E |
| B28/7 |
Pressure sensor downstream of throttle valve |
6C |
| B5/5 |
Exhaust gas recirculation pressure sensor 1 |
6H |
| B5/6 |
Exhaust gas recirculation pressure sensor 2 |
6J |
| CAN C |
Engine CAN |
11E |
| CAN I |
Drive train sensor CAN |
5E |
| Code 920 |
Gasoline direct injection with stratified charge |
1C |
| Code 920 |
Gasoline direct injection with stratified charge |
7A |
| Code 920 |
Gasoline direct injection with stratified charge |
5H |
| G3/1b1 |
Sensor element of oxygen sensor downstream of catalytic converter |
5G |
| G3/2b1 |
Sensor element of oxygen sensor upstream of catalytic converter |
5G |
| K40/8 |
Engine fuse and relay module |
8J |
| K40/8kN |
Circuit 87M relay |
8H |
| N127 |
Drivetrain control unit |
14E |
| N3/10 |
ME-SFI [ME] control unit |
8E |
| N37/4 |
NOx sensor control unit |
2F |
| N37/4b1 |
NOx sensor |
2C |
| Y27/1 |
Exhaust gas recirculation valve |
8A |
| Y27/1b1 |
Exhaust gas recirculation valve Hall sensor |
8B |
| Y27/1y1 |
Exhaust gas recirculation valve rotating magnet |
8B |
