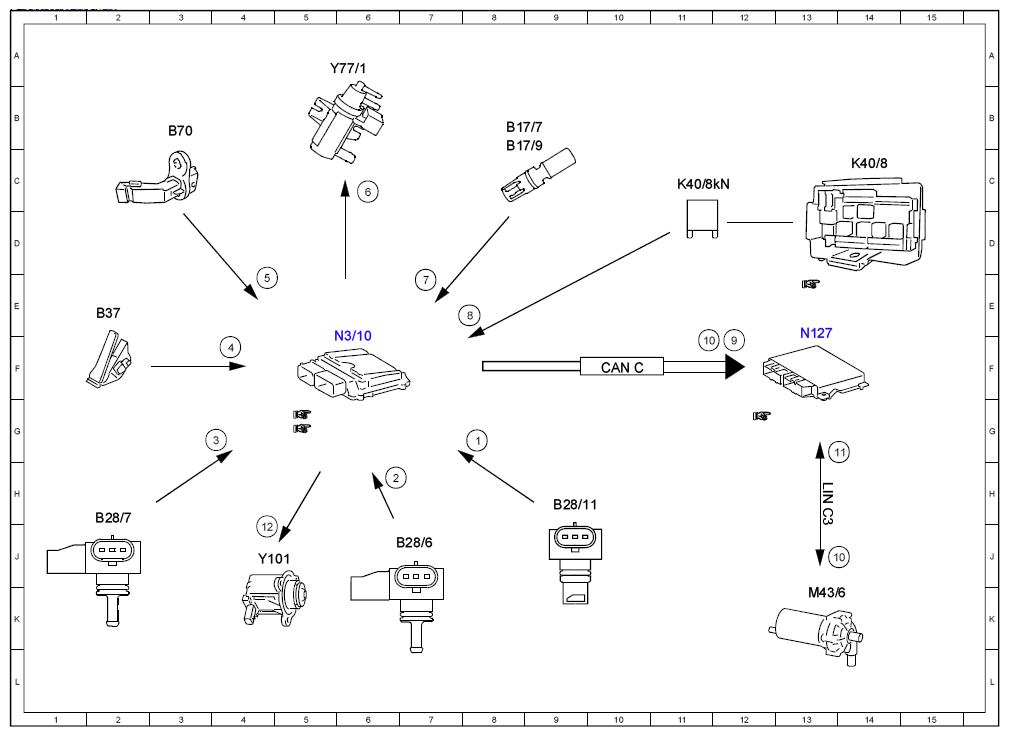

| 1 |
Pressure sensor downstream of air filter, signal |
8G |
| 10 |
Low temperature circuit circulation pump 1, actuation |
11E |
| 10 |
Low temperature circuit circulation pump 1, actuation |
13J |
| 11 |
Low temperature circuit circulation pump 1, request |
13G |
| 12 |
Bypass air switchover valve, actuation |
4J |
| 2 |
Boost pressure, signal |
6H |
| 3 |
Intake manifold pressure, signal |
4G |
| 4 |
Accelerator pedal sensor, signal |
4F |
| 5 |
Engine speed, signal |
4E |
| 6 |
Boost pressure control pressure transducer, actuation |
6C |
| 7 |
Charge air temperature sensor, signal |
7E |
| 8 |
Circuit 87, status |
8E |
| 9 |
Engine running, signal |
12F |
| B17/7 |
Charge air temperature sensor upstream of throttle valve |
8B |
| B17/9 |
Charge air temperature sensor downstream of throttle valve |
8C |
| B28/11 |
Pressure sensor downstream of air filter |
9H |
| B28/6 |
Pressure sensor upstream of throttle valve |
7J |
| B28/7 |
Pressure sensor downstream of throttle valve |
2H |
| B37 |
Accelerator pedal sensor |
2E |
| B70 |
Crankshaft Hall sensor |
3B |
| CAN C |
Engine CAN |
10F |
| K40/8 |
Engine fuse and relay module |
14C |
| K40/8kN |
Circuit 87M relay |
11C |
| LIN C3 |
Drivetrain LIN |
13H |
| M43/6 |
Low temperature circuit circulation pump 1 |
13K |
| N127 |
Drivetrain control unit |
13F |
| N3/10 |
ME-SFI [ME] control unit |
6F |
| Y101 |
Divert air switchover valve |
4J |
| Y77/1 |
Boost pressure control pressure transducer |
6A |
