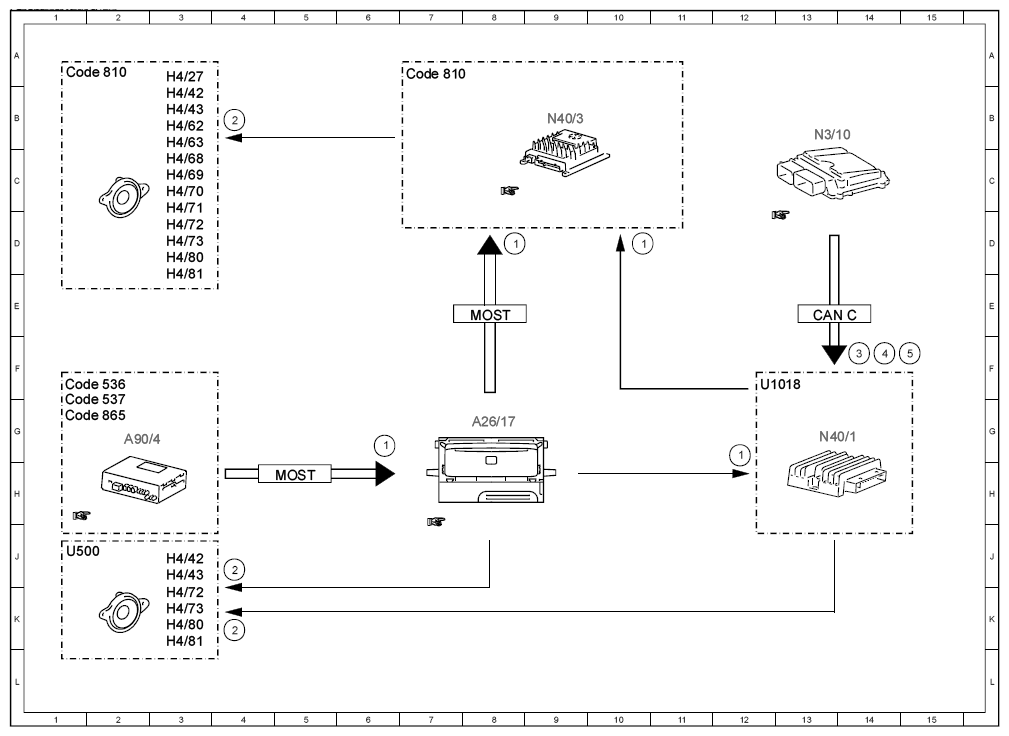

| 1 |
Audio, signal |
8D |
| 1 |
Audio, signal |
10D |
| 1 |
Audio, signal |
11G |
| 1 |
Audio, signal |
6G |
| 2 |
Speaker, actuation |
4B |
| 2 |
Speaker, actuation |
4J |
| 2 |
Speaker, actuation |
4K |
| 3 |
Vehicle speed, signal |
13F |
| 4 |
Engine load, signal |
14F |
| 5 |
Engine speed, signal |
15F |
| A26/17 |
Head unit |
8G |
| A90/4 |
Tuner unit |
2G |
| CAN C |
Engine CAN |
13E |
| Code 536 |
SIRIUS satellite radio |
1F |
| Code 537 |
Digital radio (DAB) |
1G |
| Code 810 |
Sound system |
1A |
| Code 810 |
Sound system |
7A |
| Code 865 |
TV tuner |
1G |
| H4/27 |
Center instrument panel speaker |
3A |
| H4/42 |
Left footwell woofer |
3B |
| H4/42 |
Left footwell woofer |
3J |
| H4/43 |
Right footwell woofer |
3J |
| H4/43 |
Right footwell woofer |
3B |
| H4/62 |
Left rear surround sound system midrange speaker |
3B |
| H4/63 |
Right rear surround sound system midrange speaker |
3B |
| H4/68 |
Left front door tweeter |
3C |
| H4/69 |
Right front door tweeter |
3C |
| H4/70 |
Left rear door/side paneling tweeter |
3C |
| H4/71 |
Right rear door/side paneling tweeter |
3D |
| H4/72 |
Left front door midrange speaker |
3K |
| H4/72 |
Left front door midrange speaker |
3D |
| H4/73 |
Right front door midrange speaker |
3K |
| H4/73 |
Right front door midrange speaker |
3D |
| H4/80 |
Left rear door/side paneling midrange speaker |
3K |
| H4/80 |
Left rear door/side paneling midrange speaker |
3D |
| H4/81 |
Right rear door/side paneling midrange speaker |
3K |
| H4/81 |
Right rear door/side paneling midrange speaker |
3E |
| MOST |
Media Oriented System Transport |
8E |
| MOST |
Media Oriented System Transport |
5H |
| N3/10 |
ME-SFI [ME] control unit |
13B |
| N40/1 |
Engine sound control unit |
13G |
| N40/3 |
Sound system amplifier control unit |
9B |
| U1018 |
Valid for gasoline engine 276 |
12F |
| U500 |
Not valid for sound system |
1J |
