| 1 |
Automatic function switch, status |
8F |
| 1 |
Automatic function switch, status |
7C |
| 10 |
Exit and warning lamp, actuation |
21B |
| 10 |
Exit and warning lamp, actuation |
29B |
| 11 |
Dusk setting, signal |
8G |
| 12 |
Illuminated door sill molding actuation |
8J |
| 12 |
Illuminated door sill molding actuation |
9J |
| 13 |
Vehicle speed, signal |
11F |
| 13 |
Vehicle speed, signal |
33H |
| 14 |
Trunk lid/liftgate lock main catch switch, status |
10G |
| 15 |
Ambient lamp, request |
17H |
| 16 |
Ambient lamp, actuation |
16J |
| 16 |
Ambient lamp, actuation |
16K |
| 17 |
Crash, signal |
12F |
| 17 |
Crash, signal |
31J |
| 2 |
Central locking, status |
10F |
| 2 |
Central locking, status |
32G |
| 3 |
Interior lamp, request |
5F |
| 4 |
Interior lamp, actuation |
3E |
| 4 |
Interior lamp, actuation |
3D |
| 4 |
Interior lamp, actuation |
4C |
| 5 |
Footwell lamp, actuation |
11J |
| 6 |
Circuit 15, status |
11F |
| 6 |
Circuit 15, status |
32G |
| 7 |
OFF delay time, status |
11F |
| 7 |
OFF delay time, status |
31H |
| 8 |
Door rotary tumbler switch, status |
10D |
| 8 |
Door rotary tumbler switch, status |
10F |
| 9 |
Exit and warning lamp, request |
23D |
| 9 |
Exit and warning lamp, request |
32E |
| A1 |
Instrument cluster |
37H |
| A26/17 |
Head unit |
24G |

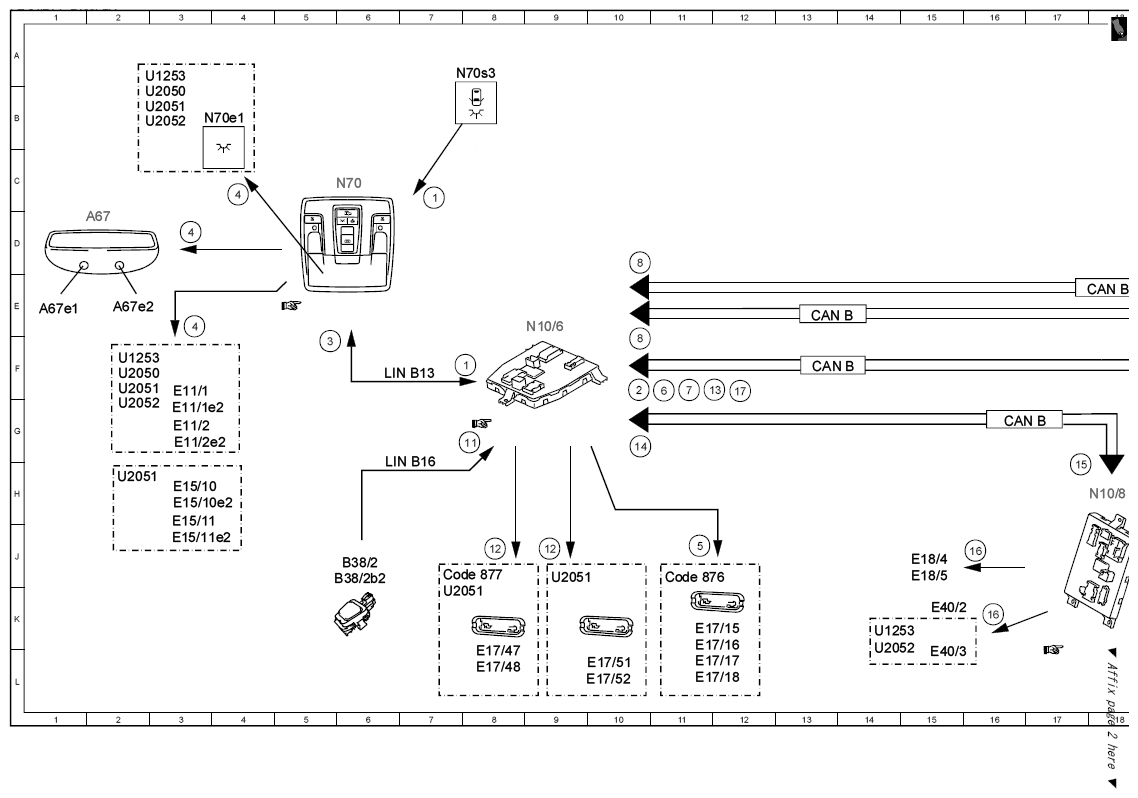

| A67 |
Inside rearview mirror |
1D |
| A67e1 |
Left reading lamp |
1E |
| A67e2 |
Right reading lamp |
2E |
| B38/2 |
Rain/light sensor with additional functions |
6J |
| B38/2b2 |
Light sensor |
6J |
| CAN B |
Interior CAN |
20F |
| CAN B |
Interior CAN |
28F |
| CAN B |
Interior CAN |
13F |
| CAN B |
Interior CAN |
18E |
| CAN B |
Interior CAN |
13E |
| CAN B |
Interior CAN |
27E |
| CAN B |
Interior CAN |
19E |
| CAN B |
Interior CAN |
16G |
| CAN HMI |
User interface CAN |
34J |
| CAN HMI |
User interface CAN |
29K |
| CAN HMI |
User interface CAN |
28H |
| Code 876 |
Interior lights package |
26A |
| Code 876 |
Interior lights package |
11J |
| Code 876 |
Interior lights package |
20B |
| Code 877 |
Ambiance illumination |
7J |
| E11/1 |
Left rear dome lamp |
3F |
| E11/1e2 |
Left rear interior lamp |
3G |
| E11/2 |
Right rear dome lamp |
3G |
| E11/2e2 |
Right rear interior lamp |
3G |
| E15/10 |
Left rear vanity mirror unit |
3H |
| E15/10e2 |
Left rear vanity mirror dome lamp |
3H |
| E15/11 |
Right rear vanity mirror unit |
3J |
| E15/11e2 |
Right rear vanity mirror dome lamp |
3J |
| E17/15 |
Right front footwell lamp |
11K |
| E17/16 |
Left front footwell lamp |
11K |
| E17/17 |
Left rear footwell lamp |
11L |
| E17/18 |
Right rear footwell lamp |
11L |
| E17/3 |
Left front door exit and warning lamp |
20C |

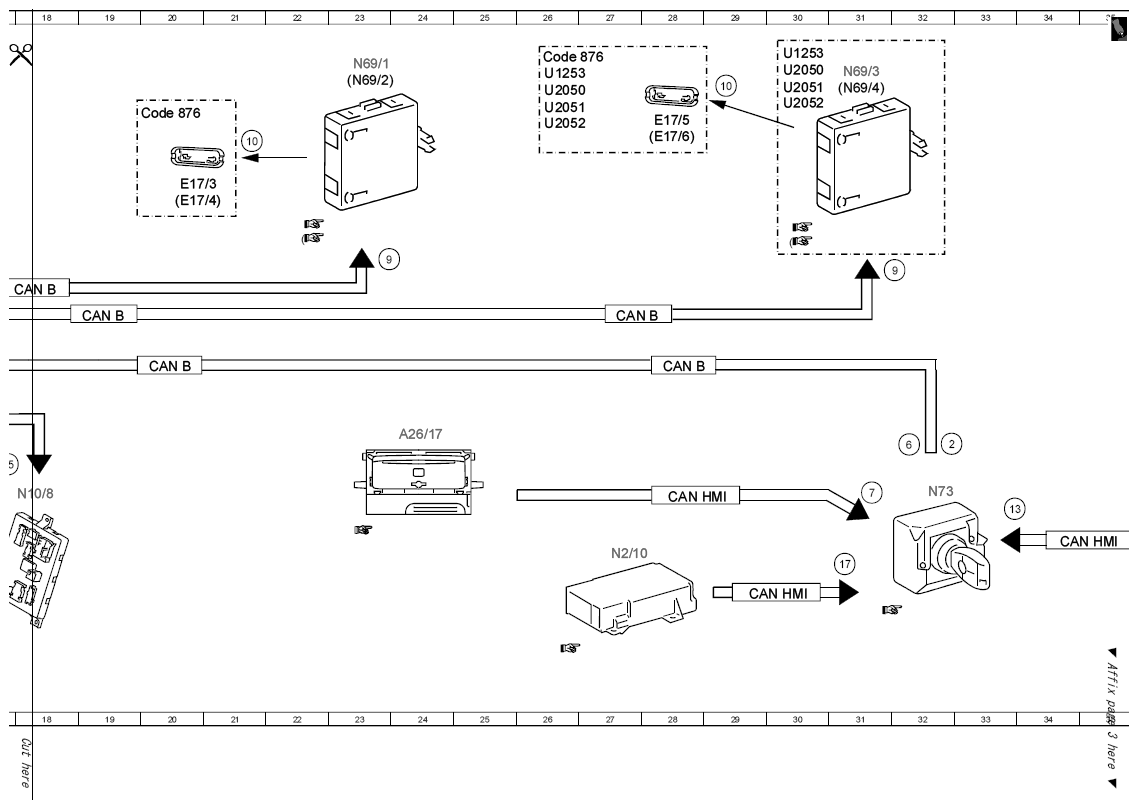

| E17/4 |
Right front door exit and warning lamp |
20C |
| E17/47 |
Left front illuminated door sill molding |
8L |
| E17/48 |
Right front illuminated door sill molding |
8L |
| E17/5 |
Left rear door exit and warning lamp |
28B |
| E17/51 |
Left rear illuminated door sill molding |
10L |
| E17/52 |
Right rear illuminated door sill molding |
10L |
| E17/6 |
Right rear door exit and warning lamp |
28B |
| E18/4 |
Right luggage compartment lamp |
15J |
| E18/5 |
Left luggage compartment lamp |
15J |
| E40/2 |
Left trunk lid/liftgate ambient lamp and warning lamp |
15K |
| E40/3 |
Right trunk lid/liftgate ambient lamp and warning lamp |
15L |
| LIN B13 |
Roof LIN |
6F |
| LIN B16 |
Rain and light sensor LIN |
6H |
| N10/6 |
Front SAM control unit |
9E |
| N10/8 |
Rear SAM control unit |
18H |
| N2/10 |
Supplemental restraint system control unit |
27J |
| N69/1 |
Left front door control unit |
23A |
| N69/2 |
Right front door control unit |
23A |
| N69/3 |
Left rear door control unit |
31A |
| N69/4 |
Right rear door control unit |
31B |
| N70 |
Overhead control panel control unit |
5C |
| N70e1 |
Front dome lamp |
4B |
| N70s3 |
Interior lamp automatic function button |
8A |
| N73 |
Electronic ignition switch control unit |
32H |
| U1253 |
Valid for model 253 |
2F |
| U1253 |
Valid for model 253 |
26A |
| U1253 |
Valid for model 253 |
30A |
| U1253 |
Valid for model 253 |
2A |
| U1253 |
Valid for model 253 |
14K |
| U2050 |
Valid for model 205.0 |
26B |
| U2050 |
Valid for model 205.0 |
30A |
| U2050 |
Valid for model 205.0 |
2F |
| U2050 |
Valid for model 205.0 |
2B |
| U2051 |
Valid for model 205.1 |
2H |
| U2051 |
Valid for model 205.1 |
7K |
| U2051 |
Valid for model 205.1 |
9J |
| U2051 |
Valid for model 205.1 |
26B |
| U2051 |
Valid for model 205.1 |
30B |
| U2051 |
Valid for model 205.1 |
2F |
| U2051 |
Valid for model 205.1 |
2B |
| U2052 |
Valid for model 205.2 |
2G |
| U2052 |
Valid for model 205.2 |
14L |
| U2052 |
Valid for model 205.2 |
26B |
| U2052 |
Valid for model 205.2 |
30B |
| U2052 |
Valid for model 205.2 |
2B |
