Wiring diagram of reversing camera - PE54.65-P-2103-97FBA

Code:	Designation:	Position:
A0	Use of wiring diagrams	32L
A26/17	Head unit	22L
B84/3	Backup camera	11A
B84/3	Backup camera	20A
B84/3x1	Reversing camera electrical connector 1	1H
B84/3x1	Reversing camera electrical connector 1	11F
B84/3x2	Reversing camera electrical connector 2	21E
CAN HMI	User interface CAN	8K
CAN HMI	User interface CAN	17K
K40/5	Rear fuse and relay module	3L
K40/5	Rear fuse and relay module	12L
K40/5f417	Fuse 417	2L
K40/5f417	Fuse 417	11L
U2054	Valid for model 205.4	10D
U2054	Valid for model 205.4	19F
W6	Left wheel arch trunk ground point	5L
W6	Left wheel arch trunk ground point	15L
X30/20	User interface CAN (CAN HMI) potential distributor electrical connector	8L
X30/20	User interface CAN (CAN HMI) potential distributor electrical connector	17L
X8/4	Trunk lid/liftgate electrical connector	10H
X8/4	Trunk lid/liftgate electrical connector	20H

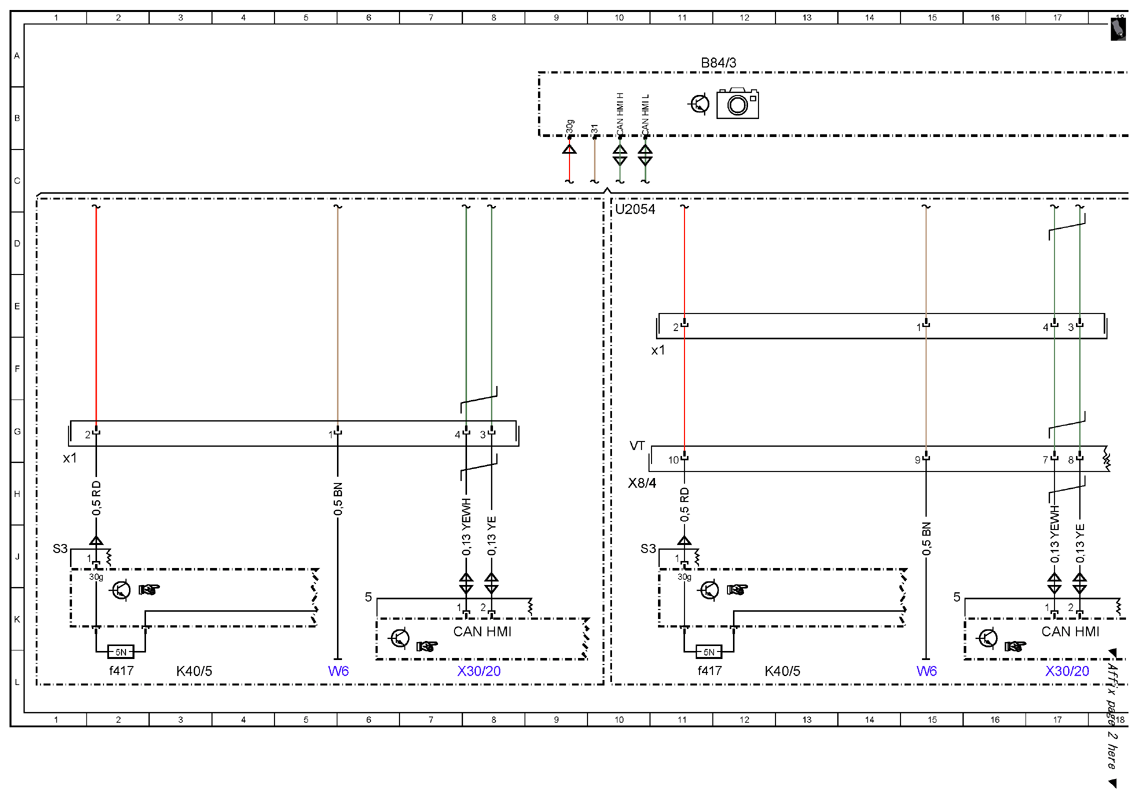

Fig 1: Reversing Camera Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

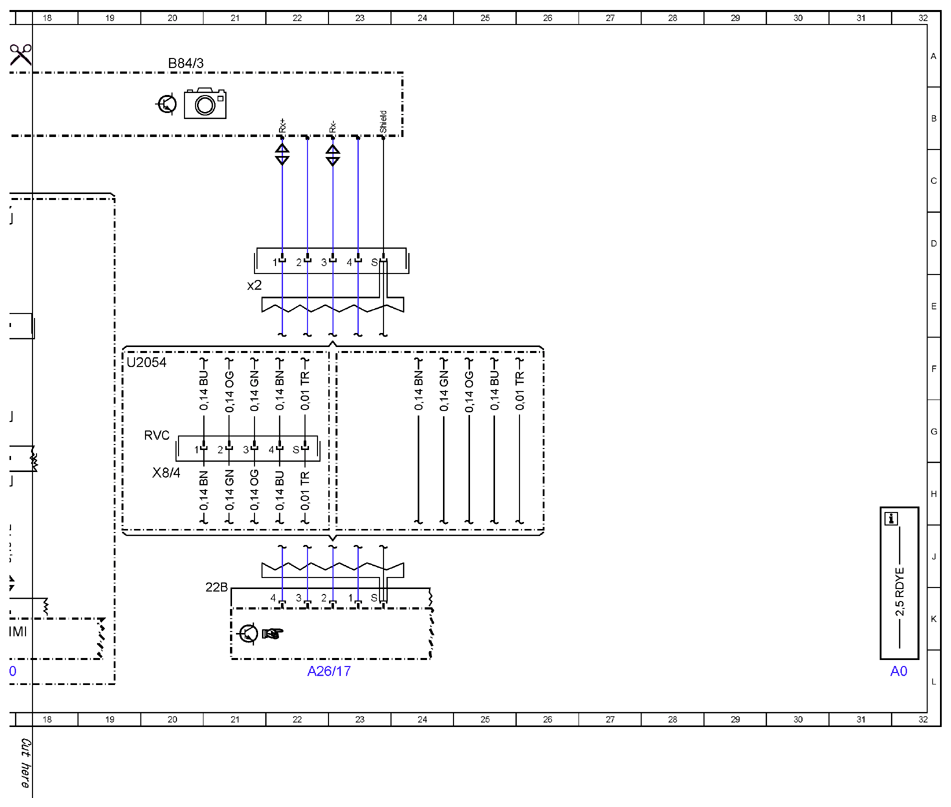

Fig 2: Reversing Camera Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
