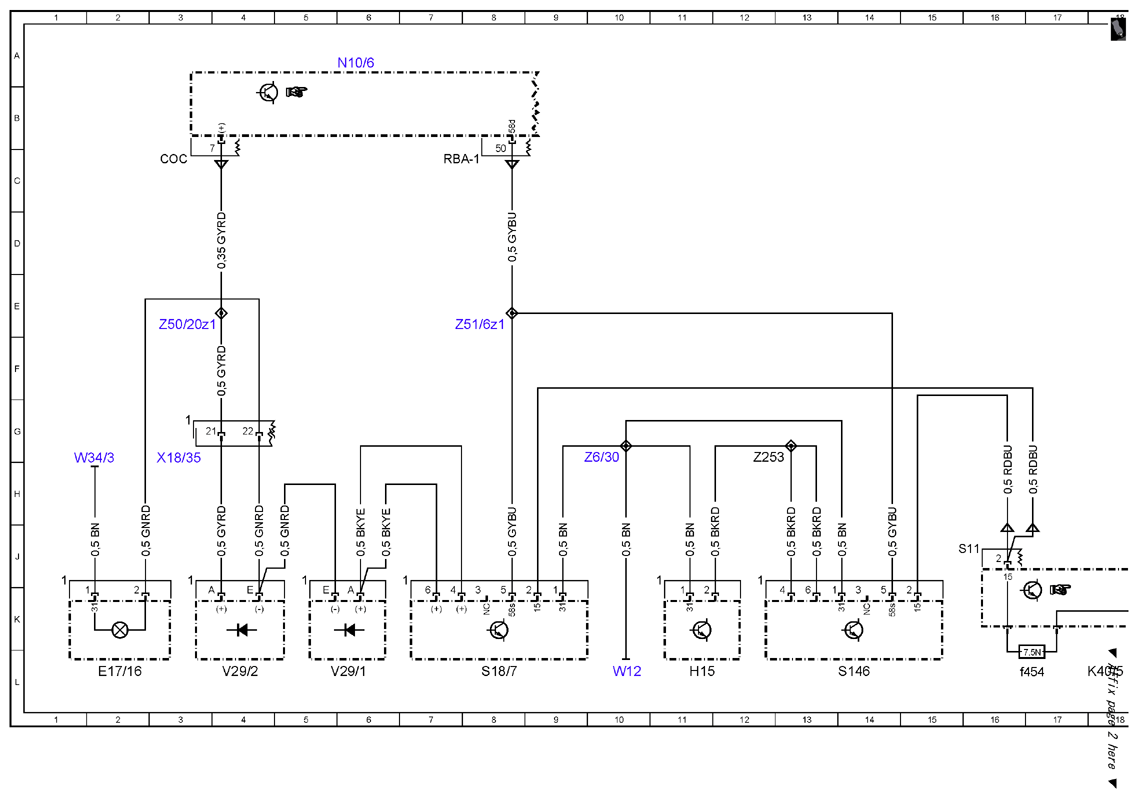

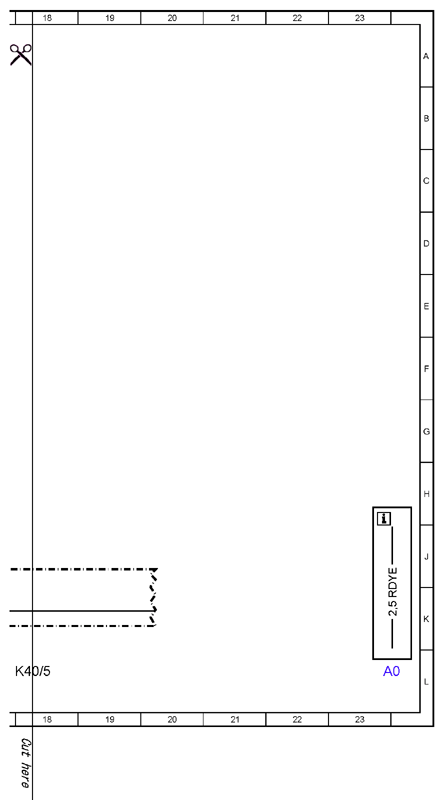

| A0 |
Use of wiring diagrams |
23L |
| E17/16 |
Left front footwell lamp |
2L |
| H15 |
Pedal operation monitor buzzer |
11L |
| K40/5 |
Rear fuse and relay module |
18L |
| K40/5f454 |
Fuse 454 |
16L |
| N10/6 |
Front SAM control unit |
6A |
| S146 |
Pedal operation monitor switch |
14L |
| S18/7 |
Footwell illumination switch |
8L |
| V29/1 |
Footwell illumination diode 1 |
6L |
| V29/2 |
Footwell lamp diode 2 |
4L |
| W12 |
Ground point (center console) |
10L |
| W34/3 |
Right footwell ground point |
1H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
3H |
| Z253 |
Pedal operation monitor buzzer connector sleeve |
12G |
| Z50/20z1 |
Cockpit connector sleeve, footwell lighting |
3E |
| Z51/6z1 |
Connector sleeve in wiring harness, circuit 58d |
8E |
| Z6/30 |
Circuit 31 connector sleeve |
10G |
