Wiring diagram for multifunction camera - PE54.21-P-2129-97FBB

Code:	Designation:	Position:
A0	Use of wiring diagrams	15L
A40/13	Stereo multifunction camera	4A
A40/13	Stereo multifunction camera	11A
F1/3	Right A-pillar fuse box	3L
F1/3f325	Fuse 325	2K
Flex E	Chassis FlexRay	8K
N73	Electronic ignition switch control unit	8L
R50	Auxiliary heater heating element	10L
U12	Valid for left-hand drive vehicles	6D
U13	Valid for right-hand drive vehicles	6D
W15/5	Left front footwell ground point	3E
X18	Cockpit wiring harness and frame floor assembly electrical connector	6H
X18/35	Cockpit wiring harness and frame floor assembly electrical connector	6H

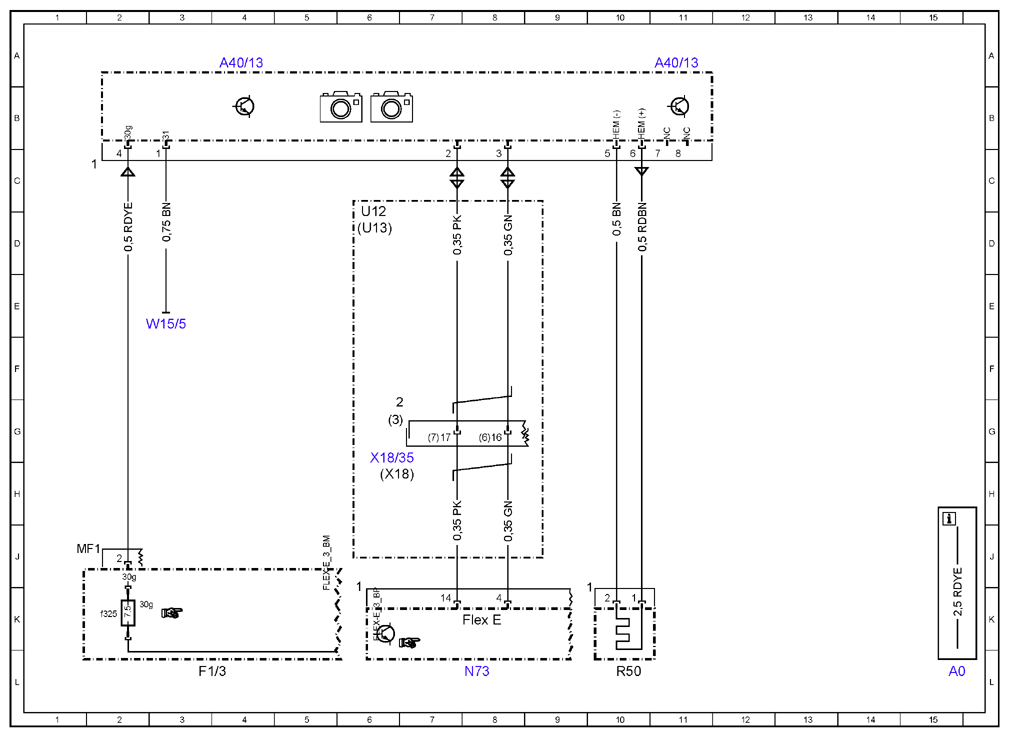

Fig 1: Multifunction Camera Wiring Diagram

Courtesy of MERCEDES-BENZ USA
