Wiring diagram for front signal acquisition and actuation module (SAM) control unit - PE54.21-P-2114-97FBA

Code: Designation: Position:
A0 Use of wiring diagrams 137L
B38/2 Rain/light sensor with additional functions 97L
B95 Battery sensor 58L
CAN B Interior CAN 24K
Code 287 Through-loading feature 40E
Code 489 AIR BODY CONTROL 40F
Code 867 SPLITVIEW 35E
Code 876 Interior lights package 110E
Code 876 Interior lights package 118E
Code 877 Ambiance illumination 105E
Code 877 Ambiance illumination 114E
Code 877 Ambiance illumination 120E
Code ME04 Hybrid drive 20 KW VARIANT 99E
Code ME05 HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) 99E
Code ME06 Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) 99E
Code U25 Illuminated door sills 69E
Code U25 Illuminated door sills 60E
Code U25 Illuminated door sills 64E
Code U63 Driving school package 35E
Code U63 Driving school package 110E
Code U63 Driving school package 118E
E17/47 Left front illuminated door sill molding 66L
E17/47 Left front illuminated door sill molding 71L
E17/48 Right front illuminated door sill molding 68L
E17/48 Right front illuminated door sill molding 72L
E17/51 Left rear illuminated door sill molding 62L
E17/52 Right rear illuminated door sill molding 63L
F1/3 Right A-pillar fuse box 8L
F1/3f336 Fuse 336 6K
F32/4 Vehicle interior prefuse box 16L
F96 Additional battery circuit 30 fuse 103L
K114 ECO start/stop function additional battery relay 101L
K40/6 Left fuse and relay module 4L
K40/6 Left fuse and relay module 12L
K40/6f200 Fuse 200 2L
K40/6f201 Fuse 201 11L
N10/6 Front SAM control unit 4A
N10/6 Front SAM control unit 12A
N10/6 Front SAM control unit 20A
N10/6 Front SAM control unit 28A
N10/6 Front SAM control unit 36A
N10/6 Front SAM control unit 44A
N10/6 Front SAM control unit 52A
N10/6 Front SAM control unit 60A
N10/6 Front SAM control unit 68A
N10/6 Front SAM control unit 76A
N10/6 Front SAM control unit 84A
N10/6 Front SAM control unit 92A
N10/6 Front SAM control unit 100A
N10/6 Front SAM control unit 107A
N10/6 Front SAM control unit 116A
N10/6 Front SAM control unit 124A
N10/6 Front SAM control unit 132A
N10/8 Rear SAM control unit 54L
N2/10 Supplemental restraint system control unit 32L
N3/10 ME-SFI [ME] control unit 88L
N3/10 ME-SFI [ME] control unit 92L
N3/9 CDI control unit 75L
N3/9 CDI control unit 80L
N3/9 CDI control unit 84L
N70 Overhead control panel control unit 20L
N72/1 Upper control panel control unit 126L
S146 Pedal operation monitor switch 35L
S18/7 Footwell illumination switch 38L
S54/10 Right luggage compartment rear backrest release button 42L
S54/11 Left rear backrest release button 50L
S54/12 Right rear backrest release button 47L
S54/9 Left luggage compartment rear backrest release button 45L
S62/42 Right engine hood contact switch 27L
S62/43 Left engine hood contact switch 29L
U1018 Valid for gasoline engine 276 90E
U12 Valid for left-hand drive vehicles 2F
U12 Valid for left-hand drive vehicles 12F
U12 Valid for left-hand drive vehicles 27E
U1253 Valid for model 253 69E
U1253 Valid for model 253 40E
U1253 Valid for model 253 20F
U13 Valid for right-hand drive vehicles 27E
U13 Valid for right-hand drive vehicles 2F
U13 Valid for right-hand drive vehicles 12F
U2051 Valid for model 205.1 60E
U2052 Valid for model 205.2 40E
U2253 Not valid for model series 253 21F
U362 Valid for gasoline engine 274 86E
U39 Valid for gasoline engine 177 26E
U39 Valid for gasoline engine 177 88E
U406 Valid for diesel engine 626 73E
U561 Valid for Delphi system 82E
U562 Valid for Bosch system 78E
W12/1 Right center console ground point 62E
W12/1 Right center console ground point 67E
W15/5 Left front footwell ground point 3G
W15/6 Left front footwell ground point (CAN) 25H
W15/7 Right front footwell ground point 3G
W16 Major assembly compartment ground point 28F
W16 Major assembly compartment ground point 29F
W16/4 Right major assembly compartment ground point 28F
W52/5 Left center longitudinal member ground point 12G
W52/5 Left center longitudinal member ground point 29F
W52/6 Right center longitudinal member ground point 12G
W52/6 Right center longitudinal member ground point 71E
W6 Left wheel arch trunk ground point 44L
X26/10 Vehicle interior/engine electrical connector 89H
X30/32 Left interior CAN (CAN B) potential distributor electrical connector 24L
Z232/17z1 Center console ambiance illumination connector sleeve (yellow) 113G
Z232/23z1 Ambiance illumination footwell connector sleeve (warm/white) 109G
Z232/24z1 Ambiance illumination footwell connector sleeve (yellow) 106G
Z232/25z1 Ambiance illumination footwell connector sleeve (blue) 107G
Z232/26z1 Cockpit ambiance illumination connector sleeve (warm/white) 117G
Z232/27z1 Ambiance illumination footwell connector sleeve (yellow) 115G
Z232/28z1 Ambiance illumination footwell connector sleeve (blue) 121G
Z50/20z1 Cockpit connector sleeve, footwell lighting 119G
Z51/6z1 Connector sleeve in wiring harness, circuit 58d 44F
Z51/6z1 Connector sleeve in wiring harness, circuit 58d 37F
Z54/7z1 Footwell illumination connector sleeve 111G
Z6/113z1 Rear seat ground point connector sleeve 41H
Z6/30 Circuit 31 connector sleeve 29H
Z6/30 Circuit 31 connector sleeve 27H
Z6/30 Circuit 31 connector sleeve 44H
Z6/30 Circuit 31 connector sleeve 66G
Z6/30 Circuit 31 connector sleeve 62G
Z6/30z1 Circuit 31 connector sleeve 71G

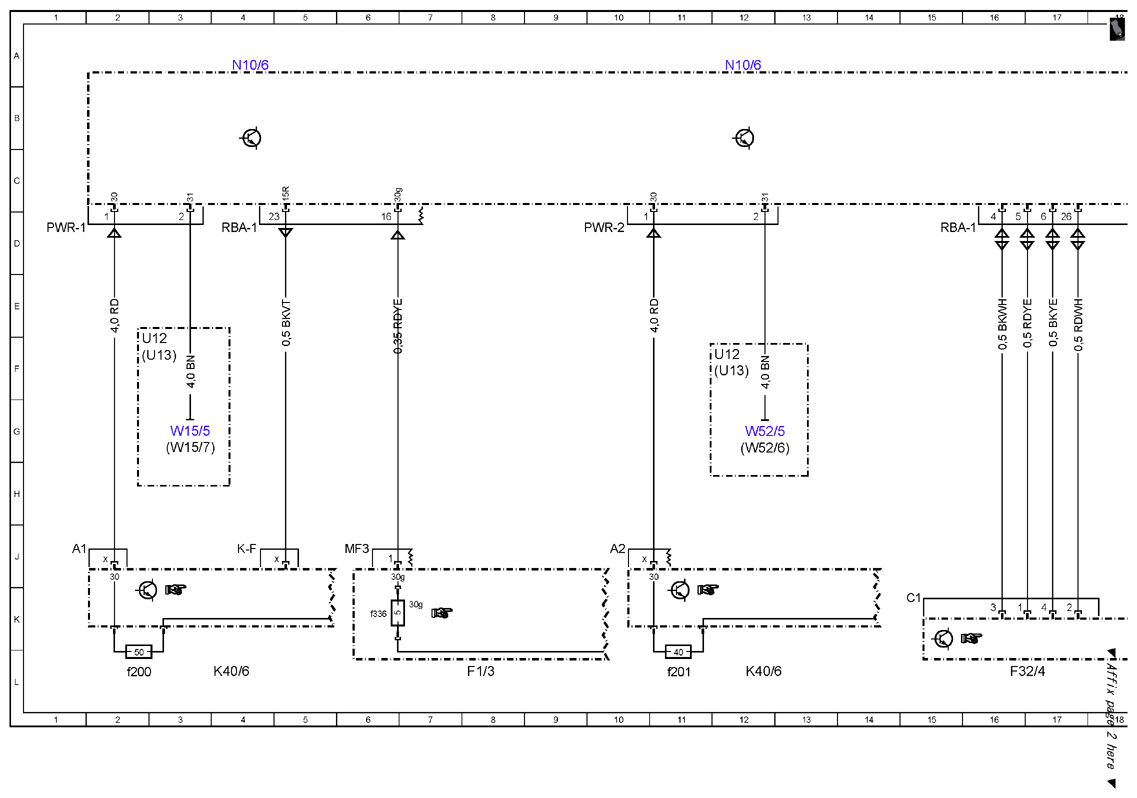

Fig 1: Front Signal Acquisition And Actuation Module Control Unit Wiring Diagram (1 Of 8)
G10134056Courtesy of MERCEDES-BENZ USA

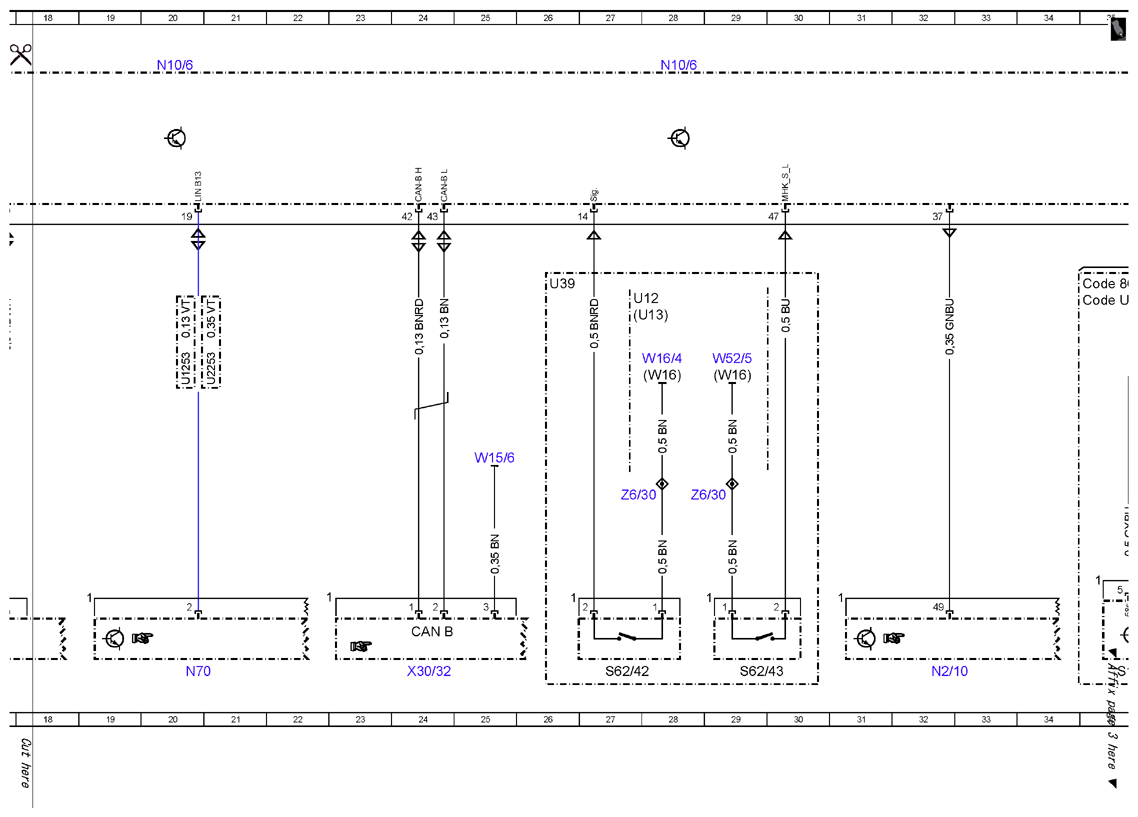

Fig 2: Front Signal Acquisition And Actuation Module Control Unit Wiring Diagram (2 Of 8)
G10134057Courtesy of MERCEDES-BENZ USA

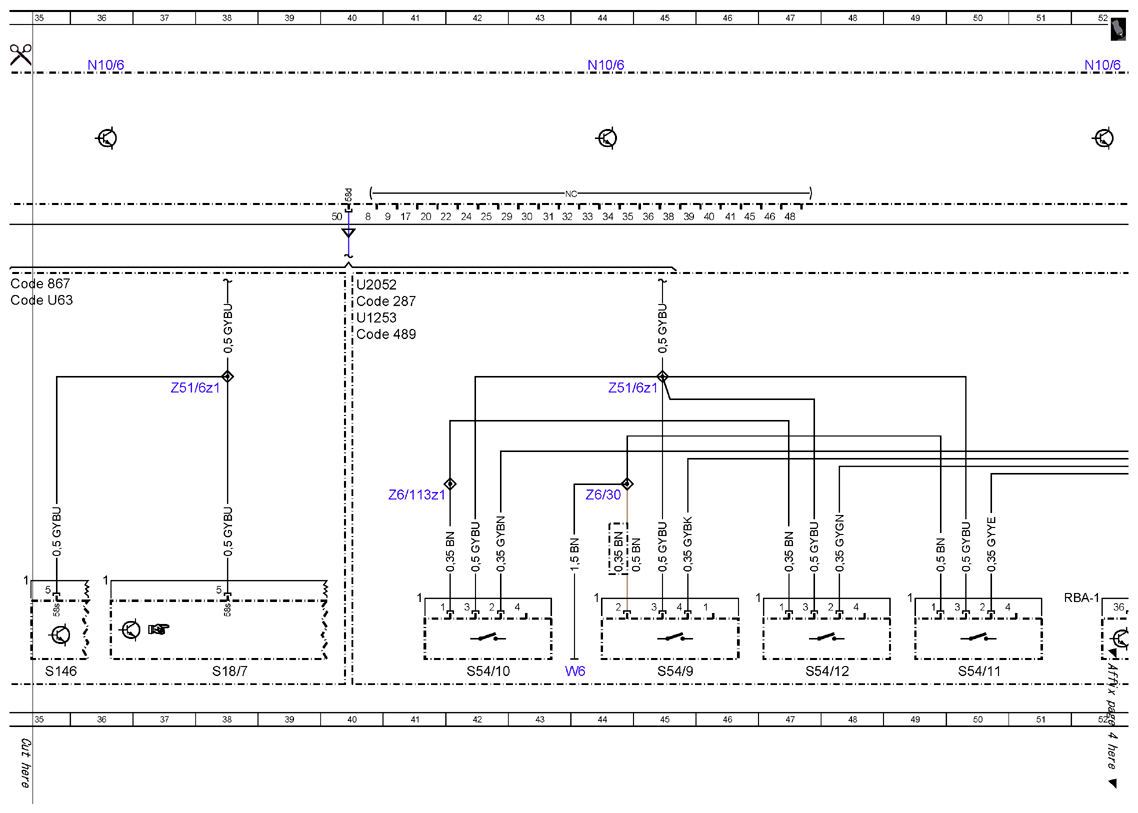

Fig 3: Front Signal Acquisition And Actuation Module Control Unit Wiring Diagram (3 Of 8)
G10134058Courtesy of MERCEDES-BENZ USA

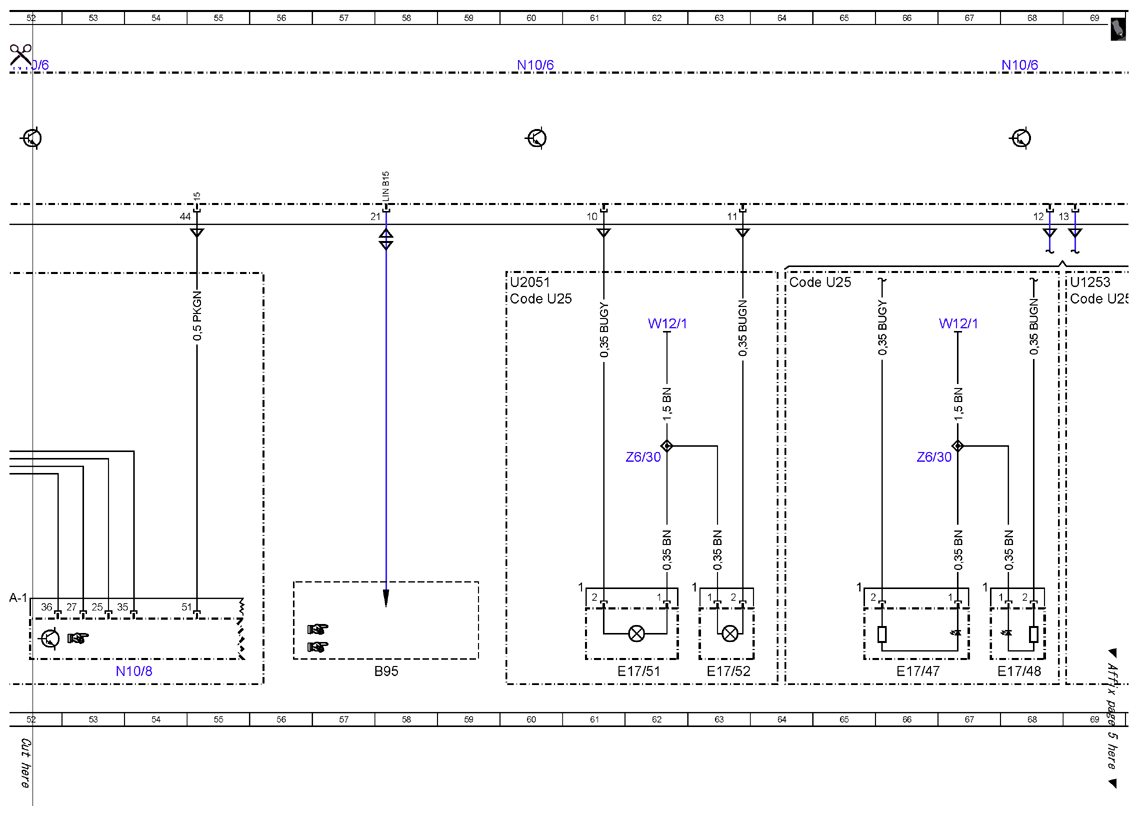

Fig 4: Front Signal Acquisition And Actuation Module Control Unit Wiring Diagram (4 Of 8)
G10134059Courtesy of MERCEDES-BENZ USA

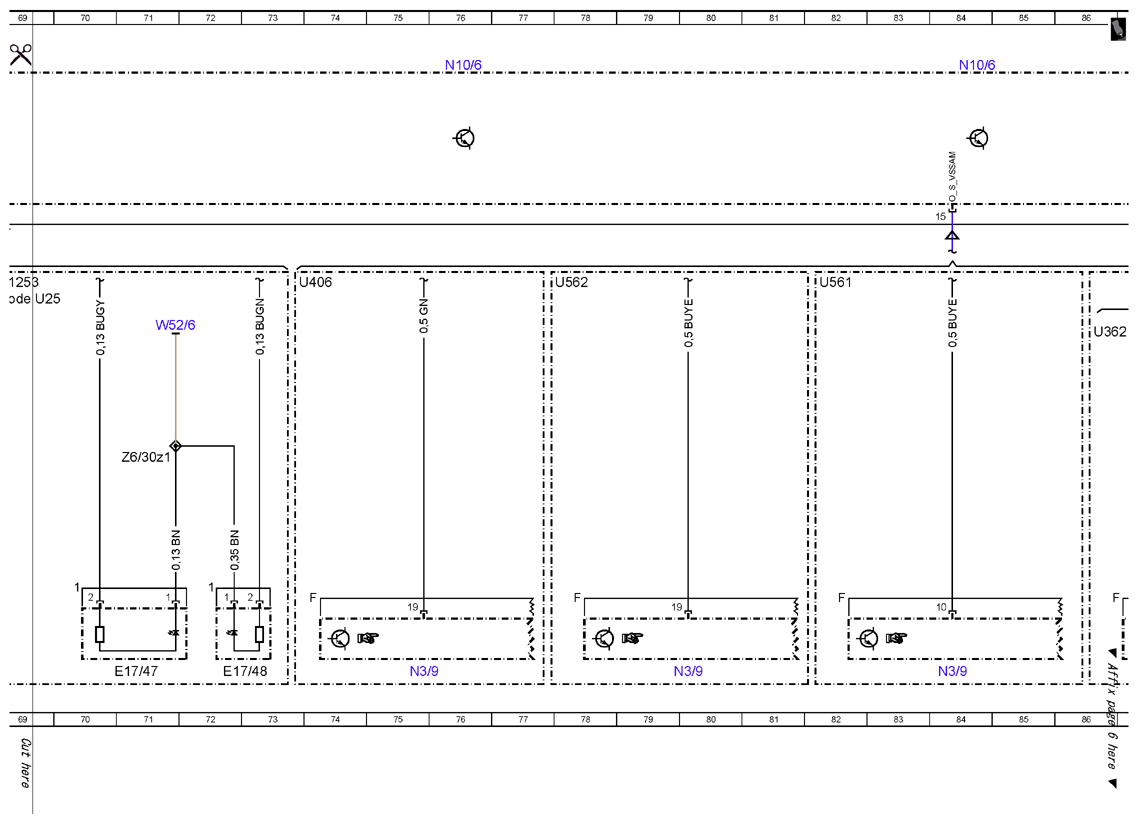

Fig 5: Front Signal Acquisition And Actuation Module Control Unit Wiring Diagram (5 Of 8)
G10134060Courtesy of MERCEDES-BENZ USA

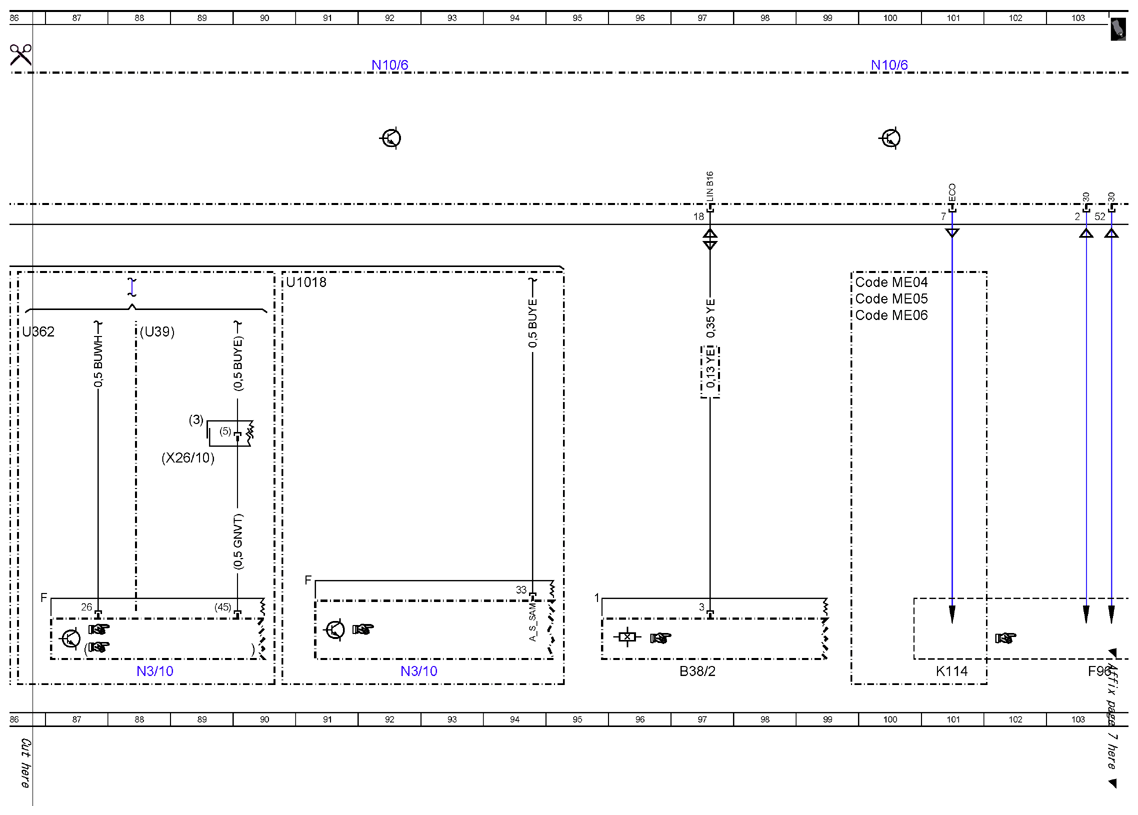

Fig 6: Front Signal Acquisition And Actuation Module Control Unit Wiring Diagram (6 Of 8)
G10134061Courtesy of MERCEDES-BENZ USA

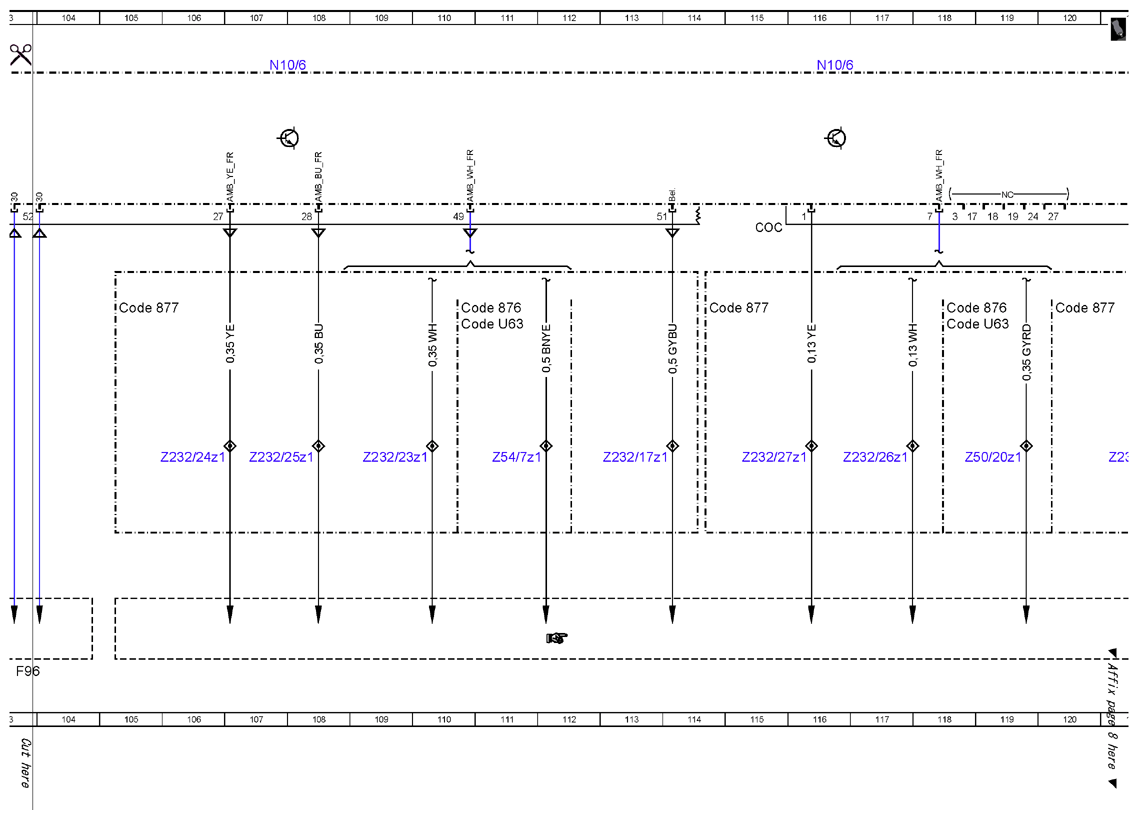

Fig 7: Front Signal Acquisition And Actuation Module Control Unit Wiring Diagram (7 Of 8)
G10134062Courtesy of MERCEDES-BENZ USA

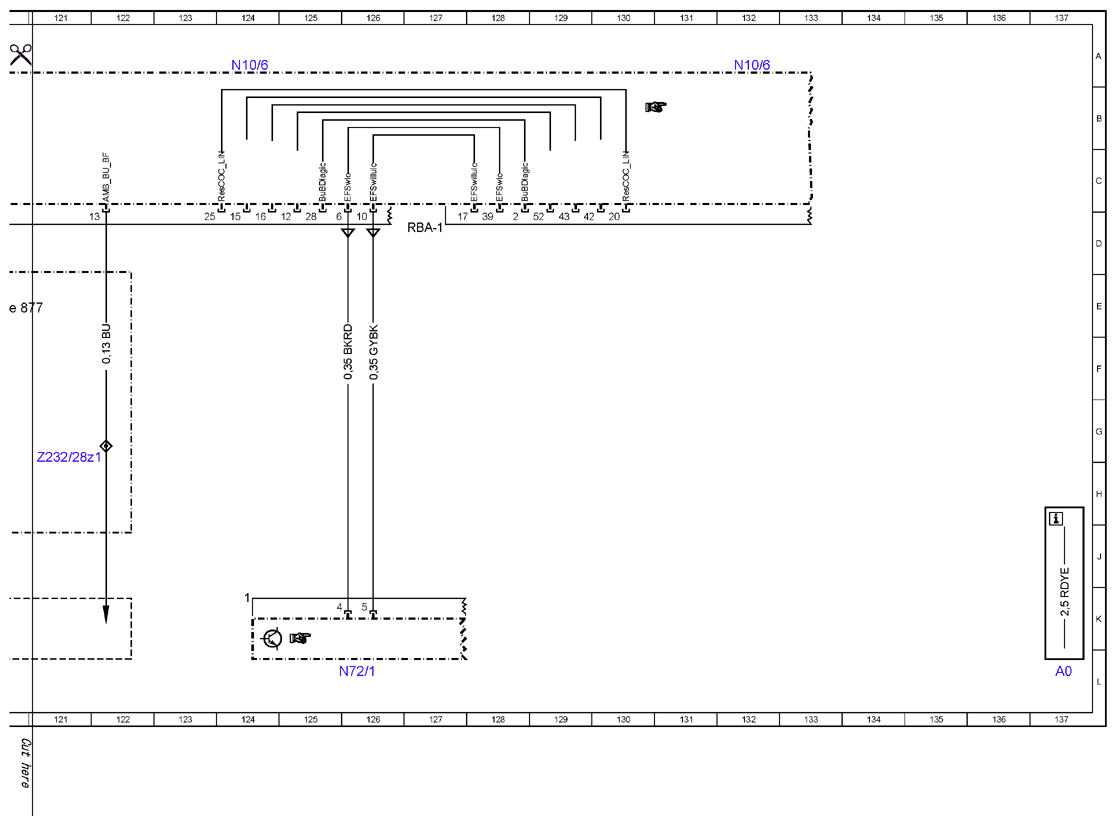

Fig 8: Front Signal Acquisition And Actuation Module Control Unit Wiring Diagram (8 Of 8)
G10134063Courtesy of MERCEDES-BENZ USA
