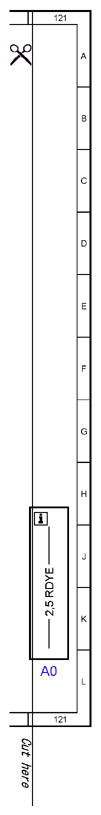

| A0 |
Use of wiring diagrams |
121L |
| B10/13 |
Low-temperature circuit temperature sensor |
116L |
| CAN C1 |
Drive train CAN |
11K |
| CAN C1 |
Drive train CAN |
14K |
| CAN C1 |
Drive train CAN |
7K |
| Code 233 |
AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS |
17G |
| Code 233 |
AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS |
27D |
| Code 233 |
AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS |
97D |
| Code 235 |
Active Park Assist |
88D |
| Code 239 |
DISTRONIC PLUS |
17G |
| Code 2U1 |
Radiator shutters |
64F |
| Code 488 |
Chassis with steel/air suspension |
97E |
| Code 489 |
AIR BODY CONTROL |
17H |
| Code 489 |
AIR BODY CONTROL |
27D |
| Code 489 |
AIR BODY CONTROL |
97D |
| Code 494 |
USA version |
110A |
| Code 5U3 |
AIRPANEL |
41H |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
101D |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
55H |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
101E |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
55J |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
101D |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
106A |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
55J |
| F1/3 |
Right A-pillar fuse box |
3L |
| F32/3 |
Engine compartment prefuse box |
74L |
| F32/3 |
Engine compartment prefuse box |
85L |
| F32/3f7 |
Fuse 7 |
72K |
| F32/3f9 |
Fuse 9 |
84K |
| Flex E |
Chassis FlexRay |
94K |
| Flex E |
Chassis FlexRay |
90K |
| Flex E |
Chassis FlexRay |
99K |
| K40/8 |
Engine fuse and relay module |
39L |
| K40/8 |
Engine fuse and relay module |
31L |
| K40/8 |
Engine fuse and relay module |
70L |
| K40/8f120 |
Fuse 120 |
68L |

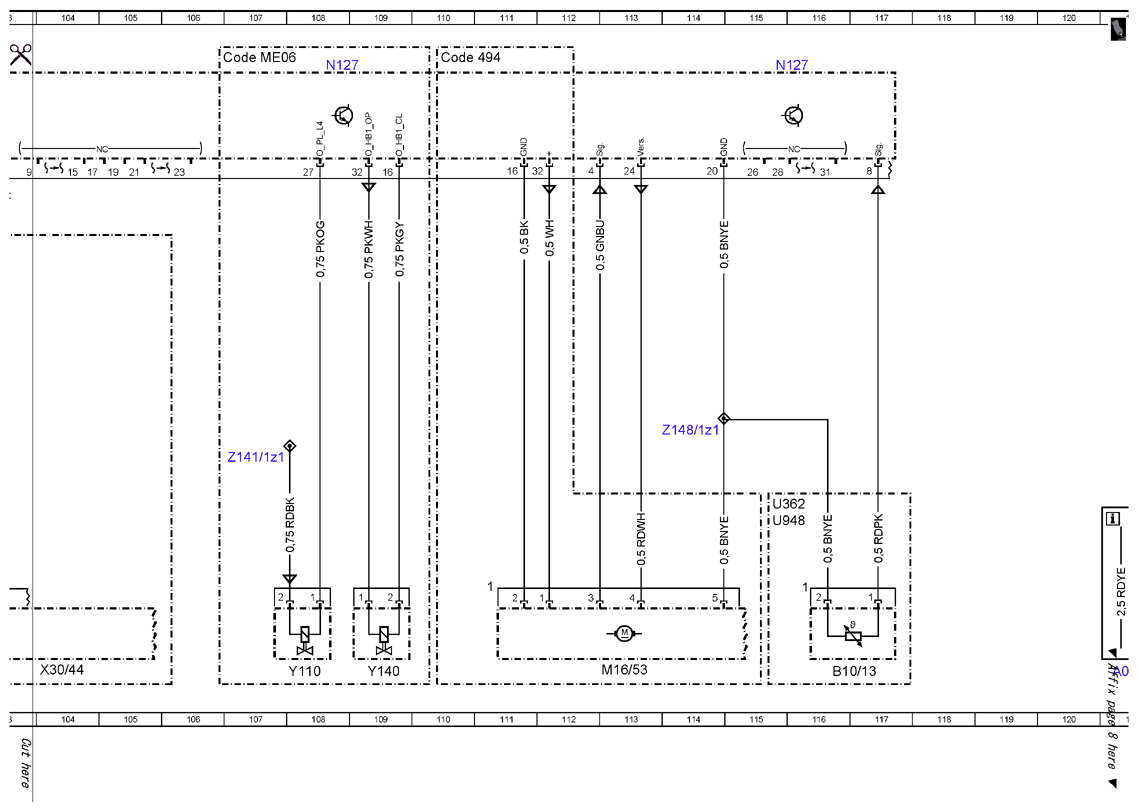

| M16/53 |
Left exhaust flap actuator motor |
113L |

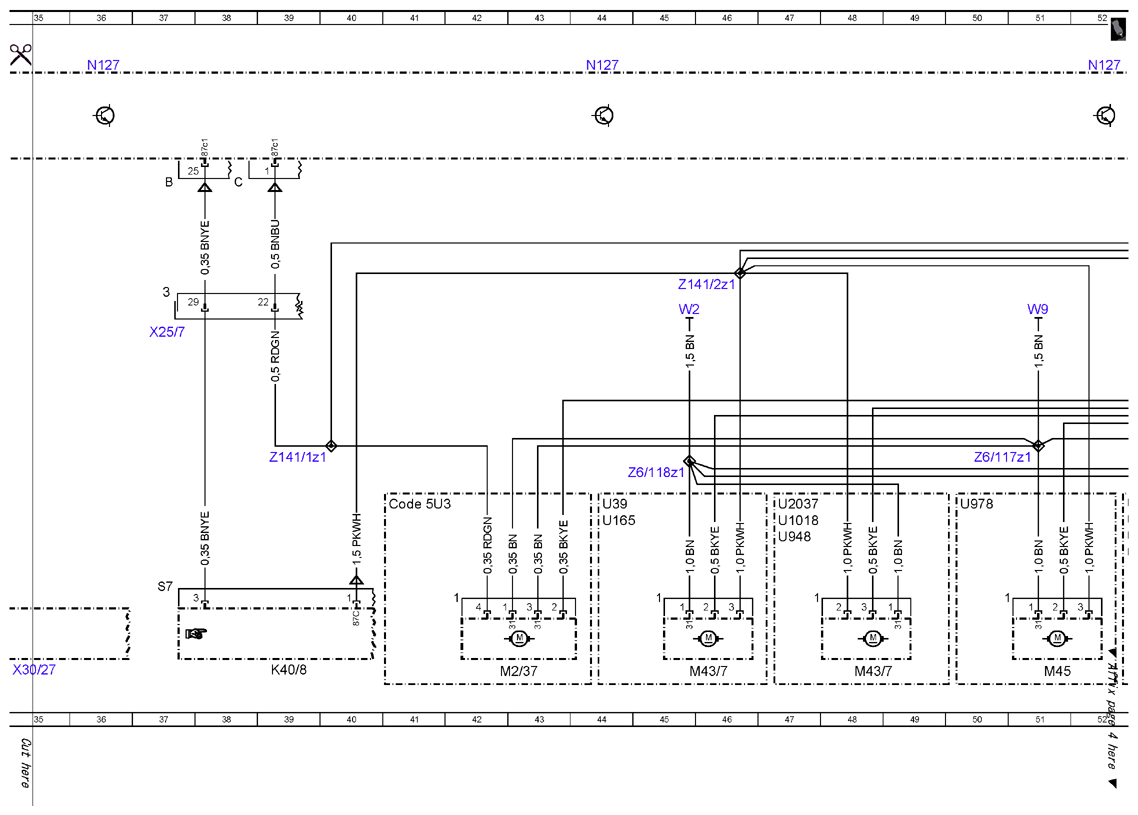

| M2/37 |
Radiator trim flap actuator motor |
43L |

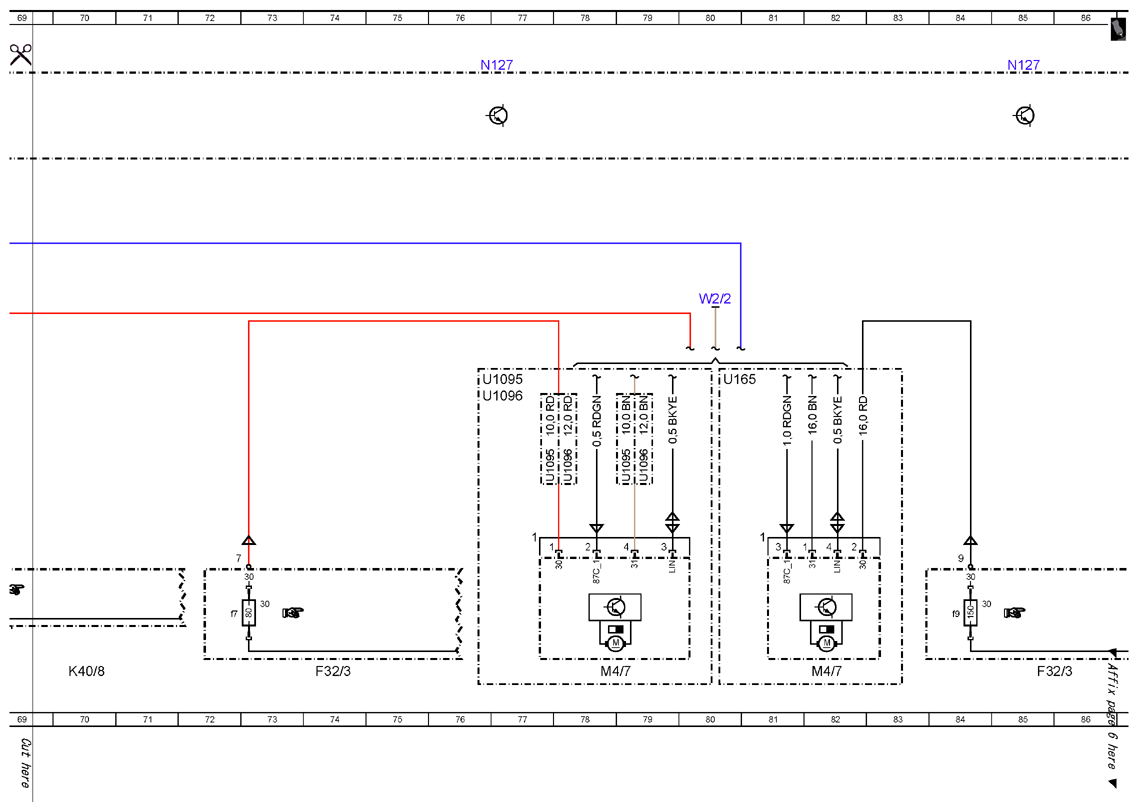

| M4/7 |
Fan motor |
82L |
| M4/7 |
Fan motor |
78L |

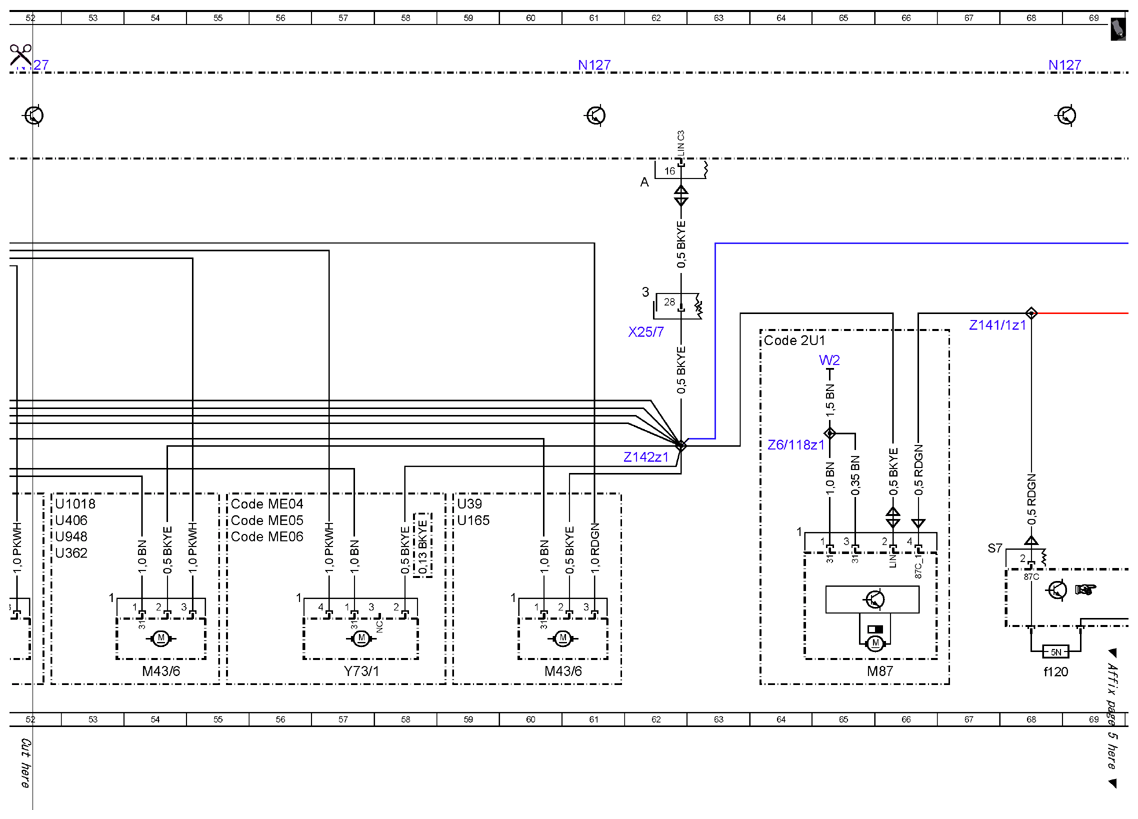

| M43/6 |
Low temperature circuit circulation pump 1 |
60L |
| M43/6 |
Low temperature circuit circulation pump 1 |
54L |
| M43/7 |
Low temperature circuit circulation pump 2 |
46L |
| M43/7 |
Low temperature circuit circulation pump 2 |
48L |
| M45 |
Coolant circulation pump |
51L |
| M87 |
Radiator shutters actuator motor |
65L |

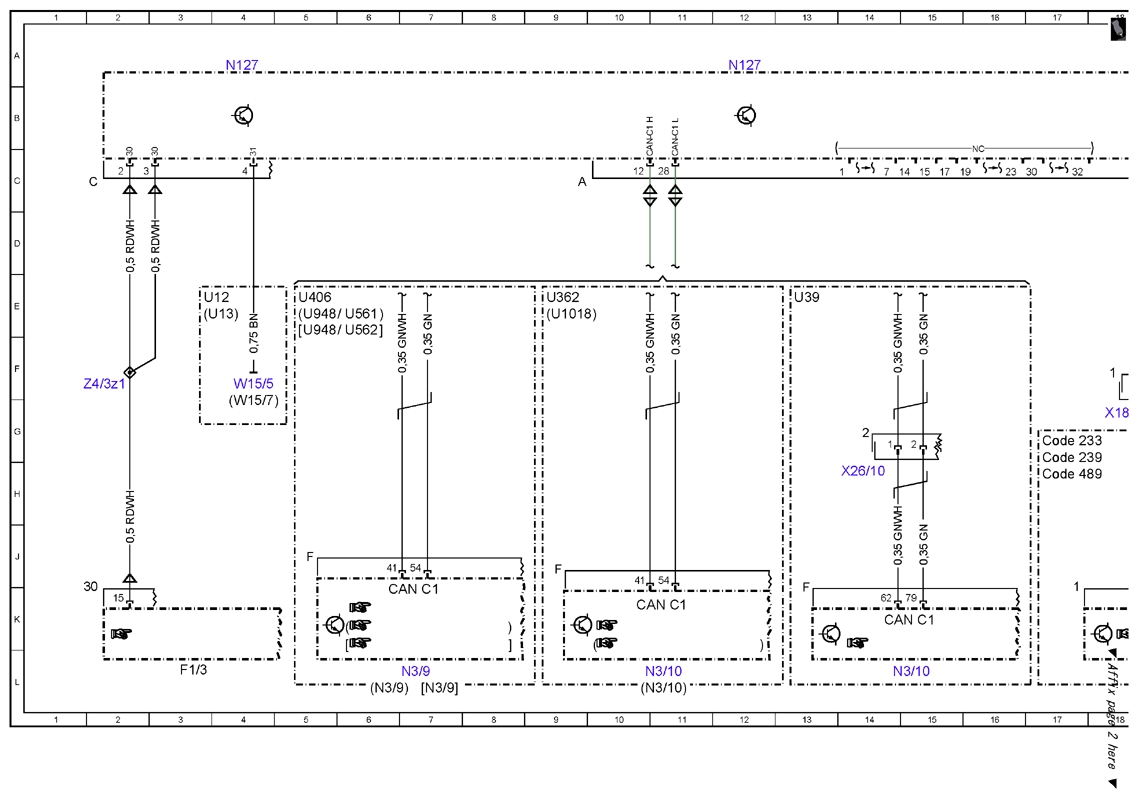

| N127 |
Drivetrain control unit |
4A |
| N127 |
Drivetrain control unit |
12A |
| N127 |
Drivetrain control unit |
20A |
| N127 |
Drivetrain control unit |
28A |
| N127 |
Drivetrain control unit |
36A |
| N127 |
Drivetrain control unit |
44A |
| N127 |
Drivetrain control unit |
52A |
| N127 |
Drivetrain control unit |
61A |
| N127 |
Drivetrain control unit |
68A |
| N127 |
Drivetrain control unit |
76A |
| N127 |
Drivetrain control unit |
85A |
| N127 |
Drivetrain control unit |
93A |
| N127 |
Drivetrain control unit |
102A |
| N127 |
Drivetrain control unit |
115A |
| N127 |
Drivetrain control unit |
108A |
| N3/10 |
ME-SFI [ME] control unit |
11L |
| N3/10 |
ME-SFI [ME] control unit |
11L |
| N3/10 |
ME-SFI [ME] control unit |
15L |
| N3/9 |
CDI control unit |
7L |
| N3/9 |
CDI control unit |
7L |
| N3/9 |
CDI control unit |
6L |
| N30/4 |
Electronic Stability Program control unit |
94L |
| N30/4 |
Electronic Stability Program control unit |
94L |

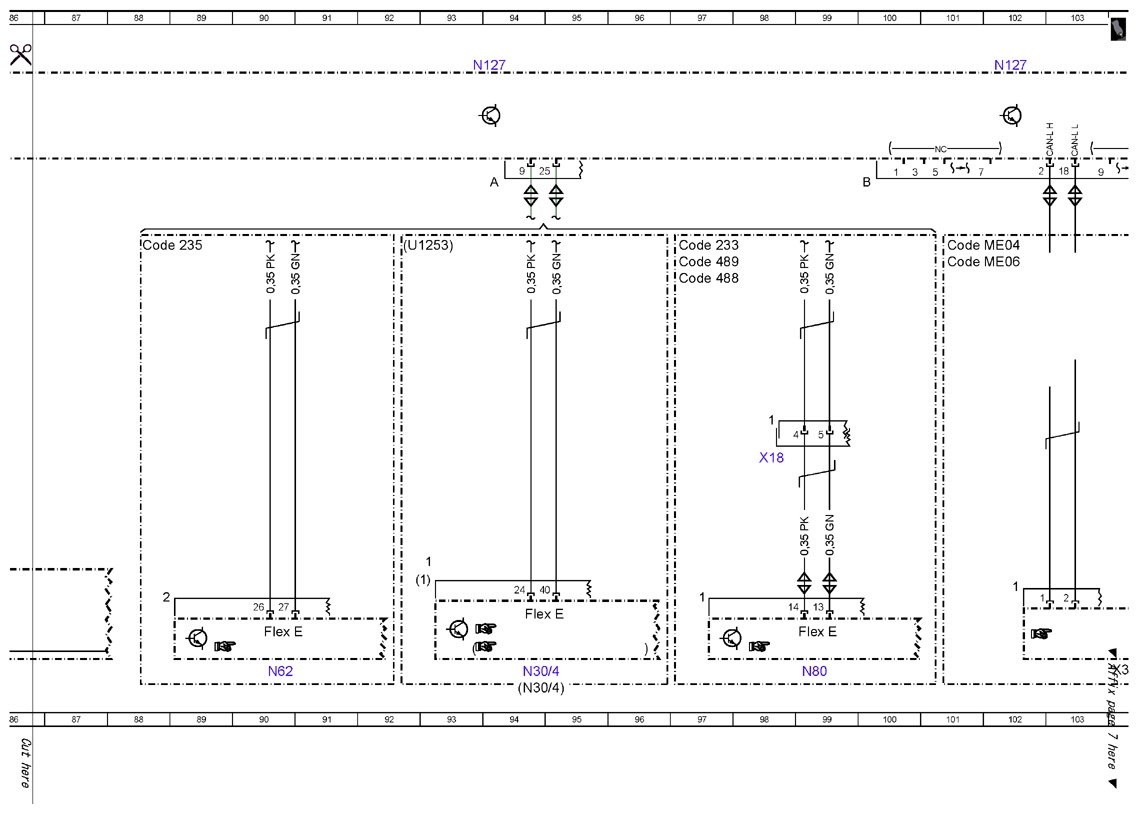

| N62 |
Parking system control unit |
90L |

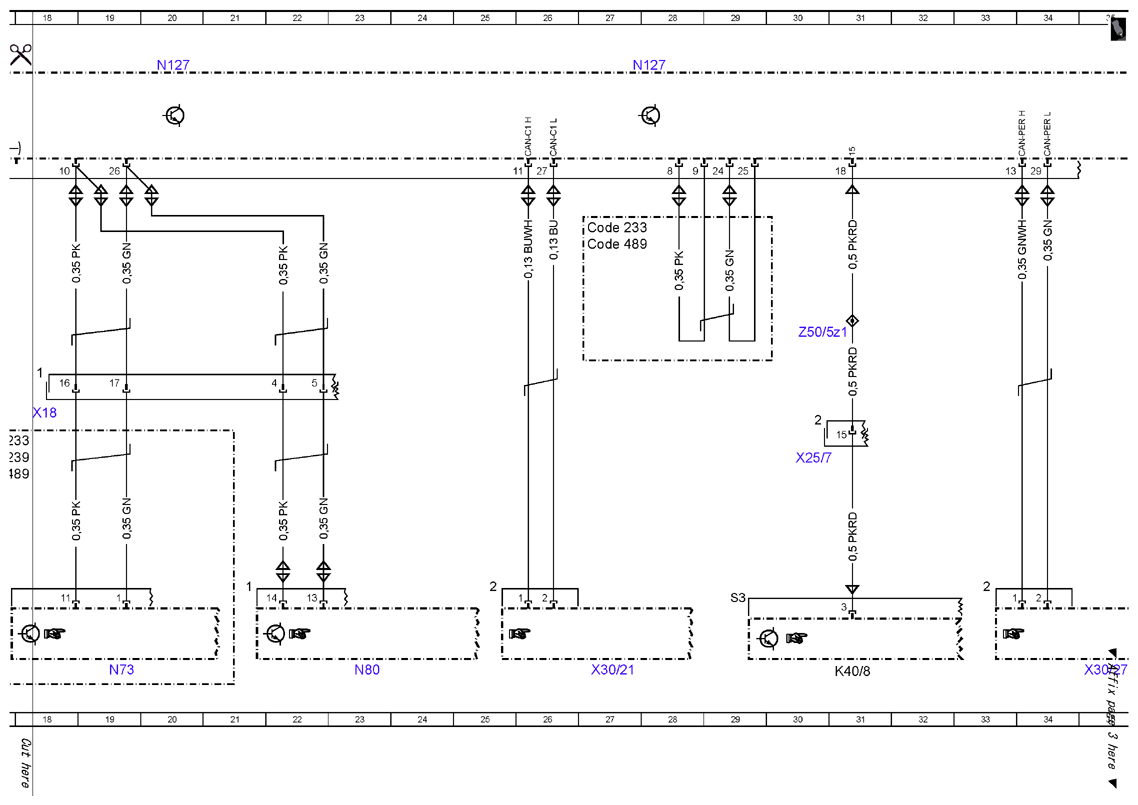

| N73 |
Electronic ignition switch control unit |
19L |
| N80 |
Steering column module control unit |
23L |
| N80 |
Steering column module control unit |
99L |
| U1018 |
Valid for gasoline engine 276 |
47J |
| U1018 |
Valid for gasoline engine 276 |
52H |
| U1018 |
Valid for gasoline engine 276 |
9E |
| U1095 |
Valid for fan motor 600W |
76F |
| U1096 |
Valid for fan motor 850W |
76G |
| U12 |
Valid for left-hand drive vehicles |
3E |
| U1253 |
Valid for model 253 |
92D |
| U13 |
Valid for right-hand drive vehicles |
3E |
| U165 |
Valid for AMG |
44J |
| U165 |
Valid for AMG |
59J |
| U165 |
Valid for AMG |
80F |
| U2037 |
Valid for spark ignition engine 274 with hybrid drive |
47H |
| U362 |
Valid for gasoline engine 274 |
52J |
| U362 |
Valid for gasoline engine 274 |
9E |
| U362 |
Valid for gasoline engine 274 |
115H |
| U39 |
Valid for gasoline engine 177 |
44H |
| U39 |
Valid for gasoline engine 177 |
59H |
| U39 |
Valid for gasoline engine 177 |
13E |
| U406 |
Valid for diesel engine 626 |
52J |
| U406 |
Valid for diesel engine 626 |
5E |
| U561 |
Valid for Delphi system |
6E |
| U562 |
Valid for Bosch system |
6E |
| U948 |
Valid for diesel engine 651 |
47J |
| U948 |
Valid for diesel engine 651 |
52J |
| U948 |
Valid for diesel engine 651 |
5E |
| U948 |
Valid for diesel engine 651 |
5E |
| U948 |
Valid for diesel engine 651 |
115J |
| U978 |
Valid for hybrid drive |
50H |
| W15/5 |
Left front footwell ground point |
4F |
| W15/7 |
Right front footwell ground point |
4G |
| W2 |
Right front ground point (at lamp unit) |
45E |
| W2 |
Right front ground point (at lamp unit) |
65F |
| W2/2 |
Left front ground point |
80E |
| W9 |
Left front ground point (at lamp unit) |
51E |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
18G |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
98H |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
30H |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
37E |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
62E |
| X26/10 |
Vehicle interior/engine electrical connector |
14H |
| X30/21 |
Drive train CAN (CAN C1) potential distributor electrical connector |
27L |
| X30/27 |
Peripherals CAN (CAN PER) potential distributor electrical connector |
35L |
| X30/44 |
Hybrid CAN (CAN L) potential distributor electrical connector |
104L |
| Y110 |
High-voltage battery cooling system expansion valve |
108L |
| Y140 |
High-voltage battery cooling system switchover valve |
109L |
| Y73/1 |
Low-temperature circuit switchover valve |
57L |
| Z141/1z1 |
Circuit 87 C1 connector sleeve |
39G |
| Z141/1z1 |
Circuit 87 C1 connector sleeve |
107G |
| Z141/1z1 |
Circuit 87 C1 connector sleeve |
67E |
| Z141/2z1 |
Circuit 87/C2 connector sleeve |
46E |
| Z142z1 |
Powertrain control unit LIN connector sleeve |
62G |
| Z148/1z1 |
Drivetrain circuit 31 connector sleeve |
114G |
| Z4/3z1 |
Tml. 30 connector sleeve |
2F |
| Z50/5z1 |
Tml. 15 connector sleeve |
30E |
| Z6/117z1 |
Left front ground point connector sleeve (on lamp unit) |
50G |
| Z6/118z1 |
Right front ground line connector sleeve (in wiring harness) |
45H |
| Z6/118z1 |
Right front ground line connector sleeve (in wiring harness) |
64G |
