| A0 |
Use of wiring diagrams |
32L |
| A26/17 |
Head unit |
10L |
| B84/10 |
Rear end 360° camera |
19L |
| B84/7 |
Left outside mirror 360° camera |
16L |
| B84/8 |
Right outside mirror 360° camera |
23L |
| B84/9 |
Front end 360° camera |
13L |
| CAN HMI |
User interface CAN |
6K |
| K40/5 |
Rear fuse and relay module |
3L |
| K40/5f417 |
Fuse 417 |
2L |

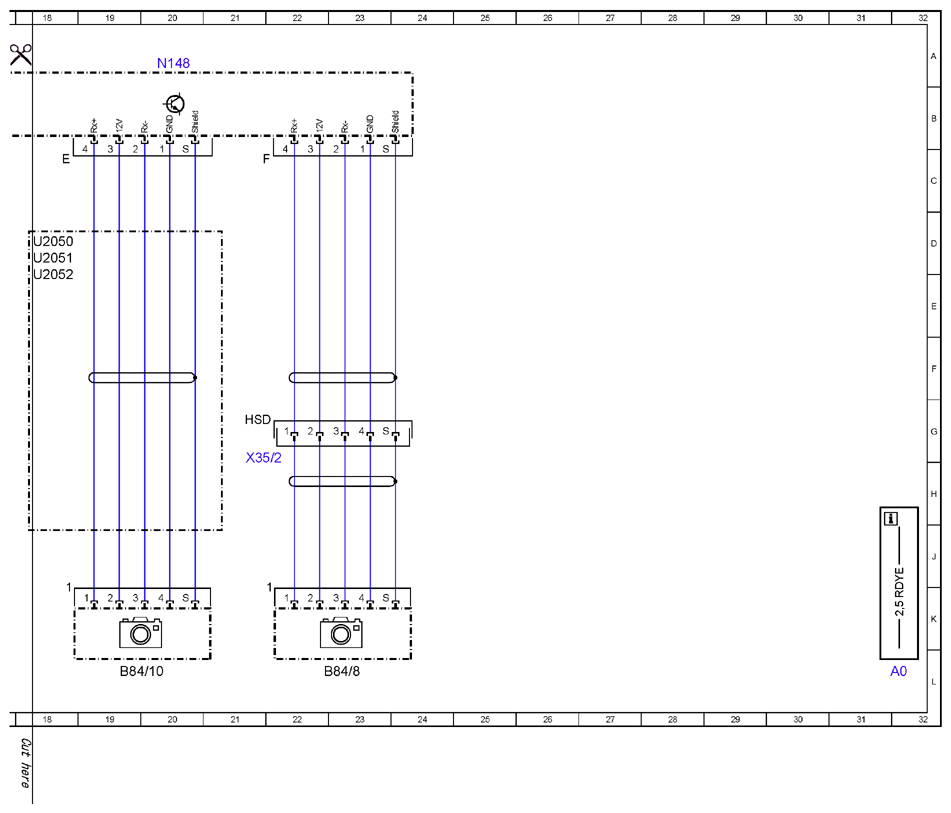

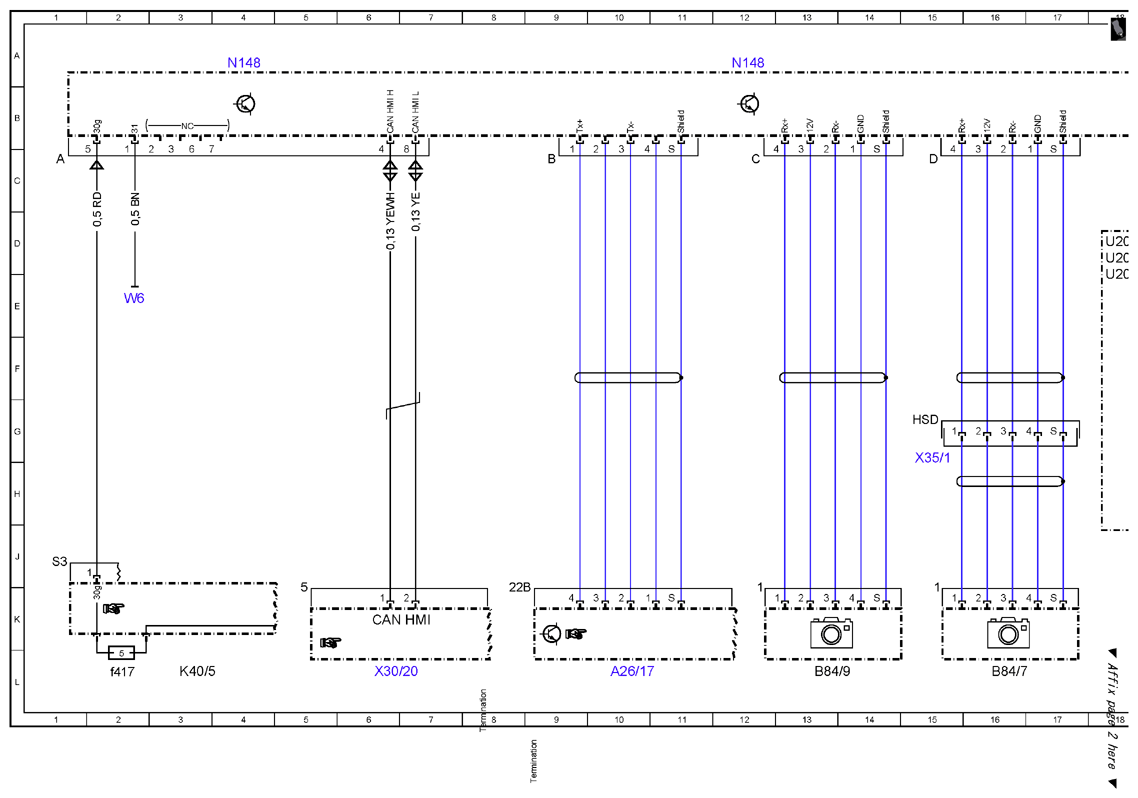

| N148 |
360° camera control unit |
4A |
| N148 |
360° camera control unit |
12A |
| N148 |
360° camera control unit |
20A |
| U2050 |
Valid for model 205.0 |
18D |
| U2051 |
Valid for model 205.1 |
18D |
| U2052 |
Valid for model 205.2 |
18E |
| W6 |
Left wheel arch trunk ground point |
2E |
| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
6L |
| X35/1 |
Left front door electrical connector |
15H |
| X35/2 |
Right front door electrical connector |
21H |
