| 1 |
Circuit 15, status |
19C |
| 2 |
Wheel speed, signal |
16F |
| 2 |
Wheel speed, signal |
19C |
| 3 |
Fuel consumption, signal |
13E |
| 3 |
Fuel consumption, signal |
19C |
| 3 |
Fuel consumption, signal |
8F |
| 4 |
Fuel tank fuel level indicator fill level sensor, signal |
16G |
| 5 |
Fuel level, signal |
18C |
| 5 |
Fuel level, signal |
13E |
| 5 |
Fuel level, signal |
10F |
| 6 |
Multifunction steering wheel button group, signal |
3D |
| 6 |
Multifunction steering wheel button group, signal |
13D |
| 6 |
Multifunction steering wheel button group, signal |
5D |
| 6 |
Multifunction steering wheel button group, signal |
18C |
| 7 |
High-voltage battery, status |
17C |
| 7 |
High-voltage battery, status |
12E |
| 7 |
High-voltage battery, status |
10J |

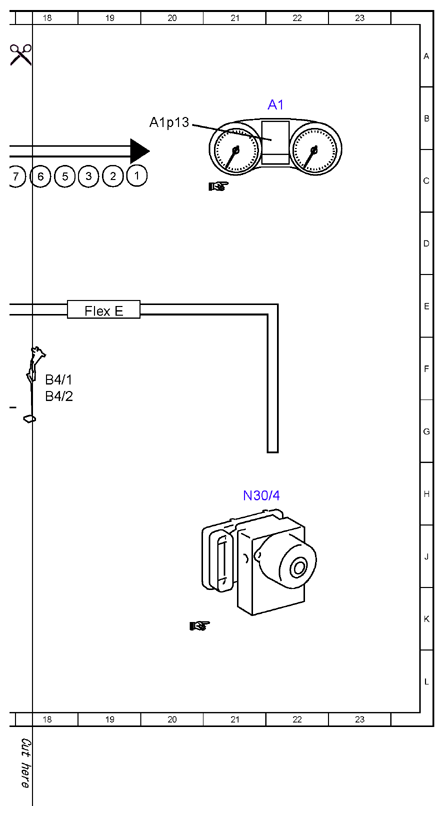

| A1 |
Instrument cluster |
22B |
| A1p13 |
Multifunction display |
20B |
| B4/1 |
Fuel tank fuel level indicator fill level sensor, left |
18F |
| B4/2 |
Fuel tank fuel level indicator fill level sensor, right |
18G |

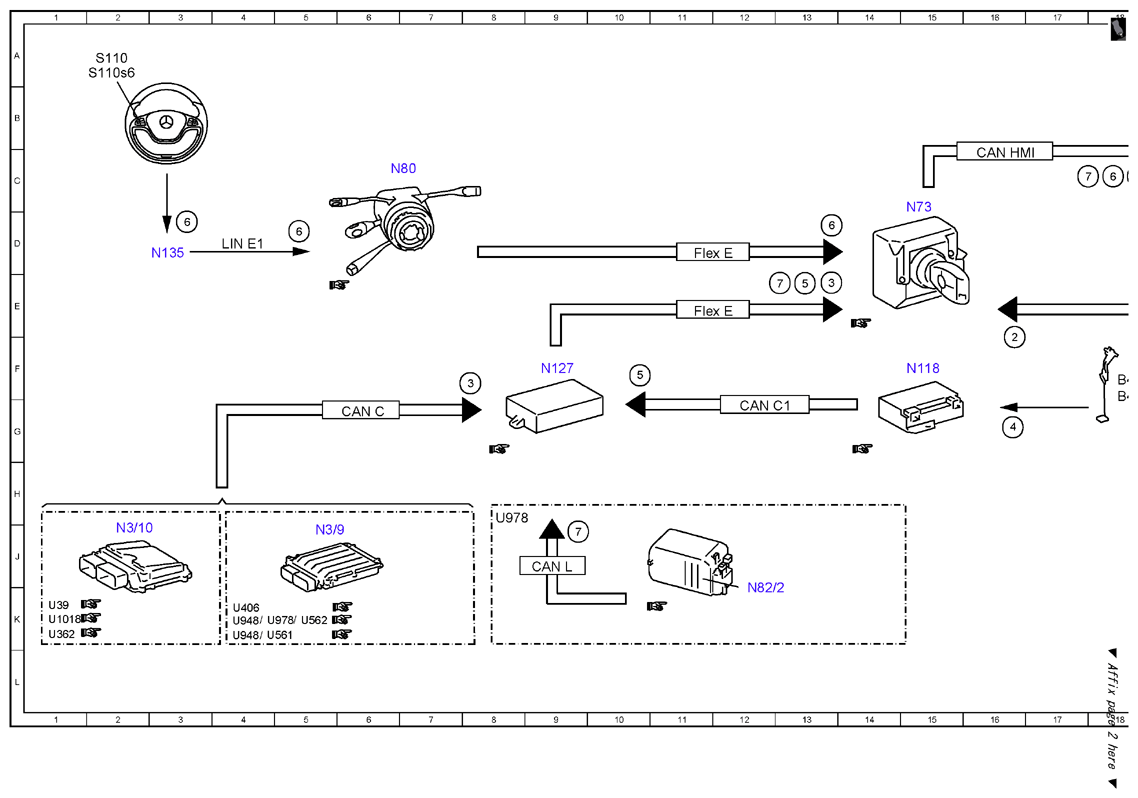

| CAN C |
Engine CAN |
6G |
| CAN C1 |
Drive train CAN |
12G |
| CAN HMI |
User interface CAN |
16C |
| CAN L |
Hybrid CAN |
9J |
| Flex E |
Chassis FlexRay |
11E |
| Flex E |
Chassis FlexRay |
11D |
| Flex E |
Chassis FlexRay |
19E |
| LIN E1 |
Steering LIN |
4D |
| N118 |
Fuel pump control unit |
15F |
| N127 |
Drivetrain control unit |
9F |
| N135 |
Steering wheel electronics |
3D |
| N3/10 |
ME-SFI [ME] control unit |
2J |
| N3/9 |
CDI control unit |
5J |
| N30/4 |
Electronic Stability Program control unit |
21H |
| N73 |
Electronic ignition switch control unit |
15C |
| N80 |
Steering column module control unit |
6C |
| N82/2 |
Battery management system control unit |
12K |
| S110 |
Left multifunction steering wheel button group |
2A |
| S110s6 |
OK button |
2A |
| U1018 |
Valid for gasoline engine 276 |
1K |
| U362 |
Valid for gasoline engine 274 |
1K |
| U39 |
Valid for gasoline engine 177 |
1K |
| U406 |
Valid for diesel engine 626 |
4K |
| U561 |
Valid for Delphi system |
4K |
| U562 |
Valid for Bosch system |
5K |
| U948 |
Valid for diesel engine 651 |
4K |
| U948 |
Valid for diesel engine 651 |
4K |
| U978 |
Valid for hybrid drive |
8H |
| U978 |
Valid for hybrid drive |
4K |
