| 1 |
Circuit 15, status |
29C |
| 1 |
Circuit 15, status |
44E |
| 2 |
Instrument cluster, message |
9C |
| 2 |
Instrument cluster, message |
10C |
| 2 |
Instrument cluster, message |
9E |
| 2 |
Instrument cluster, message |
29D |
| 2 |
Instrument cluster, message |
44F |
| 2 |
Instrument cluster, message |
44G |
| 2 |
Instrument cluster, message |
46G |
| 2 |
Instrument cluster, message |
46E |
| 2 |
Instrument cluster, message |
51C |
| 2 |
Instrument cluster, message |
43C |
| 3 |
Seat belt buckle switch, status |
29D |
| 3 |
Seat belt buckle switch, status |
47E |
| 3 |
Seat belt buckle switch, status |
40D |
| 3 |
Seat belt buckle switch, status |
50G |
| 4 |
Speaker, actuation |
29A |
| A1 |
Instrument cluster |
28B |
| A1e1 |
Left turn signal indicator light |
24A |
| A1e10 |
Parking brake indicator lamp |
24C |
| A1e11 |
Parking brake indicator lamp |
24C |
| A1e15 |
Supplemental restraint system indicator lamp |
24C |
| A1e16 |
Preglow indicator lamp |
24D |
| A1e17 |
Antilock brake system indicator lamp |
24D |
| A1e18 |
Rear fog lamp indicator lamp |
24D |
| A1e2 |
Right turn signal indicator light |
24B |
| A1e20 |
Regenerative braking system indicator lamp |
24E |
| A1e3 |
High beam indicator lamp |
24B |
| A1e32 |
ESP®/ASR OFF warning lamp |
24E |
| A1e38 |
Standing lamps indicator lamp |
25A |
| A1e4 |
Fuel reserve indicator lamp |
24B |
| A1e41 |
Electronic Stability Program warning lamp |
25A |
| A1e46 |
ESP SPORT indicator lamp |
25B |
| A1e51 |
Brake system warning lamp |
25B |
| A1e54 |
Coolant temperature warning lamp |
25B |
| A1e58 |
Engine diagnosis indicator lamp |
25C |
| A1e59 |
DISTRONIC warning lamp |
26D |
| A1e6 |
Brake fluid and parking brake indicator lamp |
24B |
| A1e66 |
Tire pressure monitor warning lamp |
26E |
| A1e67 |
Low beam indicator lamp |
25E |
| A1e70 |
Power steering warning lamp |
25E |
| A1e9 |
Seat belt warning lamp |
24C |
| A1p13 |
Multifunction display |
25F |
| A1p8 |
Speedometer |
25E |
| A26/17 |
Head unit |
34B |
| A40/11 |
Mono multifunction camera |
37G |
| A40/13 |
Stereo multifunction camera |
13H |
| A6n1 |
Stationary heater control unit |
47C |
| A76 |
Left front reversible emergency tensioning retractor |
31B |
| A76/1 |
Right front reversible emergency tensioning retractor |
31B |
| A80 |
Intelligent servo module for DIRECT SELECT |
15C |
| A89 |
DISTRONIC electric controller unit |
19H |
| A90 |
COLLISION PREVENTION ASSIST controller unit |
39H |
| B92/11 |
Left outer rear bumper integrated radar sensor |
33H |
| B92/6 |
Right outer rear bumper integrated radar sensor |
33H |
| CAN AMG |
AMG CAN |
42C |

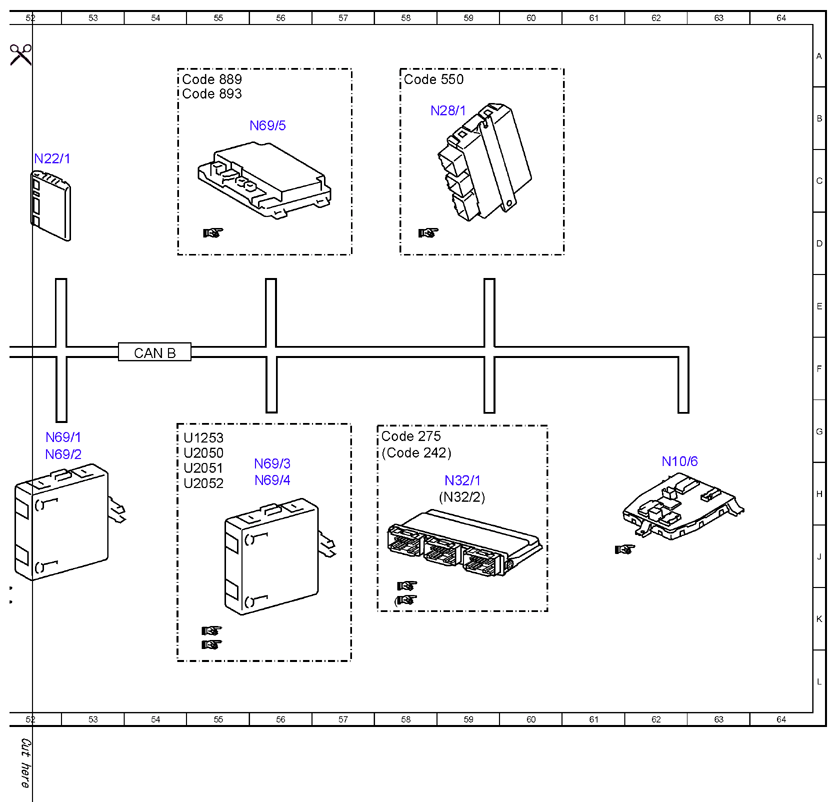

| CAN B |
Interior CAN |
48F |
| CAN B |
Interior CAN |
54F |
| CAN C |
Engine CAN |
6B |
| CAN C1 |
Drive train CAN |
19B |
| CAN C1 |
Drive train CAN |
12B |
| CAN D |
Diagnostic CAN |
44H |
| CAN HMI |
User interface CAN |
38E |
| CAN HMI |
User interface CAN |
30E |
| CAN L |
Hybrid CAN |
6G |
| CAN PER |
Peripherals CAN |
44L |
| CAN PER |
Peripherals CAN |
32L |
| Code 228 |
Stationary heater |
46B |
| Code 22P |
Track package |
35G |
| Code 22P |
Track package |
32G |
| Code 235 |
Active Park Assist |
24H |
| Code 239 |
DISTRONIC PLUS |
25C |
| Code 239 |
DISTRONIC PLUS |
18H |
| Code 23P |
Driver assistance package |
12H |
| Code 23P |
Driver assistance package |
21H |
| Code 23P |
Driver assistance package |
25D |
| Code 242 |
All-electric front passenger seat with memory (right) |
58G |
| Code 258 |
Collision Prevention Assist PLUS (CPA+) |
38G |
| Code 258 |
Collision Prevention Assist PLUS (CPA+) |
25C |
| Code 275 |
Memory package |
58G |
| Code 299 |
PRE-SAFE® |
30A |
| Code 348 |
Emergency call/assistance system |
41G |
| Code 427 |
7G-TRONIC |
14C |
| Code 427 |
7G-TRONIC |
20C |
| Code 475 |
Tire pressure monitor |
36B |
| Code 475 |
Tire pressure monitor |
25D |
| Code 483 |
ADVANCED AGILITY package |
8H |
| Code 489 |
AIR BODY CONTROL |
10H |
| Code 489 |
AIR BODY CONTROL |
8J |
| Code 513 |
Traffic sign recognition |
35G |
| Code 513 |
Traffic sign recognition |
12H |
| Code 550 |
Trailer hitch |
58A |
| Code 640 |
High Performance LED |
29G |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
29G |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
29H |
| Code 889 |
KEYLESS-GO |
54A |
| Code 893 |
KEYLESS-GO start function |
54B |
| E1n9 |
Left headlamp control unit |
31H |
| E2n9 |
Right headlamp control unit |
31H |
| Flex E |
Chassis FlexRay |
36F |
| Flex E |
Chassis FlexRay |
27F |
| Flex E |
Chassis FlexRay |
15F |
| Flex E |
Chassis FlexRay |
12F |
| H4/61 |
Instrument cluster speaker |
30A |
| LIN B8-2 |
Climate control LIN 2 |
49C |
| N10/6 |
Front SAM control unit |
62H |
| N10/8 |
Rear SAM control unit |
49G |
| N118 |
Fuel pump control unit |
18C |
| N123/4 |
Emergency call system control unit |
42H |
| N127 |
Drivetrain control unit |
9D |
| N129/1 |
Power electronics control unit |
3J |
| N2/10 |
Supplemental restraint system control unit |
39B |
| N22/1 |
Climate control unit |
52C |
| N28/1 |
Trailer recognition control unit |
58B |
| N3/10 |
ME-SFI [ME] control unit |
2C |
| N3/2 |
Electronic differential control unit |
42A |
| N3/43 |
AMG suspension control unit |
42C |
| N3/9 |
CDI control unit |
6C |
| N30/4 |
Electronic Stability Program control unit |
28H |
| N32/1 |
Driver seat control unit |
59H |
| N32/2 |
Front passenger seat control unit |
59H |
| N51/3 |
AIR BODY CONTROL control unit |
9J |
| N51/3 |
AIR BODY CONTROL control unit |
11J |
| N62 |
Parking system control unit |
25H |
| N62/1 |
Radar sensors control unit |
22H |
| N68 |
Electrical power steering control unit |
17H |
| N69/1 |
Left front door control unit |
52G |
| N69/2 |
Right front door control unit |
52G |
| N69/3 |
Left rear door control unit |
56H |
| N69/4 |
Right rear door control unit |
56H |
| N69/5 |
KEYLESS-GO control unit |
55B |
| N73 |
Electronic ignition switch control unit |
45E |
| N82/2 |
Battery management system control unit |
6J |
| N88 |
Tire pressure monitor control unit |
37J |
| N89 |
Transmission oil auxiliary oil pump control unit |
21D |
| U1018 |
Valid for gasoline engine 276 |
1E |
| U1253 |
Valid for model 253 |
54G |
| U1253 |
Valid for model 253 |
10H |
| U165 |
Valid for AMG |
26B |
| U165 |
Valid for AMG |
41A |
| U2031 |
Valid for transmission 724 |
12C |
| U2032 |
Valid for transmission 722 |
12C |
| U2050 |
Valid for model 205.0 |
54G |
| U2051 |
Valid for model 205.1 |
54H |
| U2052 |
Valid for model 205.2 |
54H |
| U362 |
Valid for gasoline engine 274 |
1E |
| U39 |
Valid for gasoline engine 177 |
1D |
| U390 |
Valid for model 205 |
8H |
| U398 |
Valid for transmission 725 (NAG3) |
12C |
| U406 |
Valid for diesel engine 626 |
4D |
| U561 |
Valid for Delphi system |
5E |
| U562 |
Valid for Bosch system |
5E |
| U74 |
Valid for diesel engines |
25D |
| U948 |
Valid for diesel engine 651 |
4E |
| U948 |
Valid for diesel engine 651 |
4E |
| U978 |
Valid for hybrid drive |
2H |
| U978 |
Valid for hybrid drive |
5H |
| U978 |
Valid for hybrid drive |
24E |
| U978 |
Valid for hybrid drive |
5E |
| Y3/8n4 |
Fully integrated transmission control unit |
13D |
