| A0 |
Use of wiring diagrams |
40A |
| A32 |
AC housing |
12L |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
6F |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
15B |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
15B |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
6G |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
15B |
| F1/3 |
Right A-pillar fuse box |
29L |
| F32/3 |
Engine compartment prefuse box |
3L |
| F32/3f10 |
Fuse 10 |
2K |

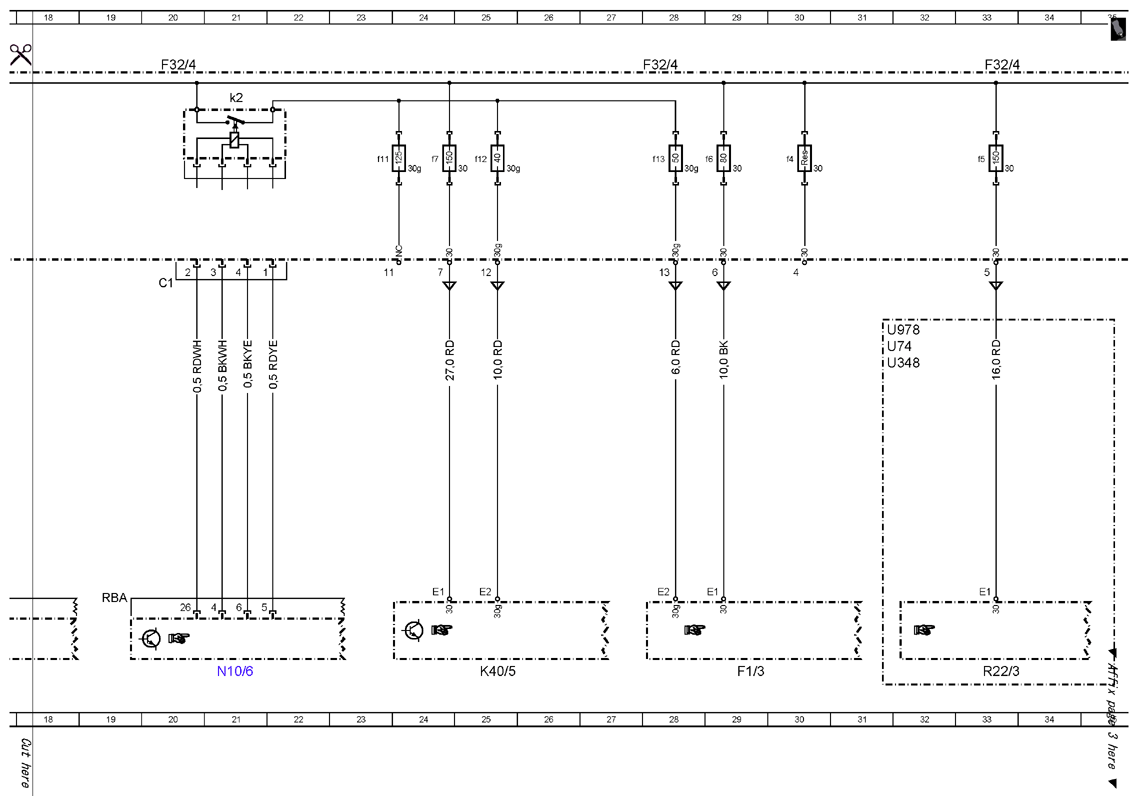

| F32/4 |
Vehicle interior prefuse box |
4A |
| F32/4 |
Vehicle interior prefuse box |
12A |
| F32/4 |
Vehicle interior prefuse box |
20A |
| F32/4 |
Vehicle interior prefuse box |
33A |
| F32/4 |
Vehicle interior prefuse box |
28A |
| F32/4f10 |
Fuse 10 |
16C |
| F32/4f11 |
Fuse 11 |
23C |
| F32/4f12 |
Fuse 12 |
25C |
| F32/4f13 |
Fuse 13 |
28C |
| F32/4f2 |
Fuse 2 |
8C |
| F32/4f3 |
Fuse 3 |
12C |
| F32/4f4 |
Fuse 4 |
30C |
| F32/4f5 |
Fuse 5 |
33C |
| F32/4f6 |
Fuse 6 |
29C |
| F32/4f7 |
Fuse 7 |
24C |
| F32/4f8 |
Fuse 8 |
13C |
| F32/4f9 |
Fuse 9 |
36C |
| F32/4k2 |
Quiescent current cutout relay |
21B |

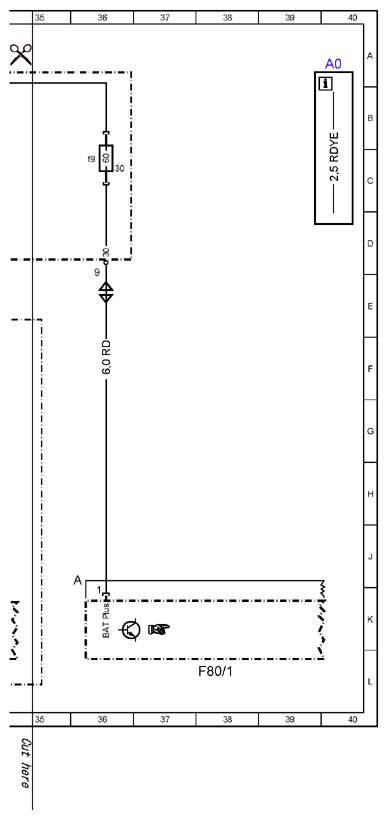

| F80/1 |
Special-purpose vehicle fuse block 1 |
38L |
| K114 |
ECO start/stop function additional battery relay |
8L |
| K40/5 |
Rear fuse and relay module |
25L |
| N10/6 |
Front SAM control unit |
21L |
| R22/3 |
PTC heater booster |
33L |
| U1253 |
Valid for model 253 |
16E |
| U348 |
Valid without code (228) Stationary heater |
31F |
| U74 |
Valid for diesel engines |
31F |
| U978 |
Valid for hybrid drive |
31E |

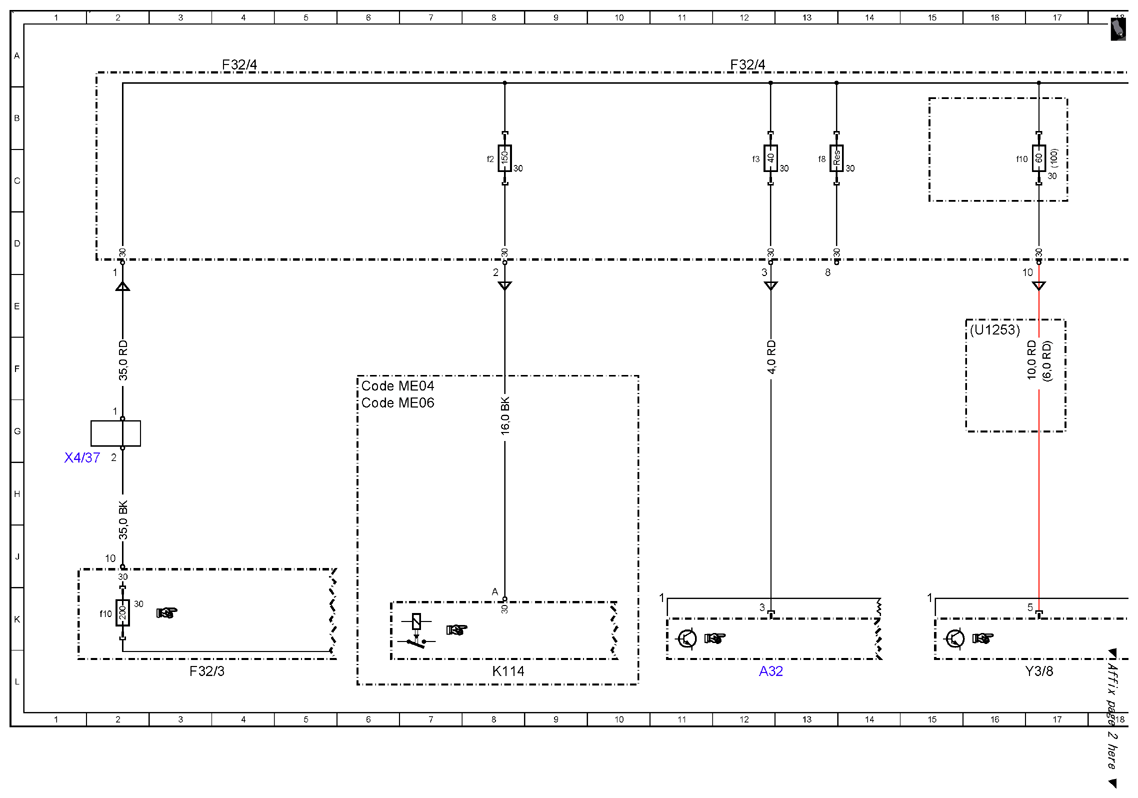

| X4/37 |
Terminal block (circuit 30) |
1H |
| Y3/8 |
Fully integrated transmission control control unit |
17L |
