| A0 |
Use of wiring diagrams |
113L |
| A1 |
Instrument cluster |
65L |
| A50/6 |
Dedicated Short-Range Communications control unit |
46L |
| A70/1 |
Analog clock |
18L |
| Code 238 |
Active Lane Keeping Assist |
79F |
| Code 425 |
6-speed manual transmission |
92F |
| Code 476 |
Lane Keeping Assist |
79F |
| Code 498 |
Japan version |
44F |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
83F |
| Code 882 |
Interior protection and tow-away protection |
83F |
| Code 970 |
Police emergency vehicles |
50F |
| Code P21 |
AIR-BALANCE package |
36H |
| Code U10 |
SBE - Seat occupancy recognition |
22H |
| Code Z97 |
|
48F |
| E13/1 |
Glove box lamp |
32L |
| F32/3 |
Engine compartment prefuse box |
3L |
| F32/3f6 |
Fuse 6 |
1K |
| F80/1 |
Special-purpose vehicle fuse block 1 |
53L |
| H3/1 |
Alarm siren |
86L |
| K40/6 |
Left fuse and relay module |
2A |
| K40/6 |
Left fuse and relay module |
11A |
| K40/6 |
Left fuse and relay module |
19A |
| K40/6 |
Left fuse and relay module |
29A |
| K40/6 |
Left fuse and relay module |
36A |
| K40/6 |
Left fuse and relay module |
43A |
| K40/6 |
Left fuse and relay module |
52A |
| K40/6 |
Left fuse and relay module |
70A |
| K40/6 |
Left fuse and relay module |
78A |
| K40/6 |
Left fuse and relay module |
84A |
| K40/6 |
Left fuse and relay module |
92A |
| K40/6 |
Left fuse and relay module |
100A |
| K40/6 |
Left fuse and relay module |
62A |
| K40/6f200 |
Fuse 200 |
14A |
| K40/6f201 |
Fuse 201 |
28A |
| K40/6f202 |
Fuse 202 |
85A |

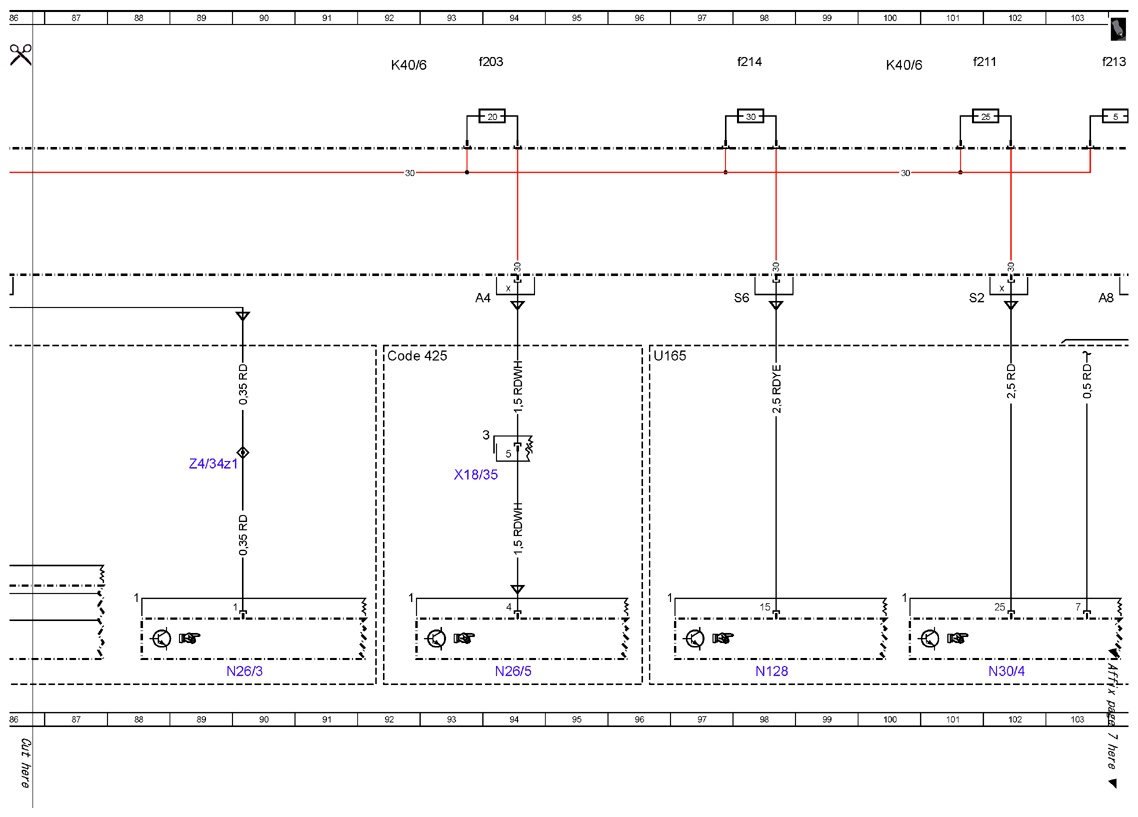

| K40/6f203 |
Fuse 203 |
94A |

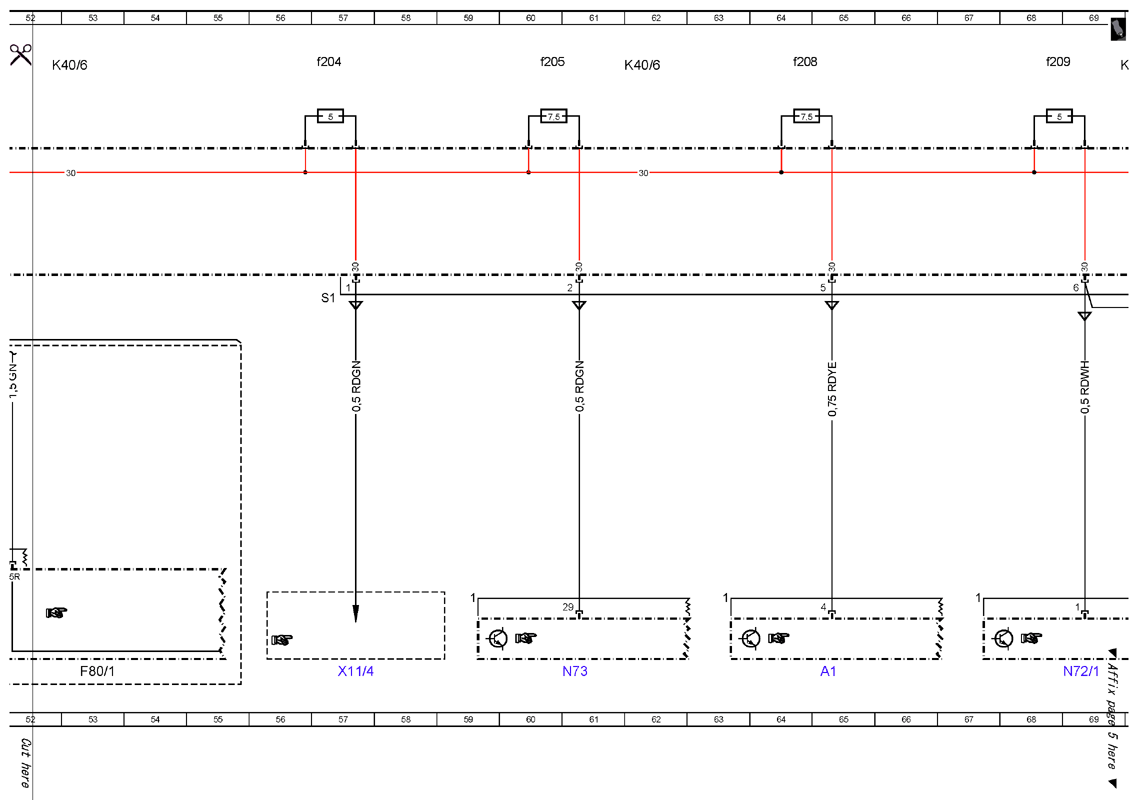

| K40/6f204 |
Fuse 204 |
57A |
| K40/6f205 |
Fuse 205 |
60A |
| K40/6f206 |
Fuse 206 |
18A |

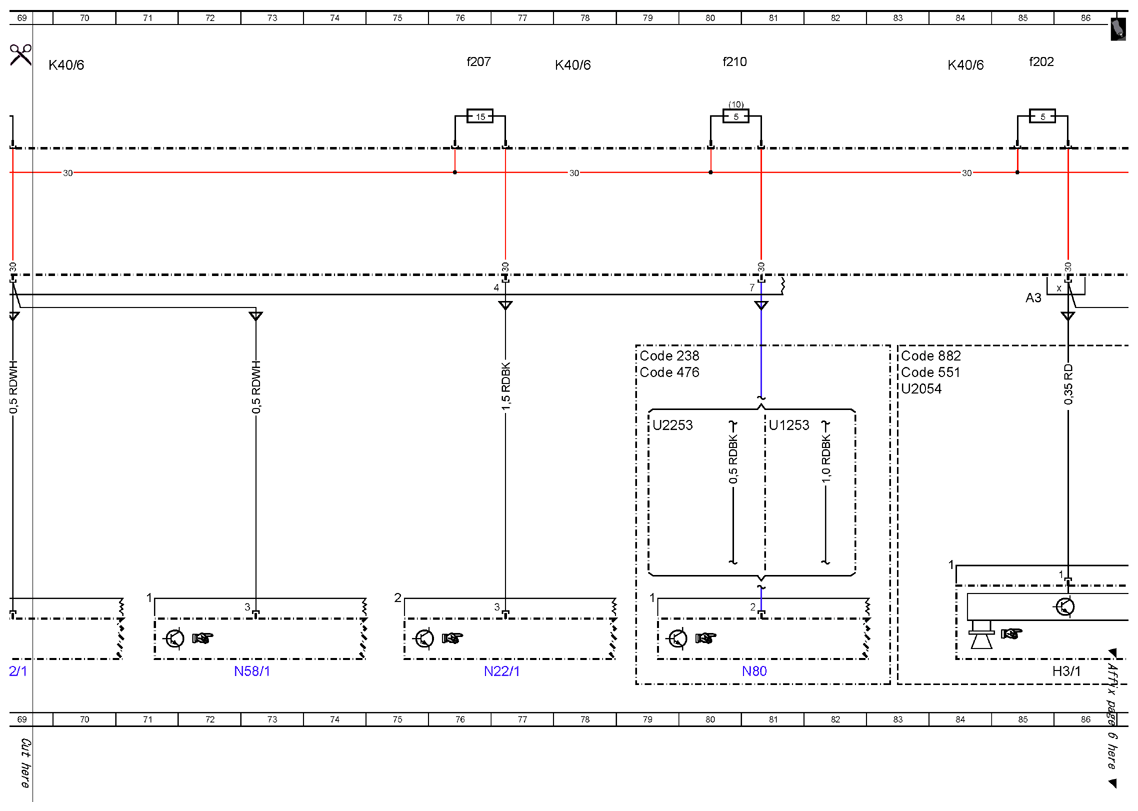

| K40/6f207 |
Fuse 207 |
76A |
| K40/6f208 |
Fuse 208 |
64A |
| K40/6f209 |
Fuse 209 |
68A |
| K40/6f210 |
Fuse 210 |
80A |
| K40/6f211 |
Fuse 211 |
101A |
| K40/6f212 |
Fuse 212 |
5A |
| K40/6f213 |
Fuse 213 |
103A |
| K40/6f214 |
Fuse 214 |
98A |

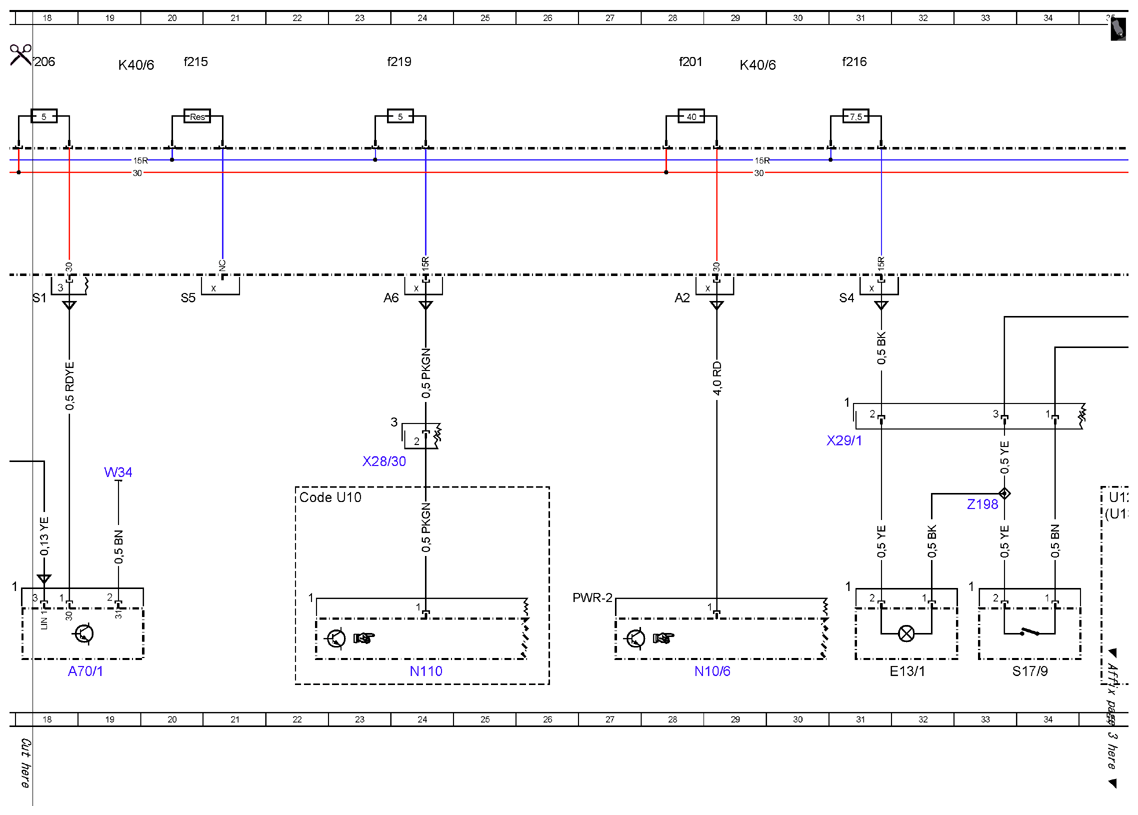

| K40/6f215 |
Fuse 215 |
20A |
| K40/6f216 |
Fuse 216 |
31A |

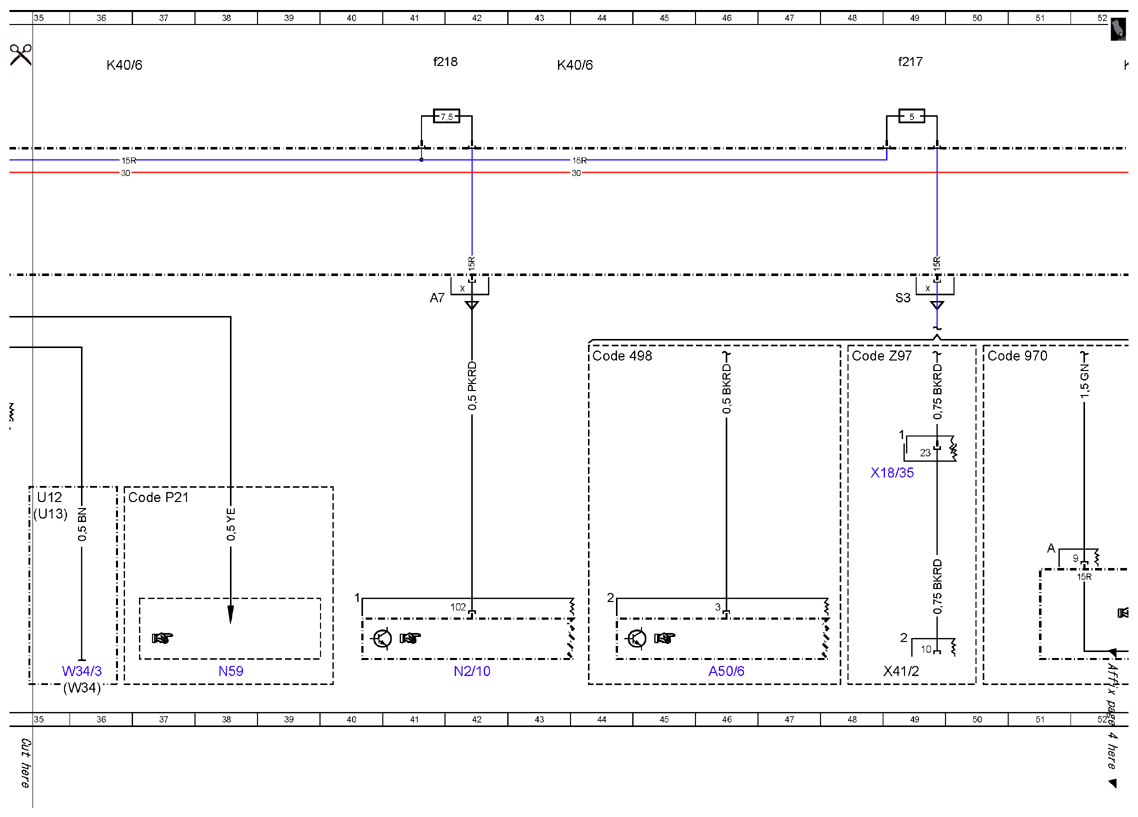

| K40/6f217 |
Fuse 217 |
49A |
| K40/6f218 |
Fuse 218 |
41A |
| K40/6f219 |
Fuse 219 |
24A |
| K40/6f220 |
Fuse 220 |
9A |

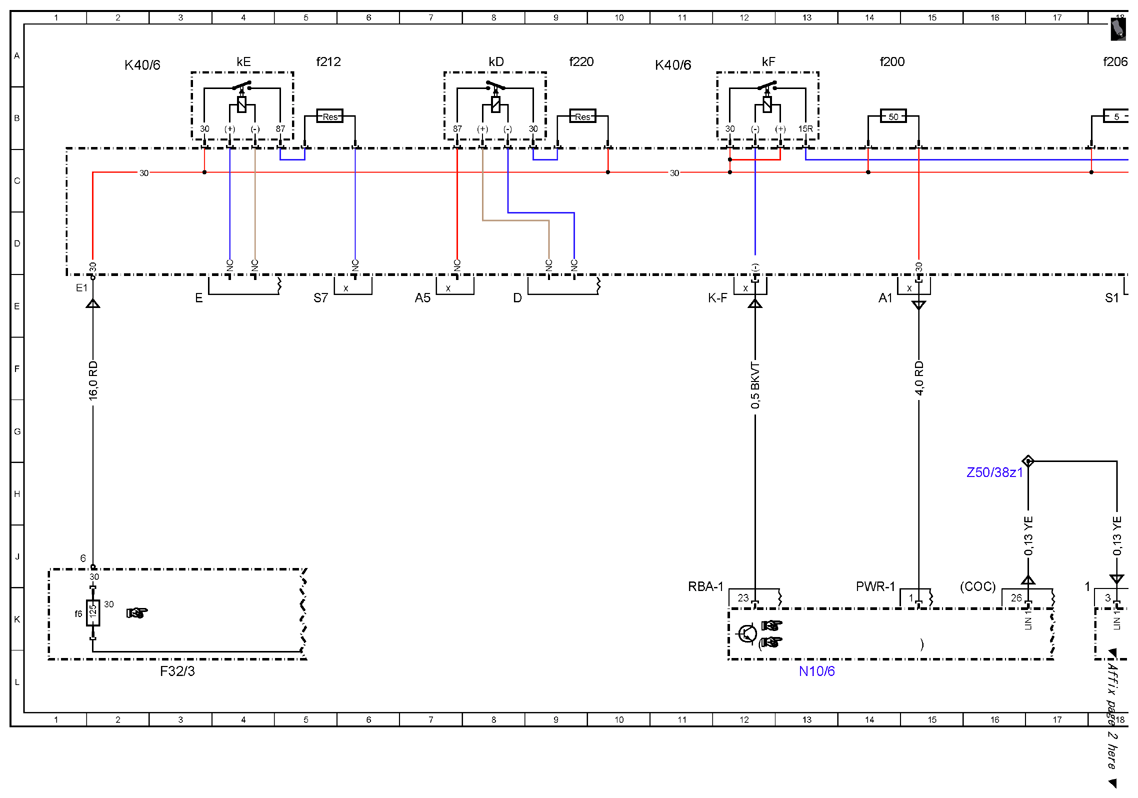

| K40/6kD |
Backup relay |
8A |
| K40/6kE |
Backup relay |
4A |
| K40/6kF |
Circuit 15R relay |
12A |
| N10/6 |
Front SAM control unit |
13L |
| N10/6 |
Front SAM control unit |
29L |
| N110 |
Weight Sensing System (WSS) control unit |
24L |
| N128 |
Electric parking brake control unit |
98L |
| N2/10 |
Supplemental restraint system control unit |
42L |
| N22/1 |
Climate control control unit |
77L |
| N26/3 |
ATA [EDW]/towing sensor/interior motion sensor control unit |
90L |
| N26/5 |
Electric steering lock control unit |
94L |

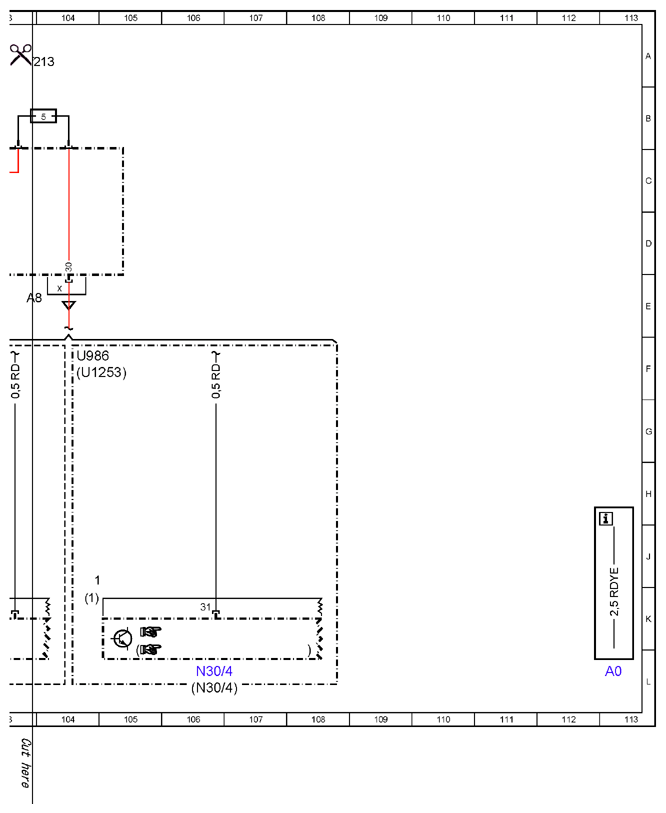

| N30/4 |
Electronic Stability Program control unit |
106L |
| N30/4 |
Electronic Stability Program control unit |
102L |
| N30/4 |
Electronic Stability Program control unit |
106L |
| N58/1 |
Climate control operating unit |
73L |
| N59 |
Perfume atomizer generator |
38L |
| N72/1 |
Upper control panel control unit |
69L |
| N73 |
Electronic ignition switch control unit |
61L |
| N80 |
Steering column module control unit |
81L |
| S17/9 |
Glove box lamp switch |
34L |
| U12 |
Valid for left-hand drive vehicles |
35H |
| U1253 |
Valid for model 253 |
81G |
| U1253 |
Valid for model 253 |
104F |
| U13 |
Valid for right-hand drive vehicles |
35H |
| U165 |
Valid for AMG |
96F |
| U2054 |
Valid for model 205.4 |
83F |
| U2253 |
Not valid for model series 253 |
79G |
| U986 |
Not valid for AMG |
104F |
| W34 |
Left footwell ground point |
36L |
| W34 |
Left footwell ground point |
19H |
| W34/3 |
Right footwell ground point |
36L |
| X11/4 |
Diagnostic connector |
57L |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
93H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
49H |
| X28/30 |
Front passenger airbag electrical connector |
23H |
| X29/1 |
Glove compartment electrical connector |
31G |
| X41/2 |
Roof light bar separation point |
49L |
| Z198 |
Connector sleeve, glove compartment illumination |
33H |
| Z4/34z1 |
Overhead control panel terminal 30 connector sleeve |
89H |
| Z50/38z1 |
Instrument panel LIN connector sleeve |
16H |
