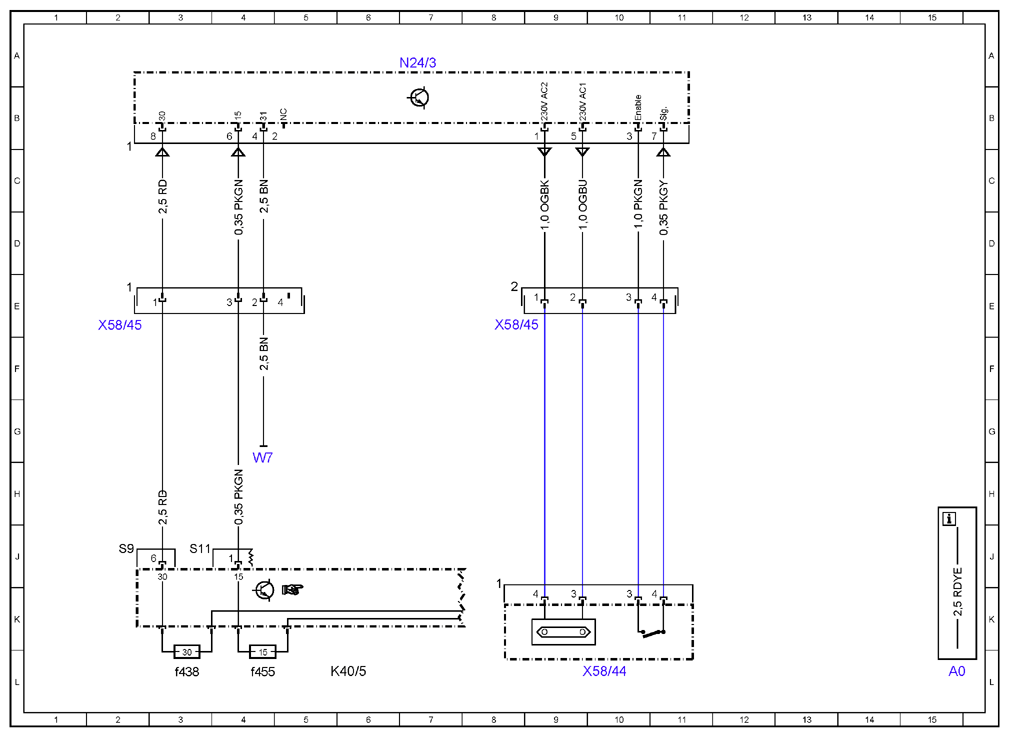

Wiring diagram control unit DC/AC converter - PE54.10-P-2103-97FBA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f438 | Fuse 438 | 3L |
| K40/5f455 | Fuse 455 | 4L |
| N24/3 | DC/AC converter control unit | 7A |
| W7 | Right wheelhouse trunk ground point | 4H |
| X58/44 | 230V socket | 10L |
| X58/45 | 230V socket connecting point | 2E |
| X58/45 | 230V socket connecting point | 8E |
