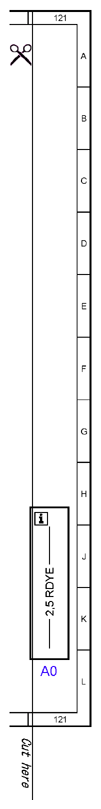

| A0 |
Use of wiring diagrams |
121L |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
61A |
| A26/17 |
Head unit |
87L |
| A40/8 |
Audio/COMAND display |
76L |
| A90/4 |
Tuner unit |
114L |
| A90/4 |
Tuner unit |
100L |
| B10/31 |
Left side air outlet temperature sensor |
72L |
| B10/32 |
Right side air outlet temperature sensor |
73L |
| B12 |
Refrigerant pressure sensor |
65A |
| CAN PER |
Peripherals CAN |
8K |
| Code 233 |
AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS |
12G |
| Code 235 |
Active Park Assist |
11A |
| Code 489 |
AIR BODY CONTROL |
12G |
| Code 531 |
COMAND APS |
78H |
| Code 536 |
SIRIUS satellite radio |
111H |
| Code 536 |
SIRIUS satellite radio |
97F |
| Code 536 |
SIRIUS satellite radio |
107F |
| Code 537 |
Digital radio (DAB) |
107F |
| Code 537 |
Digital radio (DAB) |
111J |
| Code 537 |
Digital radio (DAB) |
97F |
| Code 581 |
THERMOTRONIC automatic air conditioning |
49D |
| Code 810 |
Sound system |
102F |
| Code 810 |
Sound system |
107F |
| Code 865 |
|
97F |
| Code 865 |
|
111J |
| Code 865 |
|
107F |
| Code 970 |
Police emergency vehicles |
29A |
| Code 970 |
Police emergency vehicles |
29G |
| Code 974 |
|
29A |
| Code 974 |
|
29G |
| Code 975 |
|
29B |
| Code 975 |
|
29H |
| Code B54 |
Live Traffic Information |
32A |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
2K |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
68A |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
2K |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
45D |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
68A |
| Code P21 |
AIR-BALANCE package |
20H |

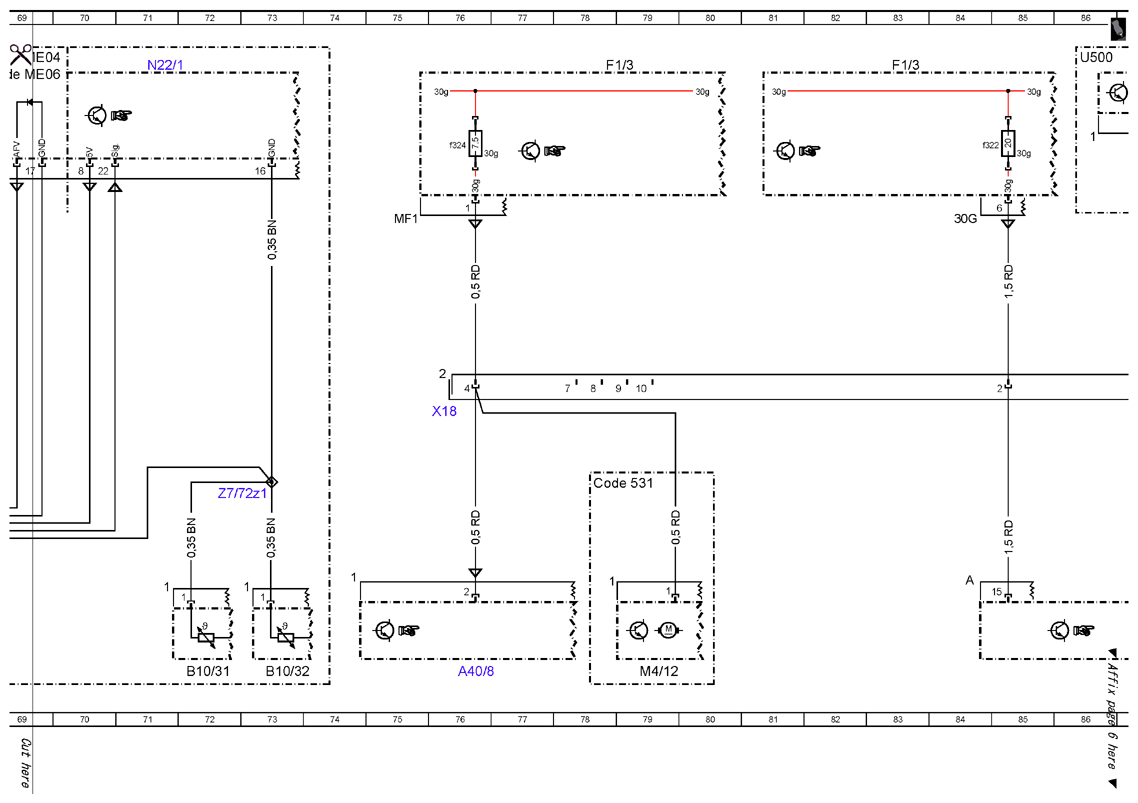

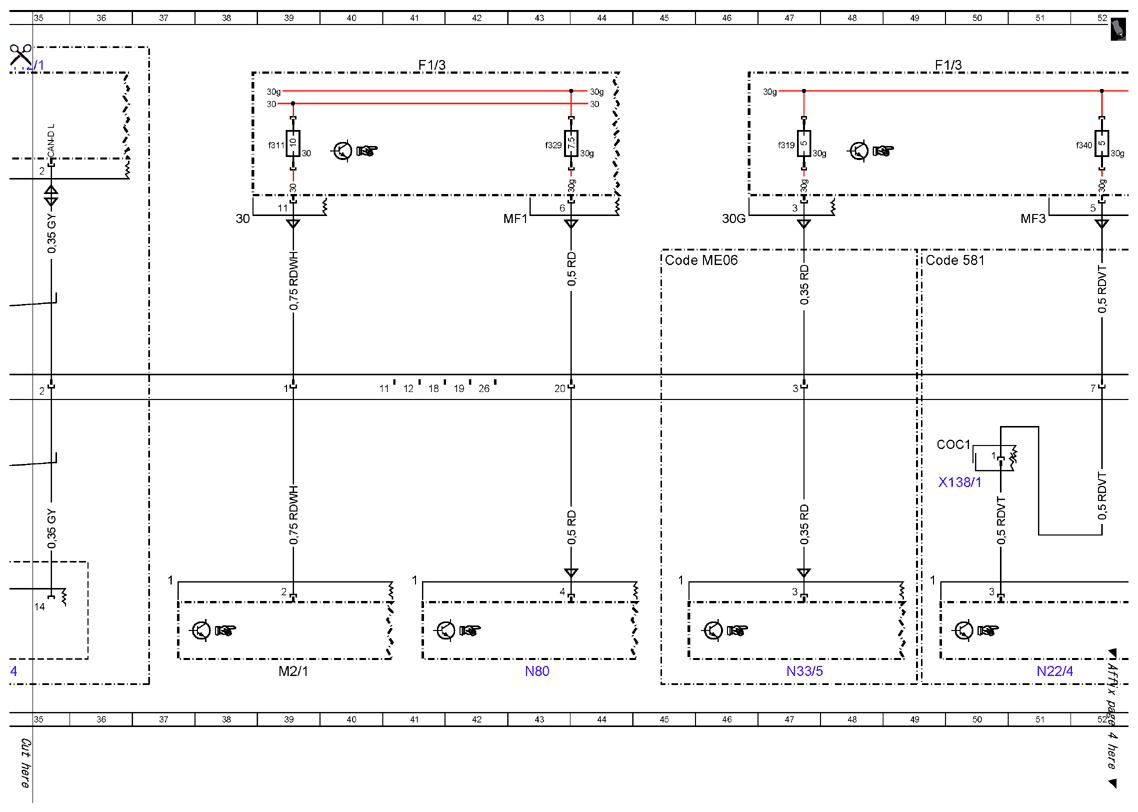

| F1/3 |
Right A-pillar fuse box |
41A |
| F1/3 |
Right A-pillar fuse box |
49A |
| F1/3 |
Right A-pillar fuse box |
78A |
| F1/3 |
Right A-pillar fuse box |
83A |
| F1/3f311 |
Fuse 311 |
39B |
| F1/3f319 |
Fuse 319 |
47B |
| F1/3f322 |
Fuse 322 |
84B |
| F1/3f324 |
Fuse 324 |
76B |
| F1/3f329 |
Electrical fuse 329 |
43B |
| F1/3f339 |
Fuse 339 |
54B |
| F1/3f340 |
Fuse 340 |
52B |
| F63 |
Pyrofuse |
4L |
| H4/27 |
Center instrument panel speaker |
27L |
| H4/27 |
Center instrument panel speaker |
31L |

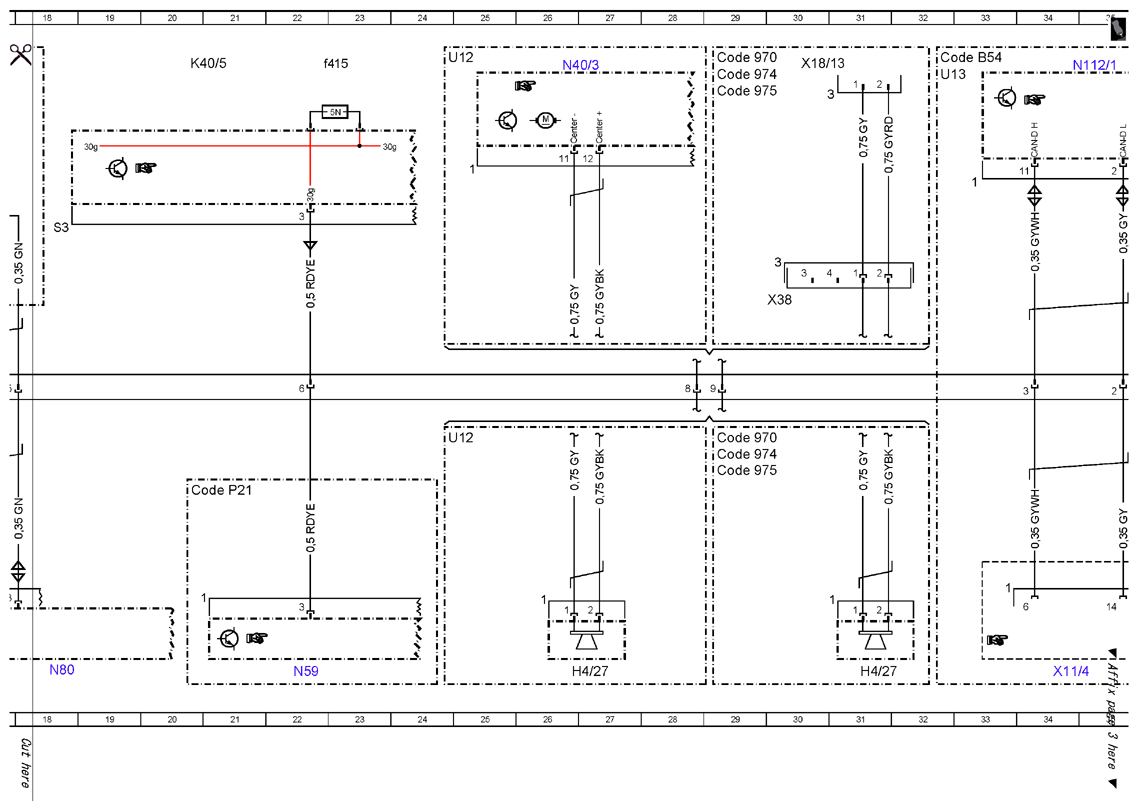

| K40/5 |
Rear fuse and relay module |
20A |
| K40/5f415 |
Fuse 415 |
23A |
| M2/1 |
Rear blower motor |
39L |
| M4/12 |
Audio equipment fan motor |
79L |
| N112/1 |
Telematics services communication module |
35A |

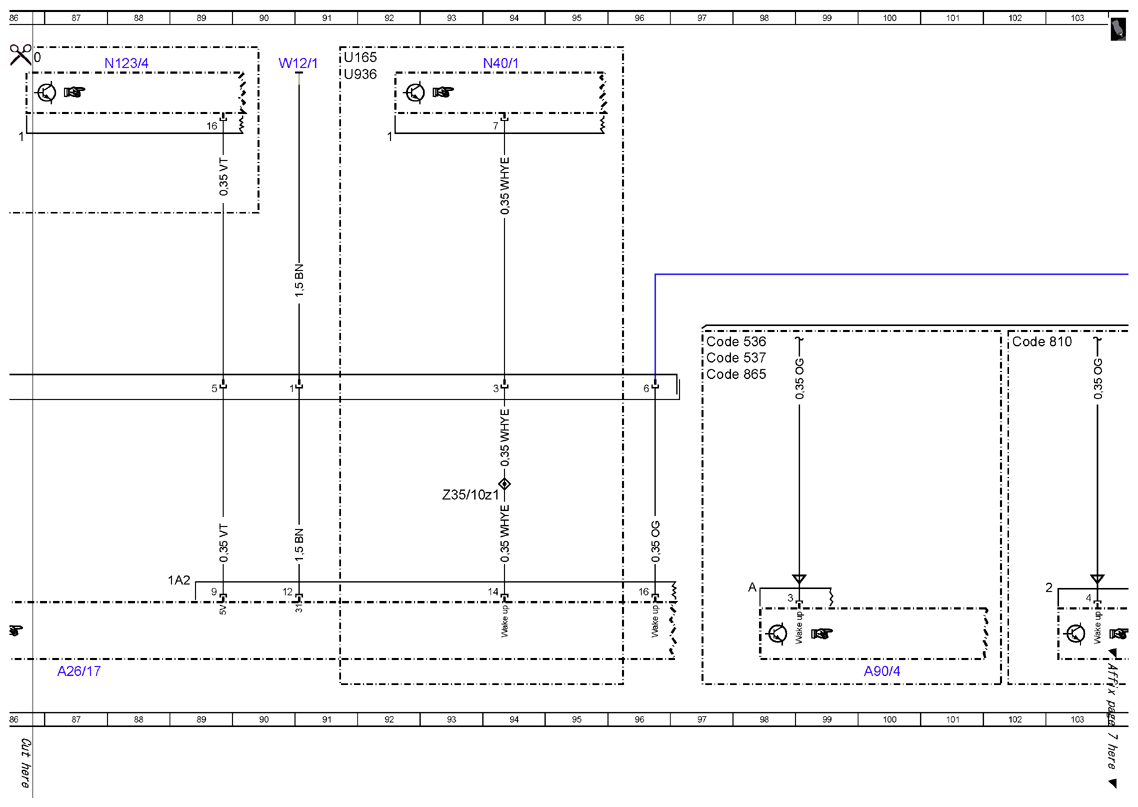

| N123/4 |
Emergency call system control unit |
88A |
| N127 |
Drivetrain control unit |
13A |

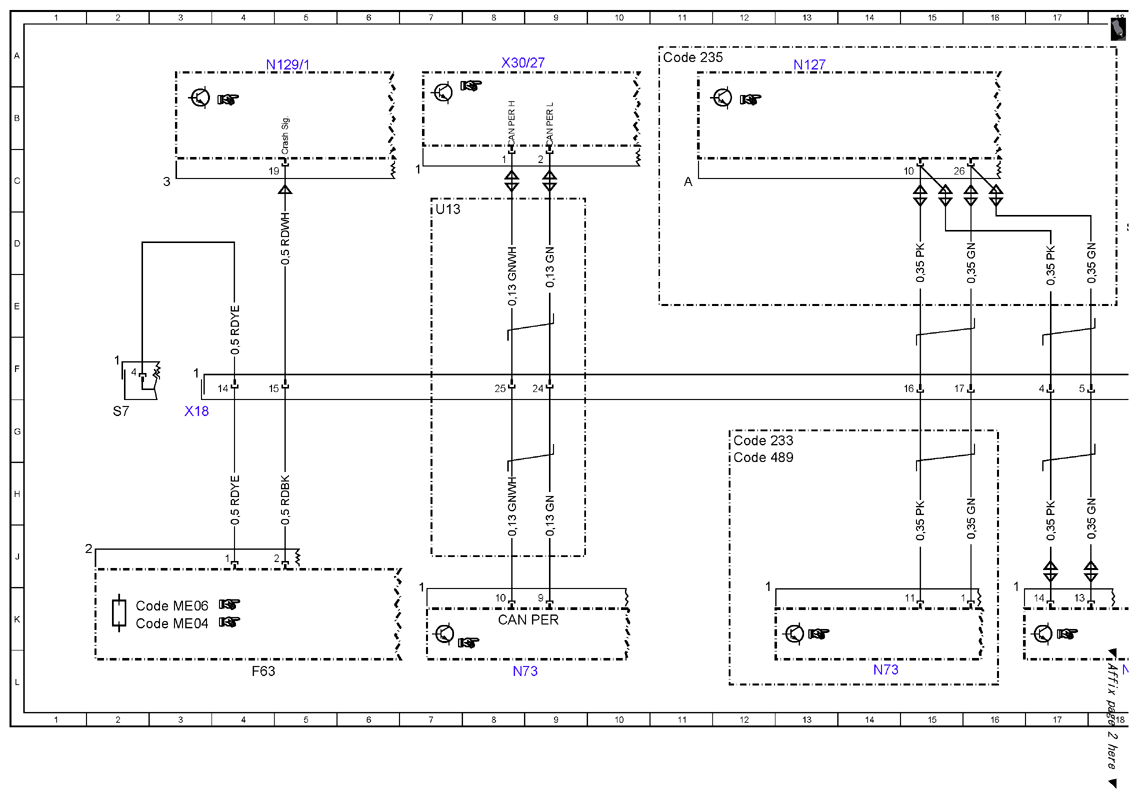

| N129/1 |
Power electronics control unit |
5A |
| N22/1 |
Climate control control unit |
71A |
| N22/4 |
Rear air conditioning operating unit |
51L |
| N33/5 |
High-voltage PTC heater |
47L |
| N40/1 |
Engine sound control unit |
94A |

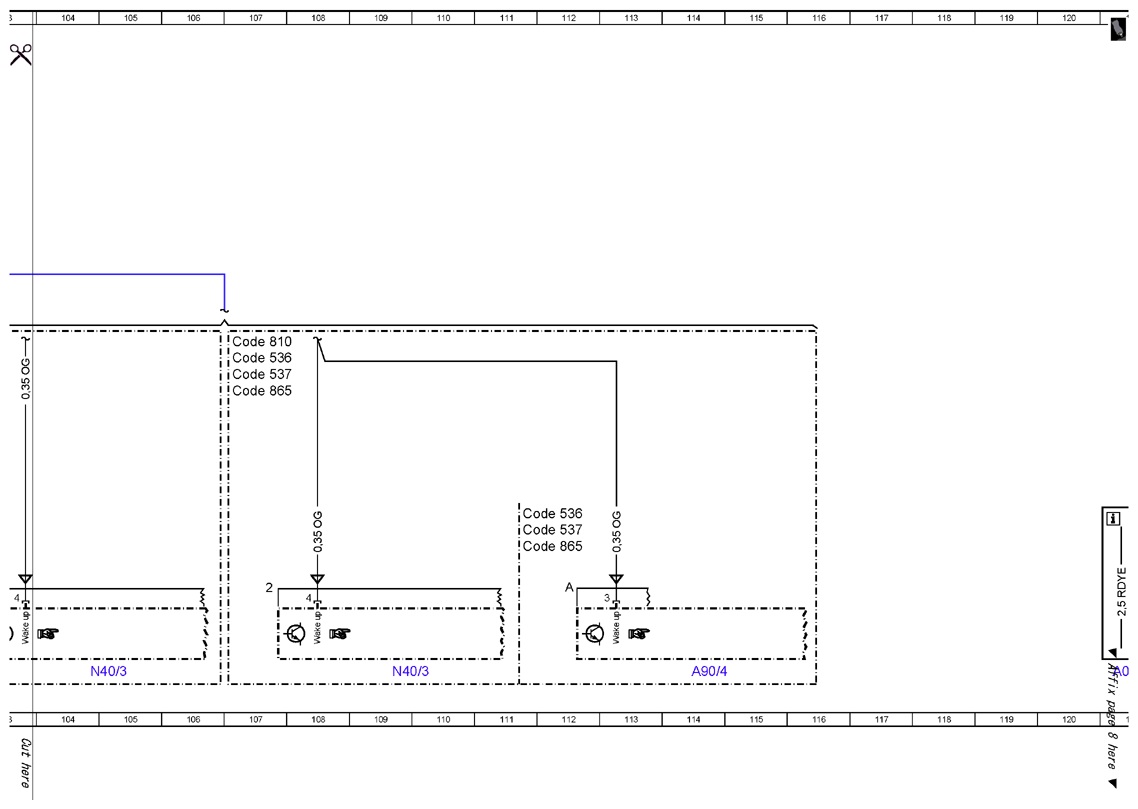

| N40/3 |
Sound system amplifier control unit |
26A |
| N40/3 |
Sound system amplifier control unit |
104L |
| N40/3 |
Sound system amplifier control unit |
109L |
| N59 |
Perfume atomizer generator |
22L |
| N73 |
Electronic ignition switch control unit |
61L |
| N73 |
Electronic ignition switch control unit |
8L |
| N73 |
Electronic ignition switch control unit |
14L |
| N80 |
Steering column module control unit |
18L |
| N80 |
Steering column module control unit |
43L |

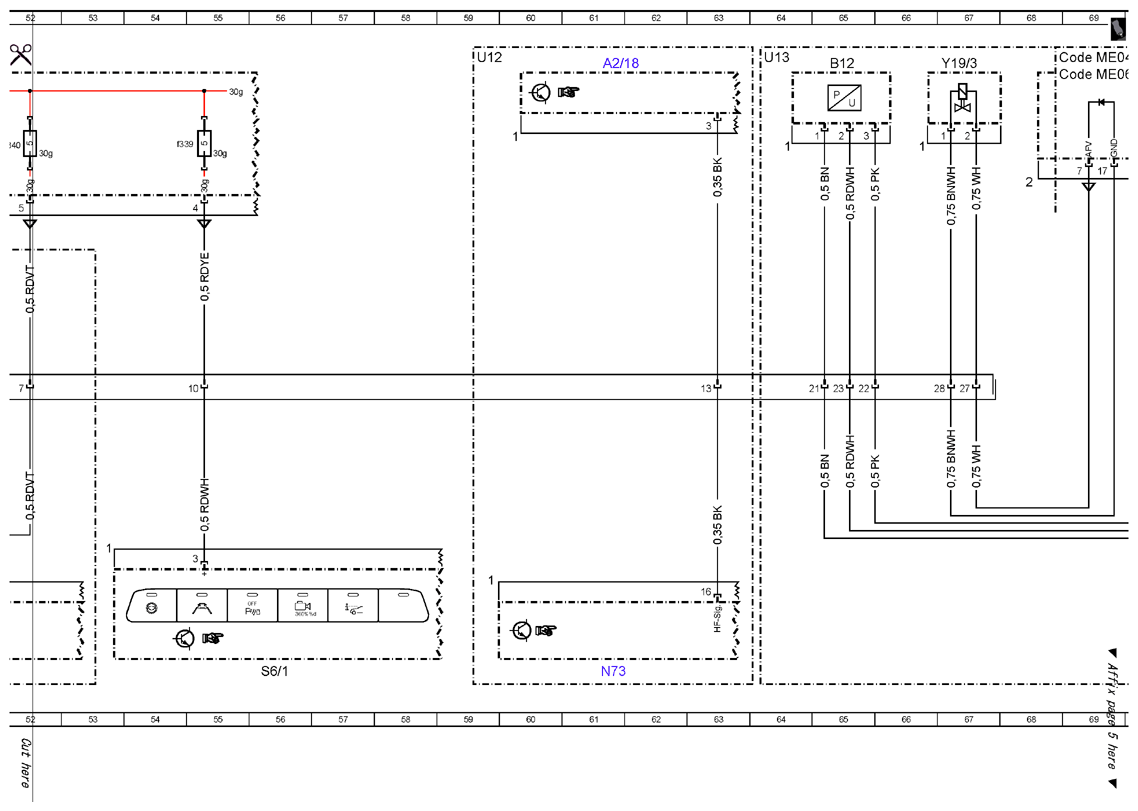

| S6/1 |
Driver-side instrument panel button group |
56L |
| S7 |
High-voltage disconnect device |
2G |
| U12 |
Valid for left-hand drive vehicles |
59A |
| U12 |
Valid for left-hand drive vehicles |
24G |
| U12 |
Valid for left-hand drive vehicles |
24A |
| U13 |
Valid for right-hand drive vehicles |
7D |
| U13 |
Valid for right-hand drive vehicles |
32A |
| U13 |
Valid for right-hand drive vehicles |
64A |
| U165 |
Valid for AMG |
91A |
| U500 |
Not valid for sound system |
86A |
| U936 |
Valid for increased engine power |
91A |
| W12/1 |
Right center console ground point |
90A |
| X11/4 |
Diagnostic connector |
34L |
| X138/1 |
Front center console electrical connector |
50H |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
3G |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
76G |
| X18/13 |
Speaker connecting point |
30A |
| X30/27 |
Peripherals CAN (CAN PER) potential distributor electrical connector |
8A |
| X38 |
Speaker intermediate connector |
30E |
| Y19/3 |
Front evaporator shutoff valve |
67A |
| Z35/10z1 |
MOST wake-up signal connector sleeve |
93H |
| Z7/72z1 |
Sensor ground connector sleeve |
73H |
