| A0 |
Use of wiring diagrams |
129L |
| A105 |
Touchpad |
86L |
| A105 |
Touchpad |
98L |
| A40/9 |
Audio/COMAND control panel |
81L |
| A40/9 |
Audio/COMAND control panel |
94L |
| A6/1 |
Stationary heater radio remote control receiver |
112A |

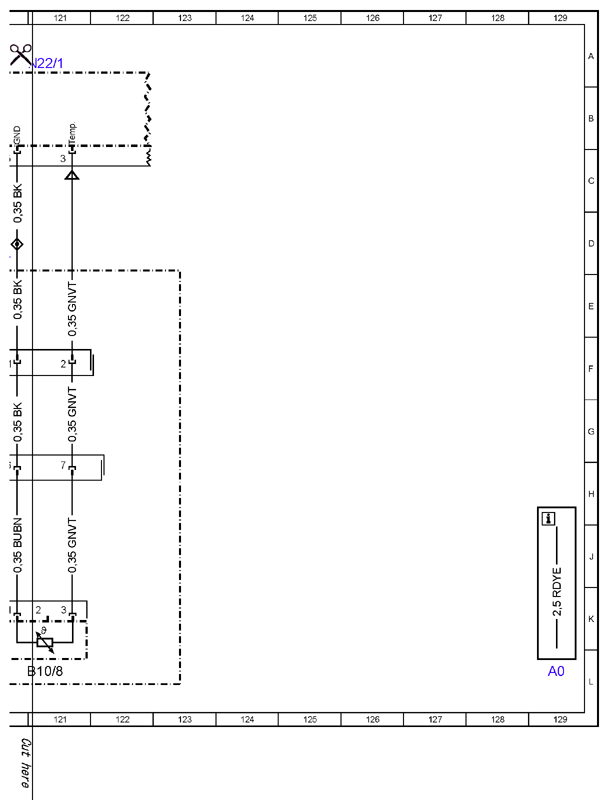

| B10/8 |
Rear center air vent air outlet temperature sensor |
121L |
| B16 |
Temperature sensor upstream of NOx storage catalytic converter |
30L |
| B16/15 |
Temperature sensor upstream of SCR catalytic converter |
42L |
| B16/15 |
Temperature sensor upstream of SCR catalytic converter |
47L |
| B16/15 |
Temperature sensor upstream of SCR catalytic converter |
38A |
| B19/7 |
Temperature sensor upstream of catalytic converter |
33L |
| B4/31 |
Fuel quality sensor |
3L |
| CAN A |
Telematics CAN |
81K |
| CAN A |
Telematics CAN |
87K |
| CAN I |
Drive train sensor CAN |
11K |
| CAN I |
Drive train sensor CAN |
21K |
| CAN I |
Drive train sensor CAN |
26K |
| Code 520 |
Audio 20 USB |
94G |
| Code 522 |
Audio 20 radio |
90G |
| Code 522 |
Audio 20 radio |
96G |
| Code 522 |
Audio 20 radio |
83D |
| Code 531 |
COMAND APS |
90G |
| Code 531 |
COMAND APS |
96G |
| Code 531 |
COMAND APS |
83D |
| Code 581 |
THERMOTRONIC automatic air conditioning |
100F |
| Code 581 |
THERMOTRONIC automatic air conditioning |
119E |
| Code 876 |
Interior lights package |
49A |
| Code 876 |
Interior lights package |
114A |
| Code 877 |
Ambiance illumination |
62A |
| Code 877 |
Ambiance illumination |
114B |
| Code 920 |
Gasoline direct injection with stratified charge |
27A |
| Code 933 |
Flexible Fuel Vehicle |
1D |
| Code U63 |
Driving school package |
49A |
| Code U63 |
Driving school package |
114A |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
39A |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
33A |
| E13/3 |
Stowage compartment illumination |
117L |
| E17/17 |
Left rear footwell lamp |
69L |
| E17/18 |
Right rear footwell lamp |
74L |
| E20/18 |
Front center console cup holder ambiance illumination |
53L |
| E20/18 |
Front center console cup holder ambiance illumination |
64L |

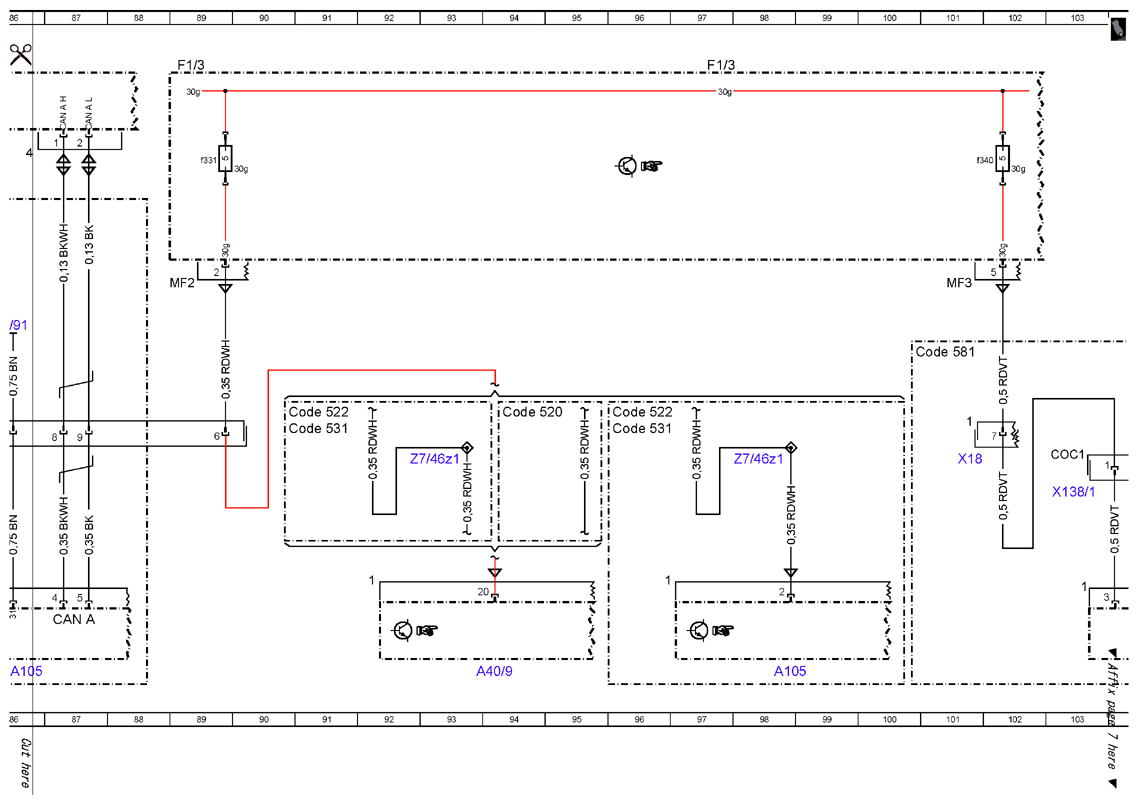

| F1/3 |
Right A-pillar fuse box |
89A |
| F1/3 |
Right A-pillar fuse box |
97A |
| F1/3f331 |
Fuse 331 |
89C |
| F1/3f340 |
Fuse 340 |
101C |
| K40/8 |
Engine fuse and relay module |
17L |
| K40/8 |
Engine fuse and relay module |
7L |
| K40/8f101 |
Fuse 101 |
16L |
| K40/8f101 |
Fuse 101 |
6L |

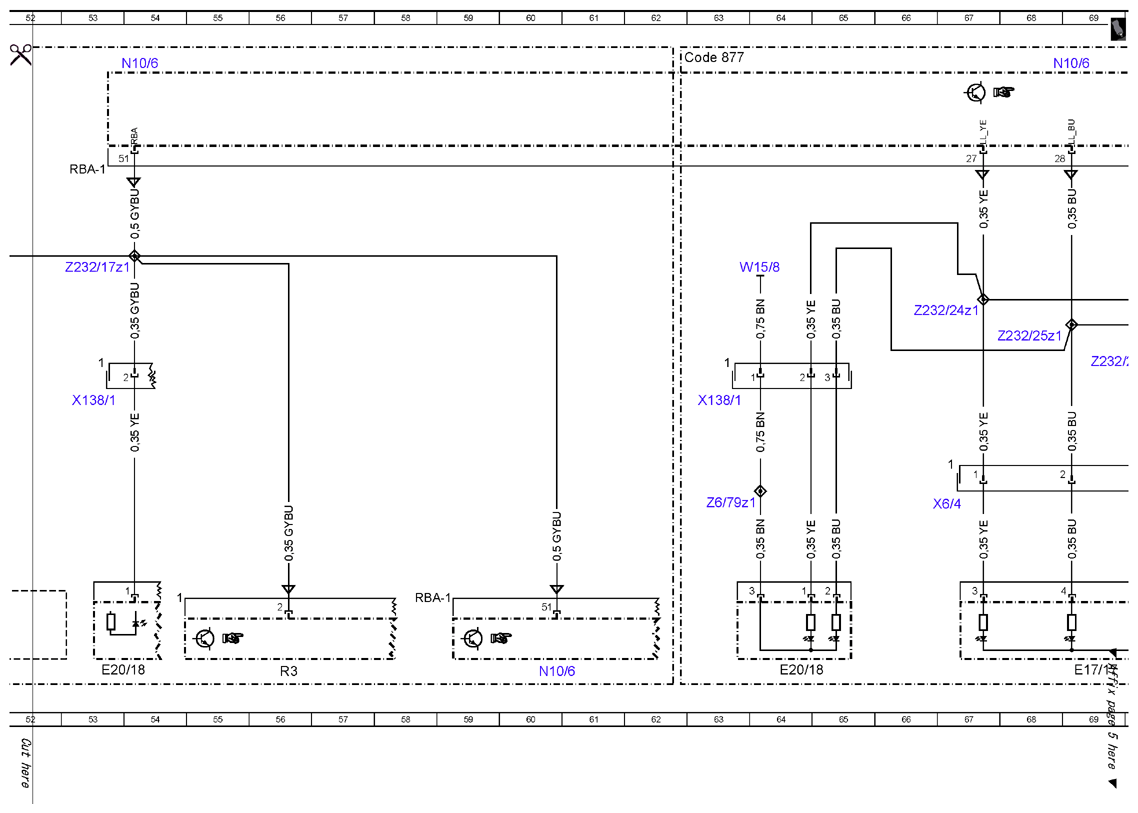

| N10/6 |
Front SAM control unit |
60L |
| N10/6 |
Front SAM control unit |
54A |
| N10/6 |
Front SAM control unit |
68A |
| N10/6 |
Front SAM control unit |
117A |

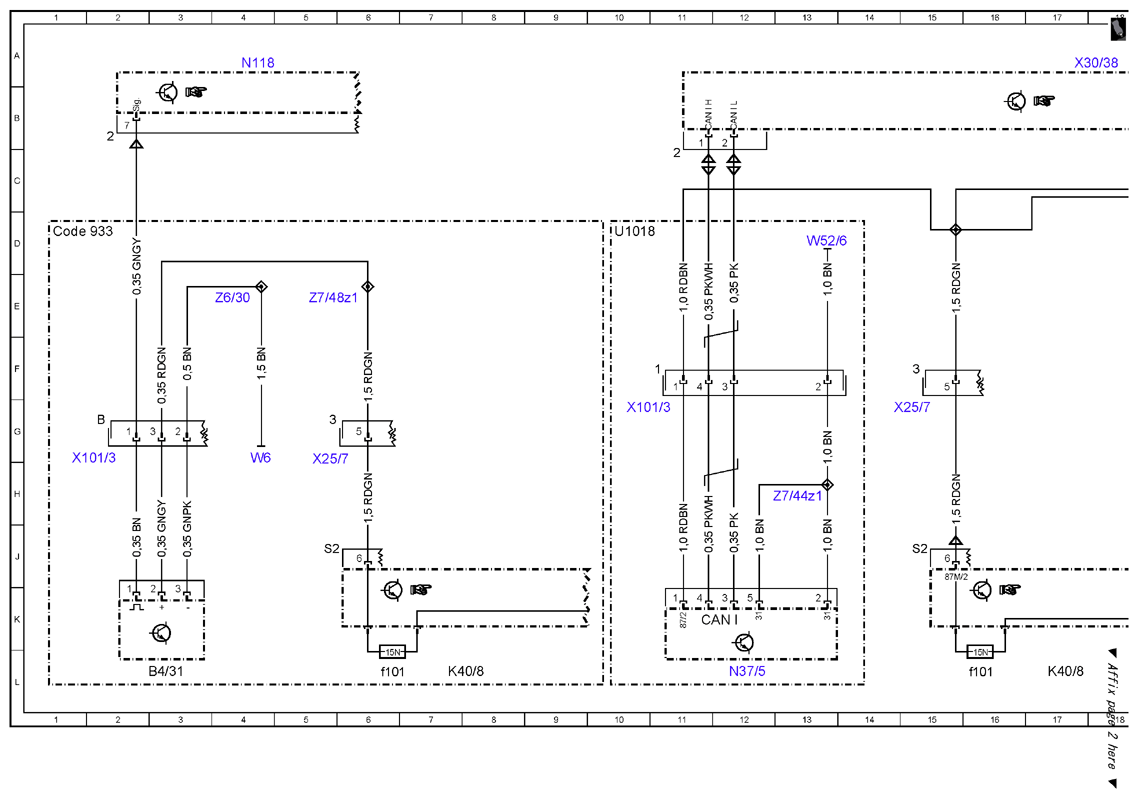

| N118 |
Fuel pump control unit |
4A |

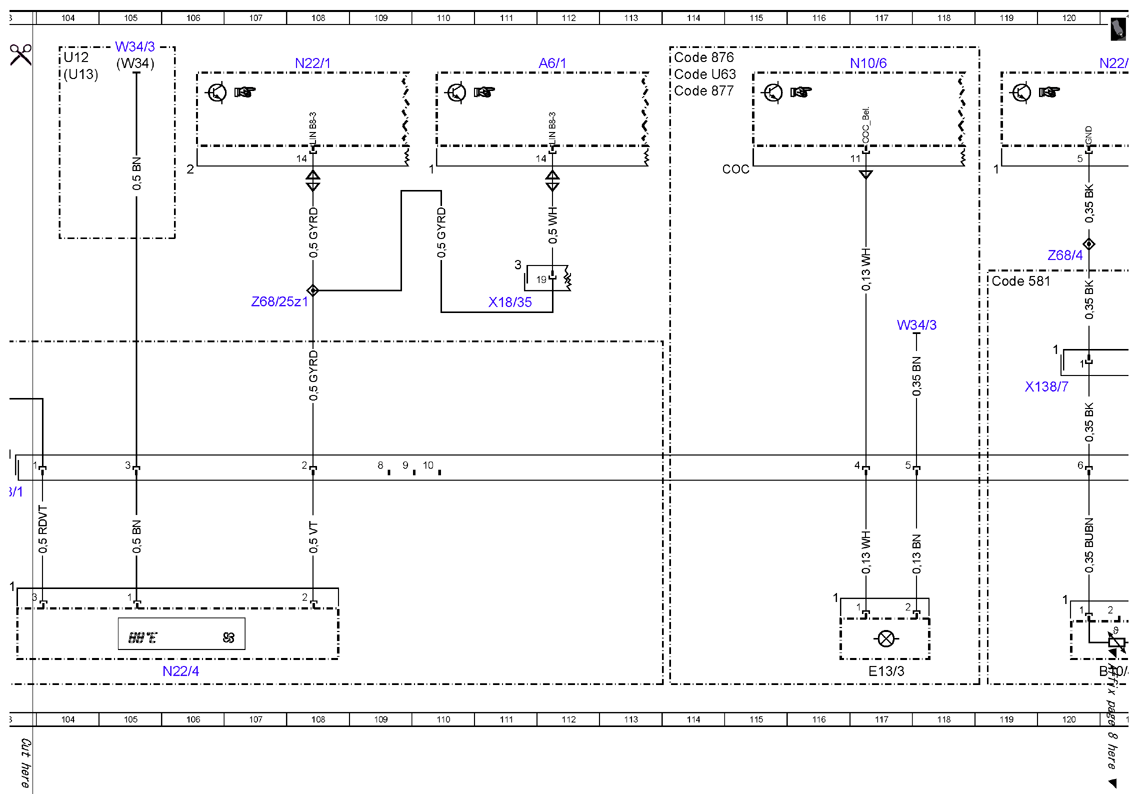

| N22/1 |
Climate control control unit |
108A |
| N22/1 |
Climate control control unit |
121A |
| N22/4 |
Rear air conditioning operating unit |
106L |
| N3/10 |
ME-SFI [ME] control unit |
30A |

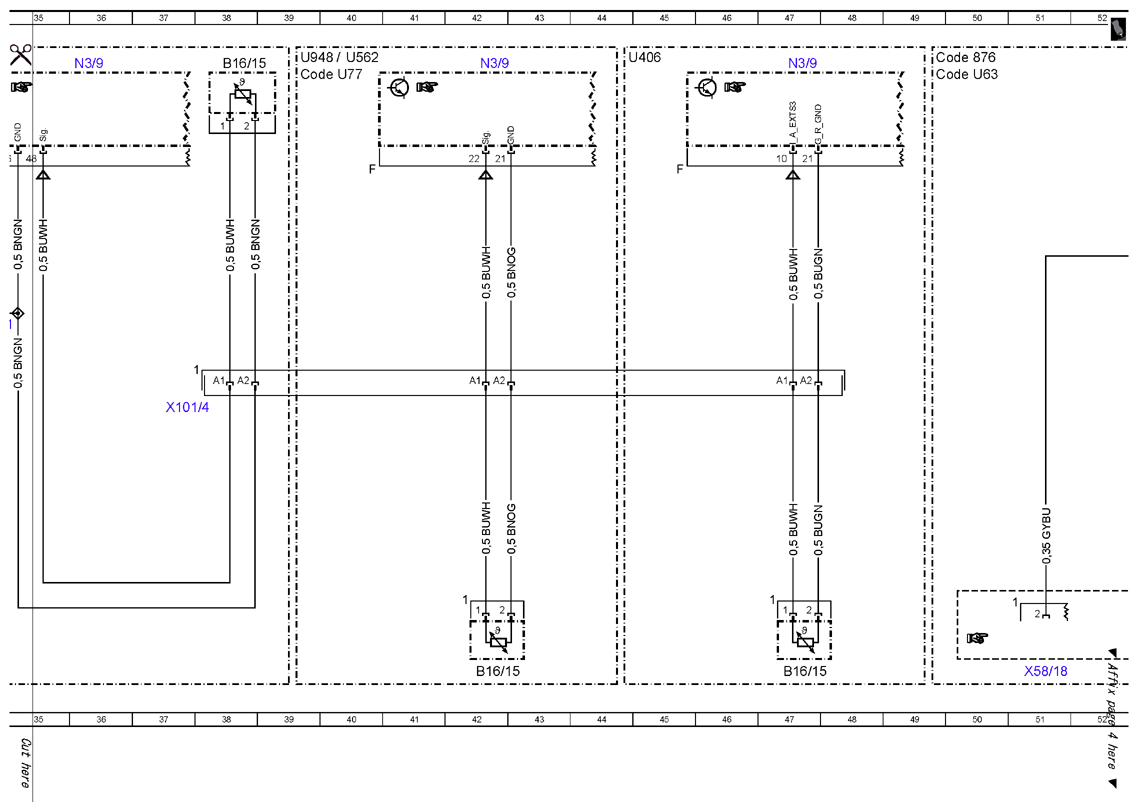

| N3/9 |
CDI control unit |
36A |
| N3/9 |
CDI control unit |
42A |
| N3/9 |
CDI control unit |
47A |
| N37/4 |
NOx sensor control unit |
26L |
| N37/4b1 |
NOx sensor |
25L |
| N37/5 |
Left nitrogen oxides control unit |
12L |

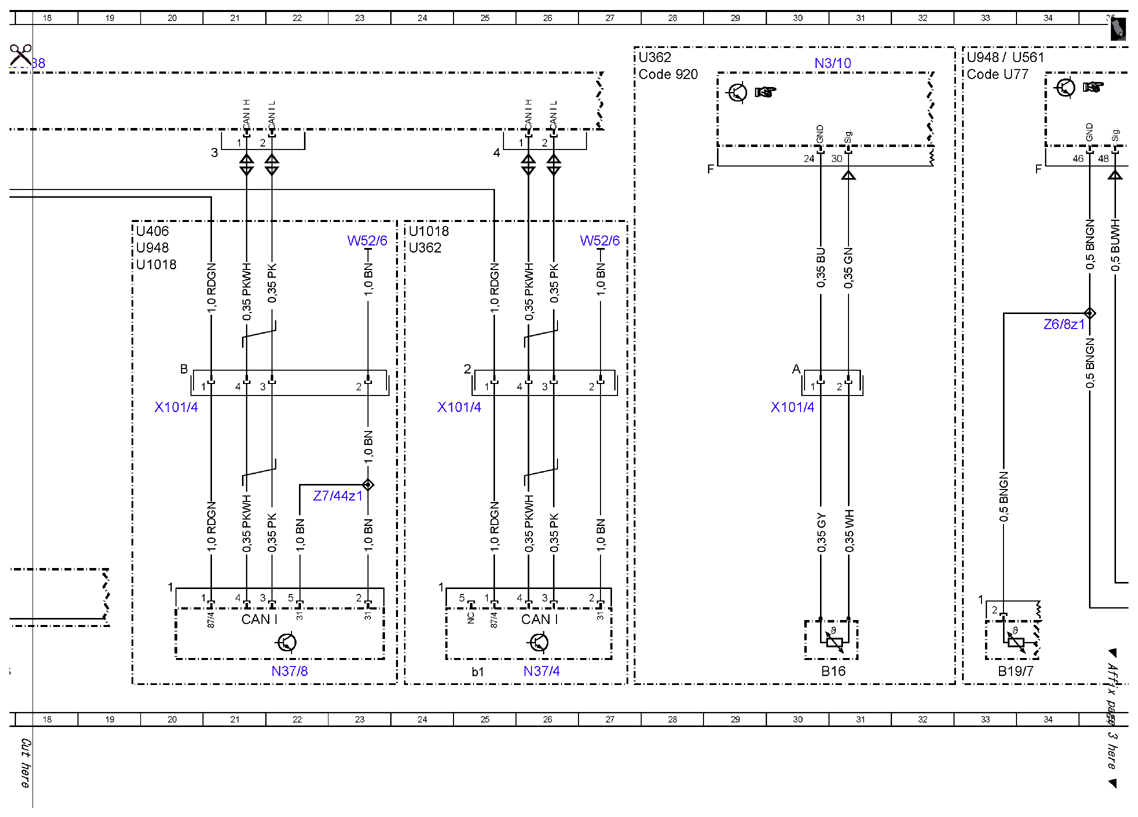

| N37/8 |
NOx sensor control unit downstream of SCR catalytic converter |
22L |

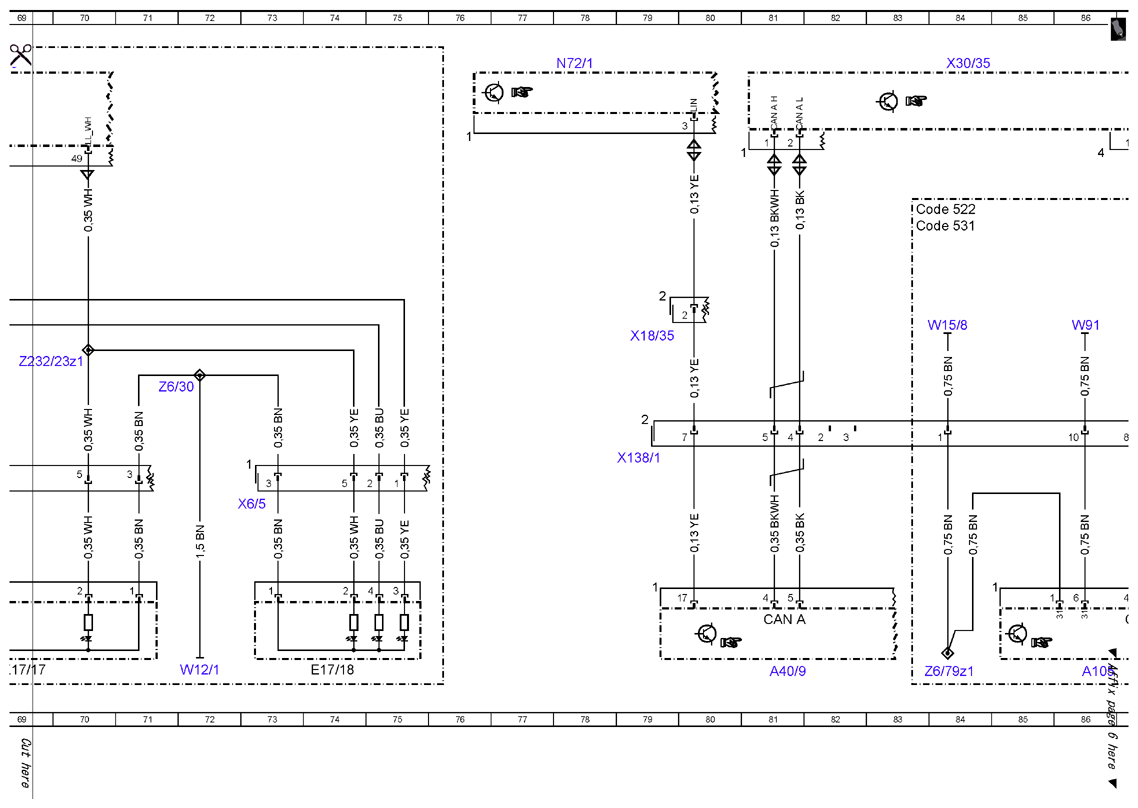

| N72/1 |
Upper control panel control unit |
78A |
| R3 |
Front cigarette lighter with ashtray illumination |
56L |
| U1018 |
Valid for gasoline engine 276 |
19D |
| U1018 |
Valid for gasoline engine 276 |
10D |
| U1018 |
Valid for gasoline engine 276 |
24D |
| U12 |
Valid for left-hand drive vehicles |
104A |
| U13 |
Valid for right-hand drive vehicles |
104A |
| U362 |
Valid for gasoline engine 274 |
24D |
| U362 |
Valid for gasoline engine 274 |
27A |
| U406 |
Valid for diesel engine 626 |
19D |
| U406 |
Valid for diesel engine 626 |
44A |
| U561 |
Valid for Delphi system |
33A |
| U562 |
Valid for Bosch system |
40A |
| U948 |
Valid for diesel engine 651 |
19D |
| U948 |
Valid for diesel engine 651 |
33A |
| U948 |
Valid for diesel engine 651 |
39A |
| W12/1 |
Right center console ground point |
72L |
| W15/8 |
Right front footwell ground point (CAN) |
64D |
| W15/8 |
Right front footwell ground point (CAN) |
84E |
| W34 |
Left footwell ground point |
105A |
| W34/3 |
Right footwell ground point |
117E |
| W34/3 |
Right footwell ground point |
105A |
| W52/6 |
Right center longitudinal member ground point |
13D |
| W52/6 |
Right center longitudinal member ground point |
23D |
| W52/6 |
Right center longitudinal member ground point |
27D |
| W6 |
Left wheel arch trunk ground point |
4H |
| W91 |
Left center console ground point |
86E |
| X101/3 |
Left rear frame floor assembly/underfloor electrical connector |
2H |
| X101/3 |
Left rear frame floor assembly/underfloor electrical connector |
10G |
| X101/4 |
Right rear frame floor assembly/underfloor electrical connector |
20G |
| X101/4 |
Right rear frame floor assembly/underfloor electrical connector |
30G |
| X101/4 |
Right rear frame floor assembly/underfloor electrical connector |
25G |
| X101/4 |
Right rear frame floor assembly/underfloor electrical connector |
37G |
| X138/1 |
Front center console electrical connector |
53G |
| X138/1 |
Front center console electrical connector |
63G |
| X138/1 |
Front center console electrical connector |
79H |
| X138/1 |
Front center console electrical connector |
103H |
| X138/7 |
Rear center air vent air outlet temperature sensor electrical connector |
120F |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
101H |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
79F |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
111E |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
5H |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
15G |
| X30/35 |
Telematics CAN (CAN A) potential distributor electrical connector |
84A |
| X30/38 |
Drive train sensor CAN (CAN I) potential distributor electrical connector |
17A |
| X58/18 |
Right rear center console 12V socket |
51L |
| X6/4 |
Driver footwell lamp electrical connector |
67H |
| X6/5 |
Front passenger footwell lamp electrical connector |
73H |
| Z232/17z1 |
Center console ambiance illumination connector sleeve (yellow) |
53D |
| Z232/23z1 |
Ambiance illumination footwell connector sleeve (warm/white) |
69F |
| Z232/24z1 |
Ambiance illumination footwell connector sleeve (yellow) |
67E |
| Z232/25z1 |
Ambiance illumination footwell connector sleeve (blue) |
68F |
| Z6/30 |
Circuit 31 connector sleeve |
71F |
| Z6/30 |
Circuit 31 connector sleeve |
4E |
| Z6/79z1 |
Circuit 31 connector sleeve |
63H |
| Z6/79z1 |
Circuit 31 connector sleeve |
84L |
| Z6/8z1 |
Sensor ground connector sleeve |
34E |
| Z68/25z1 |
Connector sleeve, data line, A/C control panel LIN |
107E |
| Z68/4 |
Climate control ground connection connector sleeve |
120D |
| Z7/44z1 |
Sensor ground connector sleeve |
13H |
| Z7/44z1 |
Sensor ground connector sleeve |
23H |
| Z7/46z1 |
Circuit 30g connector sleeve |
93H |
| Z7/46z1 |
Circuit 30g connector sleeve |
98H |
| Z7/48z1 |
Circuit 87/2 connector sleeve |
5E |
