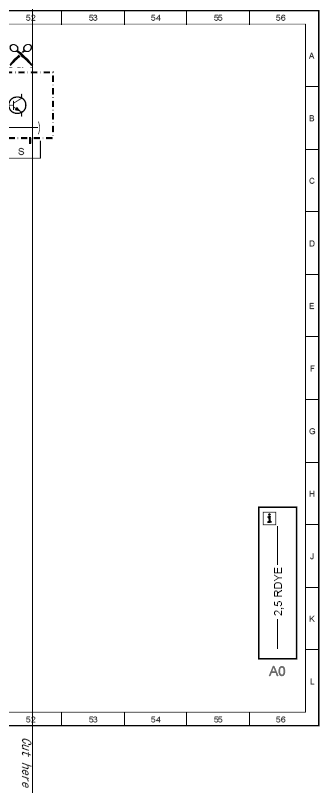

| A0 |
Use of wiring diagrams |
56L |

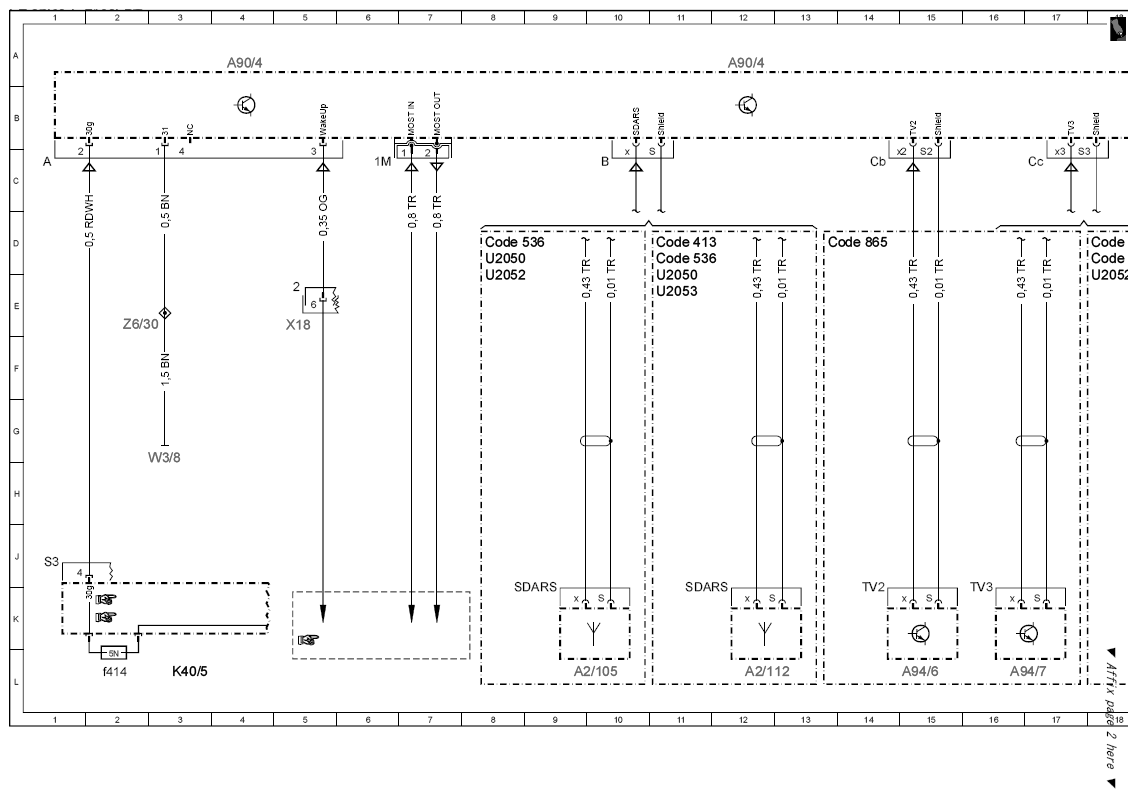

| A2/105 |
SDAR antenna |
9L |
| A2/108 |
FM 2 and DAB band III antenna amplifier |
38L |
| A2/112 |
DAB L-band antenna |
12L |

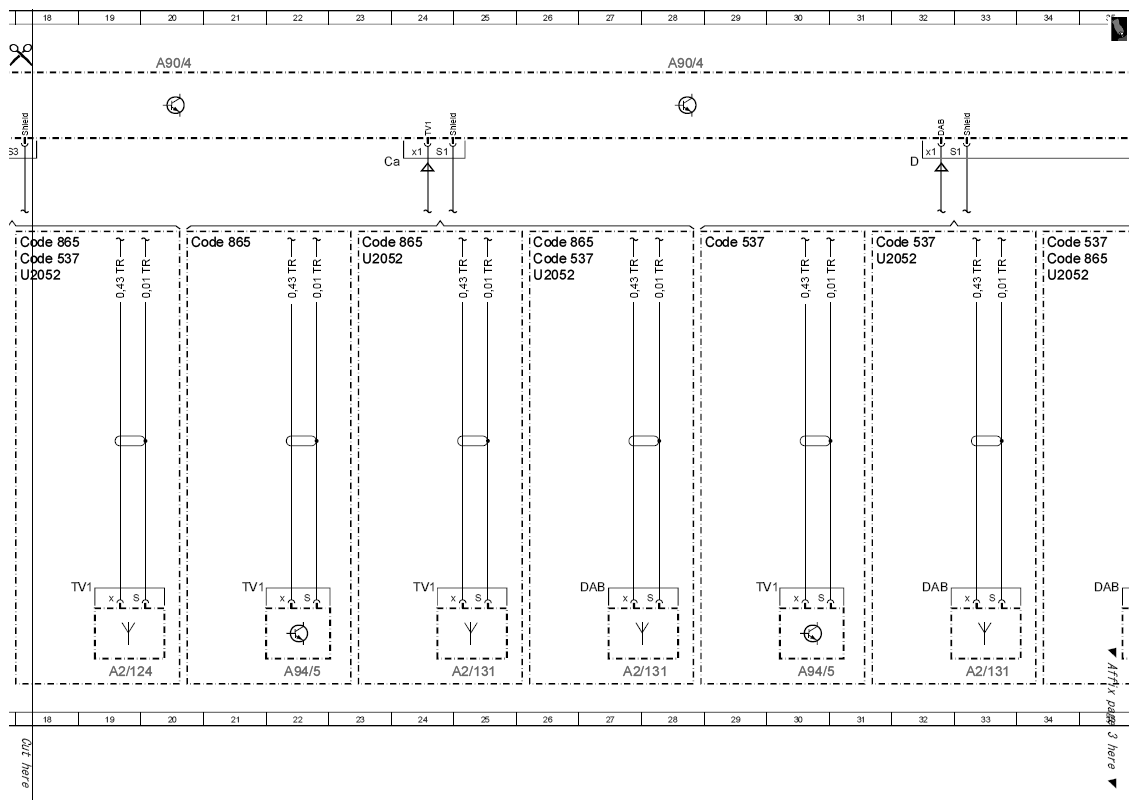

| A2/124 |
TV and DAB antenna splitter |
19L |
| A2/124 |
TV and DAB antenna splitter |
36L |
| A2/131 |
FM 2, DAB and TV 1 antenna amplifier |
27L |
| A2/131 |
FM 2, DAB and TV 1 antenna amplifier |
25L |
| A2/131 |
FM 2, DAB and TV 1 antenna amplifier |
33L |
| A26/17 |
Head unit |
44L |

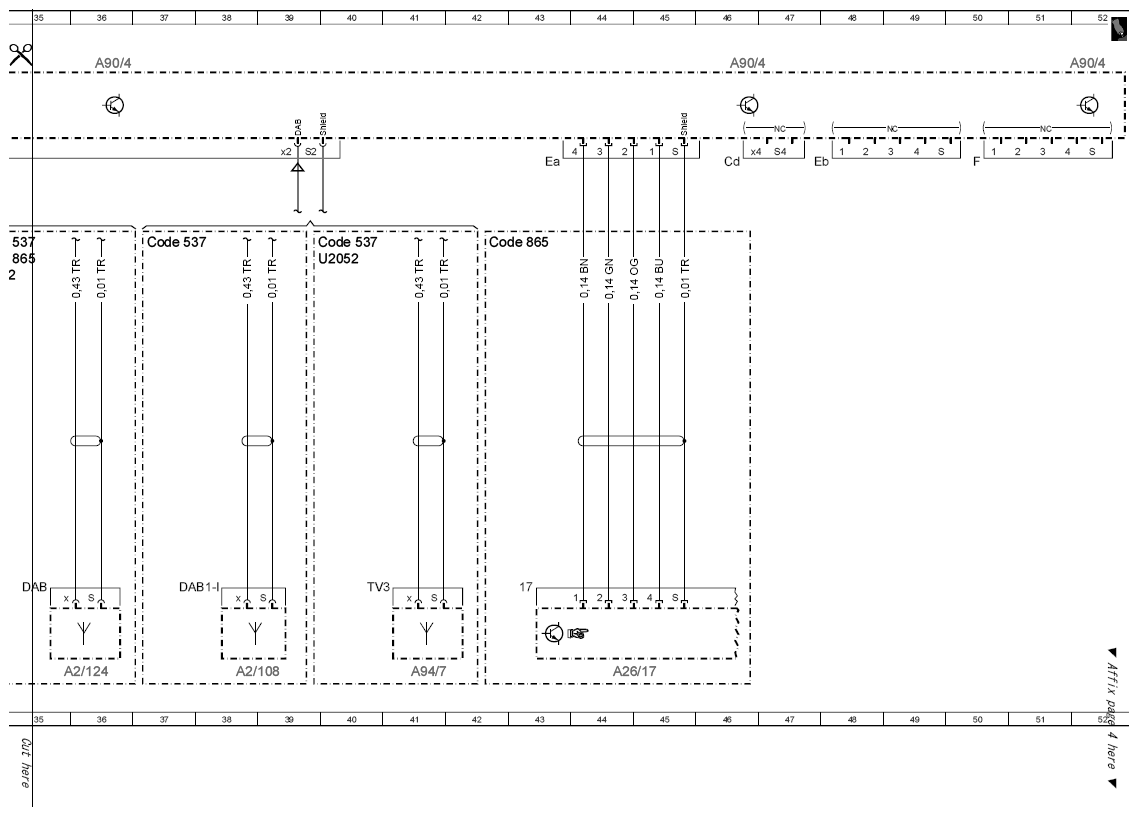

| A90/4 |
Tuner unit |
4A |
| A90/4 |
Tuner unit |
12A |
| A90/4 |
Tuner unit |
28A |
| A90/4 |
Tuner unit |
20A |
| A90/4 |
Tuner unit |
36A |
| A90/4 |
Tuner unit |
46A |
| A90/4 |
Tuner unit |
52A |
| A94/5 |
TV 1 and DAB band III antenna |
22L |
| A94/5 |
TV 1 and DAB band III antenna |
30L |
| A94/6 |
TV 2 antenna amplifier |
15L |
| A94/7 |
TV 3 antenna amplifier |
16L |
| A94/7 |
TV 3 antenna amplifier |
41L |
| Code 413 |
Panoramic sliding sunroof |
11D |
| Code 536 |
SIRIUS satellite radio |
11D |
| Code 536 |
SIRIUS satellite radio |
8D |
| Code 537 |
Digital radio (DAB) |
26D |
| Code 537 |
Digital radio (DAB) |
18D |
| Code 537 |
Digital radio (DAB) |
34D |
| Code 537 |
Digital radio (DAB) |
31D |
| Code 537 |
Digital radio (DAB) |
29D |
| Code 537 |
Digital radio (DAB) |
37D |
| Code 537 |
Digital radio (DAB) |
39D |
| Code 865 |
TV tuner |
13D |
| Code 865 |
TV tuner |
18D |
| Code 865 |
TV tuner |
20D |
| Code 865 |
TV tuner |
23D |
| Code 865 |
TV tuner |
26D |
| Code 865 |
TV tuner |
34D |
| Code 865 |
TV tuner |
42D |
| K40/5 |
Rear fuse and relay module |
3L |
| K40/5f414 |
Fuse 414 |
2L |
| U2050 |
Valid for model 205.0 |
8D |
| U2050 |
Valid for model 205.0 |
11E |
| U2052 |
Valid for model 205.2 |
8E |
| U2052 |
Valid for model 205.2 |
23D |
| U2052 |
Valid for model 205.2 |
18E |
| U2052 |
Valid for model 205.2 |
26E |
| U2052 |
Valid for model 205.2 |
39D |
| U2052 |
Valid for model 205.2 |
31D |
| U2052 |
Valid for model 205.2 |
34E |
| U2053 |
Valid for model 205.3 |
11E |
| W3/8 |
Right rear wheel well ground point |
3H |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
5E |
| Z6/30 |
Circuit 31 connector sleeve |
2E |
