| A0 |
Use of wiring diagrams |
40L |
| A2/109 |
Telephone antenna splitter |
32L |

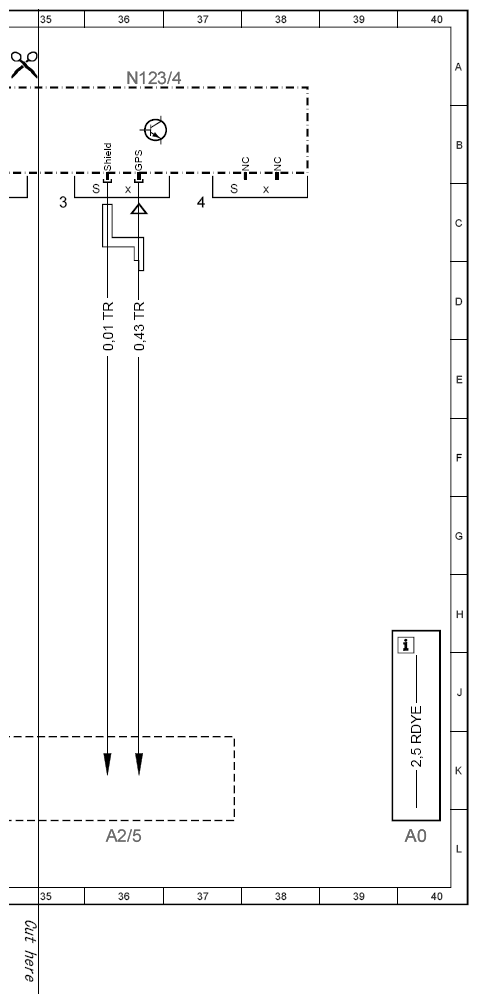

| A2/5 |
Global positioning system antenna splitter |
36L |
| A2/52 |
Emergency call system antenna |
34L |

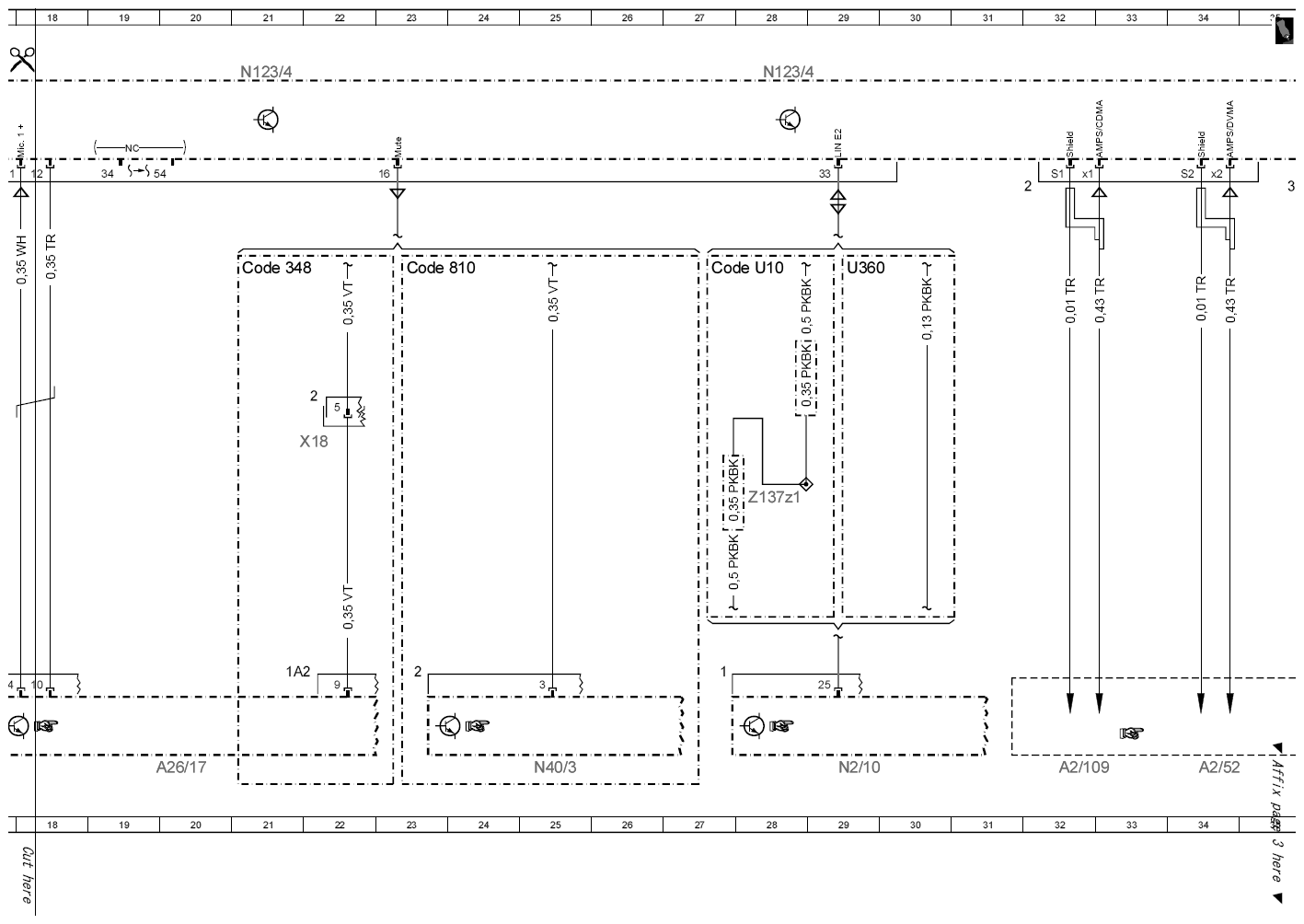

| A26/17 |
Head unit |
20L |
| CAN L |
Hybrid CAN |
14K |
| Code 348 |
Emergency call/assistance system |
21D |
| Code 810 |
Sound system |
23D |
| Code U10 |
SBE - Seat occupancy recognition |
27D |
| F1/3 |
Right A-pillar fuse box |
4L |
| F1/3f309 |
Fuse 309 |
2K |
| H4/27 |
Center instrument panel speaker |
7L |

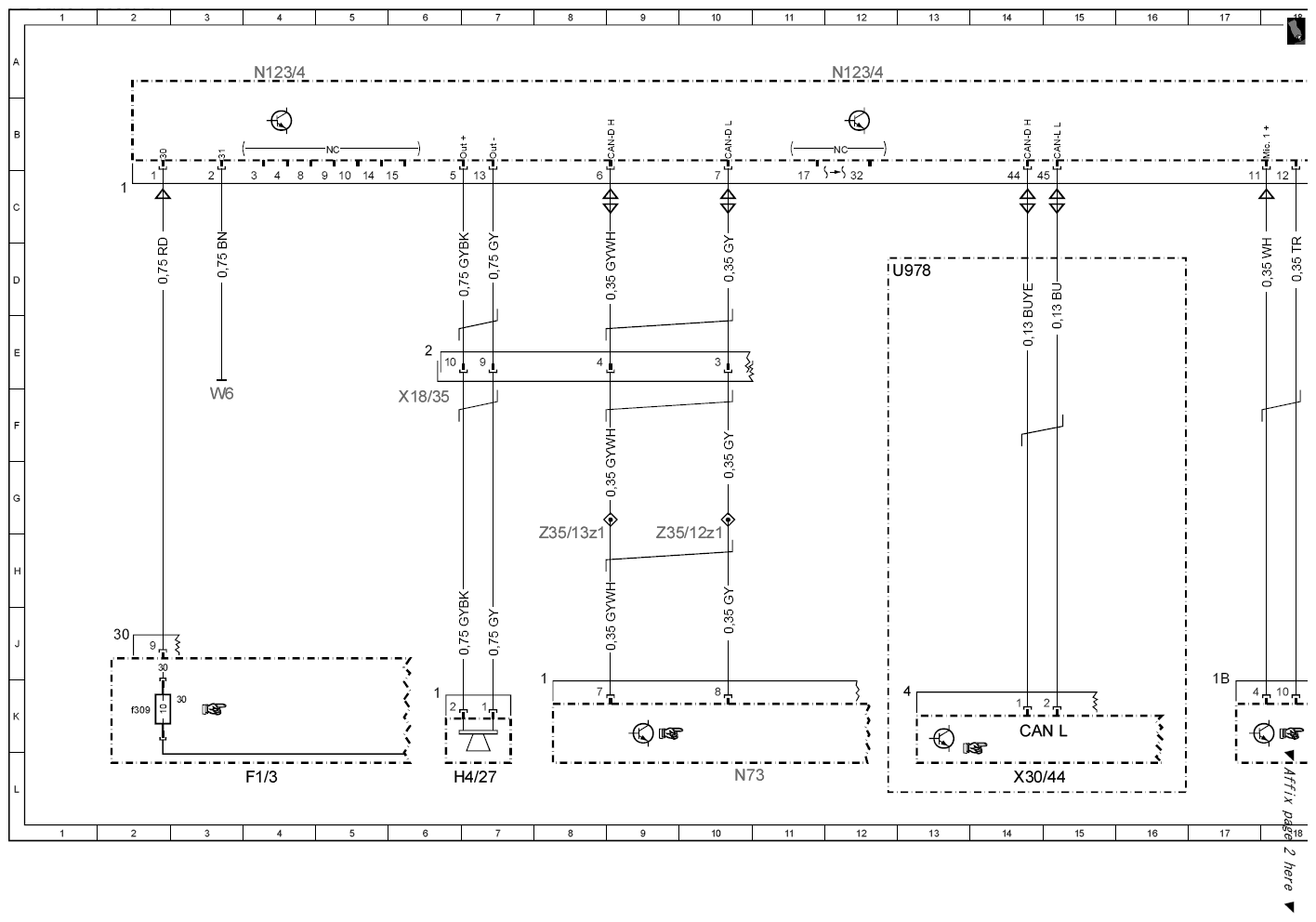

| N123/4 |
Emergency call system control unit |
4A |
| N123/4 |
Emergency call system control unit |
12A |
| N123/4 |
Emergency call system control unit |
21A |
| N123/4 |
Emergency call system control unit |
28A |
| N123/4 |
Emergency call system control unit |
36A |
| N2/10 |
Supplemental restraint system control unit |
29L |
| N40/3 |
Sound system amplifier control unit |
25L |
| N73 |
Electronic ignition switch control unit |
10L |
| U360 |
Valid without code (U18) Automatic child seat recognition ACSR and without code (U10) SBE - Seat occupancy recognition |
29D |
| U978 |
Valid for hybrid drive |
12D |
| W6 |
Left wheel arch trunk ground point |
3F |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
22F |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
6F |
| X30/44 |
Hybrid CAN (CAN L) potential distributor electrical connector |
14L |
| Z137z1 |
Left door LIN connector sleeve |
28G |
| Z35/12z1 |
Diagnostic CAN (CAN D) low connector sleeve |
10H |
| Z35/13z1 |
Diagnostic CAN (CAN D) high connector sleeve |
8H |
