| A0 |
Use of wiring diagrams |
80L |
| Code 348 |
Emergency call/assistance system |
39F |
| Code 348 |
Emergency call/assistance system |
72D |
| Code 350 |
Ecall Europe emergency call system |
35F |
| Code B54 |
Live Traffic Information |
63D |
| Code E64 |
ECALL RUSSIA (GLONASS) |
68D |

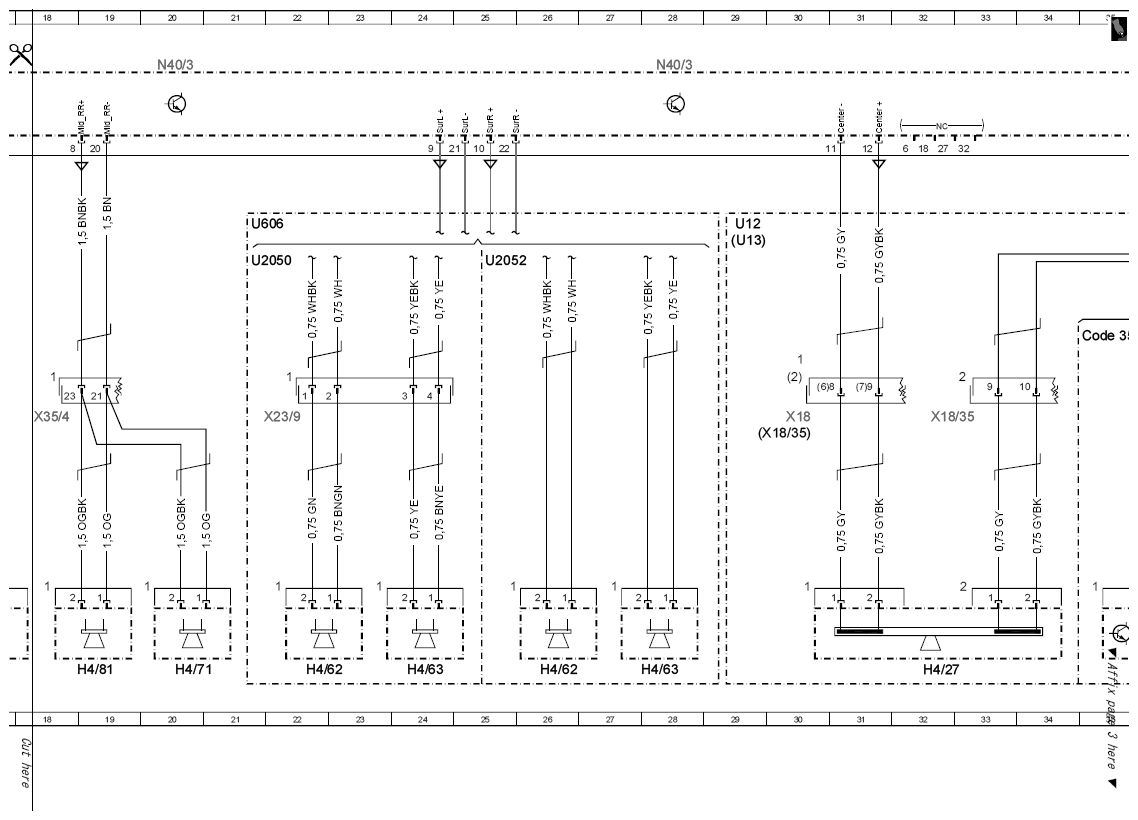

| H4/27 |
Center instrument panel speaker |
32L |
| H4/42 |
Left footwell woofer |
8L |
| H4/43 |
Right footwell woofer |
10L |
| H4/62 |
Left rear surround sound system midrange speaker |
26L |
| H4/62 |
Left rear surround sound system midrange speaker |
22L |
| H4/63 |
Right rear surround sound system midrange speaker |
28L |
| H4/63 |
Right rear surround sound system midrange speaker |
24L |
| H4/68 |
Left front door tweeter |
53L |
| H4/69 |
Right front door tweeter |
14L |
| H4/70 |
Left rear door/side paneling tweeter |
17L |
| H4/71 |
Right rear door/side paneling tweeter |
20L |
| H4/72 |
Left front door midrange speaker |
55L |
| H4/73 |
Right front door midrange speaker |
12L |
| H4/80 |
Left rear door/side paneling midrange speaker |
15L |
| H4/81 |
Right rear door/side paneling midrange speaker |
19L |
| K40/5 |
Rear fuse and relay module |
5L |
| K40/5f423 |
Fuse 423 |
2L |
| K40/5f462 |
Fuse 462 |
3L |

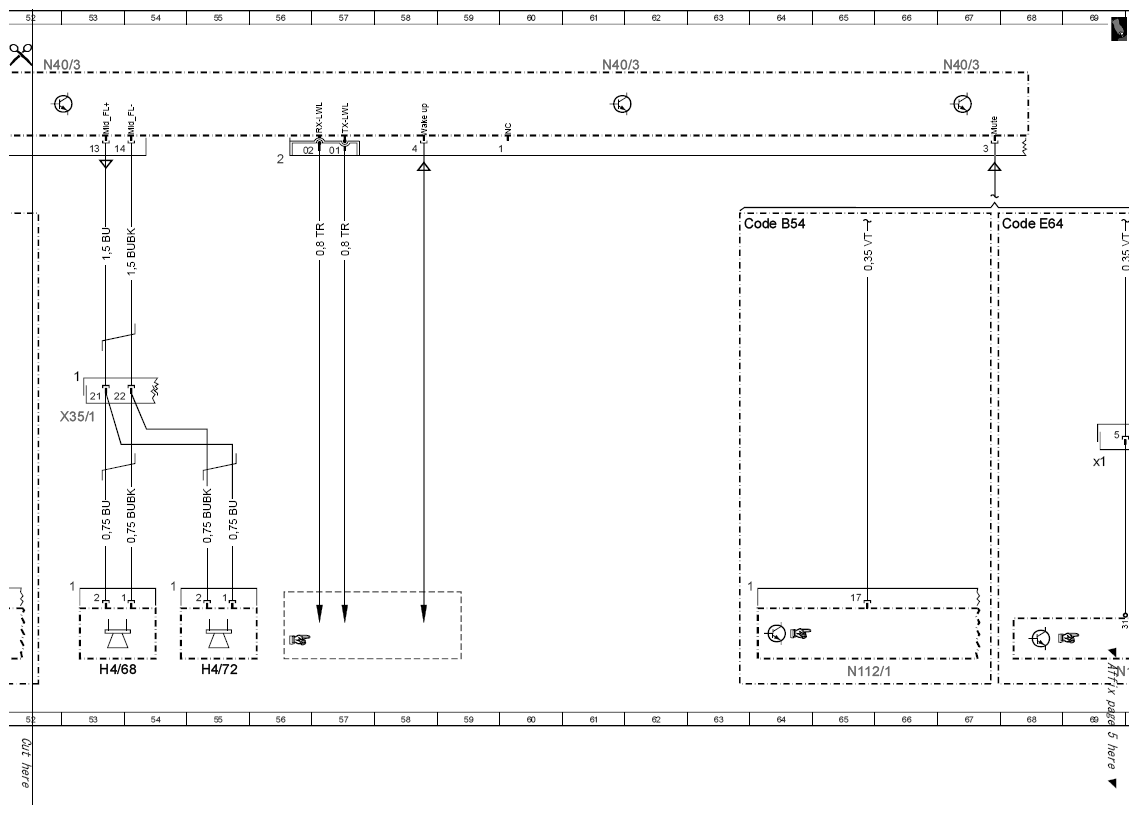

| N112/1 |
Telematics services communication module |
36L |
| N112/1 |
Telematics services communication module |
65L |
| N123/4 |
Emergency call system control unit |
41L |
| N123/4 |
Emergency call system control unit |
73L |

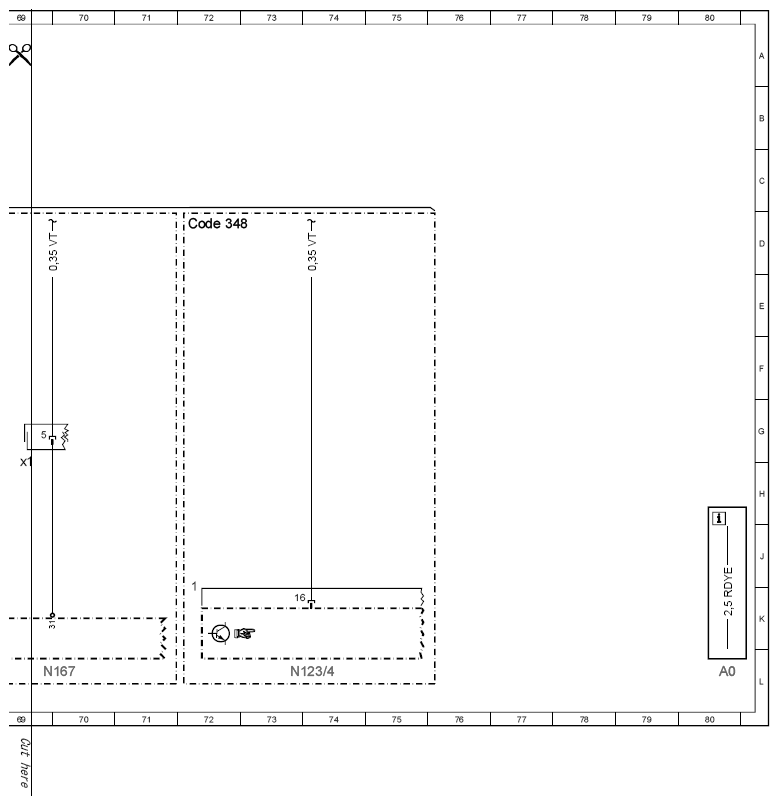

| N167 |
E-Call Russia (GLONASS) control unit |
69L |
| N167x1 |
E-Call Russia (GLONASS) control unit electrical connector 1 |
69H |

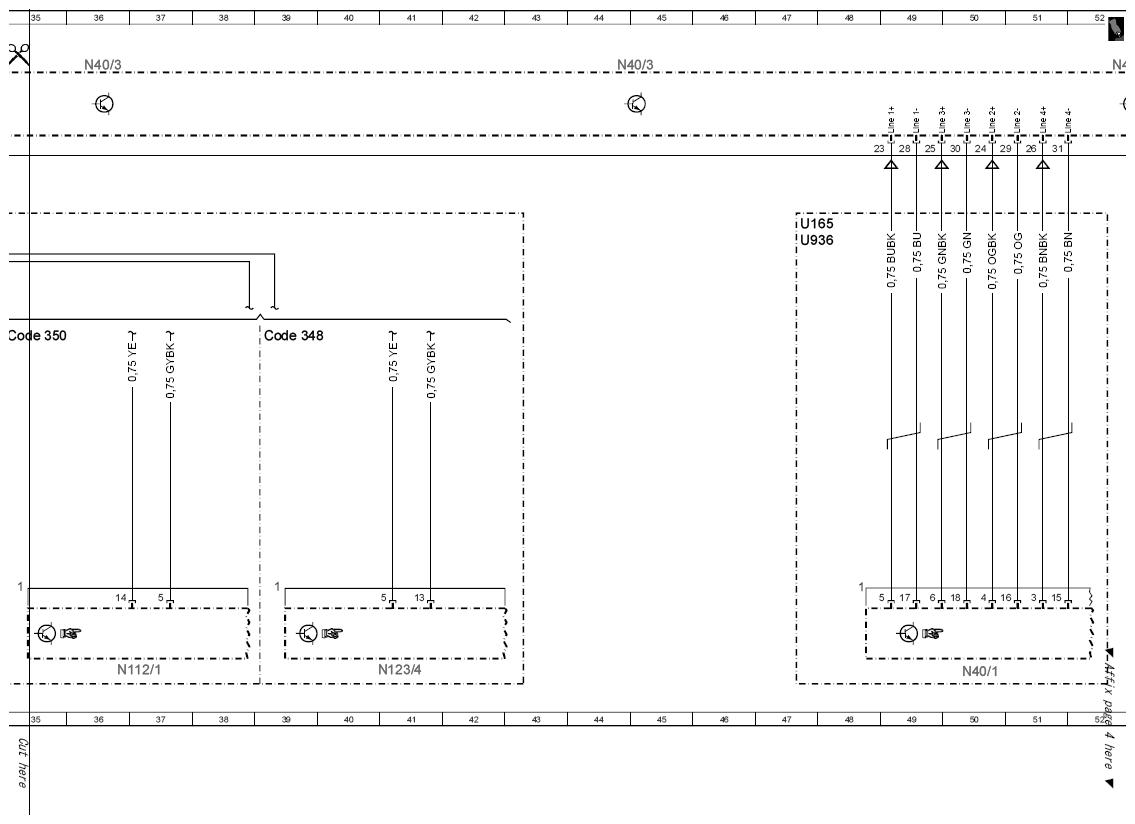

| N40/1 |
Engine sound control unit |
50L |

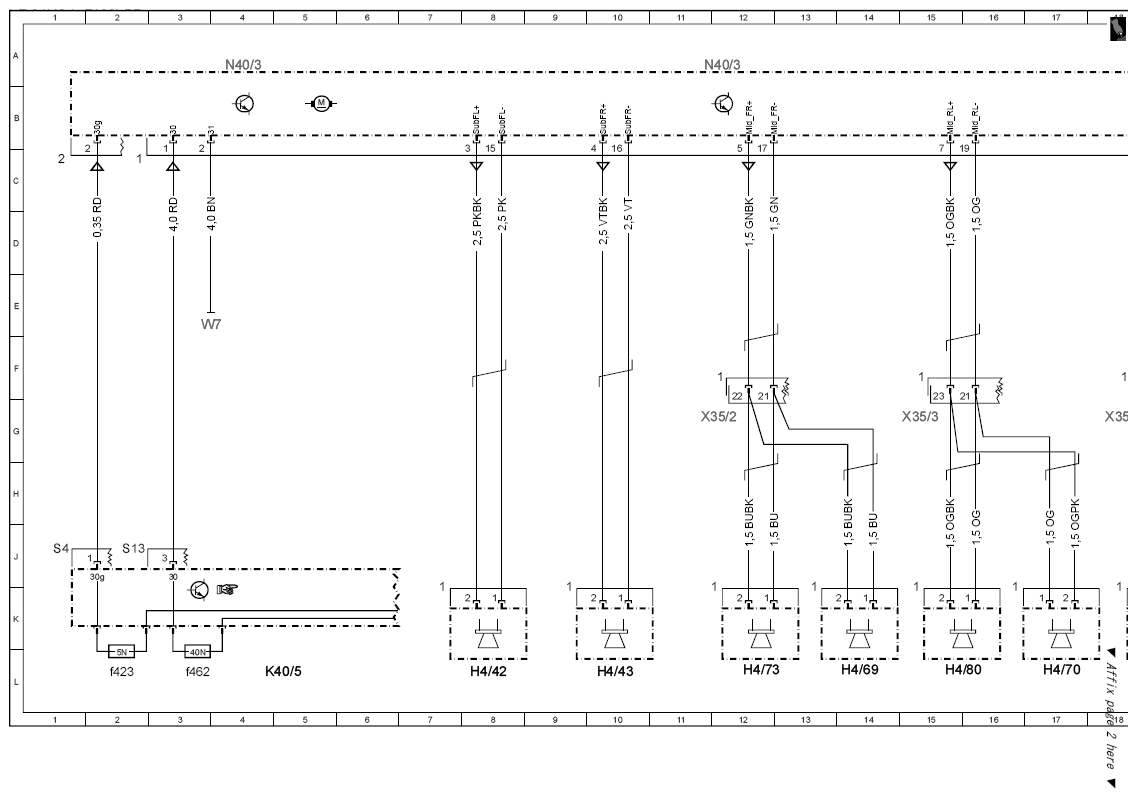

| N40/3 |
Sound system amplifier control unit |
4A |
| N40/3 |
Sound system amplifier control unit |
12A |
| N40/3 |
Sound system amplifier control unit |
28A |
| N40/3 |
Sound system amplifier control unit |
20A |
| N40/3 |
Sound system amplifier control unit |
36A |
| N40/3 |
Sound system amplifier control unit |
44A |
| N40/3 |
Sound system amplifier control unit |
52A |
| N40/3 |
Sound system amplifier control unit |
61A |
| N40/3 |
Sound system amplifier control unit |
67A |
| U12 |
Valid for left-hand drive vehicles |
29D |
| U13 |
Valid for right-hand drive vehicles |
29D |
| U165 |
Valid for AMG |
47D |
| U2050 |
Valid for model 205.0 |
21D |
| U2052 |
Valid for model 205.2 |
25D |
| U606 |
Not valid for convertible |
21D |
| U936 |
Valid for increased engine power |
47D |
| W7 |
Right wheelhouse trunk ground point |
3E |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
30G |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
30G |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
32G |
| X23/9 |
Rear shelf electrical connector |
22G |
| X35/1 |
Left front door electrical connector |
53G |
| X35/2 |
Right front door electrical connector |
12G |
| X35/3 |
Left rear door electrical connector |
15G |
| X35/4 |
Right rear door electrical connector |
18G |
