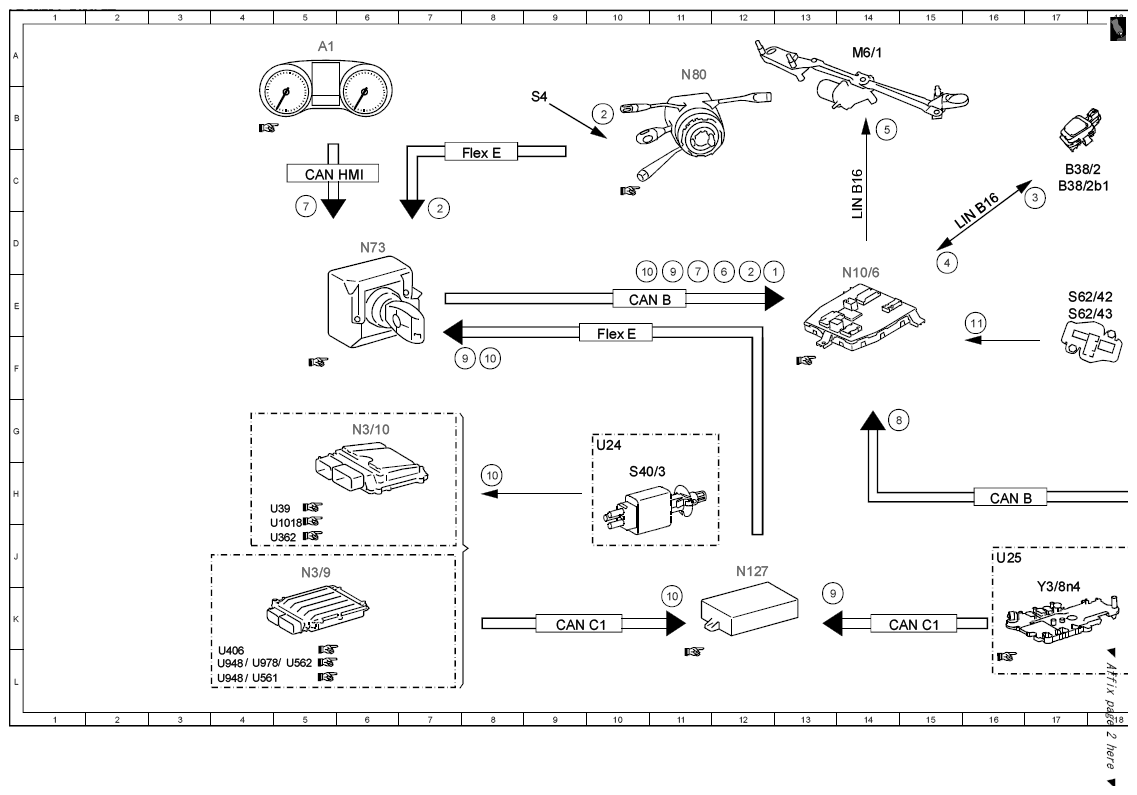

| 1 |
Circuit 15, status |
12C |
| 10 |
Clutch pedal switch, status |
7F |
| 10 |
Clutch pedal switch, status |
8H |
| 10 |
Clutch pedal switch, status |
8F |
| 10 |
Clutch pedal switch, status |
11K |
| 11 |
Engine hood contact switch, status |
16E |
| 2 |
Combination switch, status |
7C |
| 2 |
Combination switch, status |
10B |
| 2 |
Combination switch, status |
12D |
| 3 |
Wipe sensitivity, signal |
17C |
| 4 |
Wipe request, signal |
15D |
| 5 |
Wiper motor, actuation |
5C |
| 6 |
Circuit 50, status |
11D |
| 7 |
Vehicle speed, signal |
5C |
| 7 |
Vehicle speed, signal |
11D |
| 8 |
Door rotary tumbler switch, status |
14G |
| 8 |
Door rotary tumbler switch, status |
20F |
| 9 |
Gear range, status |
7F |
| 9 |
Gear range, status |
13K |
| 9 |
Gear range, status |
11D |
| A1 |
Instrument cluster |
5A |

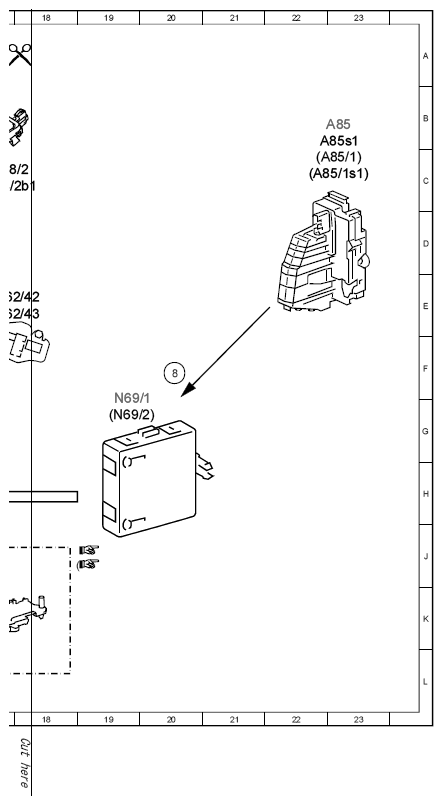

| A85 |
Left front door lock |
23B |
| A85/1 |
Right front door lock |
22C |
| A85/1s1 |
Right front door rotary tumbler switch |
22C |
| A85s1 |
Left front door rotary tumbler switch |
23B |
| B38/2 |
Rain/light sensor with additional functions |
17C |
| B38/2b1 |
Rain sensor |
17C |
| CAN B |
Interior CAN |
10E |
| CAN B |
Interior CAN |
16H |
| CAN C1 |
Drive train CAN |
15K |
| CAN C1 |
Drive train CAN |
9K |
| CAN HMI |
User interface CAN |
5C |
| Flex E |
Chassis FlexRay |
8C |
| Flex E |
Chassis FlexRay |
10F |
| LIN B16 |
Rain and light sensor LIN |
14C |
| LIN B16 |
Rain and light sensor LIN |
16D |
| M6/1 |
Wiper motor |
14A |
| N10/6 |
Front SAM control unit |
14E |
| N127 |
Drivetrain control unit |
12J |
| N3/10 |
ME-SFI [ME] control unit |
6G |
| N3/9 |
CDI control unit |
5J |
| N69/1 |
Left front door control unit |
19G |
| N69/2 |
Right front door control unit |
19G |
| N73 |
Electronic ignition switch control unit |
6D |
| N80 |
Steering column module control unit |
11A |
| S4 |
Combination switch |
9B |
| S40/3 |
Clutch pedal switch |
10H |
| S62/42 |
Right engine hood contact switch |
17E |
| S62/43 |
Left engine hood contact switch |
17E |
| U1018 |
Valid for gasoline engine 276 |
4J |
| U24 |
Valid for manual transmission |
10G |
| U25 |
Valid for automatic transmission |
16J |
| U362 |
Valid for gasoline engine 274 |
4J |
| U39 |
Valid for gasoline engine 177 |
4H |
| U406 |
Valid for diesel engine 626 |
4L |
| U561 |
Valid for Delphi system |
4L |
| U562 |
Valid for Bosch system |
5L |
| U948 |
Valid for diesel engine 651 |
4L |
| U948 |
Valid for diesel engine 651 |
4L |
| U978 |
Valid for hybrid drive |
4L |
| Y3/8n4 |
Fully integrated transmission control control unit |
17K |
